2005–2008 Ducati S4RS 1000 Service Repair Manual (P/N 97900.0211)

• Exact document coverage: A 556-page PDF containing the bilingual Italian/English Ducati workshop manual for the Monster S4RS M.Y. 2006, edition 00. It includes separate European and U.S. frame and engine identification formats; the Ducati pages do not provide a year-by-year 2005-2008 manual set.
• Engine repair depth: Covers engine removal and refitting, oil-pump and cooling-system service, timing-belt and camshaft work, desmodromic valve and rocker service, cylinder-head overhaul, piston/cylinder and connecting-rod inspection, crankcase work, dry-clutch service, primary-drive setup, and six-speed gearbox overhaul.
• DDS diagnosis and setup: Details timing-belt tension checks, throttle-position sensor reset, cylinder synchronization, engine-oil and fuel-pressure tests, cylinder-compression testing, guided diagnosis, immobilizer override, and charging-system checks.
• Chassis and brake work: Documents wheel overhaul, adjustable front-fork and rear-shock service, eccentric rear-hub and swingarm work, steering-head inspection and adjustment, frame checks, front and rear hydraulic brake repair, circuit bleeding, and final-drive service.
• Fuel, ignition, and electrical systems: Explains the Marelli 5AM2 injection/ignition system and its sensors, injectors, coils, relays, and ECU. The electrical section adds a master wiring diagram, fusebox and wire-color keys, plus 18 labeled harness-routing plates from Diagram A through Diagram T, with I and O omitted.
• Factory specifications and tools: Provides separate frame and engine torque tables, approved-fluid and capacity data, inspection and wear limits, clearances, and adjustment specifications. The tool section contains 47 illustrated service-tool listings - 40 engine and 7 frame tools - with part numbers such as crankshaft TDC lock 88713.2011, timing-belt pulley tools 88713.1791, and engine/frame support 88713.1040.

Model Fit and Intended Use

The technical data identifies a liquid-cooled, 998 cc longitudinal 90-degree L-twin with belt-driven double overhead camshafts, four desmodromic valves per cylinder, a dry multi-plate clutch, and a six-speed transmission. European identification includes full-power and France-variant fields, while the U.S. pages use their own frame and engine stamp layouts and note that the EC nameplate is not fitted. The exhaust chapter also marks its catalytic-converter operating material as EU-only.

Ducati prepared this manual for Authorized Service Centers and workshop personnel engaged in motorcycle maintenance and repair, and it states that the operations require experienced, skilled technicians. It intentionally assumes basic technical knowledge and expects access to DDS diagnostics, precision measuring equipment, supports, and model-specific tools, making it suited to an equipped professional shop or an experienced Ducati specialist rather than a beginner.

What the Procedures Actually Cover

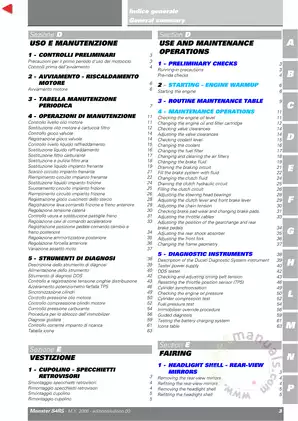

Routine maintenance is backed by workshop procedures for engine oil and filters, coolant, fuel and air filters, brake and clutch fluid, brake pads, chain adjustment, control cables, steering bearings, suspension settings, and chassis geometry. The fuel and intake chapters cover fuel-tank and pump-flange removal, throttle-body work, and airbox service. Dedicated sections address the exhaust system, charging circuit, electric starter, lighting, safety switches, instrument panel, immobilizer, and transponder.

The engine section continues through oil-cooler and water-pump service, timing-system disassembly and setup, camshaft and cylinder-head inspection, valve and rocker work, clutch and primary gears, gearbox shafts, selector forks and drum, flywheel/alternator, crankcase separation, main-bearing inspection, shaft shimming, and connecting-rod overhaul. Procedures are cross-referenced to the required tools, tightening data, sealants, inspection criteria, and final checks instead of being limited to exploded parts views.

Diagrams, Data, and Repair Cautions

Diagnostic and visual references include the master wiring schematic, frame-harness routing plates, the injection/ignition component layout, immobilizer operating-principle views, timing-system alignment illustrations, and cooling and lubrication circuit drawings. Electrical fault finding extends to charging output, starter components, safety and protection devices, and multimeter testing.

The cylinder-head side-cover instructions distinguish same-size red rocker-shaft O-rings from green coolant-passage O-rings because mixing their locations can compromise sealing. They also specify a controlled tightening sequence; using a different order can load and crack the side covers while the engine is running.

Engine removal, fuel-system testing, hydraulic brake and clutch work, and suspension or frame disassembly involve heavy parts, pressurized fluids, and safety-critical fasteners. Use the specified supports and diagnostic equipment, isolate the electrical system where directed, and follow Ducati's stated sequences and safety precautions.
