Ducati 996 Workshop Manual 1999 (P/N 914.7.026.1A)

Ducati’s workshop manual covers the 1999 996 in Europe Biposto/Monoposto, U.S.A. Monoposto, Special U.S.A. Monoposto and SPS Monoposto configurations. P/N 914.7.026.1A, printed 11/1999, documents maintenance, diagnosis and mechanical repair for these versions.

PDF Search, Bookmarks and Diagram Detail

Text access and wiring detail: PDF text search is not available. Seven embedded bookmarks open the main chapters. Small connector numbers, ECU pin references and wire-color codes in the wiring diagrams require zooming.

One printable PDF contains 268 pages in Italian and English, including the original title page and final publication-information page.

Engine Overhaul, Chassis Service and Injection Diagnosis

This content preview selects major workshop topics; additional sections cover fuel-level sender replacement and headlamp beam setting.

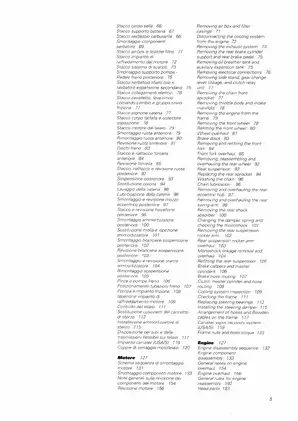

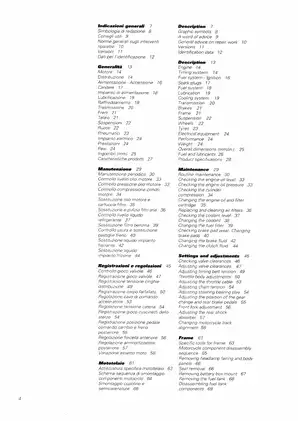

• Engine repair: Step-by-step procedures for engine removal, cylinder-head and desmodromic valvetrain work, piston/cylinder inspection, crankshaft service, crankcase assembly and final timing verification.

• Transmission and clutch: Six-speed gearbox disassembly, shaft and selector-drum shimming, gear-selector adjustment, dry-clutch inspection and version-specific clutch-pack assembly.

• Chassis and suspension: Wheel inspection, brake-disc checks, SHOWA fork overhaul, single-sided swingarm service, rear-shock and linkage inspection, steering-bearing replacement and frame checks.

• Maintenance and setup: Oil-pressure and cylinder-compression testing, valve-clearance adjustment, timing-belt tensioning, throttle-body synchronization, chain adjustment, brake/clutch fluid service and cooling-system inspection.

• Injection and ignition: Marelli I.A.W. P8 coverage for SPS models and I.A.W. 1.6M coverage for EU/S/USA versions, with separate system diagrams.

• Electrical diagnosis and reference data: Charging-system tests, starter-contactor and relay checks, switch testing, main wiring diagrams, harness-routing views, torque tables and component wear limits.

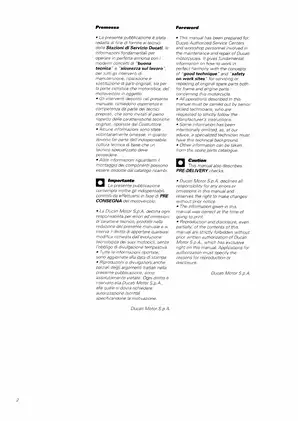

Ducati prepared this manual for Authorized Service Centers and workshop personnel, assigning the described operations to senior skilled technicians. It assumes established technical knowledge and access to suitable measuring equipment and model-specific tools; some additional assembly information belongs to the separate spare-parts catalog.

Version Differences and Fuel-System Diagnosis

Version identification: S means Special U.S.A. Monoposto in this publication. SPS-specific information includes its clutch-stack arrangement, five-spoke wheel specification, connecting-rod bearings and fasteners, and additional oil feed to the vertical piston crown. USA and S versions have separate evaporative-canister coverage.

The fuel-management chapters explain sequential timed injection, EPROM replacement and orientation, CO trimmer adjustment, throttle-position sensing, absolute-pressure input and air/coolant temperature sensing. P8 versions use separate RPM and timing pick-ups; the 1.6M system uses an engine sensor.

Diagnostic equipment: Component and harness checks repeatedly call for the MATHESIS tester. Its operating instructions are in the tester’s separate manual. Throttle-body setup also specifies a vacuum gauge and CO tester.

Assembly Diagrams and Dedicated Tools

Visual references include the motorcycle-component and engine-disassembly sequence charts, desmodromic valve-timing diagram and lubrication schematic with the SPS-only oil feed. The main electrical schematic is supported by harness-routing views for EU Biposto, EU Monoposto/S/USA and SPS layouts.

Exploded views and sequence charts connect fastener locations and component orientation with the relevant assemblies, helping technicians plan access to the part being repaired.

Tool references include belt-tension gauge 051.2.001.1A, timing-check tool 88713.0123, SHOWA fork-seal tool 88713.1096, and EPROM extractor/installer tools 88713.1097 and 88713.1140. These references help establish the equipment expected before advanced repair work begins.

Repair Limits and Assembly Cautions

Suspension and rear hub: SHOWA fork instructions exclude dismantling the damper cartridge. Rear-shock coverage addresses removal, spring replacement and inspection. For worn or damaged eccentric-hub/spindle components, the manual specifies replacement of the complete kit 819.2.039.1A, rather than individual internal parts.

Brake hydraulics: Caliper and master-cylinder coverage limits service to specified external components, pads, reservoirs, fasteners and bleeding equipment; it advises against internal overhaul. Brake- and clutch-hose routing diagrams identify positions needed to prevent interference with moving parts and impaired operation.

Engine reassembly notes warn that incorrect head-gasket orientation can destroy the engine. Incorrect cylinder-head tightening can overstretch the studs and cause serious engine damage.

Pre-delivery checks are included. Ducati advises consulting current Technical Bulletins because later procedures may supersede this print; safety-critical repair requires the equipment and expertise needed to follow the specified checks.

A Preview of Valve-Clearance and Coolant Data

For cold-engine intake-valve checks, the opening-rocker clearance is 0.05–0.18 mm. The manual distinguishes this inspection range from the tighter 0.16–0.18 mm mounting clearance used during assembly.

The fluid-capacity table lists a cooling-circuit capacity of 3.5 liters, alongside coolant specifications and the separate coolant-changing procedure.
