2003–2006 Ducati 749, 749S & 749 Dark Service Repair Manual

This Ducati workshop manual covers the 749, 749S, and 749 Dark, including Biposto and Monoposto configurations. The bilingual Italian/English document combines M.Y. 2006 edition 00 updates with retained M.Y. 2005 workshop sections.

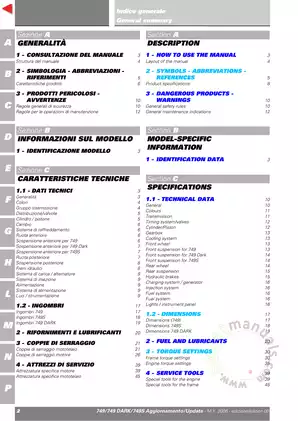

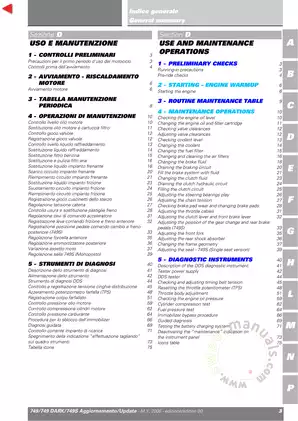

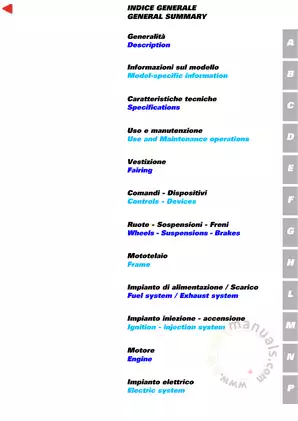

PDF Navigation and File Contents

Text search and wiring detail: The main manual text is searchable, and embedded bookmarks provide access to sections and individual procedures. Small ECU pin labels, connector numbers, and wire-color codes in the checked wiring diagrams are readable when enlarged.

One printable PDF contains 631 pages, including the added front cover, eight blank or divider pages, and the rear cover. These pages are included in the total.

Desmodromic Engine Service, DDS Diagnosis, and Chassis Repair

The selected topics below cover major workshop jobs; the manual also includes pre-delivery checks and headlight alignment information.

• Engine and valve gear: Step-by-step procedures for engine removal, desmodromic valve-clearance adjustment, timing-belt replacement, cylinder-head overhaul, and cylinder/piston inspection.
• Clutch and gearbox: Dry multi-plate clutch inspection, primary-drive checks, gearbox disassembly, selector inspection, and shaft-shimming calculations.
• Injection and DDS diagnosis: TPS resets, throttle-body synchronization, fuel-pressure testing, cylinder-compression checks, and guided diagnosis using the Ducati DDS tester.
• Suspension and brakes: Front-fork overhaul, swingarm and linkage service, steering-bearing adjustment, and hydraulic brake and clutch bleeding.
• Electrical systems: Injection-ignition diagrams, connector pinouts, wiring-routing views, charging and starting tests, and immobilizer transponder diagnosis.
• Cooling and lubrication: Radiator and coolant-pump service, thermostat inspection, oil-pump overhaul, and engine oil-pressure testing.

Written for Ducati Authorized Service Centres and workshop personnel, this manual specifies senior skilled technicians and assumes an existing technical background.

Engine Repair and Timing-Belt Work

The engine sections extend beyond routine maintenance to camshaft and rocker-arm inspection, valve-seat work, crankcase separation, connecting-rod service, and internal gearbox repair. Separate valve-reassembly instructions distinguish the 749/749 Dark from the 749S.

The DDS belt-tension procedure permits measurement with the engine installed. Its illustrated measurement locations and accompanying timing checks give technicians a defined reference for assessing belt setup rather than relying on belt feel alone.

Component-specific torque tables include tightening stages and lubricant or thread-locking requirements. The M8 crankcase screws, for example, have a staged specification rather than a single universal tightening value.

The clutch-cover installation section identifies an oil-seal damage risk at the primary-drive gear and specifies protective bush 88700.5665. This is a component-specific assembly precaution, distinct from a general instruction to use suitable tools.

Fuel Injection and Electrical Fault Tracing

The Marelli IAW 5AM2 ECU and instrument panel communicate over the CAN network. The manual explains their shared sensor information and provides injection-relay continuity checks, sensor descriptions, and instrument-panel diagnostic indications.

DDS coverage includes TPS resetting, throttle-body adjustment, fuel-pressure measurement, and service-indicator resetting. Immobilizer material addresses the transponder, antenna, programming checks, and the documented emergency override procedure.

Reference illustrations include the Injection–Ignition Diagram, Instrument Panel Connector Pinout, Position of Wiring on Frame, Electric Starting System diagram, and Cooling Circuit diagram. These connect component identification with circuit tracing and workshop tests.

Suspension, Brakes, and Model Differences

Step-by-step front-fork procedures cover disassembly, inspection, and reassembly, supported by references to Showa service tools. The fork instructions identify the outer sleeve and slider as damage-sensitive during separation.

Chassis coverage includes Brembo brake components, rear suspension linkage, final drive, and frame checks. The Sachs steering damper applies to the 749 and 749S; the Dark version is identified as having no steering damper. Adjustable steering-head geometry is treated specifically for the 749S.

Brake hydraulics, fuel handling, and suspension geometry require the training and equipment specified in the manual.

Selected Power, Lubrication, and Clutch Specifications

The engine specifications list maximum crankshaft power for the 749S as 81 kW at 10,500 rpm, separately from the test-bench power figure. The lubricant table specifies 3.4 liters for the engine sump and oil filter.

For dry-clutch assessment, the component-inspection section gives a minimum friction-plate thickness of 2.3 mm and a maximum clearance of 0.6 mm between the clutch housing and drive plate. These illustrate the manual’s component-level inspection limits.
