Ducati M900 Monster 1993–1999 Service & Repair Manual

The Ducati Monster M 900 desmodue Workshop Manual covers maintenance and repair of the 1993–1999 carbureted M900 Monster.

PDF Search, Languages and Wiring Detail

Search and diagram detail: OCR text search is available, but recognition errors affect exact matches and diagram labels. There are no embedded PDF bookmarks. Small wiring labels require zooming, and some dense connector markings remain soft when enlarged.

Text appears in English, Italian, French, German, and Spanish; some specification, maintenance, and troubleshooting pages are Italian-only.

One printable, 272-page PDF: 271 pages containing the manual, its title and end pages, and blank dividers, plus one added cover page.

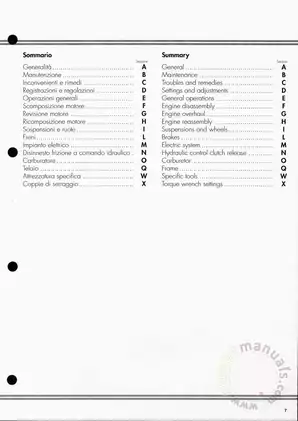

Desmodromic Engine, Carburetor and Chassis Work

These selected workshop topics outline the repair coverage. Other material includes battery-charging guidance and frame-dimension drawings.

• Engine and valve train: Step-by-step procedures for engine removal, cylinder-head work, desmodromic valve adjustment, timing-belt service, crankcase separation, and reassembly.

• Clutch and gearbox: Clutch-pack inspection and rebuilding, transmission-shaft checks, selector-drum and shift-fork inspection, shimming, and gearshift-linkage adjustment.

• Carburetor setup: Mikuni synchronization, idle-mixture adjustment, cleaning, wear inspection, circuit explanations, and troubleshooting with exhaust-gas analysis.

• Electrical diagnosis: KOKUSAN ignition testing, charging-system checks, starter-circuit diagnosis, wiring and ignition diagrams, switch tests, and instrument-lamp checks.

• Suspension and wheels: SHOWA fork and rear-shock overhaul, swingarm service, wheel-bearing replacement, cush-drive inspection, and chain-and-sprocket service.

• Brakes and steering: Brake-disc and pad inspection, brake and hydraulic-clutch bleeding, lever adjustment, steering-bearing clearance adjustment, and bearing replacement.

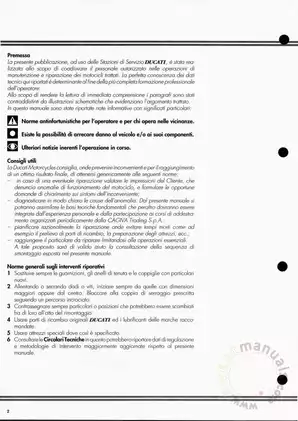

Written for authorized Ducati service personnel, the manual assumes workshop experience and access to the specified measuring equipment and special tools.

Engine Inspection and Reassembly

Internal components: The overhaul chapter covers cylinder/piston class matching, rings and pins, connecting rods and bearings, crankshaft journals, valve guides and seats, rocker arms, camshafts, timing components, the starter freewheel, and oil pump.

Reassembly connects these inspections with seals, lubrication points, locking compounds, crankshaft and gearbox end play, pickup installation, and final timing-pulley phase adjustment. The belt-driven desmodromic valve train uses two valves and four rocker arms per cylinder; the primary drive uses gears.

Component matching: Silicon-carbide-coated cylinders are replaced rather than rebored when wear or damage exceeds limits. Rocker components, shaft shims, and selector-drum washers must remain identified so their original positions and clearances can be restored.

Timing belts must remain identified by cylinder and running direction; sharp bending or contamination by oil, fuel, or solvent can permanently damage them.

Mikuni Calibration and Market Differences

The calibration chart distinguishes Mikuni BDST 38 - B129 for other versions from BDST 38 - B132 for U.S./Swiss versions. California-only air-vent arrangements and U.S. tank-breather/canister routing are treated separately, while German-market final-drive gearing differs from other versions. These differences help prevent the use of incorrect setup data or replacement parts.

Carburetor theory explains idle, transition, midrange, high-speed, starter-enrichment, accelerator-pump, and coasting-enrichener circuits. It distinguishes slide-type and constant-velocity operation; accessory-circuit examples do not mean every described circuit is fitted to every model.

Cleaning and wear checks address float valves, needles, jets, diaphragms, seals, and mixture-control components. Troubleshooting connects poor starting, hesitation, and rich or lean running with circuit behavior and CO/HC readings.

Electrical Tests and Starter Coverage

The electrical chapter addresses the generator, regulator-rectifier, fuse box, ignition coils, pickups, ignition modules, starter contactor, handlebar and key switches, stop-light and neutral switches, oil-pressure sender, side-stand switch, and instrument lamps. Component checks use resistance, continuity, voltage, and charging data.

The complete wiring diagram includes a component legend and wire-color codes, with a separate ignition-system diagram. Frame-routing plates show cable paths, clamp positions, and brake/clutch hose connections.

Starter-motor coverage provides removal and external connection checks; faults are referred to an authorized Ducati workshop.

Suspension, Brakes and Hydraulic Clutch

Rear-suspension material covers spring preload, rebound, chassis-attitude settings, shock disassembly, oil filling, and nitrogen charging. The shock-overhaul procedures require special tools.

The hydraulic-clutch diagram identifies the master cylinder and lever, pressure line, thrust piston, release rod, pressure plate, clutch basket, and bleed fitting. Wheel and suspension illustrations support bearing, cush-drive, swingarm, and fork work.

Engine removal and suspension repair require secure support. Brake and clutch fluid can damage painted surfaces and injure skin or eyes, so follow the publication’s safety notes and use appropriate workshop equipment or qualified technical assistance for critical work.

Workshop Tools and Reference Tables

Engine and chassis torque tables include thread sizes, tightening units, and specified locking compounds. Other references cover fluids and lubricants, oil-pressure checks, fits and clearances, wear limits, shaft runout and end play, valve and ignition settings, carburetor calibration, and electrical test values.

Special-tool references include clutch-drum holding wrench 88713.0146, rocker-pin extractor 88713.0120, timing-belt tensioner 88713.0748, and closing-rocker/spring assembly tool 88713.0143.

Additional tools include frame/engine support 88713.1040, timing-pulley holding wrench 88700.5644, left-cover extractor 88713.0144, and oil-filter cartridge remover 067503210. Dedicated SHOWA tools cover seal, spacer, outer-tube, and pull-bar work.

Visual references include the desmodromic valve-train schematic, lubrication-circuit diagram, carburetor cutaways and calibration charts, plus exploded and section views of clutch, gearbox, cylinder-head, suspension, brake, and starter-drive components.

Clutch and Oil-Pump Inspection Examples

Clutch wear limits: Friction-lined drive plates have a minimum thickness of 2.8 mm, and clutch springs have a minimum free length of 36.5 mm. The overhaul section pairs these limits with illustrated inspection methods.

Oil-pump clearance: Gear-to-cover clearance must not exceed 0.07 mm. The pump section also illustrates the measurement locations and addresses gear-to-body and gear-to-gear clearance.
