Ducati SportClassic Sport 1000 2006 Workshop Manual – PaulSmart Final Drive Section

Ducati’s factory workshop manual covers the SportClassic Sport 1000 i.e., M.Y. 2006, edition 00, with maintenance, diagnosis, component replacement, and major engine and chassis repair. The final-drive chapter carries PaulSmart 1000 headings; this is not a full PaulSmart 1000 LE workshop manual.

Searchable Text, Bookmarks, and Wiring Detail

Text navigation and diagram detail: The PDF has selectable, searchable text and embedded bookmarks for sections and individual procedures. Small wire-color codes and connector/pin labels in the main wiring schematic require zooming.

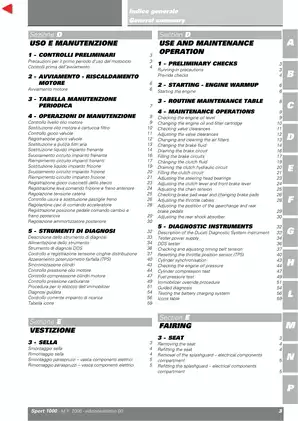

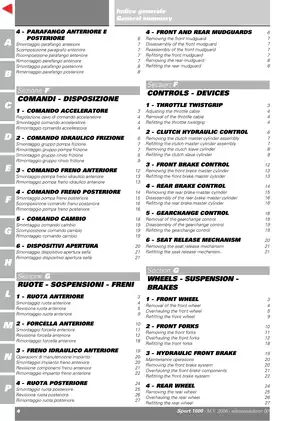

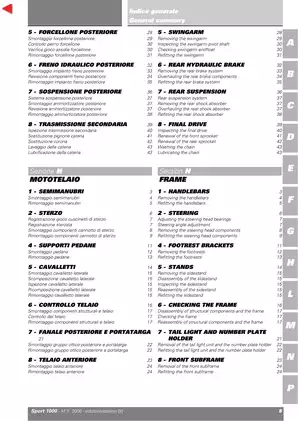

One printable, bilingual Italian/English PDF contains 510 pages, including seven blank separator/end pages. The general summary and subject index are also included in that total.

Engine Rebuilds, Chassis Service, and DDS Testing

These selected workshop topics summarize the coverage rather than reproduce the complete table of contents. Additional procedures cover the seat-release mechanism and headlight aiming.

• Engine and valve train: Engine removal and installation, oil-pump and oil-cooler service, Desmodromic clearance adjustment, belt timing, and cylinder-head repair.

• Clutch, gearbox, and crankcases: Dry-clutch repair, primary-drive backlash checks, selector and gearbox-shaft overhaul, flywheel/generator work, and crankcase disassembly and reassembly.

• Chassis and running gear: Spoked-wheel overhaul, front-fork rebuilding, brake-component inspection, swingarm endfloat checks, rear-shock spring service, steering adjustment, and frame measurement.

• Fuel and ignition: Marelli CPU 5AM2 injection-ignition operation, throttle body, injectors, stepper motor, lambda sensor, coils, and engine sensors.

• DDS diagnosis: TPS reset, cylinder synchronization, timing-belt tension measurement, compression and oil/fuel-pressure tests, guided diagnosis, fault retrieval, and immobilizer override.

• Electrical and service references: Charging and starting tests, switch and safety-interlock checks, instrument-panel procedures, wiring diagrams, torque tables, capacities, clearances, wear limits, and electrical test data.

Written for technical personnel at Ducati Authorized Service Centers, the manual assumes experienced, skilled technicians with a basic technical background.

Valve Train and Internal Engine Repair

Step-by-step procedures cover camshaft removal, valve and rocker-arm disassembly, valve-guide and seat work, and opening/closing shim selection. Cylinder inspection includes matching pistons and cylinders by size class; the coated cylinders are replaced rather than rebored.

Internal engine coverage extends to crankshaft and gearbox shimming, main bearings, and connecting-rod overhaul. Clutch troubleshooting links drag, slipping, and noise to checks of plates, springs, operating components, primary-drive play, and cush-drive wear.

The assembly notes explain how interchanged gearbox clearance washers can jam the selector and require the crankcases to be reopened. They also identify the timing layshaft’s threaded end as a potential source of oil-seal damage during crankcase assembly.

Fuel-System Service and Regional Equipment

The tank-flange section covers fuel-filter replacement and identifies the pump and pressure regulator as part of a complete replacement flange assembly. Throttle-body work is linked to the required TPS reset after replacement of the throttle body or ECU.

The catalytic-converter explanation is marked for EU models. U.S.-specific evaporative-emissions coverage includes the canister layout, hose routing, removal, and refitting.

DDS Tests and Electrical Fault Isolation

DDS coverage includes stored-fault deletion, live engine parameters, road-test recording, and active testing of the fuel pump, coils, injectors, and tachometer. Dedicated accessories support pressure, vacuum, current, compression, and belt-tension measurements.

The charging-current test distinguishes operation in which the alternator supplies the electrical loads and charges the battery from operation that draws current from the battery. Immobilizer sections cover key programming, diagnostic indications, and the coded emergency override.

Wheels, Suspension, and Hydraulic-Service Limits

Wheel procedures address bearings, rims, spokes, nipples, centering, and radial/axial runout. Rear-shock work covers spring removal, preload restoration, inspection, and unit replacement.

Brake and clutch sections include circuit draining and filling, pad replacement, and chain and control adjustments. Internal brake-caliper and hydraulic master-cylinder overhaul is restricted; the relevant sections specify permitted component renewal or complete-unit replacement.

Brake hydraulics, pressurized fuel testing, and engine lifting require the precautions and equipment specified in the manual, followed by the prescribed assembly and operational checks.

Diagrams, Removal Flowcharts, and Special Tools

Visual references include the injection/ignition sensor-and-actuator location diagram, fuel-system operating diagram, structural frame disassembly flowchart, complete-engine removal sequence, and chapter-opening exploded views. The main wiring schematic is supported by fuse and connector keys and 15 harness-routing diagrams, A–S.

The removal flowcharts and tool references support planning access to major components before disassembly. Some component-installation information is assigned to the separate spare-parts catalog, while general tester operation is assigned to the DDS user manual.

Listed diagnostic and timing tools include the DDS and cylinder vacuum kit P/N 97900.0215 and timing check tool P/N 88713.0123.

Other references include the clutch-cover assembly tool P/N 88700.5665, primary-drive gear puller P/N 88713.2092, and fork oil-seal installation tool P/N 88713.1096.

A Preview of Valve-Clearance and Routine Service Data

The intake opening-rocker table distinguishes an adjustment clearance of 0.10–0.15 mm from a checking range of 0.05–0.15 mm.

Spark-plug specifications list a 0.6–0.7 mm electrode gap for the specified Champion RA 6 HC and NGK DCPR8E plugs. The fluid table lists 3.9 liters for the engine sump and filter.
