Ducati SportClassic Sport 1000 (2006) Parts & Repair Manual Set (P/N 915.1.239.2A)

Use the catalog to identify replacement parts and the workshop manual for inspection, disassembly and reassembly. The owner's manual covers operation, routine checks and basic care.

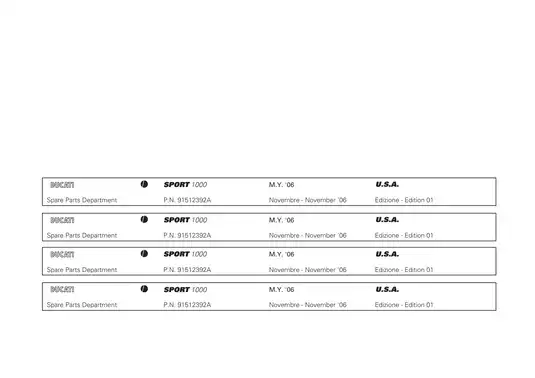

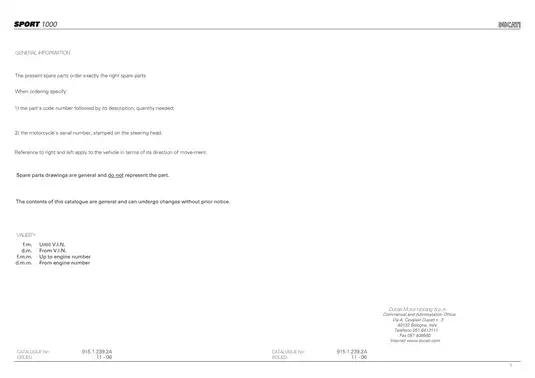

The parts catalog covers the U.S.A. model. The workshop manual distinguishes European and U.S. equipment where applicable.

Searchable Text, Bookmarks and Wiring Detail

Search and navigation: All three PDFs contain searchable text. The workshop and owner's manuals have embedded section bookmarks; the parts catalog has none. Small ECU pin labels and wire-color codes in the checked wiring diagrams require zooming for comfortable reading.

The ZIP contains three printable PDFs totaling 928 pages, including covers, contents, indexes, maintenance records and 17 blank or header-only pages.

Engine Repair, DDS Testing and Parts Identification

This selection of covered topics highlights major workshop work. Other documented subjects include headlight aiming and preparation for storage.

• Engine repair: Engine removal, cylinder-head disassembly, piston inspection, crankshaft checks and connecting-rod service.

• Valve train and timing: Opening and closing shim adjustment, camshaft inspection, timing-belt replacement, tensioner service and valve-timing checks.

• Clutch and gearbox: Dry-clutch inspection, primary-drive checks, gearbox disassembly, selector-fork inspection and shaft-shimming procedures.

• DDS diagnosis: Throttle-position sensor reset, cylinder synchronization, compression testing, fuel-pressure testing and engine oil-pressure checks.

• Chassis service: Wheel-bearing replacement, spoke and rim checks, swingarm inspection, frame checks and brake-circuit bleeding.

• Electrical troubleshooting: Wiring diagrams, charging and starting-system tests, switch continuity checks and immobilizer diagnosis and programming.

• Parts identification: Numbered assembly drawings, OEM part numbers, quantities, applicability notes and bodywork paint codes.

Ducati wrote the workshop manual for experienced technicians at authorized service centers, assuming prior technical knowledge; the owner's manual addresses operation and routine owner checks.

Engine Internals and Timing Hardware

Step-by-step procedures extend from removing the complete engine to inspecting internal components and closing the crankcases. Cylinder inspection includes bore measurements and piston size-class matching. The coated cylinders cannot be rebored, so the inspection results affect component replacement decisions.

Crankshaft and gearbox shimming sections provide calculation and measurement methods before crankcase closure. Lubrication-system illustrations show oil flow through the pump, cooler, filter and engine.

The timing chapter warns that reused self-locking pulley ring nuts can loosen and cause serious engine damage. Camshaft-removal instructions also identify interference between cams and rocker arms as a component-damage risk.

Fuel Injection and Electrical Fault Tracing

The Marelli I.A.W. 5AM2 sections explain sensor inputs, injector control and stepper-motor operation. DDS procedures require the diagnostic instrument and the relevant sensors or adapters.

The fuel-system operating diagram and injection sensor/actuator positioning diagram connect system descriptions with component locations. The main wiring diagram, connector labels, wire-color key and harness-routing views support tracing a circuit between the schematic and the motorcycle.

European catalytic-converter information and U.S. evaporative-canister procedures are identified separately. Immobilizer coverage includes programming checks and the requirements following replacement of related components.

Suspension, Wheels and Brake-Service Limits

Wheel service goes beyond removal: it covers spoke tension, radial and axial runout, rim correction and bearing replacement. Swingarm procedures include pivot-shaft inspection and endfloat checks.

Fork applicability: The Sport 1000 specification table lists a nonadjustable fork, while the overhaul chapter includes adjustable-fork details. Match those instructions to the installed fork before applying them.

Brake coverage includes pads, discs, hydraulic-circuit work and external component replacement. The manual advises against internal servicing of the calipers and master cylinders. Brake work requires the specified bleeding and final operational checks.

Catalog Drawings and Replacement-Part Selection

The catalog contains 44 numbered drawing groups, including workshop tools and DDS equipment. Vertical and horizontal cylinder-head drawings have matching parts lists with an engine-number split for the complete head assemblies.

Separate listings identify timing-belt tensioner rollers, gear selector forks, clutch and gearbox components, and fuel, exhaust, frame and electrical parts. Drawing references link small fasteners, seals and sensors to their OEM codes and quantities, supporting parts selection before repair work begins. Paint-code information covers the listed bodywork finishes.

A Preview of Gearbox and Ignition Specifications

The gearbox sections specify final shaft endfloat of 0.05–0.20 mm and selector-drum endfloat of 0.10–0.40 mm. These ranges accompany the inspection and shimming procedures, alongside separate wear limits for selector forks and drum grooves.

For ignition service, the specified electrode gap is 0.6–0.7 mm for Champion RA 6HC or NGK DCPR8E spark plugs. The manual also provides inspection criteria and installation torque data.
