Ducati Paul Smart 1000 LE (2006) Workshop Manual

514 Pages • 1 Printable PDF (EN, IT) • Download

4.3starstarstarstarstar_border(3)
$17.45 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Ducati Models Covered & Key Technical Specifications

Model: Paul Smart 1000 LE

Sub-models / Variants: Europe version (engine type 992A2, stamped ZDM 992A2), USA version (engine type WAB)

Trade Names: PaulSmart 1000, Sportclassic

Model Year: 2006

VIN Identifier: USA version — 1WABP at positions 4–8 (motorcycle type)


  • Engine: Twin-cylinder 4-stroke Otto cycle, 90° L-twin

  • Displacement: 992 cm³

  • Bore / Stroke: 94 mm / 71.5 mm

  • Compression Ratio: 10.0 ± 0.5:1

  • Max Power: 61 kW (83 CV) at 8000 rpm

  • Max Torque: 83 Nm (8.5 kgm) at 6000 rpm

  • Clutch: Dry multi-plate

  • Transmission: 6-speed with constant mesh spur gears

  • Front Suspension: 43 mm upside-down forks

  • Rear Suspension: Progressive linkage with monoshock

  • Fuel System: Marelli CPU 5AM2 electronic injection

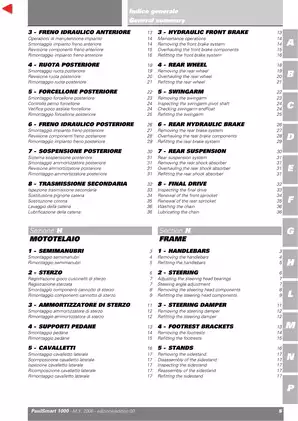

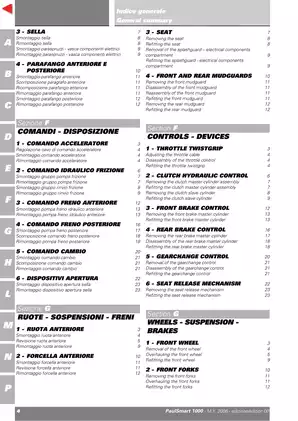

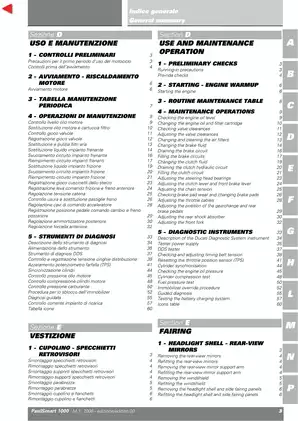

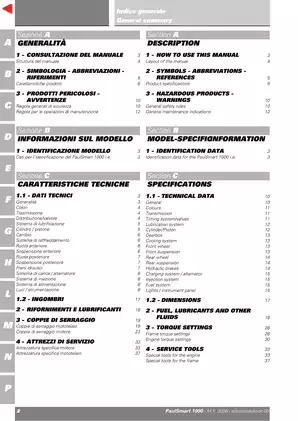

Ducati Manual Features & Selected Content Preview

This Ducati factory workshop manual covers the 2006 Paul Smart 1000 LE, identified in the manual as the PaulSmart 1000 i.e., M.Y. 2006, edition 00. It covers European and U.S. versions, including their market-specific emissions equipment.

PDF Search, Bookmarks, and Wiring Detail

Finding procedures and pin labels: Searchable text and chapter bookmarks help you locate procedures, tables, and the wiring diagram. Zoom in to read the smaller connector pin numbers and wire-color codes on the schematic.

The download is one printable, 514-page PDF in English and Italian. The total includes five otherwise blank pages that carry only a navigation arrow.


Engine Overhaul, Chassis Service, and DDS Testing

This selection of workshop procedures highlights major repairs and diagnostic checks. The manual also covers starter-motor service and immobilizer and transponder checks.

  • Engine and top end: Complete engine removal and installation, oil-pump and oil-cooler service, valve-clearance adjustment, camshaft inspection, timing-belt and tensioner work, and cylinder-head, cylinder, and piston overhaul.

  • Clutch and bottom end: Dry-clutch disassembly and inspection, clutch-cover service, primary-drive backlash checks, gearbox and selector overhaul, flywheel and generator work, crankcase separation, main-bearing inspection, and connecting-rod service.

  • Chassis and running gear: Spoke and nipple inspection, wheel-bearing replacement, fork and shock removal and installation, steering-head and swingarm checks, hydraulic brake service, frame inspection, and final-drive wear checks.

  • Ducati Diagnosis System (DDS): Stored-fault retrieval and clearing, live engine data, active component tests, throttle-position reset, cylinder synchronization, and procedures for belt tension, oil and fuel pressure, compression, and charging tests.

  • Wiring and harness routing: A two-page wiring schematic with a 47-entry component key and wire-color codes, plus fusebox identification and 14 harness-routing plates.

Ducati wrote the manual for its authorized service technicians. The procedures assume workshop experience, and some jobs require DDS access, dedicated measuring equipment, or Ducati special tools.

Market Equipment and Chassis Service

The identification section distinguishes European and U.S. engine stamp formats for parts ordering. The exhaust chapter explains the European three-way catalytic converter, and the U.S. section documents evaporative canister removal and installation.

Routine service includes oil and filter changes, air-filter service, brake and clutch fluid replacement and bleeding, brake-pad replacement, throttle-cable adjustment, chain tension, and sprocket replacement. The manual covers external Öhlins suspension settings and removal and installation. For internal fork or shock problems, it directs technicians to an authorized Öhlins service center.

Engine Reassembly and Electrical Fault Finding

Ducati’s step-by-step engine procedures start with the assembled motorcycle and cover reassembly after repair. Tool references include the timing check tool 88713.0123, cylinder-head nut wrench 88713.2676, and engine/frame support 88713.1515. The tool list also identifies fork-seal tool 88713.1096.

The cylinder-head section warns that departing from the specified tightening procedure can stretch the studs and damage the engine. For clutch-cover installation, protective sleeve 88700.5665 shields the oil seal from the primary-drive gear.

The DDS kit 97900.0215 is listed with cylinder vacuum test equipment. Road-test logging captures intermittent symptoms for later review, and active tests let technicians check the fuel pump, ignition coils, injectors, and tachometer individually. The schematic and routing plates help trace the circuit and locate its connectors on the motorcycle.

The valve timing diagram and exploded views of the front wheel and spoke set, front hydraulic brake, throttle body, and gearbox shafts complement the procedures. Reference tables cover engine and frame torque, fluids and lubricants, threadlockers and sealants, running clearances, wear limits, and electrical test values.

Use suitable motorcycle lifting equipment and follow the manual's fuel, battery, hydraulic-fluid, ventilation, and hot-engine warnings throughout the repair.

Selected Timing-Belt and Gearbox Specifications

For the DDS optical tension check, Ducati specifies 140 Hz ± 5 Hz for both cylinder timing belts. The reading applies at the designated belt span with the corresponding cylinder at top dead center on its power stroke.

The gearbox shimming procedure specifies 0.05–0.20 mm of end float for the primary and secondary shafts. The selector inspection lists a 0.4 mm service limit for fork-to-gear clearance and explains how the individual wear limits help determine which part needs replacement.
