Yamaha Grizzly 600 ATV Service & Owner’s Manual Set, 1998–2001 (P/N LIT-11616-11-02)

882 Pages • ZIP Download: 3 Printable PDFs (English, FR, ES)

5.0starstarstarstarstar(1)
$19.35 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Model: Grizzly 600

Sub-models / Variants: YFM600FWA; YFM600FWAK (4WV1 – USA, 4WV2 – Canada); YFM600FWACK (4WV3 – California); YFM600FWAL (5GT1 – USA, 5GT3 – Canada, 5GT4 – Europe, 5GT5 – Oceania); YFM600FWALC (5GT2 – California); YFM600FWA(N); YFM600FWAN(C)

Model Years: 1998–2001 (1998, 1999, 2000, 2001)


  • Engine displacement: 595 cc

  • Maximum Vehicle Load: 220 kg (485 lbs)

  • Tire pressure (Recommended/Minimum): YFM600FWA(N) and YFM600FWAN(C), cold tires: 25 kPa (3.6 psi) recommended Front and Rear; 22 kPa (3.2 psi) minimum Front and Rear

  • Fuel capacity (reserve): Approximately 3 liters

Yamaha Manual Features & Selected Content Preview

Publication Pages
YFM600FWAK Service Manual — English. P/N LIT-11616-11-02; 4WV-F8197-E0. First edition, April 1997. Covers 4WV1 U.S. and 4WV2 Canadian builds. 315
YFM600FWACK Supplementary Service Manual — English. P/N LIT-11616-11-21; 4WV-F8197-E1. First edition, July 1997. California model 4WV3. 8
YFM600FWAL/YFM600FWALC Supplementary Service Manual — English. P/N LIT-11616-12-37; 4WV-28197-E2. First edition, September 1998. Regional model codes 5GT1, 5GT2, 5GT3, 5GT4, and 5GT5. 21
YFM600FWA(N) Owner’s Manual — English, French, and Spanish. P/N 5GT-28199-62. First edition, April 2000. 375
YFM600FWAN(C) U.S. Owner’s Manual — English. P/N LIT-11626-14-06; additional cover identification 5GT-28199-12. First edition, April 2000. 161

The supplements are used with the base service manual, and the L-model supplement also references the K California supplement. The owner’s manuals provide operating guidance and preventive-maintenance information.

Repair coverage: The workshop publications address the K and L builds; the N publications cover operation and routine maintenance. A separate YFM600FWAM service supplement and the full YFM600FWA wiring-diagram foldout are not included. Individual electrical-system circuit diagrams are present.

Text Search, Bookmarks, and Circuit Detail

Search and diagram access: The multilingual owner’s manual supports text search; the service PDF and U.S. owner’s PDF do not. All three files contain embedded bookmarks, although some U.S. owner’s manual bookmarks land within a section or at the wrong section. Small wiring labels require zooming, and some connector and wire-color markings remain difficult to distinguish in the shaded circuit diagrams.

The ZIP contains three printable PDFs totaling 882 pages. The service PDF combines the three workshop publications listed above with two compilation covers, identified as LIT-11616-FW-00, for 346 pages. The total includes publication covers, three blank pages in the multilingual owner’s manual, the U.S. safety card, and additional information pages.


Engine, Shaft-Drive, and Electrical Service

These are selected contents, rather than a complete table of contents. Other subjects include headlight adjustment and sealed-battery charging checks.

  • Engine repair: Engine removal, cylinder-head and valve service, piston inspection, crankcase separation, and crankshaft, balancer, and transmission inspection and installation.

  • V-belt and clutch service: Primary and secondary sheave disassembly and assembly, belt inspection and replacement, centrifugal-clutch inspection, and one-way clutch checks.

  • Carburetor repair: Removal, teardown, diaphragm and jet inspection, needle-valve checks, reassembly, float-height measurement, and fuel-level adjustment.

  • Shaft-drive service: CV joints, universal joints, front differential, rear axle, final drive, drive shafts, bearings, shim selection, gear-lash adjustment, and operating checks.

  • Brake repair: Front master-cylinder and caliper disassembly and assembly, pad replacement, hydraulic bleeding, and rear drum-brake inspection and service.

  • Steering and suspension: Steering-stem, knuckle, tie-rod, wheel-hub, front-arm, shock-absorber, and swingarm inspection, with bearing service and toe-in adjustment.

  • Electrical diagnosis: Ignition, electric starting, charging, lighting, signal, oil-cooler fan, and 2WD/4WD troubleshooting, supported by continuity tests and system-specific circuit diagrams.

The service publications were written primarily for Yamaha dealers and qualified mechanics with basic machine-repair knowledge; the owner’s manuals cover operator inspections, preventive maintenance, and minor service.

Engine Procedures and Factory Tools

The engine material includes step-by-step procedures for camshaft installation and timing alignment, valve-guide service, recoil-starter assembly, and CDI-magneto removal and installation. Oil-pump inspection covers the rotors, housings, strainer, and relief valve.

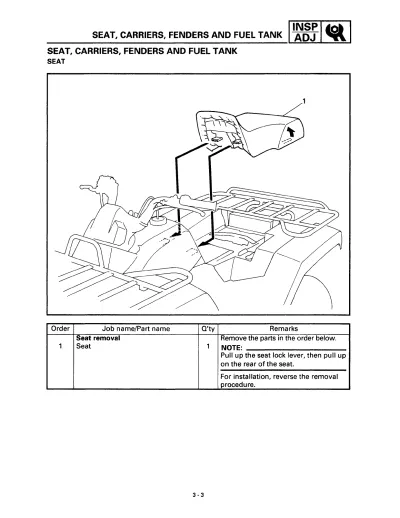

Exploded views and job charts accompany removal and disassembly work. Related tables provide component-specific torque data, fluid and lubricant requirements, clearances, wear limits, carburetor settings, and electrical test specifications.

The tool listings distinguish North American numbers from 90890-series numbers. Examples include the YM-04134 / 90890-04134 sheave spring compressor, YU-01135-A / 90890-01135 crankcase separating tool, and YM-01231 / 90890-01231 gear-lash measurement tool.

Driveline and electrical work also reference the YM-04062 / 90890-04062 universal-joint holder and YU-03112 / 90890-03112 pocket tester.

Driveline Setup and Brake-Service Limits

Power-flow explanations connect the centrifugal clutch, one-way clutch, sheaves, transmission, and On-Command 4WD gear motor. The shaft-drive troubleshooting chart relates operating symptoms to possible bearing, gear-lash, and gear-tooth faults.

Middle-drive shim-selection drawings and final-drive gear-positioning illustrations support component replacement and setup. The internal differential gear unit is treated as a factory-assembled component and is not intended to be split.

Yamaha warns that insufficient gear lash can destroy gear teeth. The front-brake instructions also identify solvent cleaning as a cause of swollen or distorted internal seals.

Electrical Tests and Regional Updates

Circuit-based tests support fault isolation among switches, relays, motors, and wiring before a repair is selected. The electric-starting section explains the neutral and rear-brake interlocks, while the cooling and 2WD/4WD sections cover the fan controls and gear motor.

The L-model supplement supplies revised engine, chassis, and electrical data, lubrication diagrams, and cable-routing views. The K California supplement provides model-specific carburetor data. These updates keep regional specifications distinct from the base manual.

Owner Controls and Routine Maintenance

The owner’s manuals cover machine identification, main and handlebar controls, drive selection, recoil starting, fuel and choke operation, pre-operation checks, loading, and riding techniques. Maintenance material includes engine and gear-oil changes, air-filter care, spark-plug inspection, brake checks, troubleshooting, cleaning, and storage.

The multilingual edition has 11 numbered chapters. The U.S. edition also contains spark-arrester cleaning, noise-regulation information, a maintenance record, and the original limited-warranty text.

The owner’s manuals direct valve-clearance adjustment and complete brake-fluid replacement to qualified Yamaha service personnel. Spring-loaded sheaves, fuel-system work, hydraulic brakes, and shaft-drive setup require the specified precautions and tooling; qualified service help is appropriate when the necessary knowledge or equipment is unavailable.

A Preview of Valve and Middle-Gear Settings

For the K-model engine, the valve-adjustment section specifies cold clearances of 0.05–0.10 mm for the intake valves and 0.12–0.17 mm for the exhaust valves.

The middle-gear section gives a gear-lash range of 0.1–0.3 mm alongside its measurement illustrations and shim-selection information. These examples show the adjustment detail available beyond the general machine specifications.
