Honda XBR500 Shop Manual 1985 (P/N 67MK400)

Honda’s 1985 factory XBR500 Shop Manual, P/N 67MK400, covers ED, E, F, G-I/G-II, H, SW, and SD market types. Service procedures are in English, with French and German section headings and selected illustration legends.

PDF Access and Diagram Detail

Search and diagram reading: PDF text search and embedded bookmarks are not available. Small wire-color codes and circuit labels in the ignition, charging, and starter schematics require zooming for comfortable reading.

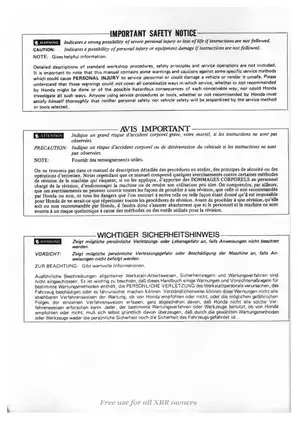

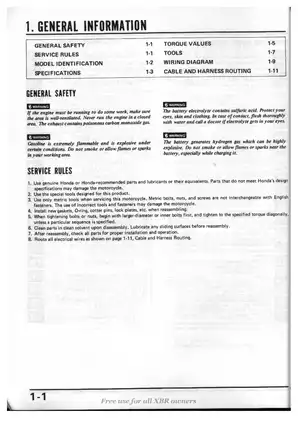

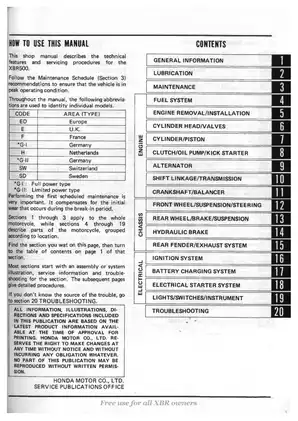

One printable PDF contains 221 pages, including the original cover, contents page, and safety notice.

Engine Overhaul, Chassis Service, and Electrical Tests

The following selected coverage highlights the main repair areas. Other topics include headlight aiming and exhaust-system removal and installation.

• Engine repair: Engine removal and installation, cylinder-head and valve teardown, cam timing, valve-guide and seat work, and cylinder/piston inspection and assembly.

• Lubrication and drivetrain: Dry-sump service, dual oil-pump inspection, clutch and kick-starter repair, crankcase separation, transmission repair, and crankshaft/balancer service.

• Wheels and suspension: Wheel-bearing replacement and balancing, fork overhaul, steering-head bearing replacement and preload testing, rear-shock spring service, and swingarm bushing replacement.

• Brake repair: Front-brake fluid replacement, bleeding, master-cylinder and caliper overhaul, plus rear drum-brake inspection and shoe replacement.

• Electrical diagnosis: CDI, charging-system, and starter tests, together with switch, instrument, and brake/taillight sensor checks.

• Factory references: Exploded views, circuit schematics, troubleshooting charts, torque and capacity tables, service limits, clearances, and special-tool numbers.

This manual is best suited to technicians and experienced owners with an equipped workshop. Honda omits detailed explanations of standard workshop procedures, and major operations require special tools, electrical testers, and precision measuring equipment.

Market Types and Application Differences

G-I identifies the German full-power type; G-II identifies the German limited-power type and has a different final-reduction specification. The specifications also distinguish the SW version’s overall length and flag cold-climate spark-plug exceptions for G-I and H.

Frame, engine, carburetor, and color-label locations are illustrated for identification.

Maintenance and Fuel-System Service

Routine work covers the maintenance schedule, oil and filter service, crankcase oil screen and tank strainer cleaning, valve-clearance and decompressor adjustment, drive-chain care, and compression diagnosis.

Carburetor procedures extend to vacuum-piston and diaphragm inspection, air cut-off valve service, float-level inspection, and pilot-screw adjustment. Air-cleaner case removal is also described.

Top-End and Internal Engine Repair

Step-by-step procedures cover cylinder-head disassembly, valve-guide replacement, seat refacing, and camshaft installation. Inspection data address rocker and sub-rocker wear, cam-chain tensioner operation, piston rings, cylinder condition, and running clearances.

Internal repair coverage includes clutch inspection, both oil-pump rotors, kick-starter indexing, alternator/flywheel removal, transmission gears and shift forks, crankshaft bearing replacement, and balancer timing.

Transmission and crankshaft/balancer repair require engine removal and crankcase separation. Alternator, starter-motor, and clutch/oil-pump service are covered as in-frame operations. These distinctions help establish how much disassembly a planned repair involves.

Suspension, Steering, and Brakes

Fork procedures reach seal and bushing replacement and final fluid setup. Steering work includes bearing-race replacement and preload testing; rear-chassis procedures cover shock spring removal and inspection, swingarm pivot bushings, and brake-panel assembly.

Front hydraulic-brake coverage includes pad and disc inspection, master-cylinder bore and piston measurements, and caliper overhaul. Tubeless tire repair is referred to a separate Tubeless Tire Manual, which is not included.

Electrical Testing and Troubleshooting

Electrical procedures test the ignition coil, exciter coil, pulse generator, stator, regulator/rectifier, charging output, starter clutch and motor, relay, and diode. CDI testing specifies suitable testers because an unsuitable meter can produce misleading readings.

Visual references include the cylinder-head/valve exploded view, transmission gear-stack layout, front-wheel/steering assembly view, ignition and charging schematics, and brake/taillight warning-system flowchart. Symptom charts address starting difficulty, power loss, poor running, and handling problems.

Wiring coverage: The general wiring diagram and cable/harness-routing pages listed in Section 1 are absent from this PDF; it proceeds from printed page 1-8 to Section 2. System-specific electrical schematics remain included.

Special Tools and Repair Cautions

Named Honda tools include tensioner setting holder 07973-MG30002, crankshaft puller 07935-KF00001, steering-stem socket 07916-3710100, and shock-absorber compressor 07959-3290001.

Overtightening the carburetor pilot screw can damage its seat. Steam cleaning, pressure washing, and solvent-based aerosol chain lubricants can damage the drive-chain O-rings.

Support the motorcycle and engine securely during wheel, suspension, or engine removal, and complete the specified brake and operational checks before returning the motorcycle to service.

A Preview of Carburetor and Steering Specifications

The carburetor section specifies a float level of 18.5 mm, measured with the float tang just contacting the float valve.

Steering-head bearing preload is specified as 1.1–1.7 kg for turns in either direction, measured with a spring balance at the fork tube and without cable or harness interference. This is a preload check, separate from the bearing-adjustment nut’s tightening specification.
