1993–1997 Yamaha Venture 480 VT480T, VT480GTT, VT480TFT Snowmobile Factory Service Manual (P/N 8HN-21710-00–00)

This Yamaha factory service manual covers the 1993–1997 Venture 480 snowmobiles identified as VT480T, VT480GTT, and VT480TFT. It combines periodic inspection and tuning with engine, drivetrain, chassis, and electrical repair procedures.

• Engine overhaul: Engine removal, cylinder and piston inspection, crankshaft checks, crankcase assembly, cooling-fan service, and recoil-starter repair.

• Fuel and lubrication: Twin-carburetor disassembly and synchronization, fuel-pump testing, temperature and altitude tuning, and Yamaha Autolube pump adjustment and bleeding.

• Clutches and reverse drive: Primary and secondary sheave overhaul, drive-chain housing service, jackshaft inspection, dog-clutch checks, and shift-rod adjustment.

• Steering, suspension, and brakes: Steering-column service, front-strut inspection, variant-specific slide rail suspension procedures, track alignment, and brake-caliper repair.

• Electrical troubleshooting: Starter-motor overhaul, charging and ignition tests, T.O.R.S. checks, lighting and warmer diagnosis, wiring diagrams, and cable-routing drawings.

The procedures are suited to technicians familiar with two-stroke engine service and equipped with the pullers, clutch fixtures, and electrical test equipment specified in the manual.

Engine Overhaul and Autolube Service

Engine overhaul extends through cylinder-head, piston, ring, crankshaft, and crankcase inspection, followed by assembly and remounting. The inspection sections include cylinder measurement, piston sizing, connecting-rod clearances, and bearing checks.

Cooling-fan and recoil-starter procedures cover the belt, pulleys, bearings, starter rope, and return mechanism. Periodic maintenance tables also address fuel and engine-oil lines.

Oil-pump service: Yamaha Autolube coverage includes pump removal, bleeding, cable adjustment, and stroke setting. The manual specifically prohibits internal disassembly of the precision oil pump.

Carburetor Repair and High-Altitude Tuning

Twin Mikuni B38-32 carburetors are covered from disassembly and float inspection to synchronization. The Main Jet Selection Chart, Fuel Flow Chart, and High Altitude Tuning flowchart relate carburetion to operating temperature and elevation.

Troubleshooting tables connect hard starting, weak acceleration, and overflow with specific inspection points. Their fuel-line, pump, jet, and float checks help narrow a fuel-system fault before replacement parts are selected.

Clutch Service and Reverse Gear Train

Primary and secondary clutch procedures include bushing inspection, weight and spring selection, sheave alignment, and clearance adjustment. Gearing selection tables distinguish sprocket and chain combinations for different operating conditions.

The reverse gear train section explains forward and reverse power flow through the dog clutch. Jackshaft inspection and shift-rod adjustment accompany the component procedures, while primary sheave exploded views show assembly relationships. Component torque data are provided in Nm and ft-lb.

Spider service: The manual identifies the spider’s left-hand thread, thread-locking compound, and dedicated separator fixtures. It warns that inadequate support under high torque can crack the sheaves or spider.

Slide Rail Suspension, Steering, and Brakes

Separate slide rail suspension sections cover VT480/TF and VT480GT assemblies. Their drawings and procedures distinguish the shock, pivot-arm, spring, and wheel arrangements rather than treating every version as the same suspension.

Drive-track service includes idler-wheel bearings, front-axle inspection, sprocket positioning, tension, and alignment. Steering procedures address ski alignment and handlebar position; brake coverage extends to caliper disassembly and the adjusting mechanism.

Track and suspension inspections require secure support and clearance around the moving track.

Electrical Fault Tracing and Wiring

Electrical troubleshooting charts address no-crank, no-spark, charging, lighting, reverse-buzzer, and warmer faults. Starter-motor inspection covers the brushes, commutator, and armature.

Separate VT480/TF and VT480GT wiring diagrams show the electrical differences between these versions. T.O.R.S. (Throttle Override System) coverage explains how the throttle switch, carburetor switch, and CDI unit interact. Cable-routing drawings identify harness and hose paths.

A Preview of Piston Clearance and Float-Height Data

The engine and carburetor sections provide these examples from the manual’s wider inspection and adjustment data.

Piston-to-cylinder clearance is specified at 0.045–0.050 mm, with a 0.1 mm limit.

Carburetor float height is 9.5–13.5 mm, measured without the float-chamber gasket, with the carburetor inclined 60–70° and the float tang resting on the needle valve without compressing it.

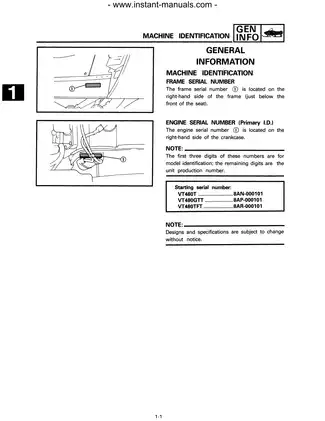

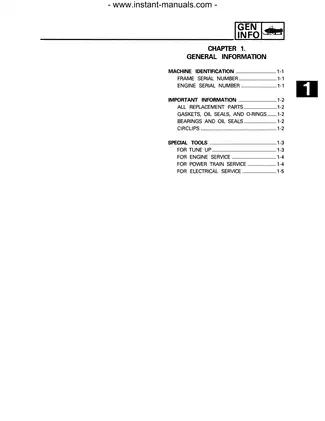

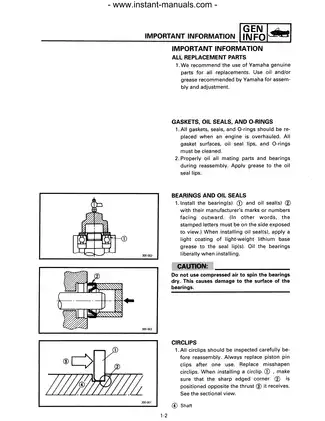

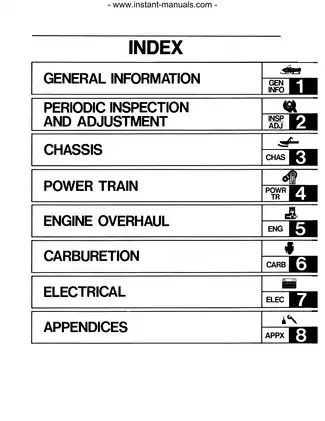

PDF Bookmarks and Wiring-Diagram Detail

Section access and wiring labels: Text search is unavailable. Embedded bookmarks cover chapters and major service sections. Small wire-color labels in the closing wiring diagrams require zooming.

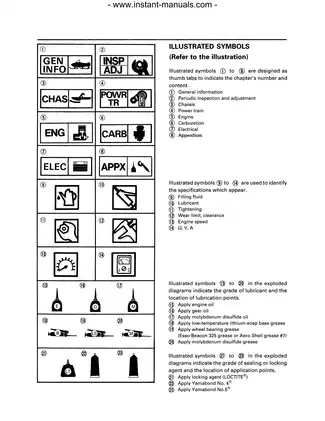

One printable English-language PDF contains 258 pages, including the illustrated-symbols guide, index, three memo pages, and two closing wiring-diagram pages.
