1993-2000 Yamaha VK540E Snowmobile Service Manual

Expertly detailed 1993-2000 Yamaha VK540E service procedures for essential maintenance and troubleshooting. Covers everything from general information to detailed engine overhaul. Publication Part # 1993-2000 Yamaha VK540E Snowmobile Service Manual.

4.6starstarstarstarstar_half(5)
visibility Preview Available

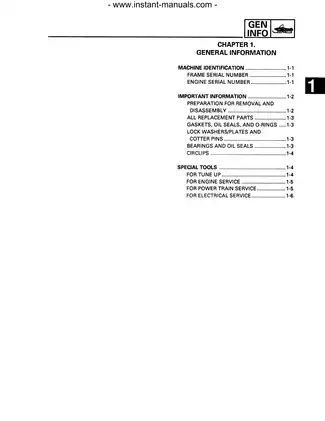

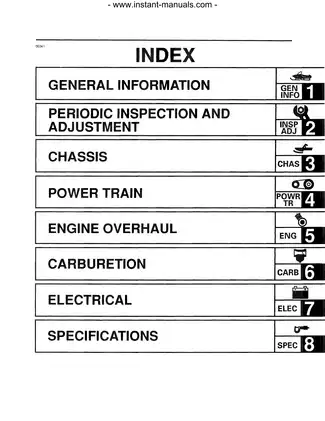

Yamaha 1993-2000 Yamaha VK540E Snowmobile Service Manual manual page preview - page 1 of 194

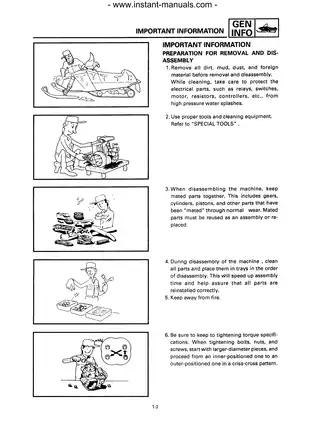

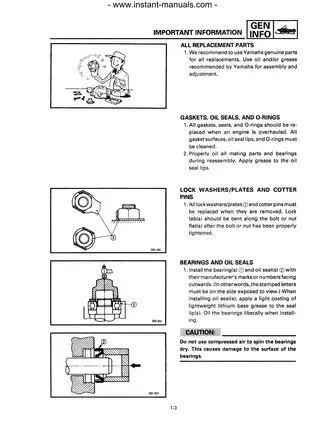

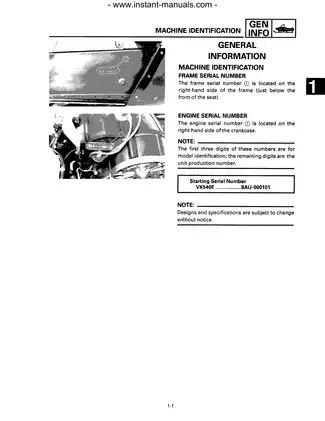

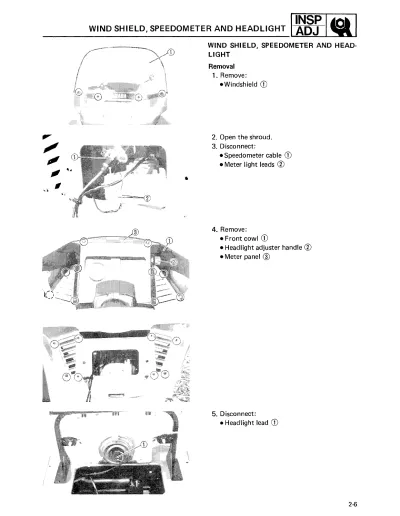

Sample pages from the 1993-2000 Yamaha VK540E Snowmobile Service Manual manual

Yamaha 1993-2000 Yamaha VK540E Snowmobile Service Manual manual preview page 1 - thumbnail
Yamaha 1993-2000 Yamaha VK540E Snowmobile Service Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$17.90 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha VK540E
Build Years: 1993–2000
Serial Numbers: VK540E 8AU-000101 and later
Technical Data:

  • Spark plug gap: 0.7–0.8 mm (0.028–0.032 in)
  • Spark plug torque: 28 Nm (20 ft-lb)
  • Engine idle speed: 1,100–1,300 r/min
  • Fan belt deflection: 8 mm (0.31 in) at 4–6 kg (8.8–13.2 lb) force
  • Primary clutch engagement speed: Approx 2,600 r/min
  • Drive chain oil capacity: 350 cm³ (12.3 Imp oz, 11.8 US oz)
  • Ski stance: 960 mm (37.8 in)
  • Slide runner wear limit: 10 mm (0.39 in)
  • Brake pad wear limit: 9.5 mm (0.37 in)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
25895 / Joshua Robinson
File Size:
17.51 MB
File Type:
PDF
Language:
English
Pages:
194
Printable:
Yes
Category:
Snowmobile
Last updated / verified
Sep 19, 2025

Yamaha Manual Features & Content Preview

1993–2000 Yamaha VK540E Snowmobile Technical Scope

  • Covers 1993–2000 Yamaha VK540E snowmobiles, providing detailed specifications for drivetrain, steering, suspension, and engine management systems
  • Official OEM publication dated from the 1993–2000 production cycle, serving as the factory reference for unit maintenance
  • Contains 97 detailed mechanical diagrams, 5 multi-stage tightening tables, and 14 electrical component troubleshooting references
  • File delivered as a direct download the moment payment clears
  • Laid out for standard letter and A4 printing
  • Indexed PDF search covers every chapter and appendix
  • This reference provides the factory-authorized settings for the VK540E drive system, including primary and secondary clutch calibration data for varying altitudes

Manual Content Breakdown

This Yamaha VK540E factory manual documents the full service and maintenance requirements for the 1993–2000 snowmobile series. The content is organized by major vehicle systems, beginning with general information such as frame and engine identification, special tools lists, and preparation guidelines for disassembly. Subsequent sections cover periodic inspection and adjustment procedures, steering system alignment, and front suspension maintenance. The publication also details the power train assembly, featuring comprehensive chapters on the primary and secondary clutches, drive chain housing, jackshaft, and track suspension tuning.

Technical Data Preview

Engine idle speed for the Yamaha VK540E is documented at 1,100–1,300 r/min in the specification section. Spark plug torque for the 1993–2000 Yamaha VK540E is specified at 28 Nm (20 ft-lb). The rear axle nut torque value is listed at 75 Nm (54 ft-lb) in the power train chapter. Detailed specifications include drive belt wear thresholds, brake pad thickness limits, and track tension deflection settings. The manual also contains high-altitude tuning charts for the carburetor, listing pilot and main jet variations based on temperature and elevation. how factory workshop documentation is structured provides further context for these professional-level specifications.

An official 194-page Yamaha OEM workshop manual covering the 1993–2000 VK540E, documenting engine, chassis, suspension, electrical, and drive train specifications for the 8AU-series build.

Document Reference: 1993-2000 Yamaha VK540E Snowmobile Service Manual

Manual FAQ, Purchase & Download Details

Is there documentation in the electrical section regarding system components, including the use of testers and checking procedures? keyboard_arrow_down

Electrical service chapter includes information on necessary instruments such as pocket testers and electro testers for checking system components.

Can I verify the document version and page count before making a purchase? keyboard_arrow_down

1993-2000 Yamaha VK540E service manual is delivered as a 194-page PDF document. This service document covers the full scope of the series as outlined in the provided technical manual data.

Does the manual contain exploded views or assembly diagrams for components like the primary sheave or engine parts? keyboard_arrow_down

Document contains various diagrams and illustrations related to assembly and component breakdown to assist in identifying parts for the VK540E model.
