Mazda RX-2 & RX-3 Repair Manual 1971–1977 (Clymer)

262 Pages • ZIP Download: 15 Printable PDFs (English)

4.6starstarstarstarstar_half(5)
$18.19 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mazda Models Covered & Key Technical Specifications

Models: RX-2, RX-3

Sub-models / Variants: Coupe, Sedan, Wagon

Model Years: 1971–1977 (1971, 1972, 1973, 1974, 1975, 1976, 1977)


  • Engine: 2-rotor Wankel rotary

  • Engine displacement: 70 cu. in. (1146 cc)

  • Transmission types: 4-speed manual, 5-speed manual (1976+), 3-speed automatic — 3N71B (RX-2/RX-3 through 1973), R3A (RX-2/RX-3, 1974)

  • Fuel-pump serial break (RX-2): Through car No. 96266: contact-point fuel pump; later RX-2s: solid-state electric pump

  • Suspension (Front): McPherson strut independent

  • Suspension (RX-2 Rear): 4 trailing links with lateral rod, coil spring

  • Suspension (RX-3 Rear): Leaf springs, staggered tube shocks

  • Brakes (Front): Single-piston disc

  • Brakes (Rear): Leading/trailing shoe drum

  • Steering: Recirculating ball (17:1–19:1 ratio)

Mazda Manual Features & Selected Content Preview

This Clymer repair manual covers U.S.-market 1971–1974 Mazda RX-2 and 1971–1977 RX-3 models. The main chapters apply through 1974; the integrated 1975–1977 RX-3 supplement records later changes.

PDF Files, Navigation, and Wiring Detail

Search and page viewing: The PDFs have no text-search function or embedded bookmarks. Small wiring labels require zooming. PDF page 8 of the 1975–1977 supplement is upside down and requires rotation for reading.

The ZIP download contains one English-language, printable manual divided into 15 PDF files totaling 262 pages. Included are the 12-page wiring appendix, four unnumbered notes pages, one blank page, and one duplicated maintenance page.


Rotary Repair, Drivetrain Service, and Electrical Diagnosis

The following is a selection of covered work. Additional topics include tire-wear analysis and wheel balancing.

  • Maintenance and troubleshooting: Service schedules, tune-up procedures, and symptom-based checks for starting, charging, engine performance, clutch operation, brakes, and steering.

  • Rotary-engine repair: Step-by-step engine removal, rotor-housing teardown, seal and bearing inspection, eccentric-shaft work, oil-pump service, end-play adjustment, and reassembly.

  • Fuel, exhaust, and emissions: Carburetor overhaul, fuel-pump checks, air injection, thermal-reactor service, deceleration controls, evaporative emissions, and later EGR testing.

  • Clutch and drivetrain: Hydraulic-cylinder overhaul and bleeding, internal 4-speed manual transmission repair, and on-car testing and adjustment for the 3-speed automatic.

  • Cooling system: Flushing, radiator removal, thermostat testing, viscous-fan checks, and water-pump disassembly and reassembly.

  • Brakes and chassis: Disc and drum service, caliper and wheel-cylinder overhaul, vacuum-booster repair, drive-shaft and axle service, suspension, wheel bearings, and steering.

  • Electrical documentation: Model-specific wiring diagrams, starter and charging tests, distributor and ignition-control service, plus lighting, instrument, horn, and wiper information.

This manual is suited to experienced DIY owners and independent mechanics comfortable with metric tools and precision measuring equipment. It distinguishes work suitable for a well-equipped home shop from operations better assigned to a Mazda dealer or specialist.

Rotor Seals, Bearings, and Workshop Tools

Engine coverage includes the flywheel or torque-converter drive plate, stationary and rotor bearings, apex, side, corner, and oil seals, and corner-seal bore reaming. Wear limits, clearances, and tightening torques accompany the mechanical procedures; other reference tables provide capacities, transmission pressure data, and electrical test values.

Illustrated Mazda tools include flywheel puller 49 0823 300, main-bearing drift 49 0813 235, corner-seal bore gauge 49 0839 165, and rotor-bearing expander 49 0813 245. Tool illustrations and suggested substitutes help you plan which operations to perform in your shop and which require specialist equipment.

Front and rear rotor housings are not interchangeable, and uneven tension-bolt loading can warp them. An incorrectly positioned front needle-bearing spacer can destroy the bearings at startup.

Carburetor and Emission-Control Changes

Carburetor exploded views and repair procedures distinguish the 1971, 1972, and 1973–1974 configurations. Fuel-system information separates early contact-point RX-2 pumps from the solid-state pumps used on later RX-2s and all RX-3s.

The supplement adds year-specific carburetor adjustments, separate 1975–1976 and 1977 timing procedures, and ignition-control tests for three sets of breaker points versus the later two-set arrangement. It also covers the 1977 California automatic-transmission EGR system. The 1977 carburetor’s limiter-capped mixture adjustment is assigned to a Mazda dealer or mechanic familiar with the rotary engine.

Transmission and Later Hydraulic Components

The automatic section distinguishes the 3N71B used through 1973 from the 1974 R3A. It covers fluid checks, linkage and inhibitor-switch adjustment, kickdown checks, removal, and installation, with line- and governor-pressure reference tables. Internal automatic transmission overhaul is outside its scope.

The 5-speed supplement covers removal and installation using the 4-speed procedure, without internal 5-speed overhaul instructions. Later updates also identify the nonadjustable clutch release-cylinder pushrod and redesigned brake master cylinder.

Brake Hydraulics, Suspension, and Circuit Diagrams

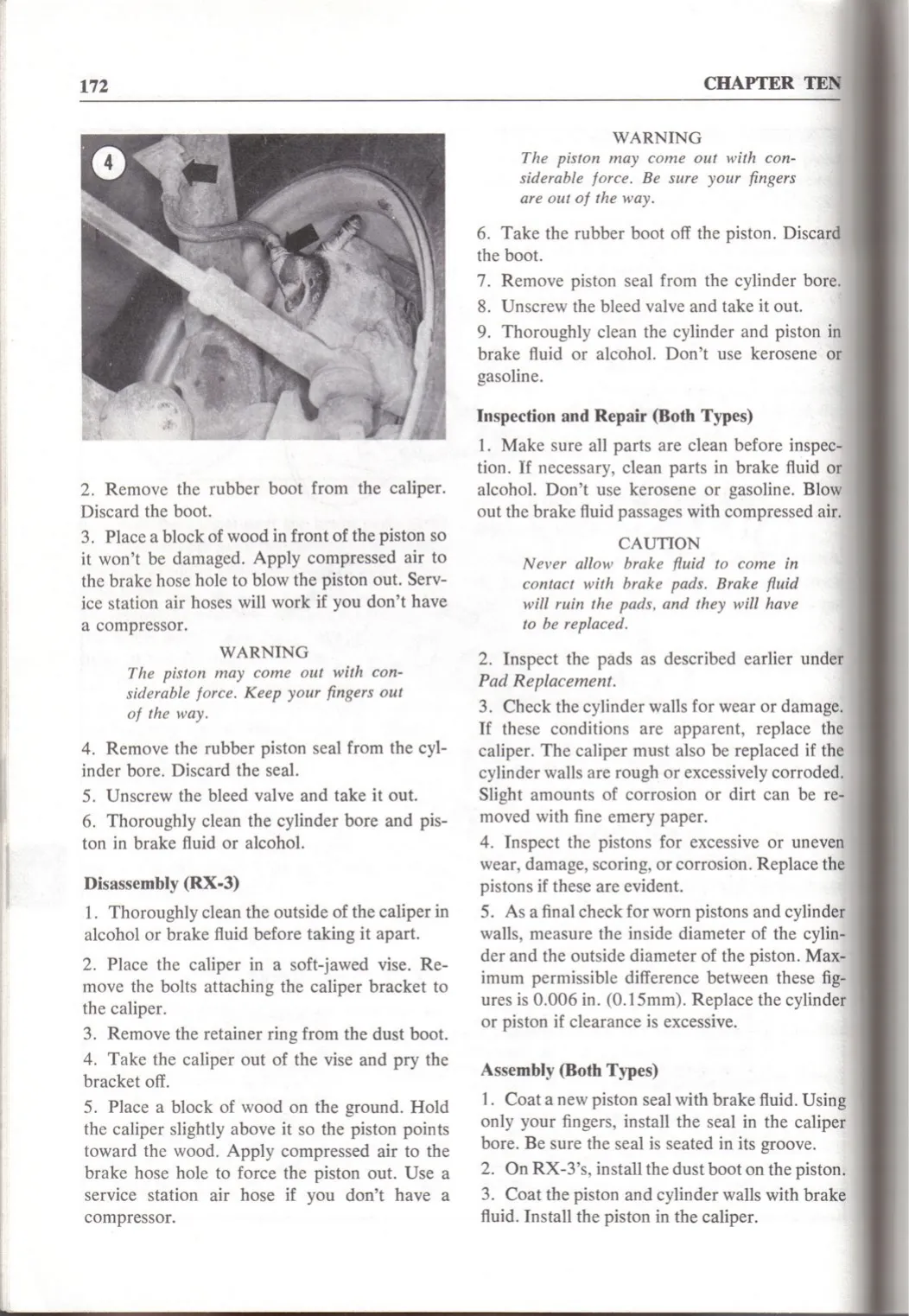

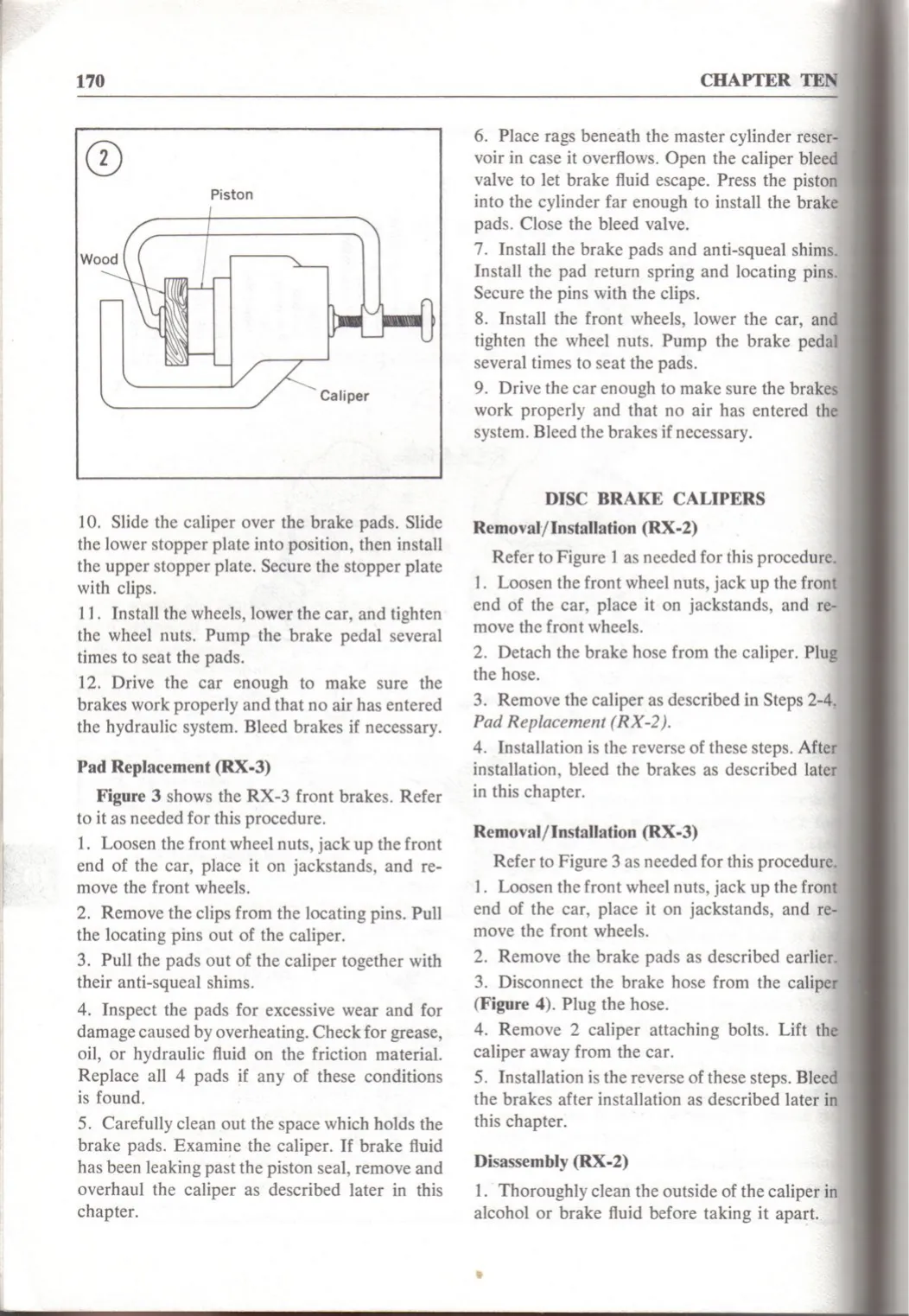

Brake procedures include pad and shoe replacement, disc and drum inspection, master-cylinder and vacuum-booster service, bleeding, pedal adjustment, and warning-switch diagnosis. Separate RX-2/RX-3 hydraulic layouts show the circuit arrangements.

Chassis coverage adds rear-axle removal and bearing replacement, differential inspection, the different rear-suspension layouts, McPherson-strut service, ball joints, stabilizers, steering gear and linkage, and alignment checks. Internal differential repair is reserved for a properly equipped professional shop.

Illustrations include the engine operating-principle sequence, front and rear rotor/end-housing exploded views, main and metering oil-pump assemblies, and year-specific carburetor assemblies. Wiring sheets cover 1972–1973 RX-2/RX-3 and 1974–1977 RX-3 models. The 1977 sheets separate charging/starting/fuel-pump, emission/kickdown/ignition, meters and warning lights, wipers, exterior lighting and horn, and air-conditioning/heater/radio circuits.

Brake, suspension, and driveline work requires secure vehicle support and appropriate lifting equipment. The front strut’s center nut must not be released while the coil spring is uncontrolled.

Examples of Fuel-Pump Test and Tune-Up Data

For the main chapters’ 1971–1974 coverage, fuel-pressure checks with the engine running at varying speeds specify 2.8–4.3 psi for contact-point pumps and 2.8–3.6 psi for solid-state pumps.

The tune-up section lists a standard spark-plug gap of 0.024 in. (0.6 mm) for the specified Mazda rotary double-electrode plugs.
