Mazda MPV 2000–2002 Service Manual Collection

The mechanical articles, component tests, and wiring sheets work together as references for fault tracing and repair planning. Shared Mazda articles contain model-specific branches; use the MPV procedures and specifications.

Coverage limits: This is a system-by-system article collection, not a complete single-volume factory manual. The main vehicle headings identify 2001 MPV LX and ES applications, with selected 2000–01 coverage and separate 2002 MPV shift-interlock wiring. The two security/door-lock exports overlap.

Referenced Basic Diagnostic Procedures, Self-Diagnostics–MPV, and general Engine Overhaul Procedures articles are not supplied.

PDF Search, Wiring Detail, and File Contents

Text search and diagram access: Article text is searchable in door locks.pdf, DEFOGGER.pdf, and SUN ROOF.pdf; their diagram images are not searchable. The other 28 PDFs have no searchable text. None of the files have embedded PDF bookmarks. Small wiring labels require zooming.

CRUISE CONTROL.pdf ends with a wiring-diagram caption but no diagram on that page. The cruise-control circuit is included in system wiring diagram.pdf.

The ZIP contains 31 printable PDFs totaling 796 pages, including 15 caption-only pages: six in DEFOGGER.pdf, four in SUN ROOF.pdf, four in door locks.pdf, and one in CRUISE CONTROL.pdf.

Engine, Chassis, and Electrical Service Coverage

The following highlights are a selection of the covered work, rather than a complete contents list. Other examples include cabin-filter replacement and front and rear wiper/washer circuits.

• Engine repair: Engine removal, cylinder-head service, timing-chain alignment, and inspection of pistons, connecting rods, camshafts, and crankshaft bearings.

• Driveability diagnosis: MPV-specific IMRC, idle-control, EGR, fuel-injector, sensor, and EVAP tests, including scan-tool monitoring and component circuit checks.

• SRS and ABS: Malfunction-code diagnosis, warning-light troubleshooting, connector pinouts, wheel-speed sensor tests, and hydraulic unit/control module testing and replacement.

• Automatic transaxle: GF4A-EL fluid service, selector-cable and transmission range-switch adjustment, shift-interlock testing, and operating-range hydraulic circuit diagrams.

• Brakes and chassis: Front disc/rear drum brake service, power-steering pressure tests, rack-and-pinion service, inner tripod CV-joint work, and rear torsion-beam suspension repair.

• Climate control: Front and optional rear A/C-heater troubleshooting, blower and actuator tests, performance checks, and heater/evaporator unit removal and installation.

• Body electrical: Instrument-cluster self-tests, cruise-control diagnosis, immobilizer/keyless-entry troubleshooting, starter testing, and system-specific wiring diagrams.

This collection is suited to experienced automotive technicians familiar with scan-tool diagnostics, circuit testing, and precision engine measurement.

Engine Repair and Mechanical Inspection

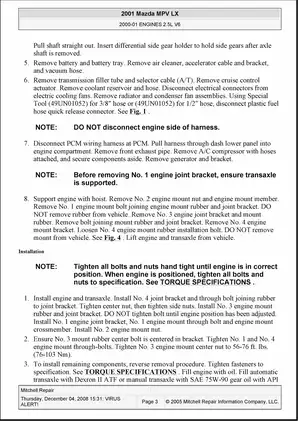

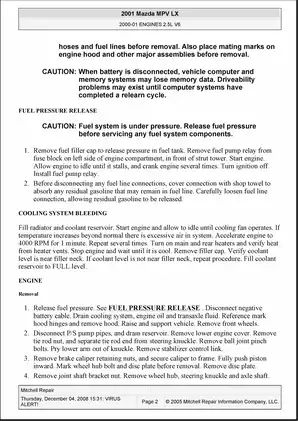

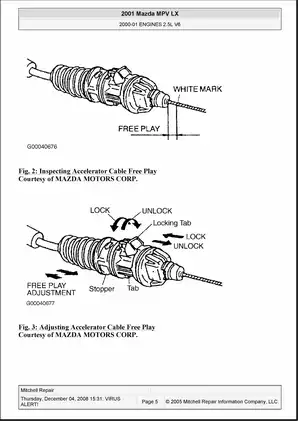

The mechanical section provides step-by-step procedures for engine removal, cylinder-head removal and installation, timing-chain work, and water-pump replacement. Camshaft, rocker-arm, hydraulic lash adjuster, crankshaft-seal, oil-pan, oil-pump, and oil-cooler service is also covered.

Internal inspection: Piston and connecting-rod checks, piston-ring clearances, crankshaft measurements, and main-bearing selection data support assessment of dismantled components. Cylinder-head coverage includes valve guides and valve-seat inspection and correction. Valve-guide service identifies remover 303-346 and installer components 303-469 and 303-346.

Timing references: Exploded View Of Timing Chain & Components and Aligning Timing Marks & Identifying Camshaft Sprocket Identification Marks distinguish chain components and bank-specific timing references.

The oil-pan section flags a specific repair hazard: sealant left on bolts or in cylinder-block bolt holes can crack the block during reassembly. Oil-pump removal and installation are documented, but internal oil-pump inspection information is outside this collection’s coverage.

Engine Controls and EVAP Fault Tracing

The engine-performance articles cover Intake Manifold Runner Control (IMRC), idle-air control, EGR operation, fuel-injector output, and PCM power and ground checks. Sensor testing addresses camshaft and crankshaft position, mass airflow/intake-air temperature, and heated oxygen sensors.

EVAP diagnosis: Scan-tool leak tests, separate canister-to-purge and canister-to-tank checks, and fuel-tank pressure graphing help narrow the area of a leak before components are replaced. Identifying EVAP System Graph Patterns compares normal operation with large- and small-leak faults.

Fuel-pump, fuel-rail, injector, pressure-regulator, and upper-intake removal procedures support component replacement after diagnosis.

SRS, ABS, and Conventional Brakes

Restraint coverage distinguishes vehicles with and without side airbags. SAS control-module terminal views support harness fault tracing, while the clockspring section addresses centering and connector handling.

The manual warns that overwinding the clockspring can break it. SRS electrical diagnosis uses the specified test equipment rather than direct resistance measurement of an airbag module.

ABS testing: New Generation Star (NGS) diagnostics, PID/DATA monitoring, and Active Command Modes address the pump, valves, and fail-safe relay. Separate Anti-Lock Brake System Wiring Diagram sheets cover 2000 and 2001 MPV applications. Troubleshooting includes scan-tool communication problems and warning-lamp circuits connected to the instrument cluster.

Conventional brake repair extends to calipers, wheel cylinders, the master cylinder, and vacuum booster. Bleeding, parking-brake adjustment, and proportioning-valve pressure testing for non-ABS MPVs are included.

Transaxle, Steering, and Rear Suspension

GF4A-EL service covers fluid checks and replacement, selector-cable adjustment, and transmission range-switch alignment. Shift-interlock procedures address operation checks, the park-position switch/shift-lock solenoid, and the MPV shift-lock relay. Internal transmission rebuilding is outside this collection’s coverage.

The hydraulic sheets distinguish park/neutral, reverse, and selected forward-gear conditions, including second gear with and without engine braking.

Steering and suspension: Power-steering procedures cover hydraulic pressure testing, system bleeding, pump service, and pinion-preload adjustment, with exploded rack-and-pinion views. Separate steering-column coverage includes removal, clockspring centering, and shaft inspection.

Drive-axle instructions cover inner tripod CV-joint service and boot installation. Rear suspension procedures include hub inspection, torsion-beam axle work, and trailing-arm bushing replacement.

Front and Rear Climate-Control Diagnosis

Climate-control troubleshooting separates front and rear blower faults, airflow-mode problems, poor heating or cooling, and compressor engagement faults. Rear-system sections cover the additional heater core, evaporator, and electric actuators.

Refrigerant performance-test data and charge specifications distinguish systems with and without rear A/C. Related cooling-fan coverage includes motor-current checks, relay tests, coolant-temperature sensor checks, and MPV wiring with and without A/C.

Body Electrical and Wiring Reference

The instrument cluster’s Input/Output Check Mode covers gauges, warning indicators, and associated switch inputs. Cruise-control Operation Mode and Condition Detection Mode test input signals and identify system faults. Its Cruise Control Circuit is available in the separate system wiring PDF.

Security and locks: Door-lock actuator tests, remote registration, immobilizer fault codes, and key-registration requirements are covered, including cases requiring a dealer-obtained code word.

Starter coverage includes circuit and no-load tests, bench checks, removal, and repair illustrations. Other articles address power windows and mirrors, rear-window defogger grid repair, and sunroof adjustment.

Wiring includes Computer Data Lines, power and ground distribution, and engine/transmission control circuits. Lighting and audio diagrams distinguish daytime-running-light configurations and base versus premium sound systems.

Selected Valve-Guide and Piston-Pin Clearances

For the GY V6, the cylinder-head specifications distinguish intake valve stem-to-guide oil clearance of 0.020–0.069 mm from exhaust clearance of 0.045–0.094 mm. These values accompany the valve-guide and cylinder-head inspection coverage.

The piston-and-rod section gives connecting rod-to-piston pin clearance of 0.004–0.020 mm as standard, with a 0.035 mm maximum. Related reference tables provide fastener torque sequences, fluid capacities, pressure-test specifications, wear limits, and electrical test values.

Working on vital vehicle systems carries inherent risks; use the proper technical background and follow the manual’s SRS disabling, refrigerant-handling, and brake-service safety precautions.
