1996–2003 Mazda Millenia Workshop Manual (P/N 9999-95-058B-96)

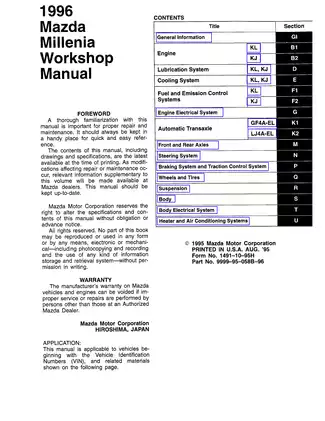

This Mazda Millenia Workshop Manual covers 1996–2003 models equipped with KL-series and KJ-series V6 engines. The Mazda Motor Corporation publication was printed in August 1995 and carries P/N 9999-95-058B-96, with Form No. 1491–10-95H.

PDF Reading, Printing and Page Count

Search, navigation and diagram detail: PDF text search is unavailable, and the file has no embedded bookmarks. Small wire-color codes and terminal labels in the circuit diagrams require zooming.

The download contains one printable, English-language PDF with 1,252 pages, including four pages of front matter, three blank pages and two memo pages.

Engine, Transaxle and Vehicle-System Service

These selected topics provide a preview of the contents rather than a complete table of contents. Further examples include auto-tilt steering-column service and solar-ventilation diagnosis.

• Engine repair: Step-by-step procedures for timing-belt replacement, cylinder-head gasket replacement, front and rear oil seals, and engine removal and installation.

• Fuel and emission controls: KL variable resonance induction, KJ air-charging controls, fuel-injection testing, sensor inspections, diagnostic trouble codes and symptom troubleshooting.

• Lubrication and cooling: Oil-pressure testing, oil-cooler service, coolant-leak checks, thermostat inspection, water-pump replacement and cooling-fan diagnosis.

• Automatic transaxles: GF4A-EL and LJ4A-EL line-pressure, stall and time-lag tests, electrical checks, control-valve-body replacement, and transaxle removal and installation.

• Axles, suspension and steering: Wheel-bearing replacement, drive-shaft service, front and rear alignment, suspension-link inspection, and steering-gear and power-steering-pump procedures.

• Brakes and traction control: Brake bleeding, disc and caliper inspection, parking-brake adjustment, ABS diagnosis, hydraulic-unit checks and TCS troubleshooting.

• Electrical and climate control: Charging, ignition and starting-system tests, body-electrical diagnosis, air bag troubleshooting, and R-134a air-conditioning service.

The procedures were developed with Mazda-trained technicians in mind and are best suited to service-trained technicians equipped for the specified measurements and tests.

KL and KJ Engine Service

Separate engine chapters distinguish KL hydraulic lash adjuster service from KJ valve-clearance inspection and shim adjustment. Cylinder-head procedures include bolt-length checks, tightening sequences, camshaft installation and engine-mount positioning.

The KL HLA troubleshooting guide separates startup noise from warm-idle noise and relates each condition to oil checks or lash-adjuster inspection. This helps narrow the cause before components are replaced.

The camshaft procedures warn that incorrect cap handling can damage the cylinder-head thrust journal support or break a camshaft.

Fuel and control-system diagnosis: The KL section covers VRIS actuator and solenoid checks. KJ coverage adds Lysholm compressor inspection, air-bypass controls and charge-air-cooler bypass testing, with a Vacuum Hose Routing Diagram for identifying the associated connections.

NGS diagnostic procedures, control-module terminal tables and electrical diagnosis support connect fault codes and symptoms with component and wiring checks.

Transaxle Testing and Repair Scope

The transaxle chapters distinguish mechanical, hydraulic and electrical causes of shifting problems. Quick Diagnosis Charts relate symptoms to line-pressure, stall, time-lag and road-test results.

GF4A-EL diagnosis uses the powertrain control module, while the LJ4A-EL section includes a separate transaxle control module and its terminal-reference tables.

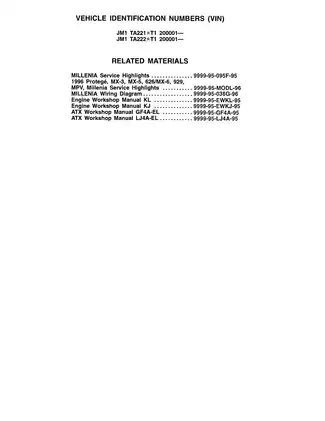

Internal overhaul: The diagnostic charts refer internal overhaul work to separate ATX workshop manuals. Those unit manuals are not included in this PDF.

Chassis, Body and Electrical Reference

Chassis coverage extends beyond adjustment figures to steering-gear disassembly, suspension-link replacement and hub-bearing installation. ABS Diagnostic Charts identify checks for wheel-speed sensors, hydraulic-unit solenoids, relays and related wiring.

Body sections cover door-window mechanisms, glass replacement, trim, sunroof components and power-seat equipment. The audio chapter includes antitheft-system deactivation procedures.

Circuit diagnosis: Wire-color codes, fuse references and terminal-voltage tables support electrical fault tracing. The Blower Motor System Inspection and Airflow Mode Actuator System Inspection schematics connect circuit layouts with voltage and continuity checks.

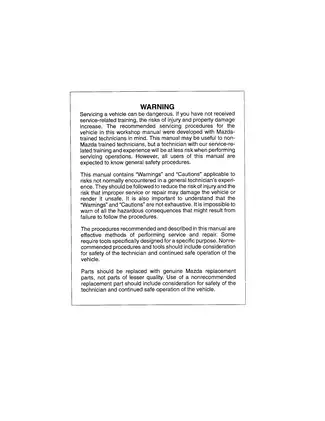

Working on advanced automotive systems requires caution and precision. Follow the manual’s air bag, fuel-system and vehicle-support precautions before service.

Timing-Belt and Valve-Clearance Preview

For the KL engine, the timing-belt inspection specifies belt deflection of 6.0–8.0 mm under a 98 N test load, measured between the timing-belt pulley and tensioner pulley.

For the KJ engine, the cold-engine valve-clearance standard is 0.27–0.33 mm for both intake and exhaust valves. The adjustment section explains shim selection and the related special-tool setup.
