Mazda 323 Turbo Workshop Manual – 1988

• Covers 1988 Mazda 323 models equipped with B6 EGI and B6 DOHC engines, including Turbo variants.

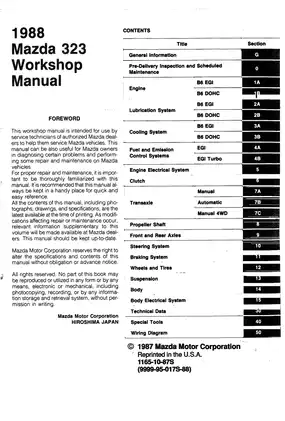

• Official Mazda publication P/N 1165–10-87S, first edition (1987) detailing the 1988 model year launch build in a comprehensive 1,129-page PDF format.
• Contains 47 exploded-view assembly diagrams, 18 detailed torque specification charts, and 4 maintenance interval schedules.
• Features detailed step-by-step repair procedures, advanced troubleshooting guidelines, valve seat contact width drawings, cylinder head distortion schematics, and belt deflection charts.
• Details critical vehicle assemblies like the manual and automatic transaxle, 4WD propeller shaft, steering system, suspension components, braking system, and complete Wiring diagrams.

Engine and Maintenance Overview

Whether you are rebuilding a naturally aspirated B6 or tearing down a turbocharged variant, this reference document outlines the factory mechanical clearances and assembly proThe 1988 Mazda 323 Workshop Manual, U.S. reprint marked 1165-10-87S / 9999-95-017S-88, contains B6 DOHC Turbo engine repair, 4WD manual-transaxle service, and shared chassis, body, and electrical sections.

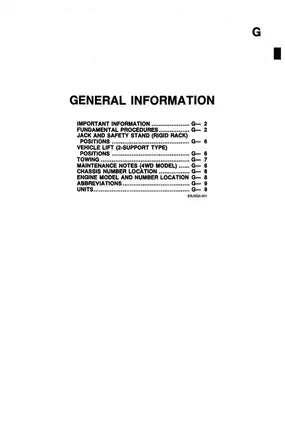

PDF Bookmarks, Search and Diagram Legibility

Navigation and wiring detail: Embedded bookmarks provide access to chapters and individual procedures. The manual pages do not support PDF text search. Small wiring labels require zooming, and some labels and line segments in the engine-control diagrams remain faint or incomplete at higher magnification.

One printable, English-language PDF contains 881 pages, comprising 880 manual pages, including its cover and blank pages, plus one introductory page already included in the total.

Turbo Engine, 4WD Driveline and Electrical Service

These selected coverage highlights summarize the main workshop content. Other topics include sliding-sunroof adjustment and wheel-balancing procedures.

• Engine repair: Step-by-step procedures for timing-belt replacement, cylinder-head overhaul, engine removal, internal inspection, and reassembly, supported by component clearances and torque specifications.

• Turbo fuel management: Fuel-pressure testing, injector checks, idle-speed control diagnosis, turbocharger removal and inspection, and fault tracing with the self-diagnosis checker or malfunction indicator light.

• 4WD drivetrain: Hydraulic-clutch service, manual-transaxle disassembly and assembly, center-differential inspection, transfer-carrier work, propeller-shaft service, and rear-differential overhaul.

• Brakes and chassis: Disc and drum brake repair, booster testing, steering-gear service, power-steering pressure checks, suspension work, and wheel-alignment procedures.

• Electrical systems: Alternator and starter repair, ignition and knock-control diagnosis, body-circuit troubleshooting, wiring diagrams, and connector views.

• Coverage limits: B6 EGI engine repair and dedicated 2WD manual- and automatic-transaxle repair chapters are not included; their technical-data tables remain in the file.

Written for Mazda dealer service technicians, the manual also supports some owner maintenance and diagnosis, provided the reader understands automotive service procedures and can use the specified special tools.

Engine Inspection, Lubrication and Cooling

Cylinder-head distortion diagrams, valve-seat contact-width drawings, and drive-belt deflection charts support the engine inspection procedures. Together with bearing clearances, wear limits, and engine-mount torque references, these provide the measurements needed to assess components during an overhaul.

The Hydraulic Lash Adjuster discussion distinguishes temporary tappet noise after prolonged storage from noise requiring further investigation. It connects persistent noise with oil condition, oil level, cylinder-head oil pressure, and HLA inspection.

The oil-pan section warns that prying between the block and pan can damage their mating surfaces. Lubrication coverage also includes oil-pump inspection and separate pressure checks at the block and cylinder head.

Cooling-system diagnosis covers the two-stage thermostat, radiator cap, water pump, and different electric-fan arrangements for 2WD and 4WD models. Overheating and coolant-leak troubleshooting tables connect symptoms with relevant component checks.

Fuel-System Tests and Turbo Diagnosis

The fuel and emission-control section combines a vacuum-routing diagram with symptom charts, malfunction-code information, and ECU terminal-voltage tables. These let the reader connect a running complaint with the relevant sensor, wiring circuit, or controlled component.

Procedures identify the 49 H018 9A1 self-diagnosis checker and 49 9200 750A multi-pressure tester. Coverage extends to pressure-regulator control, the intercooler, air-bypass valve, evaporative controls, and the 4WD fuel-transfer-pump system.

The turbocharger section separates replacement procedures from wastegate and pressure-switch inspection. Its handling cautions address contamination of the oil passages and damage to the actuator rod.

Fuel-system and heavy-component work requires the factory safety precautions and appropriate vehicle support described in the manual.

4WD Transaxle and Differential Work

The manual-transaxle cross-sectional view accompanies procedures for the gear shafts, synchronizers, center differential, and transfer carrier. Bearing-preload and shim-selection information adds the detail needed to evaluate internal assembly work.

Rear-differential coverage includes pinion adjustment, backlash, and tooth-contact inspection. Propeller-shaft procedures address universal joints and support bearings, while the axle sections distinguish front and rear assemblies.

Chassis, Body and Circuit Diagnosis

Brake coverage includes caliper and wheel-cylinder repair, master-cylinder inspection, booster checks, and dual proportioning-valve testing. Steering procedures distinguish constant- and variable-ratio manual gears from power steering.

Body sections cover glass, door regulators, trim, and body-dimension drawings. Electrical troubleshooting extends to adjustable shock absorbers, cruise control, and the center-differential lock motor and switches.

Separate turbo and turbo-with-4WD engine-control diagrams, connector terminal views, ground circuits, and joint-box layouts support tracing connections across the vehicle.

Selected Engine Fastener and Coolant Specifications

For the B6 DOHC Turbo, the cylinder-head procedure specifies a final torque of 76–81 N·m within its illustrated gradual-tightening sequence. Main-bearing-cap torque is 54–59 N·m, while the timing-belt pulley bolt is listed at 108–128 N·m.

The cooling specifications list a 6.0-liter capacity with the heater. These examples accompany component-specific assembly instructions and cooling-system checks.tocols. It breaks down the internal engine construction, lubrication system operation, and timing belt specifications. By following the step-by-step instructions for heavy-line jobs—such as complete timing belt replacements, turbocharger swapping, and full cylinder head overhauls—you can confidently handle tasks that would otherwise require an expensive trip to the dealership. You will also find comprehensive diagnostic flowcharts to efficiently troubleshoot running issues right on the bench. Since working on high-pressure fuel systems and heavy internal components carries inherent risks, reviewing the included factory safety precautions and securing the vehicle properly before initiating a repair is essential. Ultimately, this documentation acts as your primary resource for identifying exact fitment and structural tolerances during extensive engine work.

Technical Reference Values

Having the exact specification highlights on hand prevents costly structural damage and provides a reliable reference for everyday workshop procedures. This section lists valve timing, compression limits, and critical bolt torque values across all major engine assemblies. You get direct access to vital numbers: cylinder head bolt torque is specified at 76–81 Nm (56–60 ft-lb), main bearing torque values are strictly documented at 54–59 Nm (40–43 ft-lb), and the crankshaft pulley bolt requires 108–128 Nm (80–94 ft-lb), supported by engine mount torque specification charts. When servicing the lower engine, professionals know never to force a pry tool between the aluminum cylinder block and the oil pan, as this permanently damages the mating surfaces and compromises the sealant bead. Furthermore, technicians dealing with the B6 DOHC might encounter initial Hydraulic Lash Adjuster (HLA) tappet noise; the factory procedure notes this typically resolves once the engine reaches normal operating temperature, preventing premature and costly valvetrain teardowns. It also specifies precise fluid requirements, noting a coolant capacity of 5.0–6.0 liters depending on your exact transmission setup. This gives professional technicians and experienced DIYers the definitive powertrain and emission control data needed to bring the B6 engine series back to strict factory standards.
