Mazda 5 2012-2014 Workshop & Bodyshop Manual Set (P/N 9999-95-030F-12)

The workshop procedures cover mechanical and electronic service, while the bodyshop charts supply structural repair and measurement references. The wiring guide explains the symbols, wire colors, and connector notation used in circuit documentation.

Repair scope: The workshop manual’s “Engine Disassembly/Assembly” section addresses engine/transaxle separation and external components; it is not a complete internal engine rebuild guide. Neither transaxle section provides a full internal overhaul procedure.

PDF Search, Bookmarks, and Legacy Wiring Files

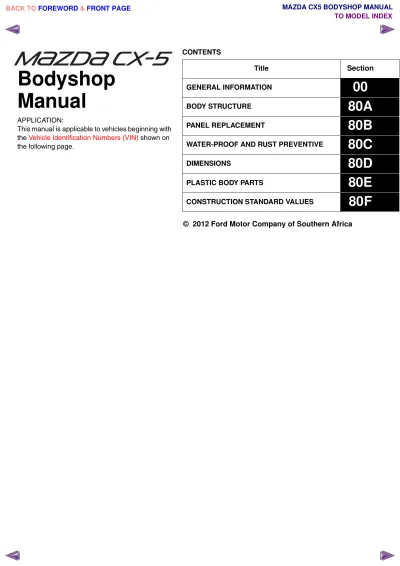

Text search and navigation: All three PDFs support text search in their written content. The Workshop PDF has extensive procedure bookmarks alongside inactive “Local Disk” entries. The Bodyshop PDF has seven section bookmarks; the wiring guide has no embedded bookmarks.

Circuit detail: Some workshop schematic labels are embedded as images and are outside the PDF text search. Small labels in dense circuit illustrations and the wiring guide’s examples require zooming.

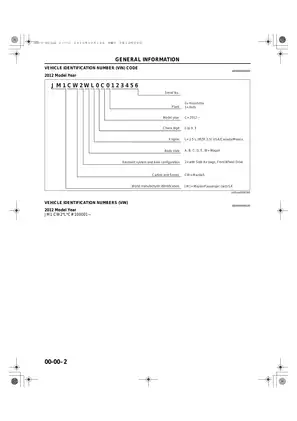

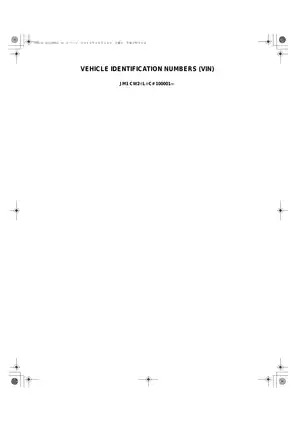

The ZIP contains three printable PDFs totaling 4,678 pages, including the Bodyshop Manual’s cover, VIN application page, and three blank pages. A separate electrical package supplies interactive HTML/SWF wiring diagrams; these require a compatible legacy Flash/SWF viewing setup and are outside the PDF page count.

Powertrain Service, Electrical Diagnosis, and Collision Repair

The following selected coverage highlights summarize the main repair areas. Additional topics include scheduled maintenance and plastic body-part identification; this is not a complete contents list.

• Engine service: OBD-II diagnosis, compression and oil-pressure testing, valve-clearance adjustment, timing-chain replacement, cylinder-head-gasket work, and engine removal and installation.

• Transaxles and clutch: FS5A-EL road and mechanical tests, sensor and solenoid checks, TCM diagnosis, control-valve-body service, plus G66M-R clutch replacement and bleeding.

• Chassis and steering: TPMS registration, wheel alignment, hubs, drive shafts, brake bleeding, caliper repair, DSC initialization, and EHPAS diagnosis, steering-rack service, and pump work.

• Climate control: Full-auto HVAC fault diagnosis, refrigerant pressure and performance checks, recovery and charging procedures, compressor replacement, and A/C and rear-blower-unit service.

• Body and restraints: Sliding doors, glass, trim, standard and two-step air-bag systems, seat-weight calibration, and related removal and installation procedures.

• Electrical setup: PCM, BCM, EHPAS, and instrument-cluster configuration; immobilizer programming; keyless transmitter registration; and power-window, rain-sensor, and steering-angle initialization.

• Collision repair: Panel cut-and-join locations, weld maps, high-strength-steel identification, corrosion protection, and underbody and body-opening measurement charts.

This material is suited to professional technicians and experienced owners who understand shop safety and have access to the specified measuring equipment, Mazda Modular Diagnostic System (M-MDS/IDS), and special service tools. Mazda’s bodyshop foreword identifies dealer technicians as its primary users and limits owner/operator use to limited repair and maintenance.

Engine Testing and Mechanical Service

The MZR 2.5 diagnostic material covers KOEO/KOER self-tests, readiness monitors, freeze-frame data, drive modes, and after-repair checks. Symptom charts connect complaints such as hard starting, stalling, overheating, and loss of power with specific inspections, helping the user follow fault isolation through to the prescribed confirmation checks.

Step-by-step procedures cover timing-chain removal and installation, cylinder-head-gasket replacement, valve-clearance inspection and adjustment, and engine removal. Related sections address fuel delivery, emissions, intake, cooling, lubrication, charging, starting, and PCM service.

Factory specifications are organized by assembly, including tightening torques, fluid capacities, pressure checks, electrical test values, adjustment data, and inspection limits.

G66M-R and FS5A-EL Service Differences

The G66M-R material covers the hydraulic clutch, flywheel and pilot-bearing inspection, shift mechanism, oil seals, and transaxle removal and installation. Its post-overhaul inspection is an operational check, not an internal rebuilding chapter.

FS5A-EL troubleshooting addresses slipping, shift shock, no-shift conditions, overheating, torque-converter-clutch complaints, and manual-mode faults. Pressure-related inspections, oil-cooler flushing, and control-valve-body removal extend the coverage beyond code descriptions.

Selected FS5A-EL DTC procedures distinguish Mexico applications from two VIN groups for other markets. The latter applicability is labeled “assumed” in the manual and should be read with the relevant diagnostic notes.

Incorrect torque-converter stud engagement can damage the FS5A-EL drive plate, and steering-wheel rotation after shaft separation can damage the clock spring.

System Schematics and Configuration

Workshop schematics cover MZR engine controls, FS5A-EL diagnostics, DSC, EHPAS, full-auto HVAC, and both air-bag deployment-control systems. Diagnostic charts identify circuit checks, connector terminals, and relevant data-monitor information.

The separate electrical package adds an electrical component list, engine-compartment and dashboard connector/ground-point views, and data-link connector diagrams. Circuit sheets extend to charging, starting, HVAC, lighting, door locks, instrumentation, audio, and BCM systems.

Configuration and initialization procedures distinguish module replacement from routine service. Coverage includes immobilizer-related parts programming, keyless transmitter registration, and two-step-system seat-weight sensor calibration.

Body Repair and Measurement References

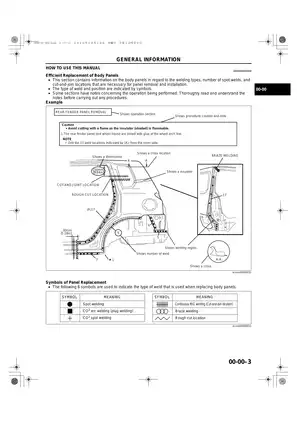

Collision procedures address shroud panels, wheel aprons, side frames, the torque box, pillars, side sills, step panels, rear fenders, floors, and the roof. Replacement drawings distinguish spot, plug, continuous MIG/CO2, braze-weld, and rough-cut locations.

Underbody, front-body, cabin-side, room, and rear-body charts provide measurement points, datum references, and hole-size information. These references support checking structural alignment alongside panel replacement.

The body cautions explain how torch cutting can ignite concealed insulation and how pulling ultra-high-tensile sections can distort adjacent structure.

Special Tools and Workshop Equipment

Named tools include Mazda 49 C017 5A0 engine support set, global 303-507 crankshaft TDC timing pin, and global 303-465 camshaft alignment tool.

Other references include 49 N013 1A0D fuel-pressure gauge set, 49 U043 0A0A brake-pressure gauge set, and 49 H066 002 restraint deployment tool. SRS deployment, fuel pressure, refrigerant recovery, brake work, lifting, and welding procedures require the safety controls and equipment specified in the manuals.

Examples of Valve-Clearance and Oil-Pressure Data

For the MZR 2.5, cold-engine valve-clearance inspection ranges are 0.22–0.30 mm for intake valves and 0.27–0.37 mm for exhaust valves. The manual lists separate, narrower adjustment ranges.

The lubrication section gives an oil-pressure reference range of 395–649 kPa at 3,000 rpm with oil at 100°C. That temperature condition is part of the specification, rather than a general pressure limit for every operating condition.
