1996–2002 Mazda 626 GF Series Workshop Repair Manual (P/N 1577-10-97D)

This Mazda 626 GF series workshop manual covers the listed 1996–2002 models with FP and FS engines. P/N 1577-10-97D, printed April 1997, provides on-vehicle service and diagnosis for the JMZ VIN ranges shown above.

Reading the PDF and Its Diagrams

Text search and diagram detail: PDF text search and embedded bookmarks are not available. Zooming helps with small connector and switch-circuit labels. Some labels on the appended body-dimension sheets are faint or incomplete.

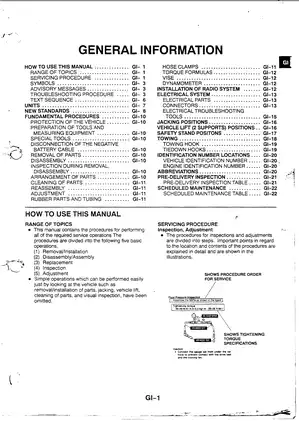

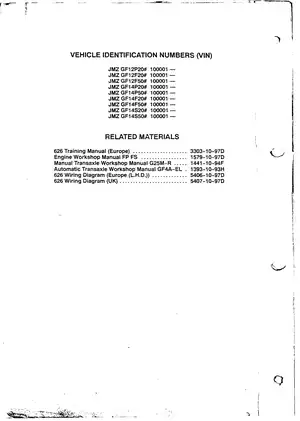

One printable PDF in English contains 662 pages total, including three opening pages (cover, foreword/contents, and VIN/related materials) and three appended body-dimension sheets.

Engine, Drivetrain and Vehicle-System Service

The following is a selection of covered work, rather than a complete contents list. Other topics include rear-window defroster repair and sunroof adjustment.

• Engine service: Step-by-step timing belt and cylinder head gasket replacement, valve-clearance inspection and shim adjustment, compression testing, and engine removal and installation.

• Lubrication and cooling: Oil-pressure testing, oil pan service, radiator and thermostat inspection, water pump replacement, and cooling-fan checks.

• Fuel and engine controls: Fuel pump and injector testing, emissions-system checks, ECM/PCM reference voltages, connector pinouts, and diagnostic trouble-code procedures.

• Clutch and transaxles: Clutch hydraulic service, manual and automatic transaxle removal, selector adjustment, and automatic transaxle pressure, stall and time-lag tests.

• Brakes and chassis: Caliper repair, rear drum and disc brake service, ABS/TCS diagnosis, hub and drive-shaft work, suspension alignment, and power-steering repair.

• Body and electrical equipment: Sedan and hatchback body components, power windows and locks, lighting, instruments, cruise control, and air bag diagnostics.

• Heating and air conditioning: Refrigerant-system testing, compressor and magnetic-clutch service, manual and full-auto controls, actuator checks, and HVAC fault diagnosis.

This manual suits mechanics who are comfortable with electrical measurements and have the equipment for NGS-based diagnosis, pressure testing and component removal.

Engine Repair and Cooling-System Work

Front and rear oil seal replacement procedures accompany engine removal and external-component disassembly.

Timing instructions distinguish tensioner-spring force from additional applied tension. Camshaft installation notes warn that uneven installation can damage the cylinder head's thrust-receiving area.

Overhaul scope: The engine section covers on-vehicle work and engine removal; it is not a full internal engine overhaul guide. The separate FP/FS Engine Workshop Manual listed under Related Materials is not included.

Fault Tracing with NGS and Factory Charts

The diagnostic sections use Key On Engine Off, Key On Engine Running and Continuous Memory tests. NGS set 49 T088 0A4 supports PID/data monitoring and output-control tests, alongside sensor checks and ECM/PCM pin references.

Quick Diagnosis Charts link symptoms to possible causes and follow-up inspections. Together with the Vacuum Hose Routing Diagram and ECM (PCM) Connector Pin Usage Chart, they help distinguish a component fault from a supply, ground or harness problem before replacement.

The post-repair section warns that disconnecting the battery to clear codes erases keep-alive memory and may cause drivability concerns.

Transaxle Testing and Overhaul Limits

Automatic transaxle diagnosis addresses shift shock, missing gears, HOLD operation and torque-converter clutch faults. Line-pressure evaluations and road-test tables distinguish hydraulic problems from control-system faults.

Internal gearbox repairs: Valve-body and internal automatic transaxle overhaul procedures are referred to a separate workshop manual. The separately listed G25M-R and GF4A-EL workshop manuals are not included.

Chassis, Body Electrical and HVAC References

Power-steering coverage extends to rack disassembly, seal installation and pump service. Brake sections distinguish conventional brakes, ABS and TCS, while axle and suspension procedures include bearing checks and alignment data.

Electrical references include the Power Window System switch-circuit diagrams and connector views. HVAC sections add Structural Views and heater-control terminal-voltage tables for left- and right-hand-drive configurations. The separate Europe/UK vehicle wiring-diagram publications listed in Related Materials are not included.

Always ensure proper lifting equipment and personal protective gear are used before beginning any inspection or diagnostic work on the vehicle.

Fuel-Pump and Temperature-Sensor Test Examples

The intake air temperature sensor inspection specifies 35.4–39.3 kΩ at 20 °C for the sensor in a water bath. Fuel injector resistance is 12–16 Ω at 20 °C.

The fuel pump maximum-pressure test specifies 500–630 kPa, measured with the engine stopped and the test-gauge outlet plugged. This is a separate test from regulated fuel-line pressure.
