Mazda 323 Protege Repair Manual Set, 1990–2000 (P/N 9999-95-017B-92)

1990–2000 Mazda 323 Protege Repair Manual Set | 3,247 Pages

4.3starstarstarstarstar_border(3)
$12.90 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mazda Models Covered & Key Technical Specifications

Models: 323, Protege

Sub-models / Variants: ES, hatchback, two-door sedan, four-door sedan, 1.8L DOHC engine (BP, FP), 1.8L SOHC engine (BP), 1.5L DOHC engine (Z5), 1.6L SOHC engine (B6), 1.6L DOHC engine (ZM), 323 4WD (BP SOHC, BP DOHC turbo), 323 GT-R (BP DOHC turbo)

Model Years: 1990–2000 (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000)

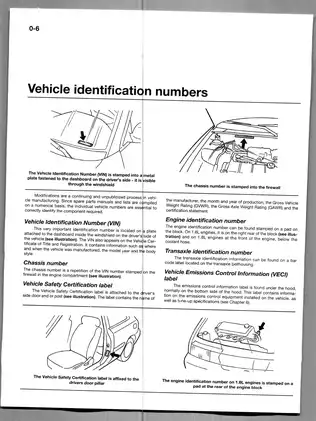

VIN engine identifiers: 8th character, 1999 and later Haynes applications: 1 or 3 = FP 1.8L DOHC; 2 = ZM 1.6L DOHC.

1992 North American workshop manual — Protege: JM1 BG223, JM1 BG224, JM1 BG225, JM1 BG226; each from serial suffix N0 400001 onward.

1992 North American workshop manual — 3-door hatchback: JM1 BG231, JM1 BG232, JM1 BG233; each from serial suffix N0 400001 onward.

1990 North American 4WD supplement: JM1 BG227, JM1 BG228; each from serial suffix L0 100001 onward.

1990 North American wiring only: Four-door sedan — JM1 BG223, JM1 BG224, JM1 BG225, JM1 BG226; three-door hatchback — JM1 BG231, JM1 BG232, JM1 BG233, JM1 BG234; each from serial suffix L0 100001 onward. The wiring publication also includes the 4WD groups listed above.

Europe 4WD supplement: JMZ BG8262 00, JMZ BG8362 00, JMZ BG82F2 00, JMZ BG83F2 00, JMZ BG83H2 00; each from serial number 100001 onward.

Australia 4WD supplement and wiring: JM0 BG10P1 00; from serial number 100001 onward.

GT-R supplement and Europe LHD wiring: JMZ BG83J200; from serial number 500001 onward.

Engine specification scope: The displacement, bore, stroke, compression-ratio and PFI figures below refer to the separate 1.8L engine article.


  • Engine displacement: 1.8L (112.2 Cu. In.)

  • Engine type: Inline four-cylinder

  • Bore: 3.27" (83.0 mm)

  • Stroke: 3.35" (85.0 mm)

  • Compression ratio: 9.0:1 (Protege), 9.5:1 (Miata)

  • Fuel delivery: Electronic fuel injection (PFI)

  • Transmission: 5-speed manual or 4-speed automatic.

    FWD manual variants: F5M-R (B6/BP SOHC, 1990–1992); G5M-R (BP DOHC, 1990–1992); F25M-R (1993–1994 SOHC; 1995 and later 1.5L/1.8L DOHC); G25M-R (BP DOHC, 1993–1994). FWD automatic: F4A-EL (B6 SOHC, BP SOHC, BP DOHC).

    4WD variants: G5MX-R manual transaxle/transfer (BP SOHC, BP DOHC turbo); G25MX-R manual transaxle/transfer (GT-R, BP DOHC turbo); G4AX-EL electronically controlled automatic transaxle/transfer (BP SOHC).

  • Crankshaft pulley bolt torque: 109 to 152 in-lbs (pulley attachment bolts; Haynes repair volume)

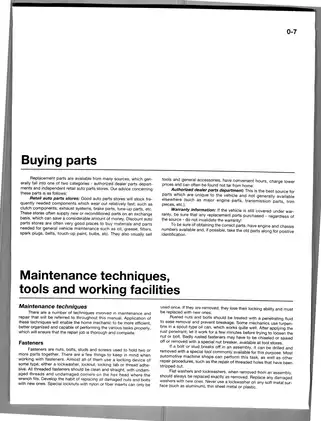

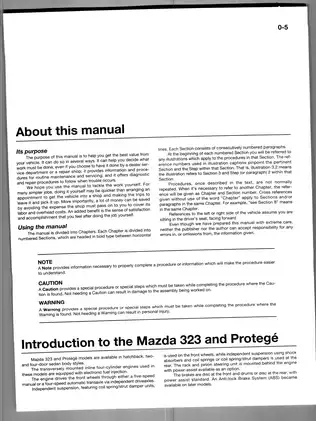

Mazda Manual Features & Selected Content Preview

Publication Pages
Haynes Mazda 323/Protege repair volume, covering front-wheel-drive service 317
1992 North American Workshop Manual — P/N 9999-95-017B-92, Form 1270-10-91G 1,052
1992 North American Wiring Diagram — P/N 9999-95-019G-92, 5209-10-91F 112
1990 North American 4WD Workshop Manual Supplement — Form 1213-10-89I 592
1990 North American 2WD & 4WD Wiring Diagram — 5145-10-89G 136
Europe/Australia 4WD Workshop Manual Supplement — Form 1229-10-89L 600
Australia 4WD Wiring Diagram — 5162-10-89L 77
1992 323 GT-R Workshop Manual Supplement — Form 1318-10-92A 177
Europe LHD 4WD Wiring Diagram — 5232-10-92A 102
DOHC engine assembly excerpt, repeating the corresponding section of the 1992 workshop manual 13
Mitchell 1999–2000 1.8L engine article — BP Miata and FP Protege applications 58
Mitchell 1999 Protege ES 1.8L engine-performance wiring reference 7
Mazda-specific P1xxx code definitions 4

The Mazda supplements describe new or modified systems and refer back to their respective base manuals for unchanged procedures. The Haynes volume provides general service coverage, while the Mitchell articles remain separate, application-specific references.

Base-manual requirements: The supplements reference earlier workshop manuals 1195-10-89E, 1203-10-89F, 1204-10-89F, 1206-10-89F and 1275-10-91C, which are not included. The later engine article also refers some general overhaul procedures to a separate article that is not supplied.

PDF Search, Bookmarks and Page Breakdown

Search and diagram detail: Text search covers most of the Haynes and 1992 factory files, the assembly excerpt and the engine article. Search coverage is partial in the 4WD supplements and GT-R file; the later wiring reference has searchable headings and captions, but its circuit labels are images. The code sheet has no PDF text search. The four factory files have section bookmarks; the Haynes file has three coarse entries, and the four shorter references have none. Small wiring labels require zooming.

The ZIP contains 3,247 pages across nine printable PDFs. The factory PDFs combine workshop material with the wiring publications listed above. Their page counts include title and blank pages; the separate assembly excerpt and code sheet are also included in the total. The assembly excerpt repeats material already present in the 1992 factory volume.


Engine, 4WD and Electrical Service Coverage

The following topics are selected contents, rather than a complete table of contents. Other covered areas include body repairs and heater/air-conditioner service.

  • Engine repair: Step-by-step procedures for timing-belt service, cylinder-head removal and overhaul, piston and crankshaft assembly, lubrication-system inspection, and engine removal and installation.

  • 4WD drivetrains: Transaxle/transfer overhaul, center-differential lock diagnosis, propeller-shaft and axle service, rear-differential repair, and 4WD fuel-transfer-system checks.

  • Control-system diagnosis: EGI/ECU self-diagnosis, engine and transmission symptom charts, EC-AT electrical and hydraulic testing, and GT-R turbocharger and wastegate-control checks.

  • Brakes and chassis: Brake bleeding and component inspection, ABS diagnosis, steering-system service, suspension repairs, and wheel-alignment specifications.

  • Electrical wiring: Model-specific circuit schematics, connector and ground-point diagrams, harness locations, joint-box layouts, and wiring-color identification.

The factory procedures assume automotive repair experience and the specified measuring equipment and service tools; the Haynes volume also supports owners carrying out routine maintenance.

Engine Applications and Repair Depth

The 1992 manual separates B6 SOHC, BP SOHC and BP DOHC procedures. The Haynes material also addresses Z5 and ZM applications, while the regional contents matrix identifies B3 and PN sections in the earlier base-manual structure.

The later engine article distinguishes the BP 1.8L DOHC Miata from the FP 1.8L DOHC Protege. It covers valve-clearance inspection and tappet-shim selection, fuel-pressure release, cooling-system bleeding, manifolds, valve covers, camshafts, crankshaft seals, water pumps, oil pans and oil pumps, with piston and bearing inspection data. Intake and exhaust valve-stem seals and guides are identified separately and must not be interchanged.

Excessive tappet depression during valve-clearance work can damage the cylinder head; hardened sealant left on reused oil-pan bolts can crack the block.

Transaxles, Transfer Units and GT-R Changes

The G5MX-R and G25MX-R material explains transfer-unit power flow, internal disassembly, inspection, reassembly and shift-mechanism service. The Haynes transaxle chapters concentrate on external service and removal/installation; internal manual-transaxle repair is outside that volume's scope.

The G4AX-EL sections tie symptom charts to signal checks, stall and time-lag tests, pressure testing and road tests, allowing electrical-control checks to be compared with hydraulic and mechanical symptoms. They also cover valve-body and clutch/brake inspection, differential and transfer-carrier work, preload adjustment and range-specific hydraulic circuits.

The 4WD instructions address differential side-gear alignment with a support fixture, transaxle-seal damage during driveshaft installation, and improperly seated retaining clips. GT-R material adds BP DOHC turbo-engine changes, sodium-filled exhaust-valve handling, turbocharger and intercooler service, fuel-system diagnosis and ECU checks.

Wiring and Illustrated References

The 1992 wiring publication explains continuity and resistance testing and short-circuit tracing, alongside connector, harness and ground-point information. The separate P1xxx sheet supplies code definitions.

The later wiring reference contains the three-sheet 1999 1.8L Engine Performance Circuits. Engine illustrations include Valve Clearance Inspection Sequence, Cylinder Head Bolt Tightening Sequence, and Aligning Timing Belt Sprocket Marks—Protege.

The Cross-Sectional View of Engine Oil Circuit and Exploded View of Oil Pump show lubrication routing and pump construction.

Workshop Data and Service Tools

Specifications are organized by assembly and application: tightening data, valve and camshaft clearances, head/block inspection limits, crankshaft and bearing measurements, piston/ring specifications, oil-pressure checks, capacities, transaxle adjustments and electrical test values.

Tool references include the 49-T012-001A tappet-holder body with its matching shaft and clamp. Assembly pages identify the 49 0221 061A piston-pin remover/installer, 49 E011 1A0 ring-gear brake set and 49 SE01 310A clutch-disc centering tool. The 1992 tool list distinguishes A-rated indispensable tools from B-rated selective equipment.

Before engine, fuel, driveline, brake or electrical repair, support the vehicle correctly, isolate the battery where specified, and release fuel or cooling-system pressure before opening the system.

Selected FP Valve and Piston Clearances

For the FP 1.8L DOHC Protege engine, the cold valve-clearance table specifies 0.23–0.30 mm for both intake and exhaust valves, with instructions for inspection and replacement-shim selection.

For piston inspection, the same article lists 0.025–0.066 mm as the standard piston-to-bore clearance for the Protege application, with Miata figures tabulated separately.
