Mazda Protege 1999–2003 Workshop Manual (P/N 9999-95-017B-02)

1,428 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(2)
$19.55 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mazda Models Covered & Key Technical Specifications

Model: Protege

Model Years: 1999–2003 (1999, 2001, 2002, 2003)

Sub-models / Variants: 4-door sedan (4SD), 5-door hatchback (5HB); ZM engine (F25M-R manual transaxle, FN4A-EL automatic transaxle); FS engine (G15M-R manual transaxle, FN4A-EL automatic transaxle)


  • HO2S (Front) heater resistance: approx. 5.6 ohms

  • HO2S (Rear) heater resistance: approx. 15.7 ohms

  • IAT sensor resistance: within 0.117–28.616 kilohms

  • ECT sensor resistance: within 0.111–25.403 kilohms

  • Fuel line pressure (at idle, after approx. 2 minutes): 210–250 kPa (2.1–2.6 kgf/cm², 30–36 psi)

  • Fuel pump maximum pressure: 450–630 kPa (4.5–6.5 kgf/cm², 64–92 psi)

  • TP sensor resistance (Terminals A and B): 3.2–4.8 kilohms

  • TP sensor resistance (Terminals B and C): 0.2–1.2 kilohms

Mazda Manual Features & Selected Content Preview

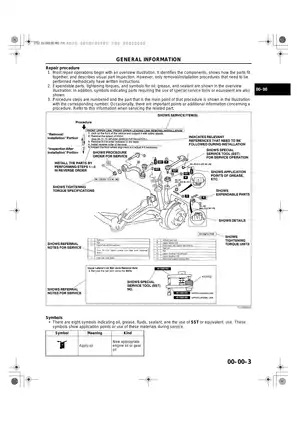

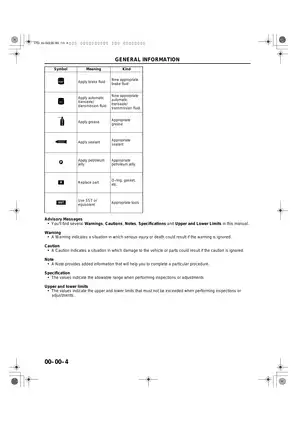

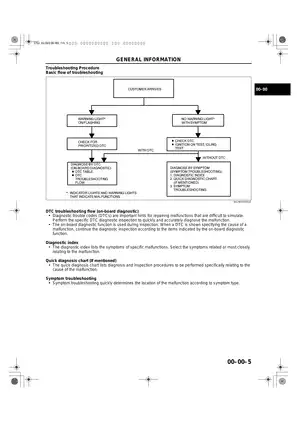

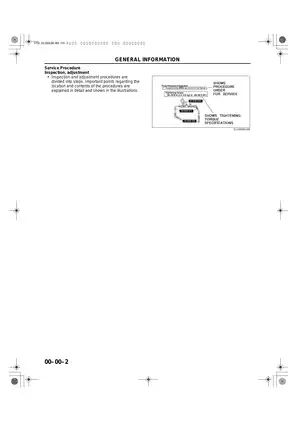

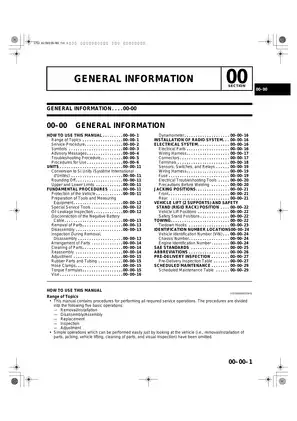

Mazda’s 2002 Protege and Protege 5 Workshop Manual (P/N 9999-95-017B-02) covers ZM and FS engine configurations. Where procedures differ by body style, it identifies the 4-door sedan (4SD) and 5-door hatchback (5HB) separately.

PDF Search and Wiring Diagram Readability

Text search and diagram detail: Service text, tables, and the alphabetical index are searchable. The PDF has no embedded bookmarks. Wiring labels embedded in diagrams are outside the text search. Zoom in to read small PCM and connector labels. Some fine circuit lines are faint.

The download contains one printable English PDF with 1,428 pages, including the 10-page alphabetical index.


Engine, Transaxle, and Chassis Service

These are selected workshop topics. The manual also covers cruise control fault-code retrieval and generator output testing.

  • Engine repair: Timing belt and cylinder head gasket replacement, valve clearance inspection and adjustment, compression testing, and engine removal and installation.
  • Lubrication and cooling: Oil pump disassembly and inspection, oil pressure testing, coolant replacement, thermostat inspection, and radiator and water pump service.
  • Powertrain diagnosis: OBD-II fault charts, freeze-frame data and readiness checks, live PID monitoring, PCM terminal checks, and reference oscilloscope waveforms.
  • Fuel and emissions: Fuel pressure and injector testing, pressure regulator diagnosis, EGR and EVAP checks, and inspections for VTCS and FS-specific VICS components.
  • Clutch and transaxles: Clutch hydraulic cylinder overhaul, F25M-R and G15M-R removal and installation, and FN4A-EL pressure tests, solenoid inspection, and valve body removal.
  • Brakes and chassis: ABS fault diagnosis, brake bleeding and caliper service, wheel alignment, drive shaft repair, and tests for the engine speed sensing power steering system.
  • HVAC, restraints, and body: Refrigerant system diagnosis, SRS fault checks, clock spring adjustment, and service for doors, glass, locks, lighting, and wipers.

Suited to technicians familiar with workshop procedures and electronic diagnosis, with access to WDS or equivalent diagnostic equipment and the special service tools specified for the job.

OBD-II Diagnosis and Circuit Testing

Separate ZM and FS sections cover both fault-code diagnosis and symptom troubleshooting. Freeze-frame records capture conditions when a code sets, and repair-verification drive modes help check whether the fault returns after service.

The control system wiring diagrams link PCM terminal references to circuits such as the MAF sensor, heated oxygen sensors, coolant temperature sensor, and EGR boost sensor. The special service tool list identifies the 104-pin breakout box as SST 49 UN01 130.

Engine Maintenance and Repair Scope

Maintenance schedules distinguish normal U.S. driving from the schedule for Canada, Puerto Rico, and severe U.S. driving conditions. The engine chapters include timing mark alignment, tensioner installation, camshaft handling, and cylinder head bolt inspection.

The engine disassembly sections cover removal of external components such as pipes, brackets, and housings. A complete bottom-end overhaul is outside their scope. The ZM oil pan section warns that prying can damage the sealing surfaces or bend the main bearing support plate flange.

Fuel, Intake, and Emission Controls

Vacuum hose routing and EVAP diagrams help trace connections during idle air control, EGR, purge, and fuel pressure diagnosis. Both engines have VTCS inspection procedures. The FS intake section also covers VICS check valves, the shutter valve actuator, and the solenoid valve.

Clutch and Transaxle Service Limits

Manual transaxle procedures cover oil service and differential oil seal replacement. The clutch chapter includes master and release cylinder disassembly, clutch disc and pressure plate inspection, and flywheel checks. Its release collar caution explains that cleaning fluid or steam can wash grease out of the sealed bearing.

The FN4A-EL chapter includes stall, time lag, and road tests, plus transaxle range switch adjustment and oil cooler flushing. The cross-sectional view, powertrain structural view, and shift diagram show component relationships. Internal FN4A-EL overhaul requires the separate automatic transaxle workshop manual.

ABS, Steering, and Body Systems

Brake coverage distinguishes conventional and ABS-equipped systems, with hydraulic unit and wheel speed sensor checks. Steering procedures include fluid pressure testing and steering gear service. Axle sections address hubs, bearings, and drive shaft joints.

HVAC coverage includes refrigerant recovery and charging, blower service, and compressor clutch inspection. Body procedures distinguish sedan and hatchback trim and rear seat belts, with separate liftgate procedures. For SRS work, follow the specified battery isolation and diagnostic precautions because stored backup power can still deploy an airbag.

A Preview of Valve Clearance and Oil Pressure Data

For cold-engine inspection, the intake and exhaust valve clearance range is 0.25–0.31 mm on the ZM and 0.225–0.295 mm on the FS.

At normal operating temperature and 3,000 rpm, the engine oil pressure inspection specifies 300–390 kPa for the ZM and 400–490 kPa for the FS.
