Mazda MX-3 1992–1995 Service Manual Set (P/N 9999-95-056B-95)

Use the year-specific B6 articles for four-cylinder engine work and the 1995 workshop volume for K8 V6 overhaul. The wiring references connect circuit tests to the appropriate pins, grounds, and harness connectors.

Coverage limits. The 1992 material is a partial archive capture. The 1995 scan provides G25M-R overhaul procedures, F25M-R clutch information and specifications, and FA4A-EL automatic-transaxle specifications and wiring. The F25M-R and automatic units require separate instructions for internal overhaul. Mazda also directs body-electrical component service, including airbag service, to a separate troubleshooting manual.

PDF Search, Bookmarks, and Diagram Legibility

Text search and diagram zoom. The 1995 factory volumes are image scans with chapter bookmarks. The 1992 capture has bookmarks and searchable navigation text, while its workshop sheets are images. The standalone articles have searchable text and captions, with circuit drawings embedded as images. Enlarge dense schematics to read small wire codes and connector labels.

The ZIP contains 15 printable PDFs totaling 1,527 pages. Both 1995 factory volumes share one PDF. The total includes 115 navigation, login, and other web capture pages within the 1992 archive. Its remaining 208 PDF pages reproduce 104 workshop sheets across two pages each.

Engine Overhaul, Transaxle Service, and Circuit Diagnosis

This selection of workshop topics also includes maintenance references for drive belt routing and adjustment.

• B6 engine service. Engine removal and installation, cylinder head and timing belt work, camshafts and hydraulic lash adjusters, water pump and lubrication components, and inspection of pistons, rings, bearings, and cylinder bores.
• K8 V6 overhaul. On-vehicle troubleshooting, engine and transaxle removal, engine stand mounting, teardown, measurement, assembly, and installation.
• Manual transaxle and clutch. G25M-R removal, internal inspection, differential service, shift mechanism overhaul, clutch hydraulics, bleeding, and operational checks.
• Fuel and emissions diagnosis. Symptom charts, on-board fault codes, ECM and sensor tests, injector and fuel-pressure checks, VRIS, EGR, EVAP, and oscilloscope signal patterns.
• Chassis, body, and HVAC. Front and rear axles, engine-speed-sensing power steering, conventional brakes and ABS, wheel alignment, suspension, glass and sunroof service, and heater and A/C diagnosis.

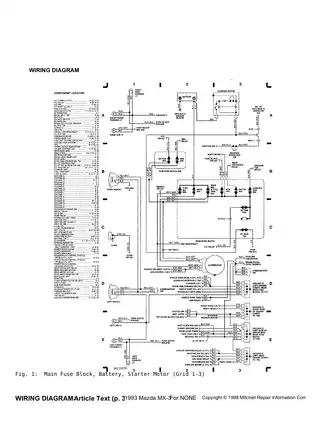

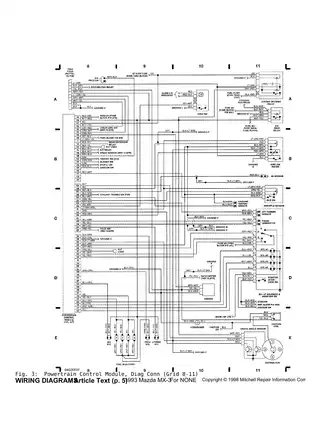

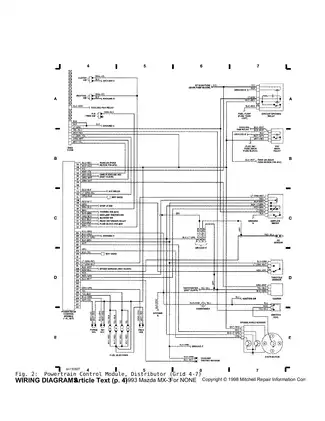

• Electrical diagnosis. Direct-drive and reduction-gear starter service, Mitsubishi charging tests, cooling and condenser fan circuits, connector and ground views, and diagrams for engine control, EC-AT, ABS, lighting, airbag, and shift-lock circuits.

The workshop procedures are intended for trained technicians. Experienced owners can use the maintenance and diagnostic references for work within their equipment and skill level.

B6 and K8 Engine Service

SOHC and DOHC procedures. The 1993 B6 SOHC article covers rocker-arm-shaft service. The later B6 DOHC articles use camshaft bearing cap procedures. The engine references include fuel-pressure release, fuel-system priming, cooling-system bleeding, torque tables, clearances, and inspection limits. Use the oil-circuit and oil-pump illustrations to locate lubrication components before disassembly.

Engine and clutch tools. The 1995 workshop volume identifies the K8 engine hanger (49 E010 1A1), knock-sensor wrench (49 H018 001), clutch-disc centering tool (49 SE01 310A), and self-diagnosis checker (49 H018 9A1).

Disassembly precautions. On the K8, follow the camshaft positioning instructions before loosening bearing caps to avoid loading the cylinder-head thrust-journal support. On the B6, follow the oil pan and main-bearing support plate separation procedures to protect the sealing surfaces and prevent distortion. Use the specified support equipment for powertrain removal and follow the workshop precautions for pressurized fuel, cooling, brake, and spring work.

Tracing Electrical Faults

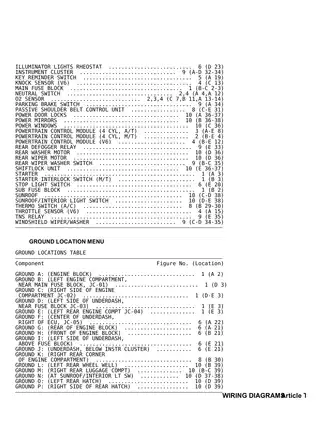

Start with the system schematic, then use the connector views and harness routing drawings to find the measurement point on the vehicle. The 1995 wiring volume explains connector symbols and provides voltage, continuity, and short-circuit checks. Common connector and joint box views help trace a feed or ground shared by multiple circuits.

Transaxle Capacity and Sensor Test Examples

The G25M-R manual transaxle has a listed oil capacity of 2.70 L (2.85 US qt). For the 1995 B6 DOHC throttle position sensor, the wiring volume gives 0.1–1.1 V with the accelerator released and 2.8–4.5 V with the accelerator fully depressed, measured at ECM terminal 2M with the ignition on.
