Honda CBR250 1986–1999 OEM Service Manual

This two-file PDF set combines an English-language CBR250 service-manual compilation with a separate model-identification, specification, and maintenance guide. It is best suited to experienced home mechanics and repair technicians who are comfortable using electrical meters, compression and vacuum gauges, bearing tools, and standard workshop equipment; the internal engine, brake, and suspension work assumes established service knowledge.

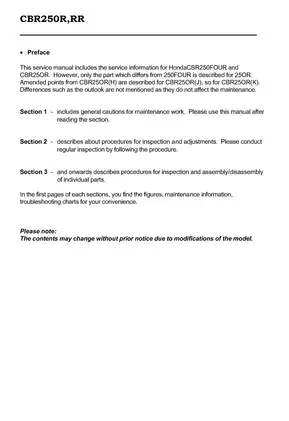

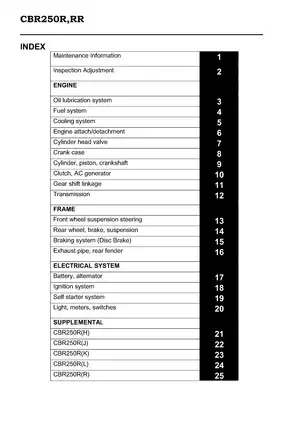

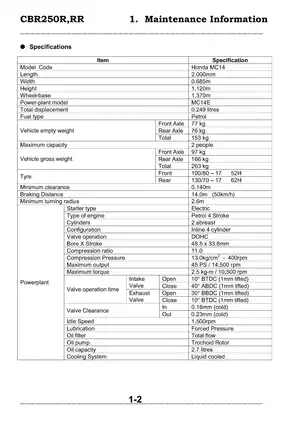

• 491 PDF pages total: a 472-page service-manual file plus a 19-page CBR250 Specification Guide. The service file contains 292 pages of base repair sections, model supplements for H, J, K, L, and R versions, and four navigation/preface pages.

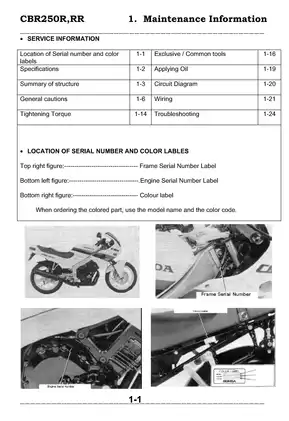

• Covers the 1986-1999 CBR250 family: CBR250(F) MC14, CBR250R(H) MC17, CBR250R(J/K) MC19, and CBR250RR(L/N/R) MC22. The guide supplies model-year, frame-number, and MC14E engine-number identification; the service file organizes changes by letter-code supplement rather than by a separate chapter for every year.
• Engine coverage includes removal and refitting, cylinder-head and valve service, the gear-driven cam train, crankcase separation, piston and crankshaft inspection, bearing selection, clutch and alternator work, shift-linkage repair, and transmission disassembly and reassembly.
• Fuel and cooling procedures address the tank and automatic fuel cock, carburetor removal and overhaul, pilot-screw setup, carburetor synchronization, radiator and thermostat service, thermal-sensor checks, water-pump work, and the MC19 fuel-pump/fuel-cut-relay system.
• Chassis sections cover front and rear wheels, telescopic-fork service, steering-stem bearings, rear cushion and linkage work, swingarm bearings, drive-chain replacement, and hydraulic disc-brake bleeding, master-cylinder, caliper, pad, and disc repair. The MC14 rear drum brake is covered in the base material.
• Electrical diagnosis includes the battery and charging system, transistorized ignition, ignition coils and pulse generators, electric starter and starter clutch, lighting, instruments, switches, connector routing, circuit diagrams, and model-specific wiring changes.

Model Coverage and Supplement Structure

The base manual develops the MC14-era systems through 20 repair sections, then adds a 43-page CBR250R(H) supplement, a 37-page CBR250R(J) supplement, a three-page CBR250R(K) wiring supplement, a 69-page CBR250RR(L) supplement, and a 24-page CBR250RR(R) supplement. The companion guide identifies MC22 frame-number starting points for the L, N, and R versions and records the corresponding MC14E engine-number breaks. It also explains that J and K differ primarily in wiring and paint, while L and N differ in paint; accordingly, there is no standalone N repair supplement. R/RII machines sold after the initial R release use the R material rather than separate annual service chapters.

The 19-page guide is an independently written reference credited to DOS-Boy, dated March 25, 2001 and updated September 28, 2003. It states that its technical data was translated from the Japanese Honda service manual and Honda Japan material. Along with identification data, it consolidates variant-specific engine, carburetor, chassis, suspension, ignition, torque, wear-limit, and routine-maintenance information. The 472-page workshop file carries the actual component procedures and supplements.

Engine, Fuel, and Drivetrain Repair Depth

The cylinder-head chapter goes well beyond valve-clearance checks. It covers camshaft inspection, cam-gear-train removal and installation, cylinder-head disassembly, valve-guide replacement, valve-seat inspection and refacing, shim handling, and final cam timing checks. Crankshaft and connecting-rod bearing selection is tied to the factory color-code tables, while the piston, clutch, gearbox, and shift sections provide inspection limits, assembly drawings, torque data, and lubrication points.

Fuel-system troubleshooting traces cold- and hot-start problems, rough low- or high-rpm operation, low intake vacuum, restricted fuel flow, and carburetor overflow. The MC22(L) supplement adds detailed VP carburetor disassembly and reassembly, diaphragm and jet inspection, pilot-screw adjustment, and four-carb synchronization. It specifically warns against trapping the vacuum diaphragm or overtightening the pilot screw, since either mistake can damage the affected part or its seat. The drive-chain section also flags a worn chain slider as a direct risk to both the chain and rear fork.

Chassis, Electrical, Diagrams, and Workshop Data

Brake and suspension coverage includes fluid replacement and air bleeding, master-cylinder and caliper overhaul, fork-seal replacement, steering-bearing service, rear-linkage bearing work, and rear-cushion spring service. The manual calls out the compressed-nitrogen hazard in the rear shock; fuel, brake-fluid, lifting, and cooling-system cautions should be followed during repair work.

Diagram coverage includes the Lubrication System Diagram, ignition-system wiring, the CBR250R(K) Circuit Wiring Diagram, MC22 routing diagrams, cam-gear-train assembly views, and front-fork and brake exploded views. Tool tables identify Honda service equipment by number, including the compression-gauge attachment 07GMJ-KT70100, clutch-center holder 07GMB-KT70100, fork-seal driver attachment 07947-KA20200, and piston-ring compressor 07955-ZG00000. Component-specific torque tables, fluid and lubrication data, electrical test values, adjustment specifications, bearing color codes, and wear limits are distributed through the relevant repair chapters and supplements.
