Kawasaki Mule 4010 Trans Gas UTV Service Manual 2009–2010
539 Pages • Printable PDF • 106.10 MB • Download
Kawasaki Models Covered & Key Technical Specifications
Model: Mule 4010 Trans Gas
Sub-models / Variants: Base model (KAF620R9F), Camouflage-surface-treated model (KAF620S9F)
Model Years: 2009–2010
-
Engine displacement: 617 cm3
-
Engine type: 4-stroke, OHV, 2-cylinders, liquid-cooled
-
Fuel system: Digital Fuel Injection (DFI) MIKUNI AC34
-
Maximum horsepower: 14.7 kW (20 PS) @ 3600 r/min (Canada model)
-
Maximum torque: 47.0 N·m (34.7 ft·lb) @ 2500 r/min
-
Drive system: Belt drive torque converter, 2-speed automatic, reverse gear drive (4WD/2WD)
-
Suspension (front): MacPherson strut
-
Suspension (rear): De Dion axle
-
Turning radius: 3.9 m (12.8 ft)
Kawasaki Manual Features & Selected Content Preview

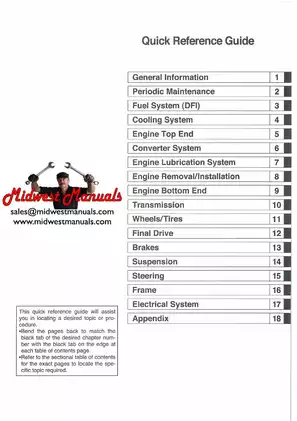

Kawasaki factory service manual for the 2009–2010 Mule 4010 Trans Gas, with model identification for KAF620R9F and KAF620S9F. Its 18 system chapters cover scheduled maintenance, mechanical repair, and electronic diagnosis.
PDF Search, Bookmarks, and Diagram Detail

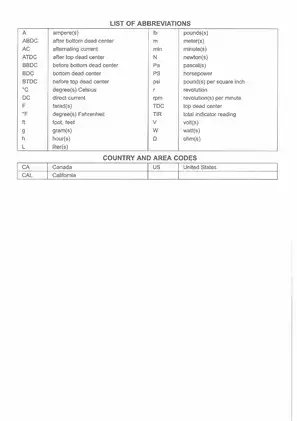

Search and navigation: OCR text search and embedded bookmarks provide access to chapters and selected subsections. Small wiring-diagram labels are readable when enlarged, although OCR does not reliably recognize all diagram lettering.
One printable English-language PDF contains 539 pages, including an added introductory page and eight blank separator pages.
Engine Overhaul, Drivetrain Service, and Electronic Diagnosis
The following selected service topics illustrate the coverage rather than reproduce the full contents. Additional subjects include tire replacement and spark-arrester cleaning.
-
Engine repair: Step-by-step procedures for engine removal and installation, compression testing, cylinder-head disassembly, valve-seat repair, and valve-clearance inspection and adjustment.
-
Converter and transmission: Drive and driven pulley rebuilding, belt-deflection adjustment, transmission-case separation, and internal gear and shift-mechanism service.
-
Final drive: Front differential disassembly, LSD clutch-torque inspection, pinion-bearing preload, bevel-gear backlash, and tooth-contact adjustment.
-
DFI diagnosis: Service-code interpretation, throttle-sensor adjustment, injector electrical testing, and fuel-pressure and delivery-volume checks.
-
Electric power steering: EPS motor and torque-sensor diagnosis, ECU replacement, fault-code clearing, and neutral-position registration.
-
Brakes and chassis: Hydraulic drum-brake service, steering-gear adjustment, suspension repairs, folding rear-seat hardware, and cargo-bed removal.
-
Cooling-section limitation: Printed pages 4-15–4-16 are missing, including the thermostat removal, installation, and inspection procedures.
Written primarily for trained mechanics in equipped shops, this manual also supports basic owner maintenance and repair where mechanical knowledge and proper workshop tools are already available.
Internal Engine Repair and Cooling
Internal engine coverage extends to camshaft-to-crankshaft timing, piston and ring installation, cylinder boring and honing, and connecting-rod and crankshaft inspection. Valve-guide wear is evaluated using the wobble method. Lubrication procedures include oil-pump clearance measurements and relief-valve inspection.
The valve-seat section explains how excessive grinding can sink a valve into the cylinder head until valve clearance can no longer be adjusted, requiring head replacement.
Available cooling procedures cover water-pump mechanical-seal inspection and replacement, radiator-cap testing, coolant filling, and air bleeding. Thermostat specifications remain in the data tables despite the missing procedure pages noted above.
Drivetrain, Suspension, and Trans Bodywork
The converter and gearbox have separate service sections. Cable adjustments address high/low/reverse range selection, selectable drive engagement, and differential locking. Shaft procedures explain propeller-shaft yoke alignment and axle-joint boot replacement.
Chassis material covers rack-and-pinion preload adjustment, MacPherson struts, and the De Dion rear suspension with leaf springs and shock absorbers. Brake coverage includes master-cylinder cup replacement, wheel-cylinder service, and hydraulic-line bleeding.
Trans-specific bodywork instructions address the folding rear-seat mechanism, cargo-bed installation, and bed-latch adjustment.
DFI, EPS, and Electrical Fault Tracing
DFI troubleshooting: Warning-light blink codes, the Kawasaki Diagnostic System (KDS) connector, and DENSO ECU power and ground checks support fault isolation. Service Code 11 can point to the main throttle sensor, subthrottle sensor, or subthrottle actuator/mechanism. Separate component tests help distinguish these possible causes before replacement parts are selected.
The fuel-pump pressure regulator is integral to the pump and cannot be removed. Its internal filters are not serviceable; suspected blockage or damage calls for replacement of the pump assembly.
EPS service boundaries: The factory-adjusted motor and torque sensor remain part of the EPS unit rather than receiving individual internal repairs. Neutral-position registration is documented for specified steering repairs and ECU replacement; a replacement EPS ECU cannot provide assistance until registration is completed.
EPS fault-history clearing differs from the DFI system, whose stored problem history cannot be erased on this model.
Other electrical systems: Charging tests, ignition-coil and crankshaft-sensor peak-voltage checks, and starter-motor disassembly support electrical diagnosis. Battery instructions distinguish U.S. and Canadian configurations. California-specific material covers evaporative-emission canister inspection and fuel-vapor hose routing.
Diagrams, Maintenance Data, and Special Tools
Electrical references include the vehicle wiring diagram, DFI System Wiring Diagram, EPS System Wiring Diagram, and ECU connector-terminal views. The Coolant Flow Chart and Engine Oil Flow Chart show circulation paths. A Transmission Sectional Figure illustrates gearbox construction, while appendix drawings document cable, wire, and hose routing.
Service sections provide tightening torques, locking-agent callouts, fluid capacities, lubricant requirements, wear limits, and electrical test specifications. Maintenance charts distinguish initial service, regular servicing, and calendar-based replacement requirements.
Tool references include the Throttle Position Sensor Measuring Adapter 57001-1719 and Drive Pulley Puller Bolt 57001-1429 for sensor and converter work.
Before diagnostic work or maintenance, observe workshop safety precautions and secure the vehicle, including proper support for the raised cargo bed.
Examples of DFI Pressure and Injector Test Data
The high-pressure fuel-line specification is 285–315 kPa with the engine idling, providing a reference for the documented fuel-pressure test.
For INP-259 injectors, the electrical inspection data gives an approximate resistance of 11.7–12.3 Ω at 20°C.
