Yamaha 650/700 Waverunner III 1990–1997 Service Manual (P/N E20701-0)

804 Pages • 71.85 MB • Instant, Printable PDF

4.5starstarstarstarstar_half(4)
visibility Preview Available
$16.49 Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW

Cards and eligible digital wallets

verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
Stripe

Yamaha Models Covered & Key Technical Specifications

Models: Waverunner III 650, Waverunner III 700

Sub-models / Variants: 650, 700

Model Years: 1990–1997 (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997)

Serial Numbers: FJO: 100101–, 6R8: 000101–

Technical Data:

  • Engine displacement: 633 cc

  • Engine configuration: 2-stroke, 2-cylinder

  • Max power output: 36.8 kW (50 ps) at 6,000 rpm

  • Cooling system: Water-cooled

  • Fuel tank capacity: 40 L (10.6 US gal) including 7 L (1.86 US gal) reserve

  • Oil tank capacity: 4 L (1.06 US gal)

  • Ignition system: C.D.I.

  • Propulsion system: Axial flow jet pump, single stage with reverse thrust

  • Steering nozzle angle: 23° ±1°

  • Compression pressure: 981 kPa (142.2 psi)

  • Spark plug type: NGK BR8HS

Technical Specifications
keyboard_arrow_down
Document Number / Seller:
25980 / Cynthia Gomez
File Size:
71.85 MB
File Type:
PDF
Language:
English
Pages:
804
Printable:
Yes
Category:
Personal-Watercraft-PWC
Last updated / verified
Aug 11, 2026

Yamaha Manual Features & Content Preview

  • Covers 1990–1997 Yamaha Waverunner III personal watercraft, including both 650 and 700 cc variants, featuring full factory maintenance and repair data
  • Official Yamaha documentation P/N E20701-0 detailing engine, chassis, and jet drive assembly procedures across exactly 804 pages
  • Contains 12 detailed exploded-view diagrams for the fuel and oil injection systems and 7 technical specifications tables including specific torque settings
  • Serves as the factory-authorized reference for the FJO-series hull and 6R8-engine assembly, maintaining original component tolerances and fluid capacities
  • Outlines step-by-step rebuilding procedures for the jet pump unit, intermediate shaft, starter motor, CDI unit, and reed valve
  • Features detailed diagnostic instructions for impeller replacement, rectifier regulator testing, and structural fiberglass hull repair

Component and Systems Documentation

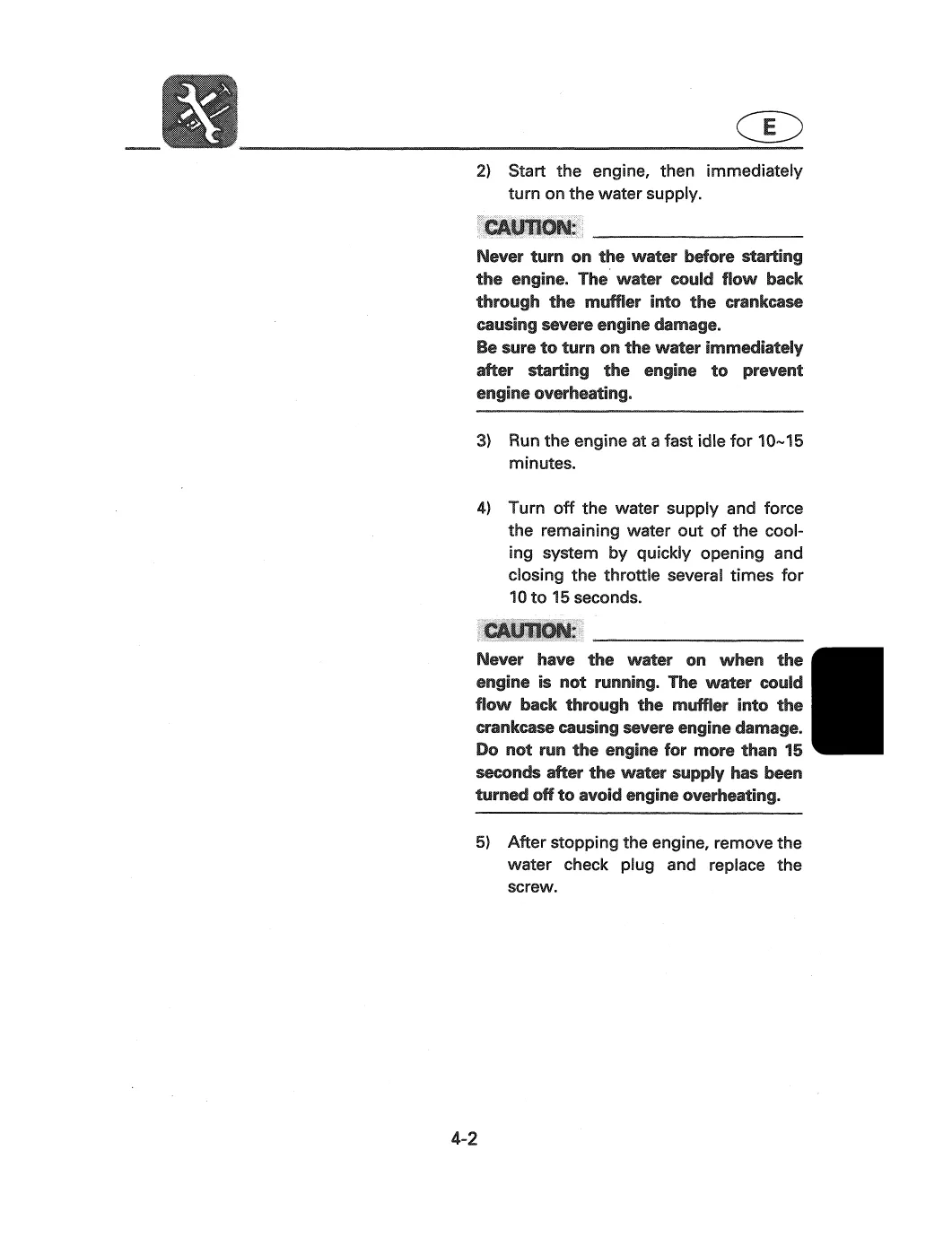

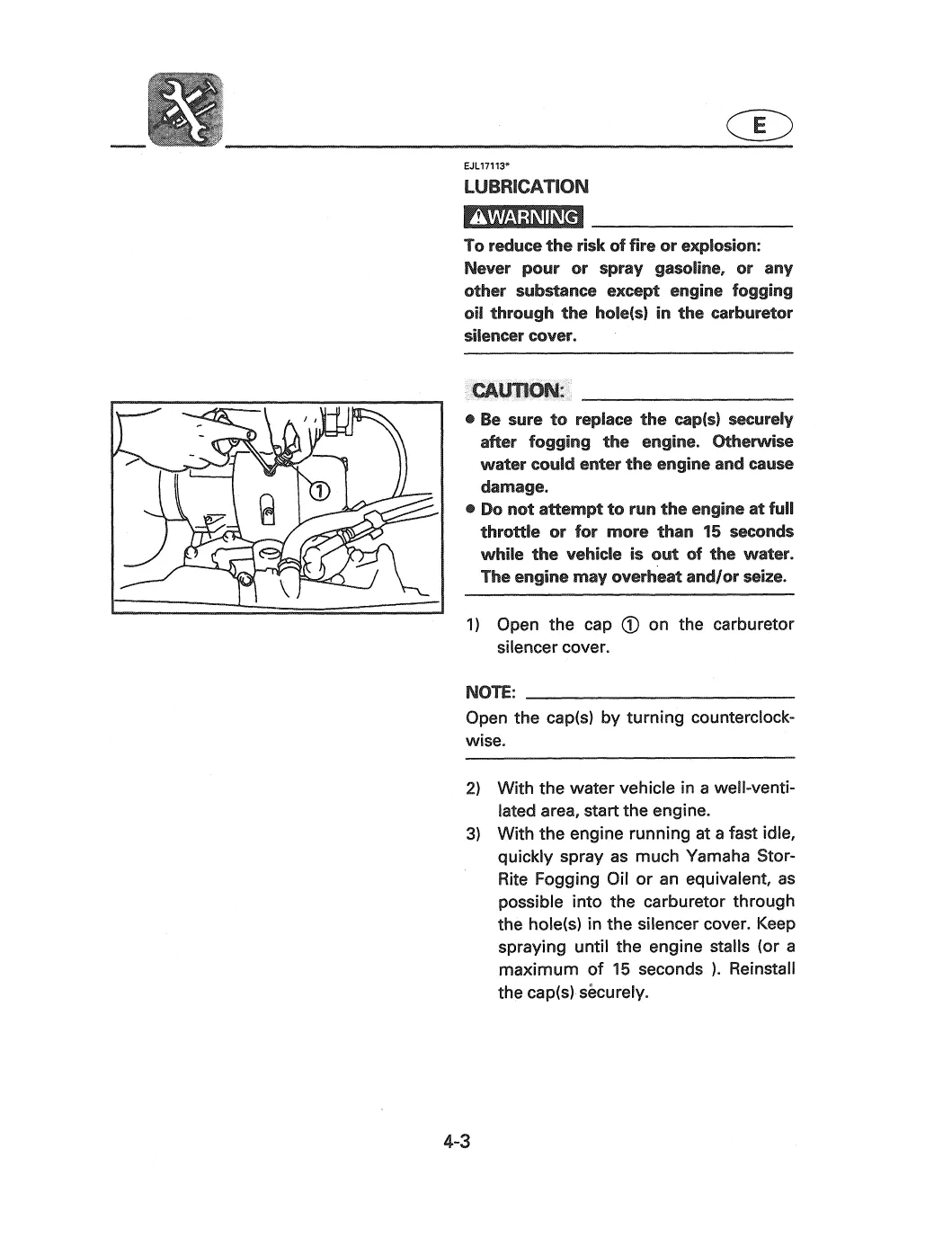

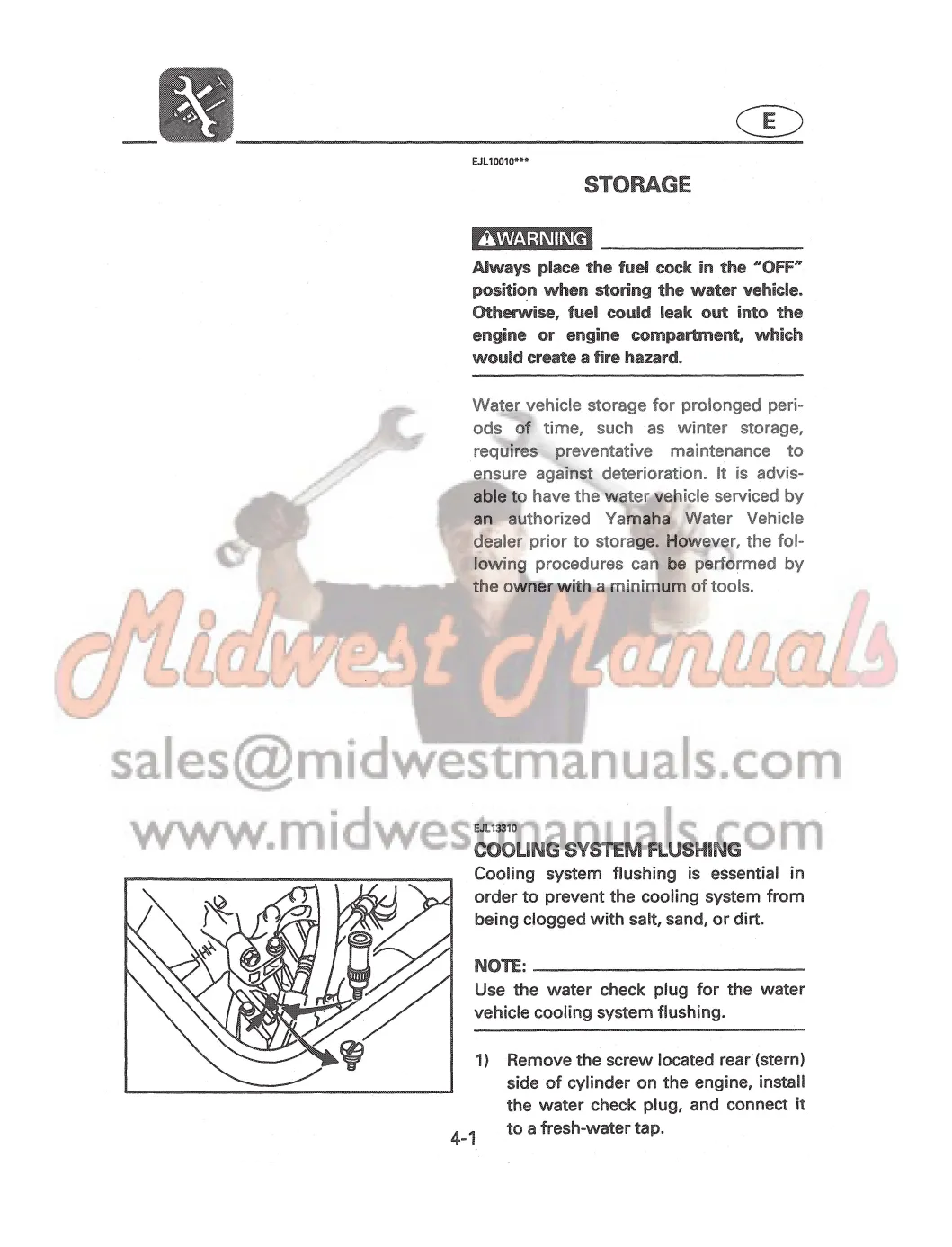

The 1990–1997 Yamaha Waverunner III PDF manual provides deep insights into major mechanical systems. It serves as an essential reference for daily workshop routines. Coverage includes the complete power unit overhaul. You get exact data ranging from piston-to-cylinder clearance measurements to crankshaft deflection analysis. The fuel and oil injection chapters detail assembly, inspection, and pressure hose routing. They provide clear diagrams for the fuel pump, diaphragm, and carburetor setup. By utilizing the comprehensive step-by-step instructions for complex jobs like jet pump overhauls, intermediate shaft bearing replacements, and fiberglass hull patching, DIYers can confidently fix issues and avoid expensive marine dealership labor rates. Hull maintenance is also thoroughly documented. This includes bilge system components, steering cable adjustments, and exhaust system sealing with precise component-level details. Please note that marine watercraft maintenance involves inherent risks. Technicians must verify workspace ventilation and follow standard shop safety protocols prior to any fuel or electrical system inspections.

Technical Specifications Preview

This reference delivers comprehensive data for both the 650 and 700 cc power units. Piston-to-cylinder clearance is documented at 0.080–0.085 mm with a strict wear limit of 0.1 mm. The fuel system relies on a 40-liter tank. The oil injection system requires Yamalube 2-stroke outboard lubricant. Cylinder head bolt torque values are specified in a two-stage sequence. You start at 15 Nm and finish at 30 Nm. Battery specific gravity is listed at 1.28 at 20°C (68°F). Having access to the official maintenance interval chart, cable routing diagrams, pipe routing diagrams, and the cooling system diagram eliminates guesswork and prevents post-rebuild overheating. When servicing these watercraft, mechanics should be aware of a few model-specific pitfalls. For instance, the impeller utilizes a left-hand thread, which is frequently sheared off by technicians turning it the wrong way during teardowns. Additionally, failing to exactly replace the engine mounting shim packs in their original locations will cause severe coupling misalignment and intermediate shaft bearing failure. The publication provides all necessary details to accurately interpret the included wiring schematics and electrical troubleshooting sections.

Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.
