2004–2008 Yamaha FX High Output / FX Cruiser High Output WaveRunner Service & Owner’s Manual Set (P/N LIT-18626-05-79)

The service volumes separate the F1S and F1X repair information, while the owner’s manual covers operation and routine care. Match the hull and engine codes before selecting specifications: fuel-system data and electrical components differ between configurations.

Computer-based tests require YDIS software, a communication cable, and a compatible computer. Detailed software operation is referenced to the separate Yamaha Diagnostic System Instruction Manual.

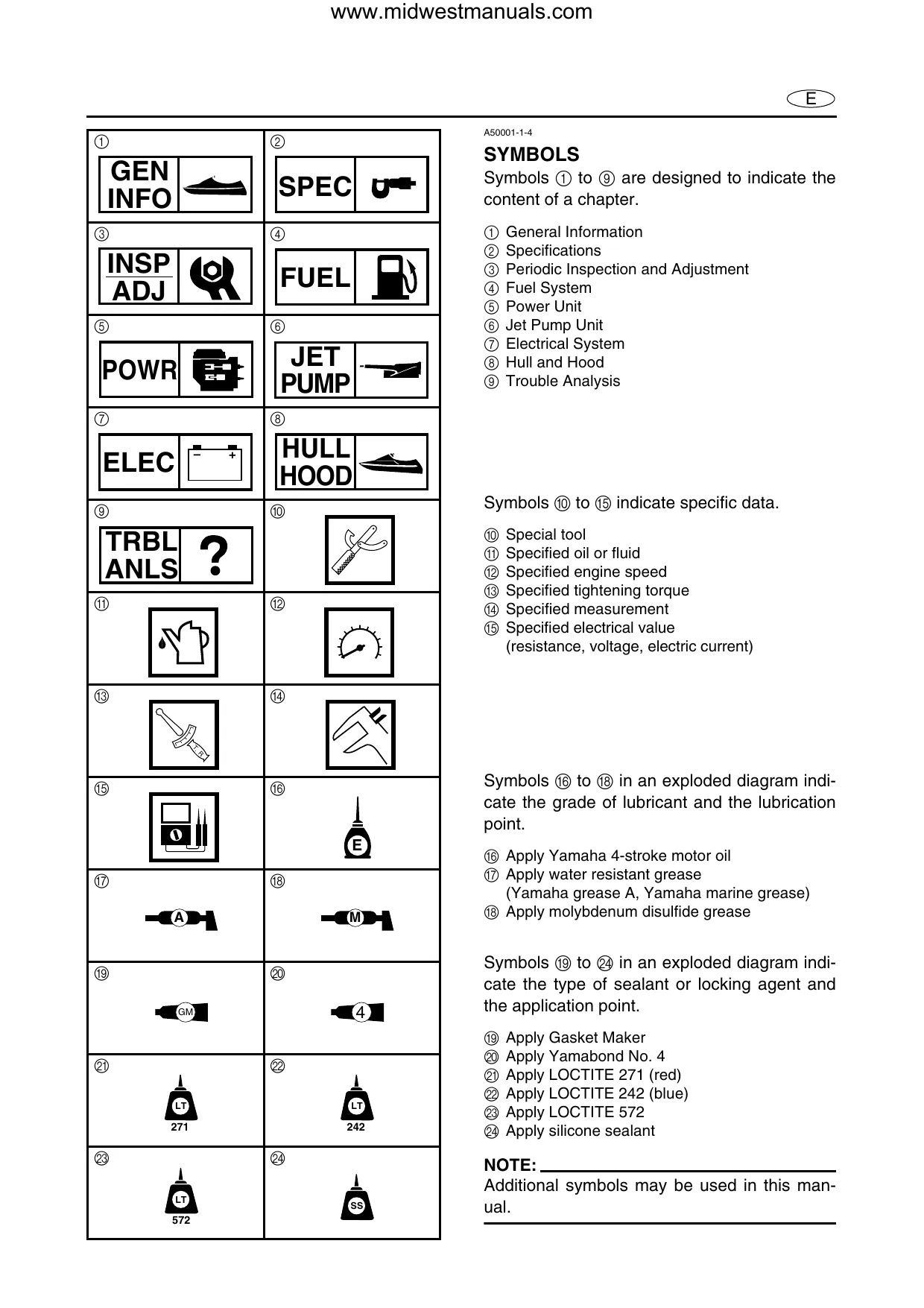

Text Search, Bookmarks, and Wiring Detail

Finding procedures and circuit labels: Main text supports keyword search; some warning-label pages do not. Embedded bookmarks cover the service chapters and owner’s manual sections, but some owner’s manual entries point to the wrong page. Small wiring labels are legible when zoomed in.

One printable PDF contains 936 pages in total. The publication totals above already include two introductory pages, six blank divider pages, and the owner’s manual covers. The F1X section’s 6AA wiring diagram is located at PDF p. 936.

Engine Overhaul, Jet-Pump Service, and YDIS Diagnosis

These selected workshop topics outline the contents rather than reproduce the full table of contents. Other subjects include remote-transmitter registration and bilge-strainer inspection.

• Engine repair: Engine removal and installation, cylinder-head work, camshaft timing, valve-clearance adjustment, and internal crankshaft, connecting-rod, and piston inspection.

• Fuel injection: Fuel-pump module inspection, fuel-pressure testing, injector checks, throttle-body synchronization, and bypass valve motor diagnosis.

• Jet pump and driveline: Impeller duct and drive-shaft disassembly, bearing and seal replacement, intermediate-housing service, and reverse-gate work.

• Steering and trim: Steering-master inspection, Quick Shift Trim System (QSTS) cable adjustments, shift-cable checks, and control-cable routing.

• Electrical troubleshooting: Ignition, starting and charging-system tests, sensor checks, multifunction-meter diagnosis, and model-specific wiring diagrams.

• 6AA exhaust and cooling: Catalyst-converter inspection and installation, high-rise cooling-water outlet hose routing, and engine/exhaust warning-control information.

• Owner operation and care: Pre-operation checks, post-operation care, cooling-system flushing, storage and winterization, plus emergency and towing guidance.

The repair sections suit mechanically experienced owners and technicians with the specified measuring equipment and special tools; the owner’s manual explains preventive maintenance and minor repairs.

Internal Engine Work and Assembly References

Step-by-step procedures cover crankcase separation, piston and connecting-rod service, and crankshaft bearing selection. Valve-pad selection tables, camshaft timing references, and component-specific torque tables provide the measurements and assembly information needed to plan an internal repair.

Reduction-drive-gear bearing work, oil-tank service, oil-pump checks, and thermostat testing extend the coverage beyond routine maintenance. The connecting-rod procedures specify new bolts and nuts for angle-controlled tightening; reusing this hardware can compromise the rod joint.

Fuel Adjustment and Engine-Specific Electronics

Throttle-body synchronization connects vacuum readings, TPS checks, and YDIS-monitored engine temperature with the final adjustment checks.

The MR-1 catalyst-equipped 6AA section documents its exhaust and cooling arrangement. Its ECM identification table distinguishes 6B6-20 from 6AA-00 and explicitly states that these ECMs are not interchangeable.

Yamaha Engine Management System (YEMS) and Off-Throttle Steering (OTS) information accompanies steering-sensor and bypass valve motor checks. Separate electrical procedures cover pickup/stator coils, starter-motor overhaul, slant-detection switches, and engine/exhaust thermoswitch testing.

Fault Tracing and Jet-Pump Workshop Detail

YDIS coverage explains diagnosis records, live engine monitoring, stationary and active tests, and the data logger. The Trouble Analysis Chart, throttle-body component coupler arrangement, and separate 6B6/6AA wiring diagrams support fault tracing alongside cable and hose routing views.

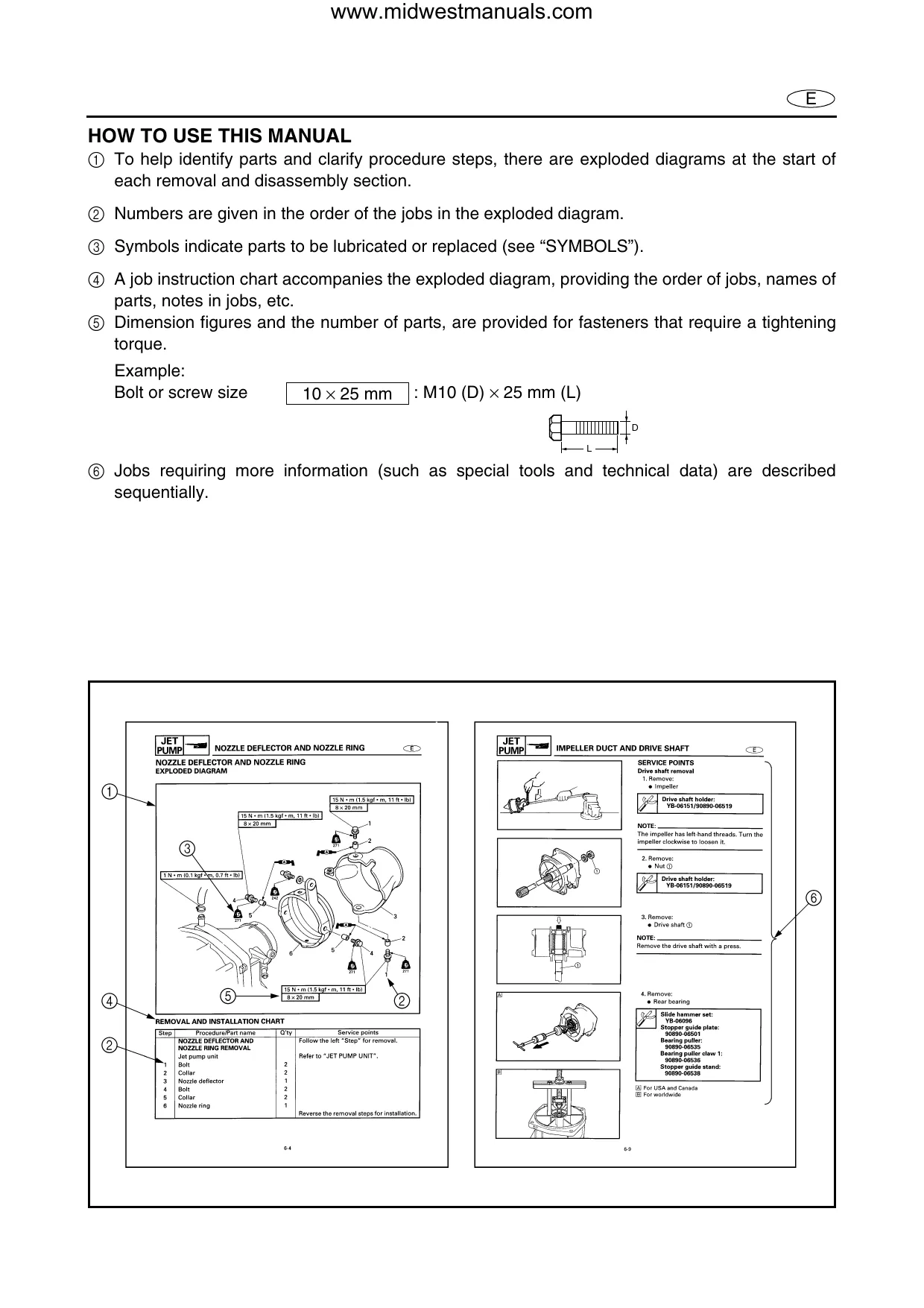

Jet-pump procedures identify drive-shaft holder YB-06151 / 90890-06519 and the related bearing tools. The impeller uses a left-hand thread, and the drive-shaft removal section warns against pressing directly on the shaft threads, where incorrect handling can damage the shaft.

A Preview of Valve and Fuel-Pressure Specifications

Both service volumes list a cylinder-head warpage limit of 0.1 mm and cold intake valve clearance of 0.11–0.20 mm.

Fuel-pressure test specifications differ: the F1S service section gives 310–330 kPa after engine warm-up, while the F1X section specifies 320.8–327.2 kPa after a six-minute warm-up.

Reference only — always consult a certified technician before performing service on this equipment. Observe the manual’s fuel-system and rotating-jet-pump precautions.
