1990–1991 Yamaha PZ480, Phazer II Series Snowmobile Service Manual Set, 1990–1991 (P/N LIT-12618-PZ-50)
567 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
Models: PZ480, Phazer II, Phazer II LE, Phazer II ST, Phazer II SS, PZ480E, PZ480H, PZ480ST
Models & Model Codes:
PZ480 — 8V0 (early base and electric-start supplement specifications); PZ480P (87F); PZ480R (88F); PZ480T (8AK); later PZ480 (8BF).
PZ480E — PZ480EP (87H); PZ480ER (88H); PZ480ET (8AL); later PZ480E (8BG).
PZ480ST — PZ480STR (88X); PZ480STT (8AM); later PZ480ST (8BH).
Sub-models / Variants: LE, ST, SS; PZ480H, PZ480J and PZ480EJ (clutch-setting tables); PZ480SX and PZ480SEH (circuit diagrams and clutch-setting tables).

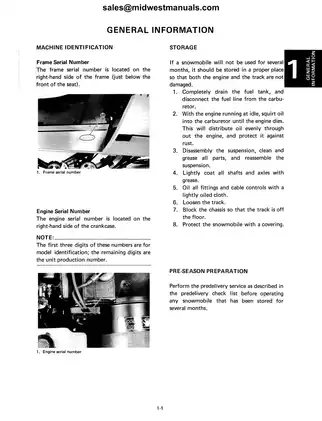

PZ480 frame / engine starting numbers: 8V0-010101 (early base manual); 87F-000101 (PZ480P); 88F-000101 (PZ480R); 8AK-000101 (PZ480T); 8BF-007101 (later PZ480).
Electric-start frame / engine starting numbers: 8V0-021101 (early electric-start supplement); 87H-000101 (PZ480EP); 88H-000101 (PZ480ER); 8AL-000101 (PZ480ET); 8BG-009101 (later PZ480E).
PZ480ST frame / engine starting numbers: 88X-000101 (PZ480STR); 8AM-000101 (PZ480STT); 8BH-006101 (later PZ480ST).
Model Years: 1990–1991
-
Engine: 485 cc, 2-stroke
-
Cooling: Fan-cooled
-
Fuel tank capacity: 31.8 L (8V0 specifications); 31.0 L (PZ480P/PZ480EP)
-
Standard idle speed: 1,600 r/min (8V0); 1,500–1,700 r/min (PZ480P/PZ480EP and 8BF/8BG/8BH specifications)
-
Ignition timing (B.T.D.C.): 1.5 ± 0.1 mm (8V0); 1.5 mm at 1,600 r/min (PZ480P/PZ480EP); 16° at 1,600 r/min (PZ480R/PZ480ER/PZ480STR); 16° (1.5 mm) at 7,000 r/min (8BF/8BG/8BH specifications)
-
Cylinder bore: 71.98–72.00 mm (8V0); 72.00–72.02 mm (8BF/8BG/8BH specifications)
-
Cylinder head warpage limit: 0.03 mm
-
Drive chain oil capacity: 0.25 L
-
Track deflection: 20–25 mm (8V0 electric-start supplement); 25–30 mm (PZ480P/PZ480EP, PZ480R/PZ480ER and 8BF/8BG specifications); 25–40 mm (PZ480STR); 30–40 mm (8BH/PZ480ST), all under a 10 kg (22 lb) load
-
Transmission: Infinitely variable V-belt drive with automatic centrifugal clutch and chain final drive
Yamaha Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 1984–1989 PZ480 Service Manual — early 8V0 specifications | 155 |
| 1984–1989 PZ480/E Supplementary Service Manual — electric-start service and electrical additions | 40 |
| 1990–1999 PZ480/E/ST Service Manual — base procedures for PZ480P/PZ480EP; P/N LIT-12618-PZ-50 | 292 |
| 1991–1999 PZ480/E/ST Supplementary Service Manual — PZ480R/PZ480ER/PZ480STR configurations | 30 |
| 1993–1999 PZ480/E/ST Supplementary Service Manual — PZ480T/PZ480ET/PZ480STT configurations | 17 |
| 1996–1999 PZ480/E/ST Supplementary Service Manual — later PZ480/PZ480E/PZ480ST configurations | 32 |
The supplements supply changed procedures and specifications, while unchanged work stays in the matching base manual. Factory starting numbers help you choose the relevant sections before selecting clutch settings or electrical test data.
Text Search, Bookmarks and Wiring Detail
Search and diagram navigation: OCR text supports searches across the service sections, although recognition errors and some diagram labels can limit results. Embedded bookmarks organize the base manuals and supplements, but two parent entries have no working destination. Small wire codes and connector labels in the denser wiring diagrams require zooming.
One printable English PDF contains 567 pages, including the six publications listed above and one additional prefatory page.
Engine Overhaul, Clutch Service and Electrical Diagnosis
These selected repair topics outline the contents. Other sections cover storage, pre-season preparation and body-panel removal.
-
Engine repair: Engine removal, two-stroke twin disassembly, internal inspection, crankcase assembly, ignition timing, cooling-fan service and final installation.
-
Fuel and oil systems: Carburetor inspection and synchronization, fuel-pump testing, reed-valve checks, Autolube pump adjustment and oil-system bleeding.
-
Clutches and driveline: Primary- and secondary-sheave service, drive-belt inspection, sheave alignment, chain housing and jackshaft work, and brake repair.
-
Chassis and suspension: Steering and ski service, telescopic-strut front suspension, slide-rail rear suspension, track and drive components, and ST-specific long-track assemblies.
-
Tuning references: Temperature- and altitude-based carburetor charts, clutch settings, gearing selection, spring data and suspension adjustments.
-
Electrical troubleshooting: Starting, charging, ignition, lighting, signal and warmer circuits, supported by wiring diagrams, component tests, troubleshooting charts and cable-routing views.
The repair depth and reliance on clutch, measuring and electrical test equipment make this set best suited to service technicians and experienced DIY owners who already have the required tools.
Engine Internals and Carburetor Service
Step-by-step instructions cover cylinder-head, cylinder, piston, ring, piston-pin, crankshaft, bearing and crankcase work. Related procedures address the drive-gear unit, Autolube pump, magneto rotor, cooling-fan housing, recoil starter, intake manifold and reed valves.
The dual Mikuni carburetor material includes float and valve inspection, throttle and starter-cable adjustment, and high-altitude jetting. The Fuel Flow Chart relates carburetor circuits to throttle opening; separate standard and ST tuning data distinguish applications with different driveline settings.
The carburetor chapter warns that separating the factory-locked bodies causes misalignment.
Sheave Repair and Suspension Equipment
Primary- and secondary-sheave procedures include inspection limits, spring and weight data, preload charts, sheave-distance and offset specifications, and special-tool references.
The primary-sheave chapter flags a left-hand-threaded spider and balance-critical assembly marks. Incorrect handling can crack the spider or sheaves or upset assembly balance.
Secondary-sheave service involves stored spring force, while telescopic-strut work involves pressurized nitrogen. Those procedures require the specified compressor or charging equipment and should be left to a qualified mechanic when that equipment or experience is unavailable.
Electrical Fault Isolation and Tool References
Troubleshooting addresses no-spark or weak-spark faults, starter-motor failure, charging problems, inoperative lighting, brake-light faults, and grip- or thumb-warmer failures. Throttle-override system coverage explains the relationship between the CDI unit, throttle switch and carburetor switch, with corresponding continuity checks.
Early electrical references include the PZ480SX and PZ480SEH circuit diagrams. Later material adds PZ480P/PZ480EP wiring diagrams and a PZ480ER circuit diagram, along with component-location and cable-routing views.
The special-tool cross-reference lists North American and 90890-series numbers. Driveline examples include the YS-91047 sheave gauge, YS-01882-A/90890-01898 primary-sheave puller, and YS-28890-A/90890-01711 clutch spider separator.
Engine and electrical references include the YU-01235/90890-01235 rotor holder and YU-03112/90890-03112 pocket tester. Exploded assemblies, component torque tables, wear limits and electrical test specifications accompany the repair procedures.
A Preview of Ignition-Coil Test Values
For PZ480P/PZ480EP, the electrical specifications list Moriyama ignition-coil primary resistance of 0.2 Ω ±20% and secondary resistance of 4.9 kΩ ±20%, both at 20°C (68°F). These values accompany the coil-testing coverage in the ignition troubleshooting section.
