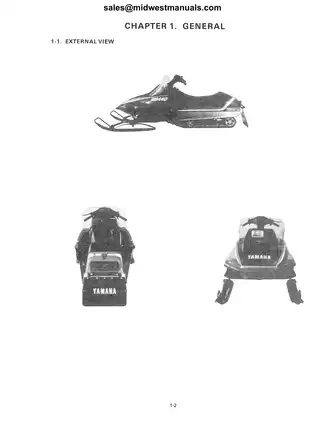

1981–1985 Yamaha SS440 Snowmobile Factory Service Manual Set (P/N LIT-12618-00-29)

This factory service manual set for the 1981–1985 Yamaha SS440 combines the SS440D (8K4) base manual, the SS440E (8L8) supplement, and a later supplement containing primary-sheave procedures and SS440H (8V8) specifications. The supplements cover changes and must be used alongside the base manual.

• Engine repair: Engine removal, crankcase separation, piston and crankshaft inspection, Autolube adjustment and bleeding, cooling-fan service, and recoil-starter repair.

• Carburetion: Keihin carburetor disassembly, cleaning, reassembly, float adjustment, troubleshooting, reed-valve inspection, and fuel-pump checks.

• Power train: Primary and secondary sheave service, clutch tuning, chain-housing repair, gearing selection, front-axle work, and V-belt shim adjustment.

• Suspension and steering: Slide-rail removal, stopper-band and rear-spring settings, drive-track tension and alignment, steering relay-rod adjustment, and ski inspection.

• Brakes: Caliper disassembly, pad and disc inspection, reassembly, and variant-specific brake adjustment.

• Electrical diagnosis: CDI troubleshooting, ignition-timing checks, spark-gap and coil tests, lighting-circuit diagnosis, voltage-regulator testing, and oil-warning circuit checks.

This material is suited to mechanics experienced in engine and clutch work, with access to dial gauges, electrical testers, and the specified sheave tools.

Engine, Autolube and Carburetor Service

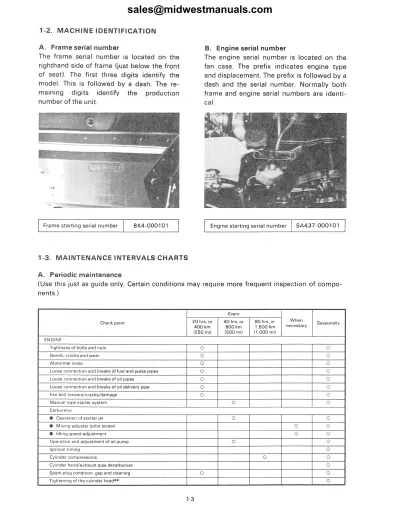

Periodic maintenance and lubrication charts accompany the repair chapters. Engine coverage extends to bearing and oil-seal installation, cylinder inspection, crankshaft runout checks, and reassembly. Supporting tables provide cylinder-head torque, bore limits, and oil and fuel capacities.

Autolube procedures cover pump stroke, cable adjustment, and air bleeding. The precision oil pump itself is not intended to be disassembled.

The carburetor specifications distinguish the SS440D's Keihin BD38-34 from the BD44-38 used in the SS440E and SS440H. The Main Jet Setting Chart and High Altitude Tuning flowchart relate carburetor settings to temperature, altitude, gearing, and clutch behavior.

Carburetor overhaul excludes dismantling the throttle valve and shaft because this can disturb their factory geometry. The manual warns that operating without the intake silencer can create a lean mixture and damage the engine. The SS440E supplement also explains the steel band's role in preventing silencer-joint deformation and unequal spark-plug temperatures.

Sheaves, Chain Drive and Suspension

Primary-sheave installation includes clean-taper requirements and staged bolt-tightening instructions. The SS440E supplement revises clutch spring settings, chain gearing, front-axle assembly, and brake adjustment. Spring and sprocket part numbers accompany the setup data.

The Secondary Spring Setting chart relates preload to snow conditions. Suspension instructions address front and rear stopper bands, rear-spring settings, and optional support wheels; track-alignment views show the relationship between the track windows and slide runners.

The later supplement details primary sliding-sheave, spider, weight, roller, and bushing inspection, plus V-belt shim changes as the belt wears. It identifies Clutch Spider Separator YS-28890-A and adapter YS-34480; spider disassembly requires the specified separator and retaining compound.

The spider has a left-hand thread, and the manual warns that improper handling during separation can crack the sheaves or spider. Observe the precautions for the rotating track, spring-loaded clutch components, and pressurized rear shock.

Ignition Tests and Wiring References

Separate coil-test data distinguish the ignition systems, helping avoid judging a serviceable coil against another variant's specification. Ignition-timing procedures use a dial indicator, while spark-gap testing and the troubleshooting charts support fault isolation.

Wiring Diagrams and Wire and Pipe Routing Diagrams cover the flywheel magneto, switches, lighting, oil-warning circuit, and fuel and oil lines. The later wiring diagram also identifies the optional grip-heater connection.

Sample Crankshaft, Chain and Coil Specifications

These examples are a small selection of the dimensional, adjustment, and electrical data in the set.

The SS440D manual specifies a crankshaft assembly width of 200 ± 0.25 mm and drive-chain free play of 8–15 mm.

For the charging coil between brown and black leads at 20°C (68°F), the SS440E specification is 350 Ω ± 10%; the SS440H table lists 1,290 Ω ± 10%. These values belong to their respective variants.

Searchable PDF and Chapter Access

Text search, bookmarks and diagrams: OCR text search and embedded chapter bookmarks are included. Recognition errors can affect searches for small diagram labels; the wiring labels are readable when enlarged.

The set is supplied as one printable, English-language PDF with 129 pages total.

One additional introductory page is already included in the total. Contents pages are included in the respective publication counts.
