Yamaha Excel-V, XLV, EC540, EXCEL 540 C, and EC 540 D Snowmobile Service & Repair Manual (1979-1990)

Yamaha Excel-V / XLV / EC540 Series Service Manual - 1979-1990

This professional service manual provides the engineering foundation for the maintenance and overhaul of Yamaha 535cc axial fan-cooled snowmobile powerplants. A critical technical requirement identified for electrical system integrity is the commutator mica undercut depth, which must be maintained between 0.5 mm and 0.8 mm (0.02–0.03 in). Precision adherence to this specification is vital for ensuring consistent starter motor brush contact and preventing premature armature failure during high-load cold-start cycles.

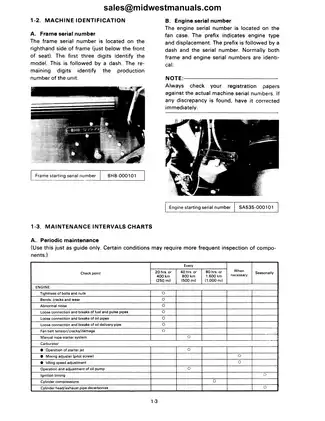

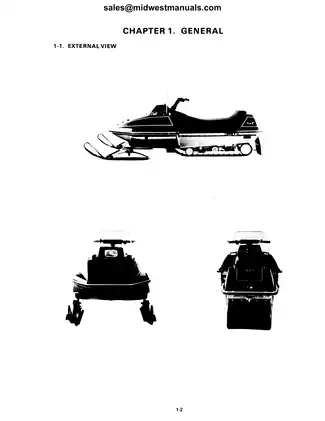

Machine Identification & Technical Applicability

The technical data is segmented by chassis generations and primary serial number prefixes to ensure part-specific accuracy.

Series EC540 / Excel-V (535cc Fan-Cooled Twin)

• Starting Frame ID: 8H8-000101
• Starting Engine ID: SA535-000101
• Supplement Range (EC540D): Starting Frame ID 8K1-004101

Series XL540 / XLV (535cc Fan-Cooled Twin)

• Starting Frame ID: 8Y7-000101
• Starting Engine ID: 8Y7-000101

System Architecture & Operational ROI

• Combustion Calibration: Technical jetting charts provide precise carburetor main jet adjustments for altitudes ranging from sea level to over 3,000m, preventing piston seizure due to lean air-fuel ratios.
• Structural Fastening: Specific multi-stage torque sequences for cylinder head and crankcase fasteners ensure uniform thermal expansion and prevent critical gasket blow-by.
• Drive Efficiency: Defined primary and secondary sheave offset tolerances (5.5 mm) maximize power transfer and significantly extend V-belt service life.

Document Metadata

• Document Type: Service Manual & Technical Supplement
• Manufacturer: Yamaha Motor Co., Ltd.
• Page Count: 163 Pages
• Primary Model Coverage: Excel-V, XLV, EC540 Series

Technical Depth & Factory Benchmarks

Engine specifications are centered on the SA535 axial fan-cooled two-stroke parallel twin, featuring a 73 mm bore and 64 mm stroke. The Autolube oil injection system requires a calibrated minimum pump stroke of 0.20–0.25 mm (0.0079–0.0098 in) at idle to guarantee crankshaft bearing longevity. Ignition timing is fixed via a C.D.I. magneto system at 1.5 ± 0.1 mm B.T.D.C.

Visual Navigation Aids

Technical procedures are supported by the following high-resolution assets:

• Sectional Engine Architecture Diagrams (Crankcase, Pistons, and Cooling Fan)
• Exploded Power Train Schematics (Primary and Secondary Clutch Assemblies)
• Full-Scale Wiring Maps (Ignition, Lighting, and Electric Start Circuits)
• Cable and Fuel Line Routing Templates

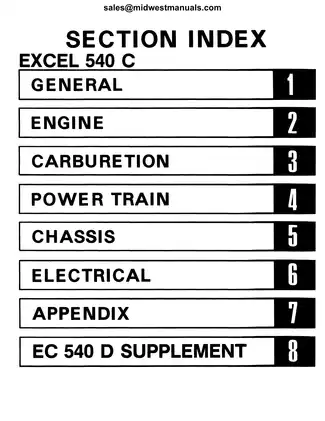

Table of Contents

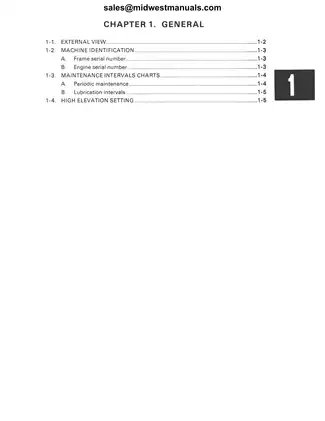

• Chapter 1: General Information (Machine ID, Maintenance Schedules, High-Altitude Settings)
• Chapter 2: Engine System (Disassembly, Inspection, Component Wear Limits, and Remounting)
• Chapter 3: Carburetion (Overhaul, Jetting Specifications, Reed Valve, and Fuel Pump)
• Chapter 4: Power Train (Clutch Adjustment, V-Belt Service, Chain Housing, and Brake System)
• Chapter 5: Chassis & Steering (Suspension Tuning, Ski Alignment, and Fuel System)
• Chapter 6: Electrical System (Ignition Troubleshooting, Lighting Circuit, and Starter Motor)
• Chapter 7: Appendix (Specialized Tools, General Torque Charts, and Technical Data)
• Chapter 8: EC540D Supplement (Updated specifications for subsequent model years)

Operational Limits & Specifications

• Cylinder Head Torque: 2.5 m-kg (18 ft-lb) using a cross-tightening pattern.
• Primary Sheave Mounting: Initial torque 12 m-kg (87 ft-lb), then retighten to 6.0 m-kg (43.5 ft-lb).
• Chain Case Lubrication: Gear Oil API "GL-3" SAE #75 or #80 (300 cc capacity).
• Fuel Capacity: 27 Liters (7.0 US gal) Regular Gasoline.
• Brake Pad Wear Limit: Minimum thickness 9.5 mm (0.37 in).
