1992–1995 Yamaha Enticer II 410 ET410TR Snowmobile Service Manual

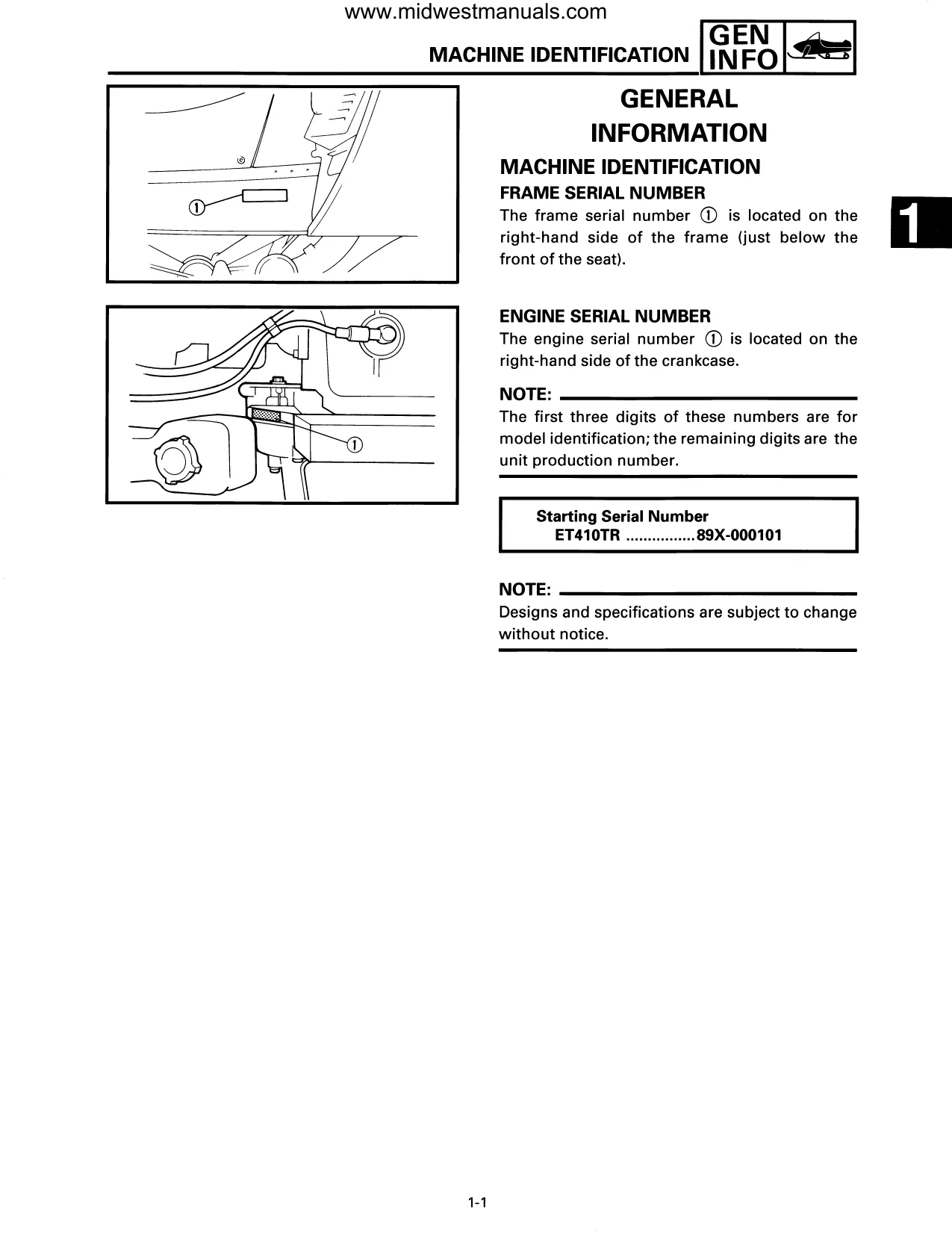

This service manual covers inspection, repair, and maintenance of the 1992–1995 Yamaha Enticer II 410 snowmobile, with procedures and specifications for ET410TR, model code 89X.

• Engine repair: Engine removal, crankcase separation, piston and cylinder inspection, crankshaft runout checks, CDI magneto service, and recoil starter rebuilding.

• Fuel and lubrication: Teikei Y26W carburetor disassembly and jetting, fuel-pump operation checks, oil-pump bleeding, and pump-stroke adjustment.

• Clutch and drive: Primary and secondary sheave rebuilding, sheave offset adjustment, drive chain housing and jackshaft service, and reverse mechanism inspection.

• Chassis and suspension: Steering linkage and ski service, front suspension repairs, brake caliper disassembly, slide rail suspension rebuilding, and track tensioning.

• Electrical diagnosis: Ignition, lighting, and signal-system troubleshooting, throttle override system (T.O.R.S.) checks, circuit diagrams, and the ET410TR wiring diagram.

• Tuning and reference data: High-altitude carburetor and clutch settings, gearing selection, periodic maintenance schedules, component torque tables, wear limits, and cable-routing drawings.

Suited to experienced snowmobile mechanics with the measuring tools and clutch-service equipment needed for internal engine inspection and spring-loaded sheave work.

Engine Overhaul and Oil Injection

The crankcase section explains bearing and labyrinth-seal alignment. Cylinder and piston inspection covers bore measurements, ring clearances, and wear limits, alongside intake and exhaust manifold installation and recoil starter reassembly.

The manual identifies components that can be removed with the engine still installed, helping you plan cylinder, piston, magneto, or recoil starter work without assuming a full engine removal is necessary.

Yamaha Autolube coverage includes oil-pump drive gears, cable adjustment, and minimum and maximum pump-stroke checks.

Carburetor Tuning and Fuel Delivery

Fuel-flow and main-jet selection charts relate fuel metering to throttle opening and spark-plug condition. Altitude and temperature tables provide jetting data, while clutch-tuning graphs distinguish engagement from shifting behavior.

Fuel-pump coverage consists of operation checks and assembly replacement, rather than internal pump rebuilding.

The carburetor section explains how running without the intake silencer and air chamber can create a lean mixture and cause severe engine damage.

Sheaves, Reverse Drive and Suspension

Primary sheave service covers bushing and roller inspection, match-mark alignment, and the staged mounting-bolt tightening procedure. The special-tool list identifies the primary sheave holder as P/N 90890-01701.

Clutch-spider work requires attention to its left-hand thread and tool support; improper handling can crack the spider or sheaves.

Drive chain housing service extends to the dog clutch, shift fork, reverse gears, and shift-rod adjustment. Steering and front suspension sections address linkage wear, ski alignment, and component installation.

Slide rail suspension procedures include wheel and bearing inspection. Spring-preload and stopper-band charts explain how settings affect stability, maneuverability, and riding comfort.

Observe the manual's precautions for rotating tracks and stored clutch-spring energy, and verify specifications in the relevant procedure before service.

Ignition, Lighting and Signal Faults

The no-spark or weak-spark flowchart connects spark-plug cap, ignition-coil, and source-coil checks with switch continuity and CDI diagnosis. Lighting and signal sections cover headlight faults, brake-light failure, and the reverse buzzer, including wiring checks and rectifier/regulator replacement decisions.

Electrical reference data include ignition timing specifications and cable-routing drawings. Optional electric-start, tachometer, and grip/thumb-warmer equipment appears in wiring or specification sections; the starter rebuilding procedure in the engine chapter is for the recoil starter.

Examples of Clutch Wear Limits and Engine Clearances

These examples are a small selection of the manual's component inspection specifications.

The primary sheave cap bushing has a listed inside diameter of 28.0 mm when new and a 28.2 mm wear limit. The secondary sheave ramp shoe has a thickness wear limit of 1.0 mm.

Engine inspection data specify piston-to-cylinder clearance of 0.050–0.055 mm, with a 0.1 mm limit. The engine chapter explains the bore and piston-skirt measurements used to assess that clearance.

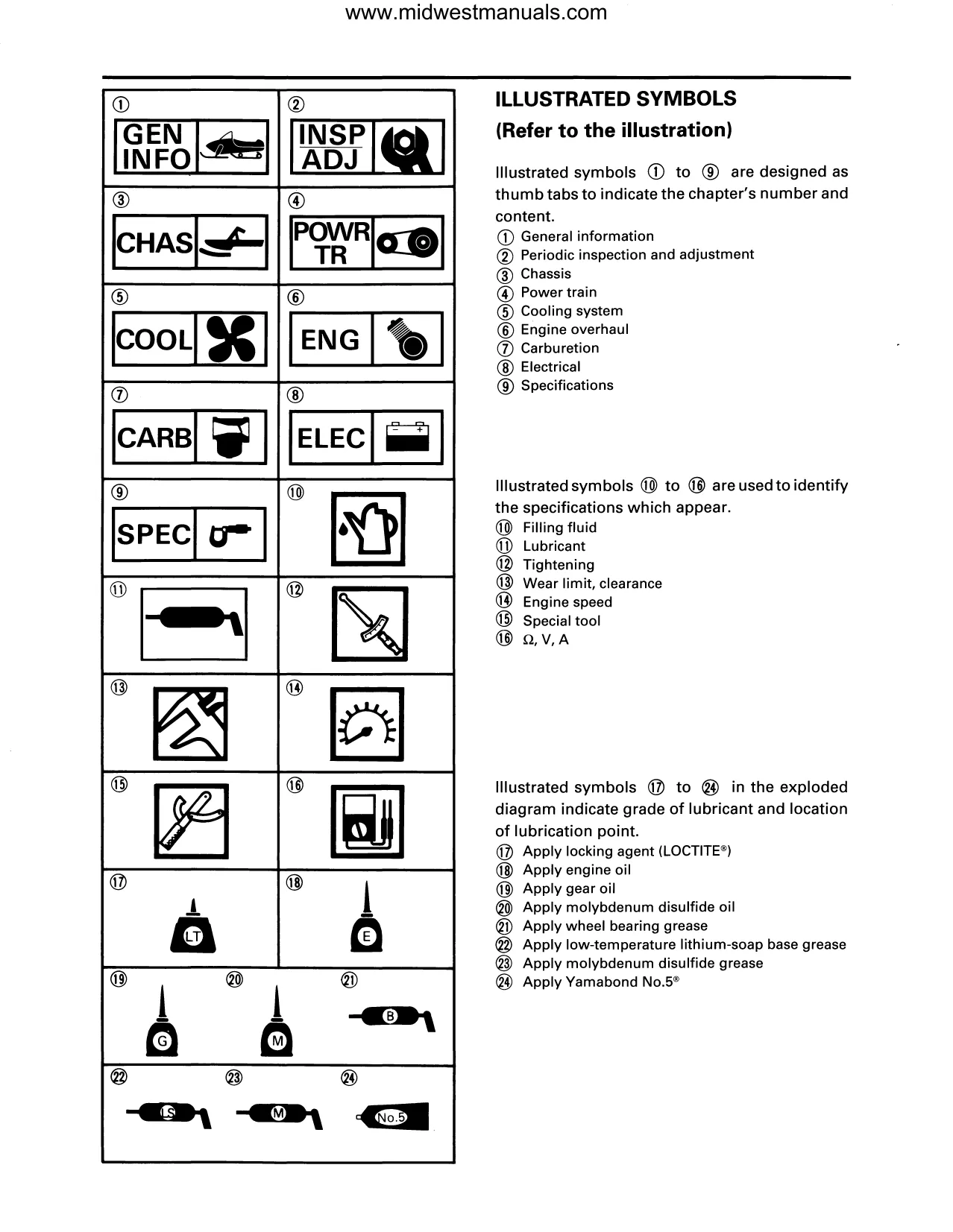

Text Search, Bookmarks and PDF Contents

Navigation and diagram detail: An embedded OCR text layer supports searching the main text, and PDF bookmarks link to chapters and sections. Some diagram labels are not captured by text search. Small wire-color codes require zooming for clear reading.

One printable English PDF download contains 180 pages total: 179 manual pages, including two memo pages, plus one added introductory page already included in that total.
