Honda CRF450R 2009–2012 Service Manual (P/N 61MEN73)

Honda OEM service manual for the 2009–2012 CRF450R, P/N 61MEN73, covering factory maintenance, diagnosis and repair. Coverage applies to the CRF450R; the CRF450X requires its own model-specific manual.

PDF Search, Bookmarks and Diagram Detail

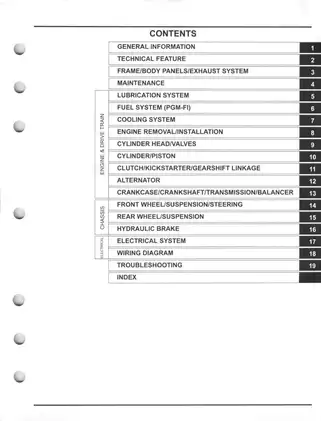

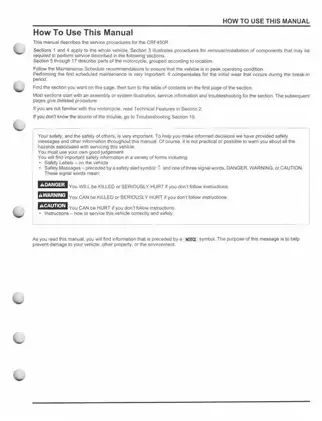

Text search and navigation: Searchable OCR text contains recognition errors, particularly in some tables and wiring labels. Embedded bookmarks provide access to the contents, all 19 sections, the index and both model-year wiring diagrams. Small wiring labels are readable when enlarged.

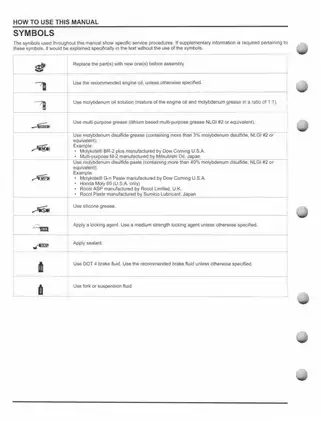

One printable, English-language PDF contains 472 pages, including one cover, four introductory and contents pages, and 14 memo pages already included in that total.

PGM-FI Diagnosis, Engine Repair and Suspension Service

The selected topics below preview the manual’s coverage rather than reproduce its full contents. Further procedures include muffler repacking and oil-pump inspection.

• Scheduled maintenance: Race-based schedules, valve-clearance inspection and shim selection, oil and filter changes, air-cleaner service, and drive-chain inspection.

• PGM-FI diagnosis: MIL/DTC readout and erasure, HDS current and freeze-data access, ECM terminal checks, sensor and injector circuit testing, and fuel-pressure and flow diagnosis.

• Engine repair: Step-by-step engine removal and installation, compression testing, camshaft and rocker-arm service, decompressor inspection, valve-guide replacement, valve-seat refacing, piston service and cam-timing installation.

• Drivetrain service: Crankcase separation, crankshaft and bearing inspection, balancer timing, transmission disassembly and reassembly, clutch service, kickstarter repair and gearshift-linkage work.

• Chassis and suspension: Wheel and hub service, fork overhaul and air bleeding, fork-oil setup, HPSD overhaul, shock bladder and damper service, linkage bearings and steering-head repair.

• Brakes and cooling: Radiator-cap and system-pressure testing, coolant replacement and air bleeding, water-pump repair, brake bleeding, master-cylinder and caliper rebuilding, and pad and disc inspection.

• Electrical troubleshooting: Ignition peak-voltage and resistance tests, alternator and regulator/rectifier checks, gear-position-switch diagnosis, engine-stop-switch and condenser inspection, and separate year-specific wiring diagrams.

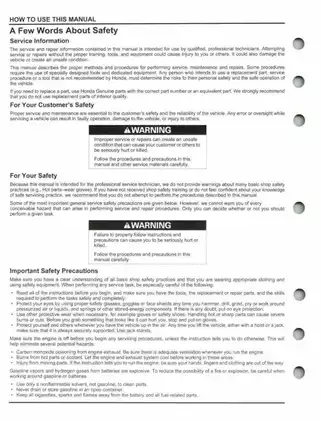

Honda wrote this manual for qualified professional technicians with shop-safety training and access to the specified special tools and test equipment.

Model-Year Differences and Workshop Planning

Fuel and electrical changes: The 2009 configuration has a gear-position-switch circuit and different DLC and battery-harness connections from later models. Fuel-pump service separates 2009–2010 from After ’10 versions; throttle-body specifications also change after 2010.

Suspension and clutch changes: Fork internals and procedures change after 2010, with further oil-capacity and assembled-length differences after 2011. Rear-shock compression-adjuster and damper details distinguish 2009–2011 from later builds. After ’10 clutch procedures identify the judder spring and spring seat.

These distinctions help match parts, diagnostic adapters, specifications and procedures to the correct configuration.

Detailed preload and damping adjustments for riding conditions and rider skill, along with pre-ride checks, are referenced to the separate owner’s manual.

Engine Access and Repair Depth

Cylinder-head and piston procedures can be performed with the engine installed in the frame. Crankshaft and transmission service requires engine removal and crankcase separation. Oil-pump and one-way-valve service also requires crankcase separation, while the pressure-relief valve and strainer can be serviced with the engine installed.

Diagnostic Tools and Technical Reference

Diagnostic tool listings identify the HDS Pocket Tester TDS3557-0112-01 and SCS service connector 070PZ-ZY30100. Battery connections use harness 070MZ-MEN0100/070MZ-MENA100, with adapter 070MZ-KRN0100/070MZ-KRNA100 for After ’09 models.

Engine tooling includes valve-spring compressor 07757-0010000, alongside dedicated pullers, drivers, gauges and suspension tools. The listings distinguish U.S. availability and applicable commercially available equivalents.

Reference material covers component-specific torque tables, lubrication and seal points, fluid capacities, clearances, wear limits, electrical test values, suspension setup data and optional springs.

Visual references include PGM-FI system diagrams, connector-location views, the lubrication-system diagram, cooling-system flow pattern, cable and harness routing, and exploded assembly views for engine, drivetrain, suspension and brake work.

Component Handling and Repair Cautions

Installing the engine-oil filter backward can cause severe engine damage. Lapping the titanium intake valves damages their thin oxide coating.

Opened PGM-FI connections and the rear shock’s high-pressure nitrogen reservoir require the equipment and safety practices specified in the manual.

A Preview of Fuel-System and Ignition Specifications

Fuel-pressure testing specifies a standard range of 333–360 kPa with the pump powered by a 12 V battery. Injector resistance is specified at 11.6–12.4 Ω at 20°C (68°F).

For ignition service, the specified spark plug gap is 0.8–0.9 mm. These are selected reference values from the related testing and inspection sections.
