Lexmark C770-782 Series Printer Repair Manual (P/N 12G9688)

• Exact printer coverage: Lexmark C770n (5061-110), C772n (5061-310), C780n (5061-210), and C782n (5061-410). The core 474-page OEM service manual is Lexmark P/N 12G9688, Edition August 7, 2007.
• Factory diagnostics: Fault isolation covers the ITU, fuser, printheads, power supplies, paper path, duplex unit, input options, mailbox, and finisher, with service information for 100-series faults, 200-series jams, 900.xx RIP errors, and 925–990 service codes.
• Major repair procedures: Documents printhead, ITU, fuser, second transfer roll, autocompensator, vacuum transport belt, HVPS/LVPS, system board, registration drive, multipurpose feeder, sensor, and option-assembly removal and replacement, followed by the applicable alignment or operational checks.
• Options and configuration differences: All four machine types receive 500-sheet drawer and duplex coverage. The C772/C782 sections add the high-capacity input tray, output expander, 5-bin mailbox, StapleSmart finisher, envelope drawer, outdoor media drawer, and banner tray.
• Electrical and visual references: Provides system-board left- and right-side wiring diagrams, HCIT wiring, cartridge-contact pin-location views, transfer-HVPS/LVPS connector diagrams, a print-quality defect locator chart, and a repeating defect chart.
• Direct C770–C782 field updates: Seven 5061-family bulletins address transport-related print misalignment, paper-deflector and autocompensator jams, false S2-sensor jams, pick-arm clutch engagement, media-setting print defects, and post-service printhead wiring errors.
• Document-set size and scope: 758 unique PDF pages across 26 distinct documents—a 474-page core manual, a 201-page Service Support Guide 10.02 extract, 69 pages of C75x/C76x/C77x/C78x bulletins, and 14 pages of All Business Printers bulletins. Duplicate files within the nested folders are counted once.

Service Documentation Walkthrough

The 474-page 5061-xxx manual is the central repair publication for these four printers. Its organization follows the way the machine is handled on the bench: general information, symptom tables, service error codes, diagnostic aids, repair information, connector locations, preventive maintenance, an illustrated parts catalog, service tips, print-quality samples, indexes, and wiring diagrams.

The diagnostic material goes well beyond a list of displayed error codes. It includes power-on-reset analysis, printhead diagnostics, registration and color-alignment functions, the Partial Print Test, ITU belt-tracking checks, and option-specific feed and sensor tests. Separate test coverage is provided for the duplex unit, paper drawers, output bins, envelope feeder, HCIT, mailbox, and StapleSmart finisher.

Service and configuration modes cover LCD, button, DRAM, cache, disk, flash, sensor, and interface testing. Technicians can also access event logs, page-count information, size-sensing settings, regional defaults, print-quality pages, Auto Color Adjust, and the fuser-count reset function. Several disk and memory functions are identified as destructive tests, allowing the correct procedure to be selected before stored information is affected.

The repair chapter reaches from covers and access doors into the main print engine. It documents the fuser and fuser drive, ITU and ITU drive, printheads and their adjustment hardware, cartridge contacts and drives, transfer systems, vacuum transport belt, autocompensator, registration components, multipurpose feeder, media-size sensing hardware, cooling fans, power supplies, and system board. Option assemblies are handled in their own sections rather than being folded into generic paper-feed instructions.

Parts identification is similarly configuration-aware. Exploded views and part-number indexes distinguish 1xx/3xx and 2xx/4xx machine-type components, voltage-specific fuser maintenance kits, and hardware used only with particular input or finishing options. The envelope-feeder listings also show an important compatibility difference: the C772 version is limited to the C772, while the C782 version is listed for both the C772 and C782.

Lexmark identifies several diagnostic tools by part number, including parallel wrap plug 1319128, twinax/serial debug cable 1381963, and coax/serial debug cable 1381964. The manual also calls for standard hand tools, feeler gauges, a spring hook, and a multimeter where the related inspection or electrical test requires them.

Bulletin and Legacy Archive Scope

The bulletin folder must be read by platform applicability. The seven updates numbered 113 through 119 directly address the C770/C772/C780/C782 generation. Their subjects include misaligned output after transporting the printer, a dislodged paper deflector following autocompensator work, torn media or disturbed paper-path sensors, false 200.28 jams at the S2 flag, incomplete pick-arm clutch engagement, incorrect media settings that produce faded output or 34 errors, and printhead faults following system-board service.

The earlier C750 and C76x bulletins cover the predecessor 5060 platform. They add useful background on ITU faults, printhead alignment, autocompensator replacement, fading color planes, and related service practices, but they are not presented as blanket C770–C782 repair instructions.

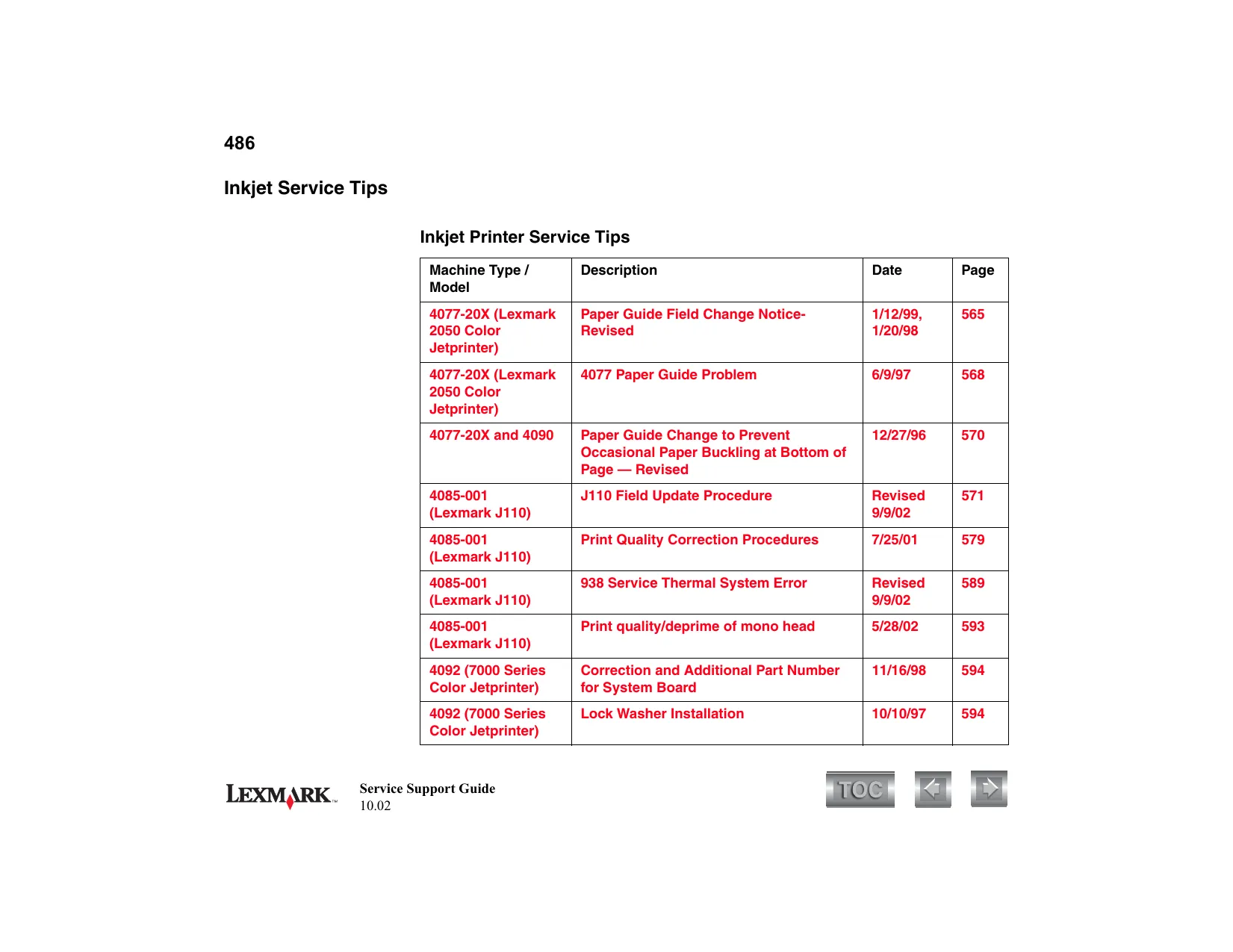

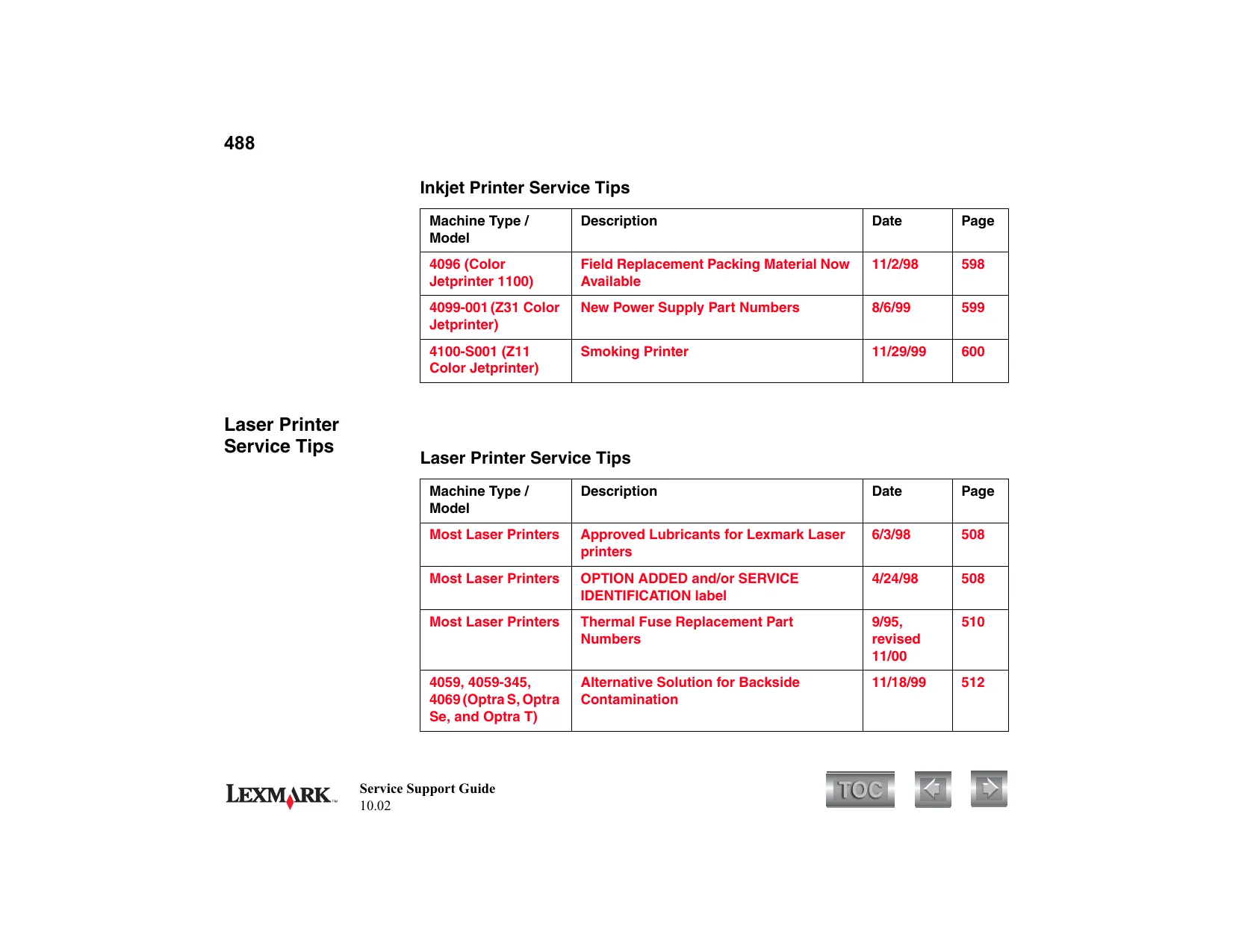

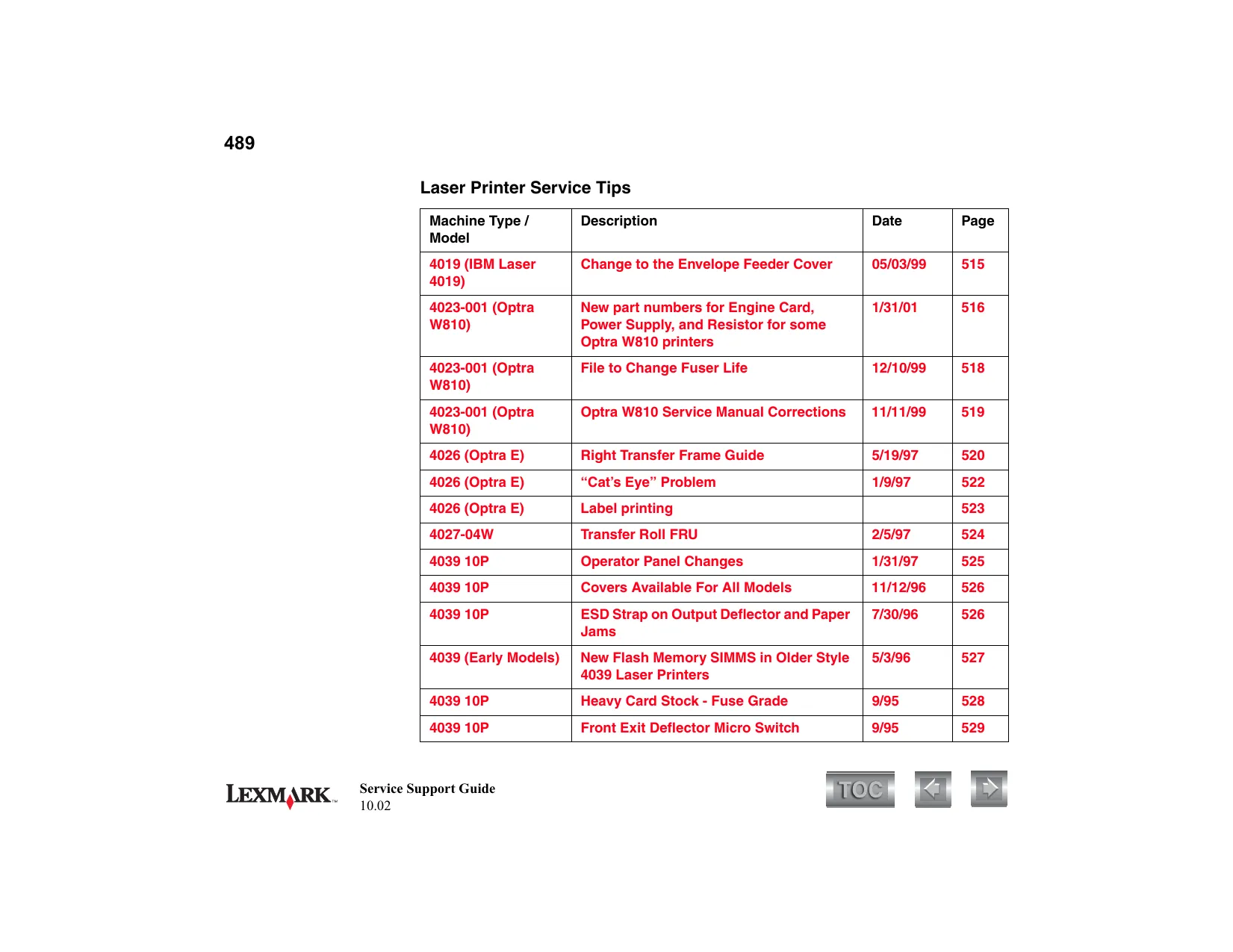

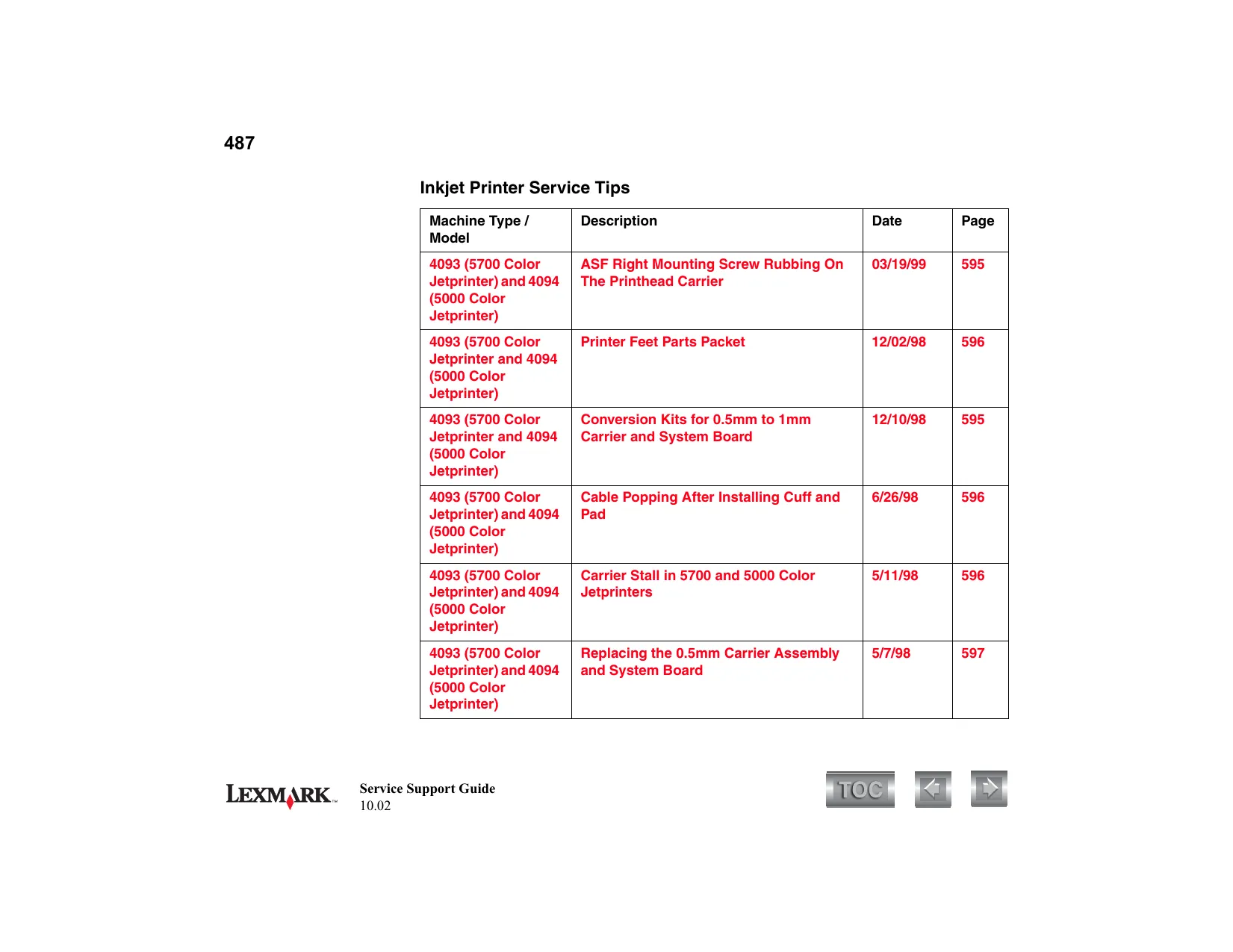

The separate 201-page Service Support Guide 10.02 file is a legacy cross-model archive rather than another C770-series manual. It collects service tips issued through 2002 for older equipment such as Optra S and Optra C printers, the C750, earlier inkjet products, and 23XX forms printers. The six All Business Printers bulletins are also general notices; only selected subjects, including memory policy and the 2007 daylight-saving-time code update, directly involve the covered network printers.

Repair Cautions and Bench Use

The printhead section warns against loosening more than one printhead at a time and requires the temporary alignment assemblies to be removed after mechanical adjustment; leaving those fixtures installed can damage the printer. Bulletin C7xx_119 also traces post-repair 10x.05 faults to a mirror-motor cable connected upside down at the system board, an error that can lead to replacement of both the printhead and board.

These printers combine substantial machine weight with high-voltage circuitry and a hot fuser. Disconnect the power source, allow the fuser to cool, remove installed options before lifting, and follow the manual’s multi-person handling instructions before beginning internal repair work.
