Lexmark X543, X544, X543DN, X544N, X544DN, X544DW, X544DTN Printer Service Guide (P/N 12G9825)

• Official Lexmark P/N 12G9825, Edition September 25, 2008: a 311-page X543-X544 service manual for machine type 7525, plus the 2-page X54x Bulletin MFP_139. The download totals 389 PDF pages across 39 files because it also carries 37 legacy MFP bulletins totaling 76 pages; model-specific repair coverage is concentrated in the service manual and MFP_139.
• Follows the power-on reset sequence through symptom tables, attendance and service-error codes, paper-jam locations, fax error logs, and component-level service checks.
• Bench diagnostics cover print and duplex registration, scanner alignment, motor detection, print-quality pages, DRAM and cache checks, tray feed and sensor tests, scanner ASIC/feed tests, event logs, and manual ADF/flatbed registration.
• Repair procedures address the fuser and fuser drive, main drive gear assembly, image transfer and imaging units, developer units, printhead, controller board, HVPS/LVPS, and toner-sensing hardware.
• Scanner-side service includes flatbed and simplex/duplex ADF removal, separator pad and roll service, redrive components, operator panel and cables, fax card, and wireless network hardware.
• Electrical reference material provides controller-board, HVPS, LVPS, toner-meter-card, and wireless-card connector locations with pin and signal tables, backed by illustrated FRU parts breakdowns.

Exact Model and Configuration Coverage

Lexmark prepared this maintenance information for professional service personnel; its FRU-level disassembly, live electrical checks, service menus, and ESD controls assume trained bench-service experience rather than basic owner-level maintenance.

The model table separates the individual builds. X543dn coverage includes 7525-131, -133, and -138, with differences for the DBCS operator panel and wireless networking. X544n machines are listed as 7525-352 and -356; these configurations have duplex scanning but simplex printing, and fax support depends on the build. X544dn and tray-bundled X544dtn versions use 7525-332, -333, -336, and -337, while wireless X544dw versions use 7525-382, -383, -386, and -387. The dtn designation is a bundled dn configuration with the 650-sheet Duo Drawer, not a separate base-machine code.

Technical Documentation and Diagnostics

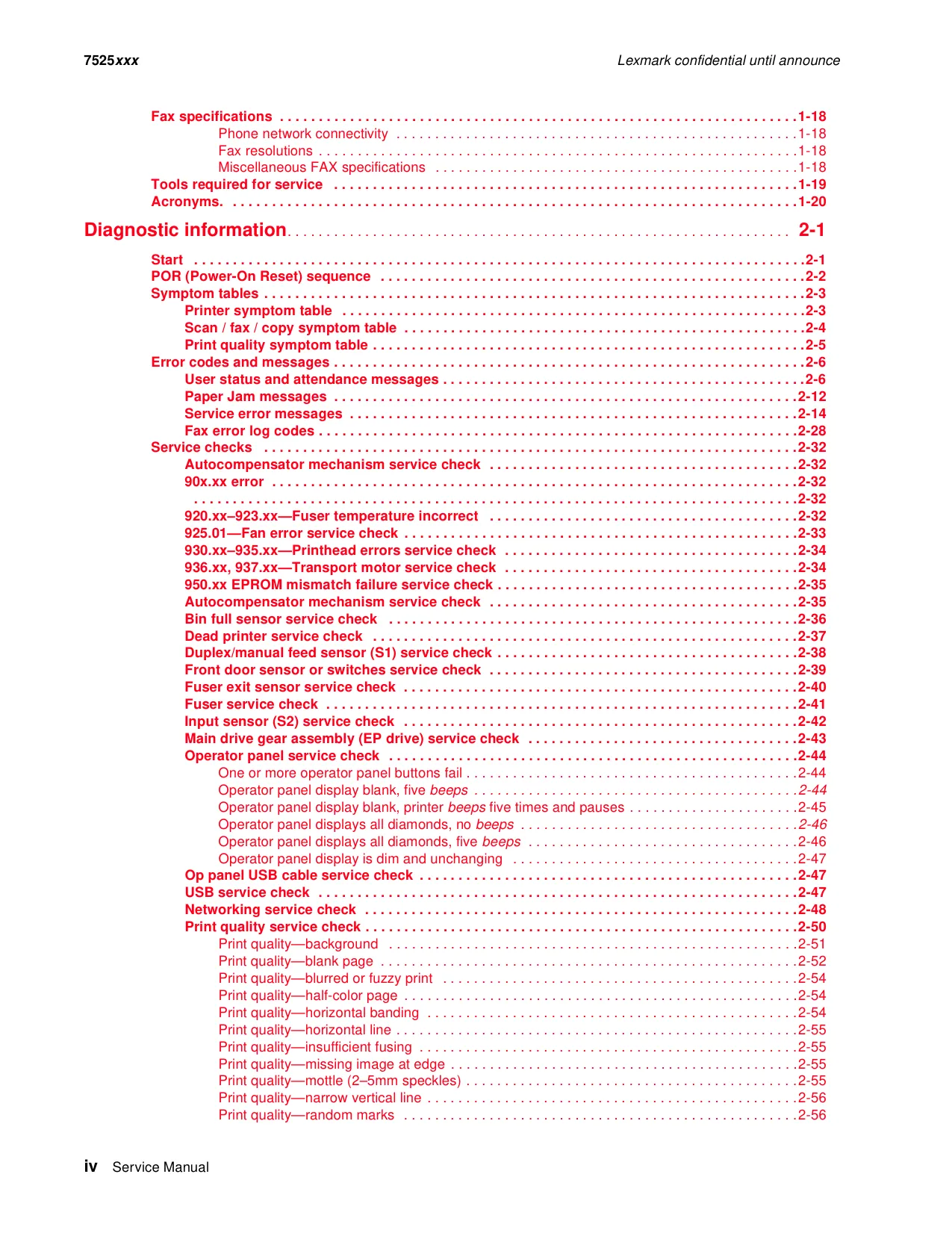

The diagnostic chapter starts with POR behavior and then separates printer, scan/fax/copy, and print-quality symptoms. Dedicated service checks isolate faults in the autocompensator mechanism, fuser, printhead, transport motor, main drive, transfer roll, toner meter cycle card, operator panel, network and USB paths, flatbed/CCD system, ADF, and modem/fax circuits. Jam guidance covers the printer paper path, duplex path, input sources, and ADF locations instead of treating every feed fault as the same problem.

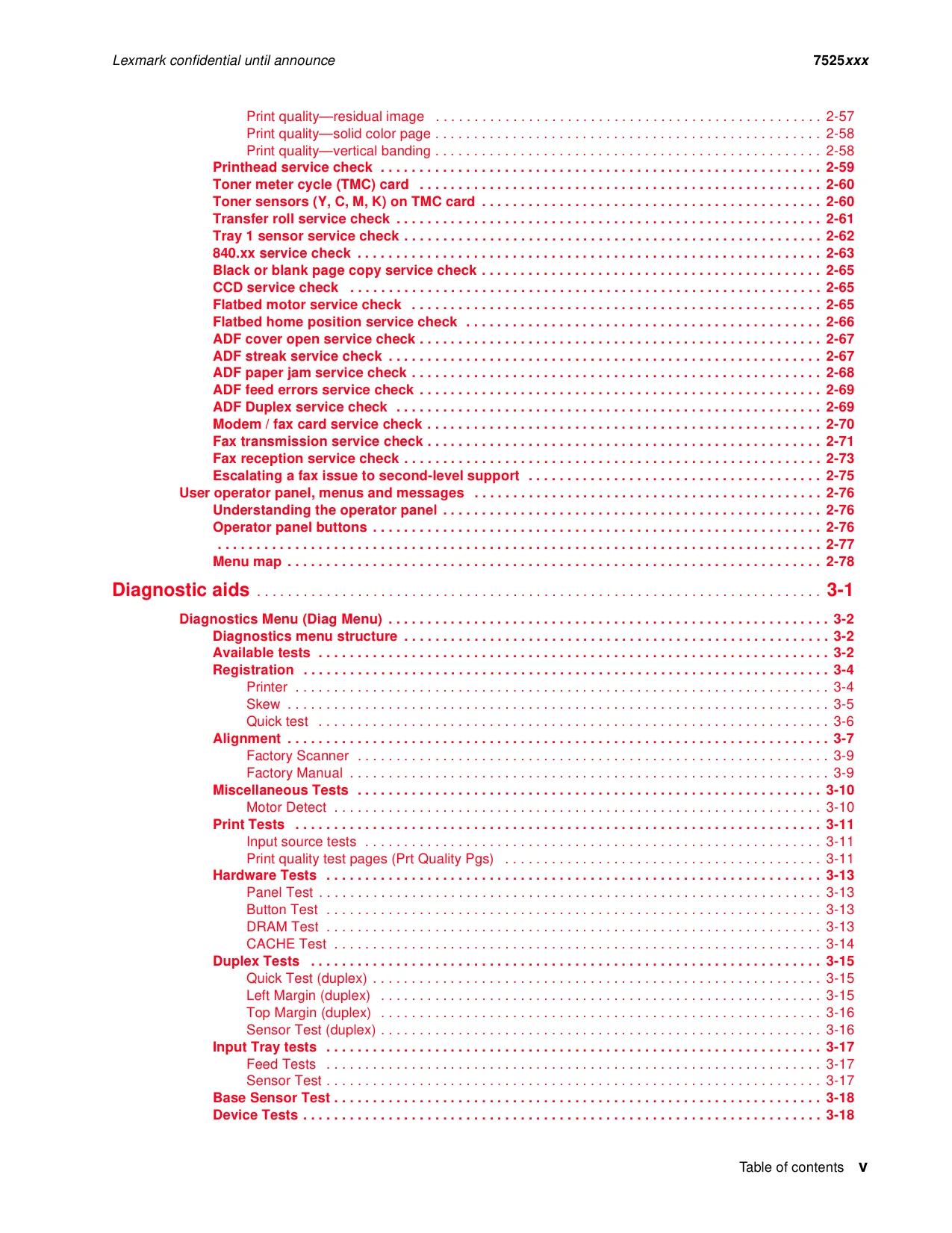

Service-mode material goes beyond reading an error code. The Diagnostics, Configuration, and SE menus include registration and skew tests, device and sensor tests, configuration ID and model-name setup, fuser-count reset, EP charge/developer-bias/transfer adjustments, toner patch sensor setup, color-calibration reset, and scanner manual registration. MFP_139 adds a model-specific check for a false 925.01 fan-stalled error caused by a poorly seated fan connection at the system board.

Repair Procedures, Drawings, and Parts Data

The repair chapter documents removal and installation of the main print-engine and scanner FRUs. That includes the image transfer unit, imaging and developer units, fuser, fuser drive motor, main drive gear assembly, printhead, power supplies, controller board, flatbed, both ADF designs, wireless card and antenna, fax card, and operator panel. The parts catalog identifies covers, scanner, paper-path, electronics, and option assemblies with exploded views and Lexmark FRU numbers, including the 650-sheet Duo Drawer.

Useful named illustrations include the Electrophotographic Process, Paper Path Information, Transport Components, Controller Board connector map, and the HVPS and LVPS connector tables. This is not a stand-alone wiring-diagram manual; electrical fault tracing is handled through connector locations, pin/signal identification, prescribed meter checks, and decision-table service checks.

Several cautions matter during repair. Incorrect re-drive belt or tension-spring placement after top-cover work can leave the drive noisy or improperly routed, while touching the underside of the imaging unit can damage the developer units. The flatbed rear cable cover and operator-panel/USB harnesses also have exact routing requirements; poor routing can crimp the cables, disturb scanner redrive contact, and create skew or jams.

Specifications, Tools, and Safety Scope

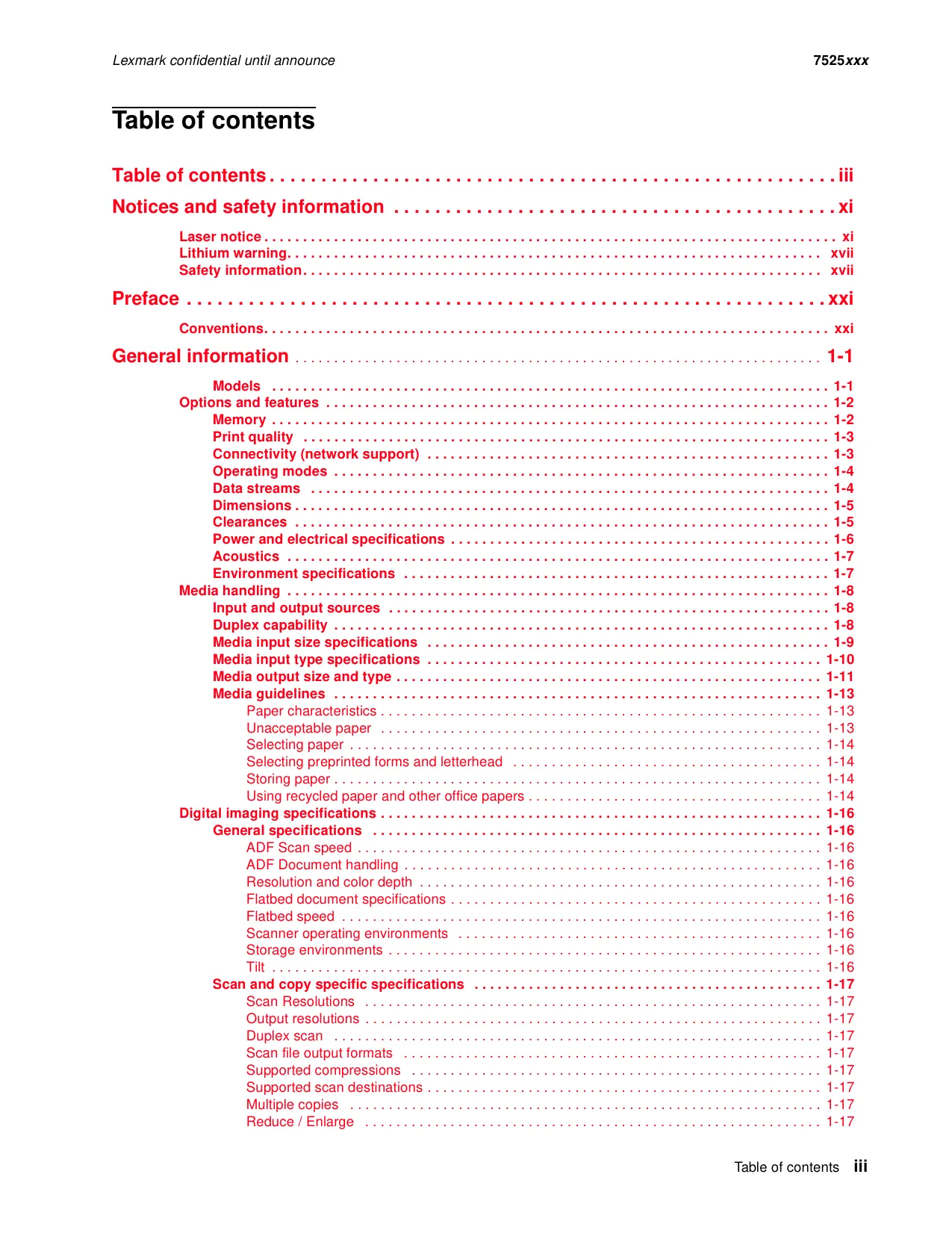

The general-information section supplies model-by-model feature tables, media sizes and types, duplex capability, digital imaging and fax specifications, power requirements, operating environment, dimensions, and installation clearances. Service equipment is identified as well, including multimeters, feeler gauges, a spring hook, and parallel wrap plug 1319128. Preventive-maintenance material covers the safety inspection and lubrication specifications.

Diagnostics are organized to isolate replaceable FRUs, not to teach board-level electronic repair. Because some checks involve hazardous-voltage areas and the fuser presents a hot-surface hazard, the unit should be disconnected before disassembly unless a specified live test requires power, with Lexmark's ESD and service precautions followed throughout.
