Lexmark C540N Series Service Manual (P/N 12G9819)

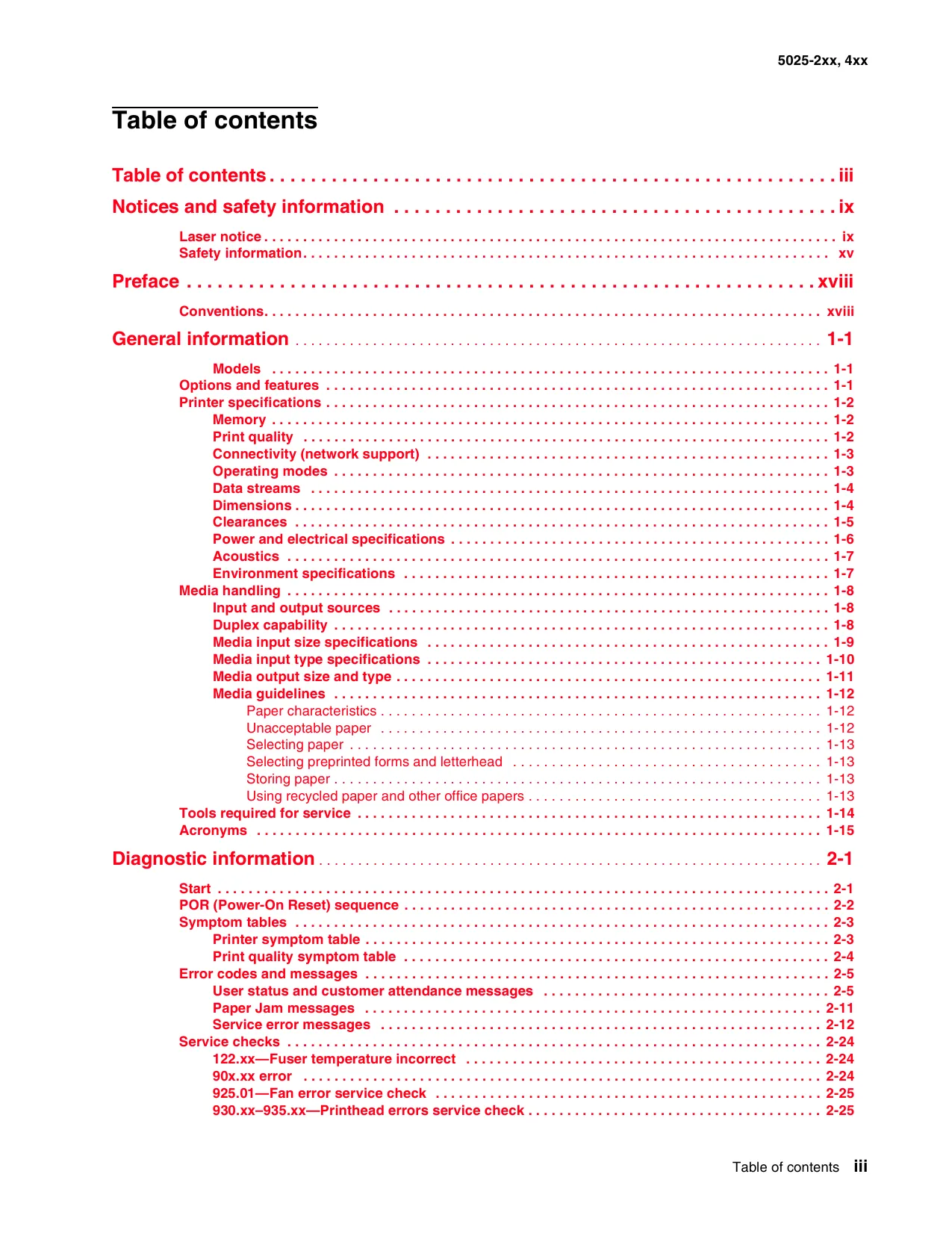

• Covers Lexmark C540n (5025-210), C543dn (5025-230), C544n (5025-410), C544dn (5025-430), and C544dw (5025-43W); the C544dtn is documented as the C544dn configuration fitted with the 650-sheet Duo Drawer.
• Separates nonduplex C540n/C544n machines from duplex C543dn/C544dn/C544dtn/C544dw configurations, and follows the C544-series USB-A host/PictBridge hardware plus the factory-installed wireless card and antenna used on the C544dw only.
• Uses the POR sequence, symptom tables, paper-jam messages, service-error tables, and component service checks to isolate fuser-temperature, fan, printhead, transport-motor, NVRAM, paper-feed, duplex-sensor, operator-panel, transfer-roll, and print-quality faults.

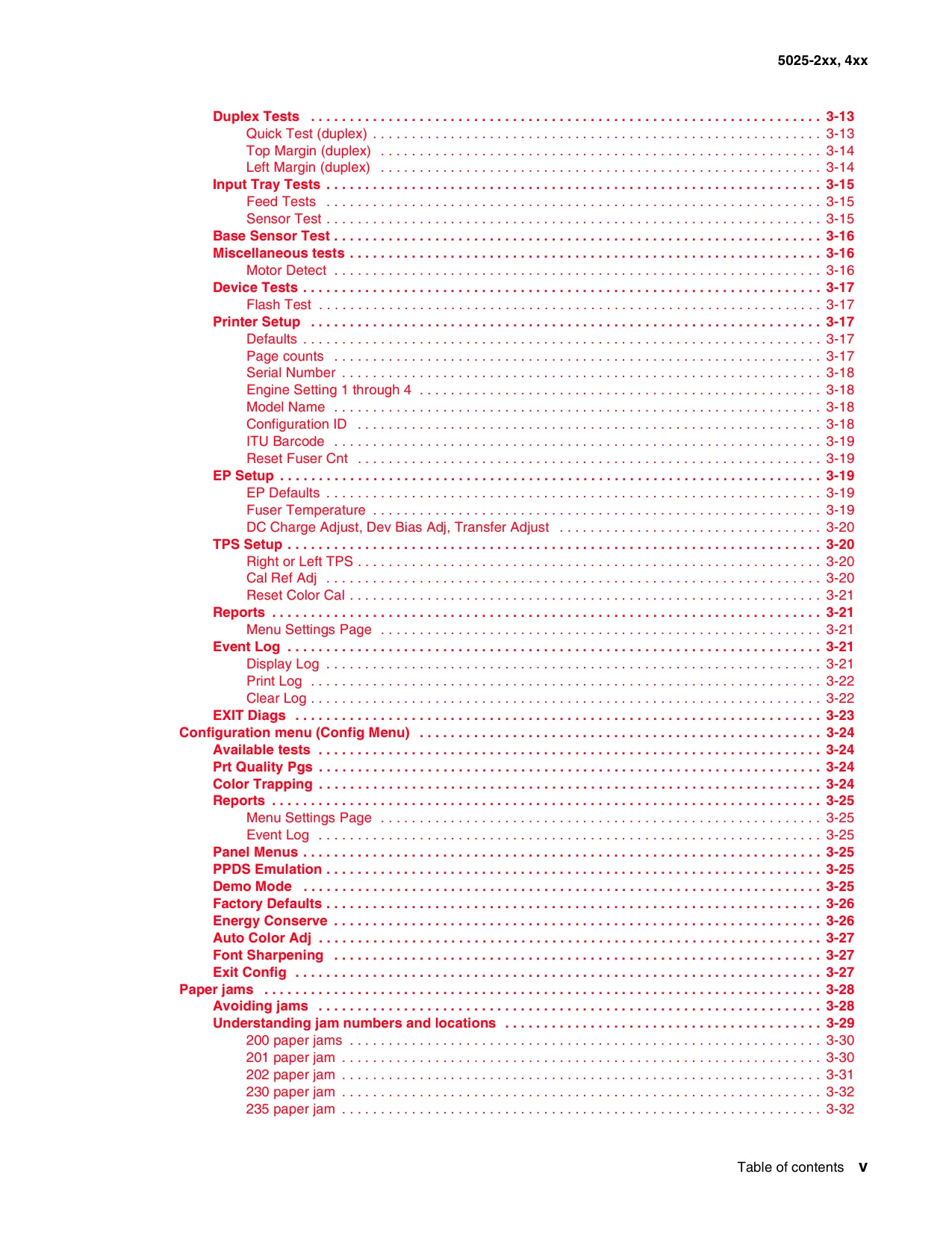

• Provides Diagnostics and Configuration Menu coverage for black registration, color-plane alignment, duplex margin checks, tray feed and sensor tests, panel/button/DRAM tests, motor detection, ITU barcode entry, TPS setup, fuser-count reset, EP adjustments, and event-log review.
• Covers major repair and replacement paths for the controller board, fuser, HVPS, LVPS, ITU, imaging and developer units, main drive gear assembly, printhead, toner-density sensors, TMC card, tray sensors, USB host connector, and C544dw wireless hardware.
• Includes the paper-path and transport view, EP-process diagrams, controller-board connector drawing, HVPS and LVPS diagrams, pin-and-signal tables, and exploded parts assemblies for covers, frames, electronics, cables, and options.

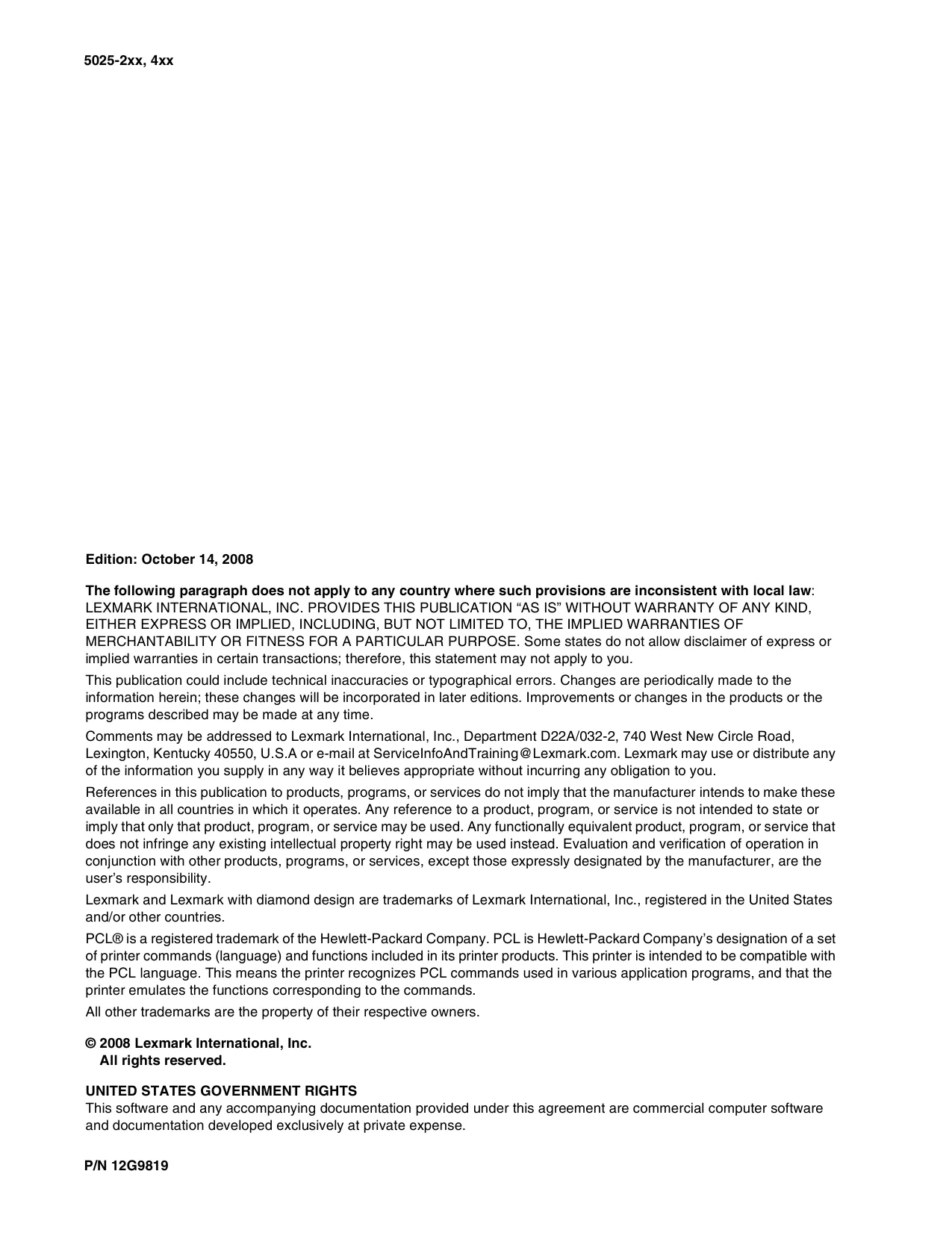

• Supplied archive: 252 PDF pages total — a 236-page Lexmark Service Manual, P/N 12G9819, Edition October 14, 2008, plus seven bulletins totaling 16 pages. The directly applicable C54x additions are C54x_101 and C5xx_106; the remaining sheets are older C52x/C53x or duplicate X54x material and do not add C54x repair coverage.

Diagnostic Coverage and Calibration

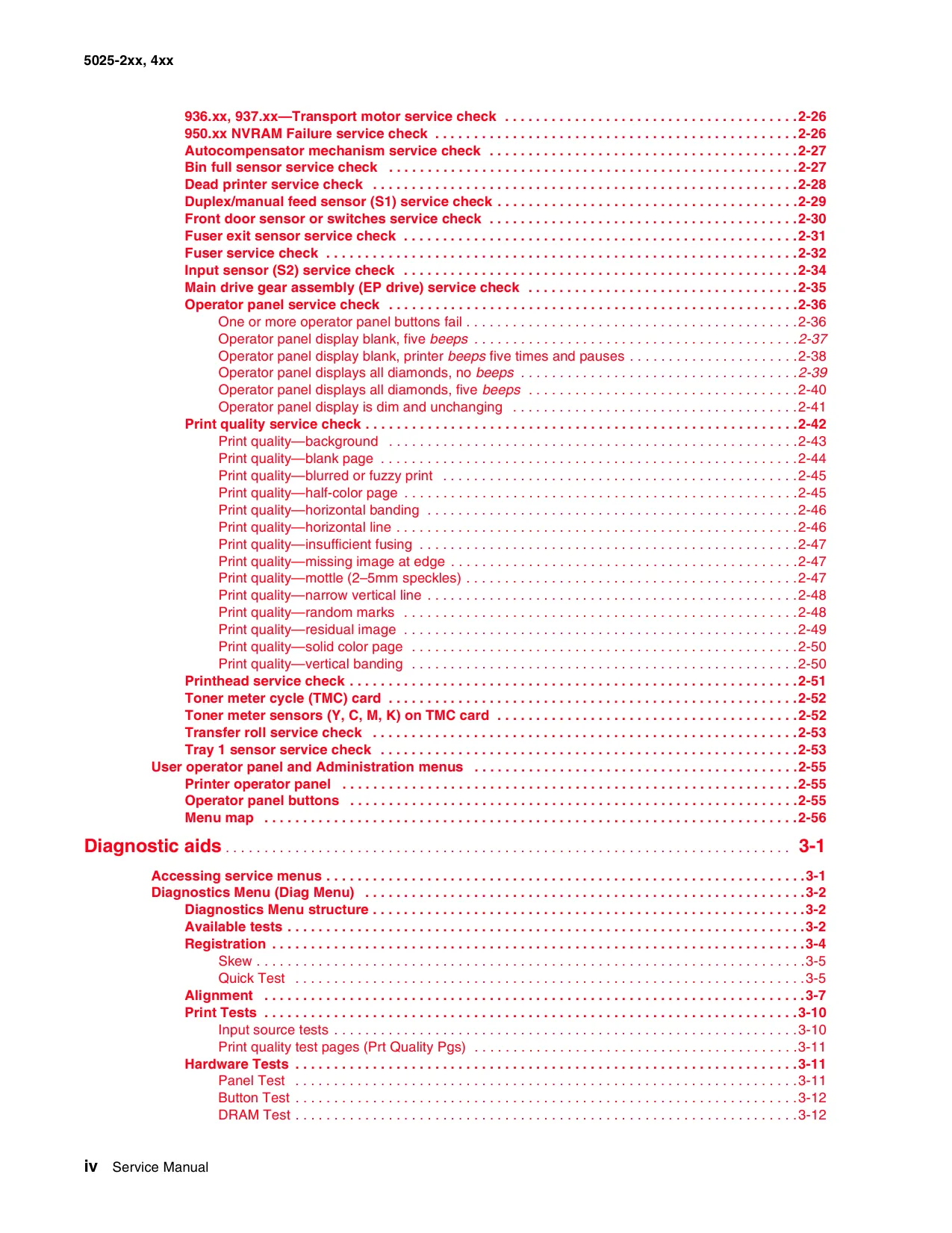

The diagnostic chapter is organized around the printer’s behavior during Power-On Reset. It starts with the POR sequence and separate printer and print-quality symptom tables, then moves through customer-attendance messages, service errors, and the 200/201/202/230/235/24x/250 paper-jam paths. Dedicated service checks cover the 122.xx fuser-temperature condition, 925.01 fan faults, 930.xx–935.xx printhead errors, 936.xx/937.xx transport-motor faults, 950.xx NVRAM failure, dead-printer conditions, the autocompensator mechanism, main EP drive, fuser and duplex sensors, toner-meter circuits, tray sensing, and operator-panel failures.

The service menus go beyond reading error codes. They support registration and skew correction for the black plane, cyan/yellow/magenta alignment, print-quality pages, continuous tray feed tests, individual sensor-state checks, duplex front-to-back alignment, panel and button checks, DRAM testing, installed-flash testing, and controller-board motor detection. The manual also documents configuration-ID handling, page-count and serial-number review, event-log display and printing, EP charge/developer-bias/transfer adjustments, and toner-density calibration.

Replacement-dependent setup is tied to the affected assembly. A new printhead is followed by black registration and color-plane alignment; an ITU replacement requires its barcode to be entered; left or right toner-density sensor replacement requires TPS data entry and calibration; and controller-board work can involve configuration IDs and motor detection. The theory section explains the full electrophotographic process—charge, exposure, development, first and second transfer, fusing, and clean/erase—along with the paper path, transport components, and duplex process.

Repair, Connector, and Parts Coverage

The repair chapter provides illustrated removal and installation procedures for external covers and internal FRUs, with cross-references to the matching parts-catalog entries. It covers power supplies, imaging and transfer assemblies, paper-pick hardware, drive components, sensors, boards, motors, and model-specific interface hardware. The C544dw wireless card is treated as factory-installed service hardware; the manual specifically states that it is not a post-manufacturing upgrade path for the other models.

Several repair notes are important before parts are swapped. Replacing both the operator panel and controller board without performing a POR between installations can render the printer inoperable. A controller-board repair can loosen the HVPS cable, producing blank pages and sending excessive toner into the ITU cleaner; the fuser procedure also warns against damaging the adjacent exit sensor. Bulletin C54x_101 adds another post-repair trap: a disconnected narrow-media sensor at the fuser can cause half-speed printing after about 10 pages.

The connector chapter combines board-location drawings with connector, pin, and signal tables. Coverage includes the fuser interface, developer/transfer HVPS, printhead ribbon cable, mirror and drive motors, paper-path sensors, option tray, USB device and host ports, waste-toner detection, TMC card, and wireless connection. The exploded-view catalog is divided into Covers, Frames, Electronics, Cables, and Options and Miscellaneous, followed by an indexed FRU and part-number reference.

Specifications, Service Tools, and Maintenance Scope

The specification tables identify memory and option support, Ethernet/USB/wireless connectivity, operating modes, and data streams including PCL 6, PostScript 3, and model-dependent PDF, PPDS, PictBridge, and DirectImage support. They also cover printer dimensions and service clearances, line-power requirements, acoustics, environmental limits, tray capacities, media sizes and types, output handling, and duplex capability. The service-tool list identifies the parallel wrap plug P/N 1319128 and twinax/serial and coax/serial debug cables P/N 1381963 and P/N 1381964.

Preventive-maintenance coverage is focused rather than broad: the dedicated chapter is a safety-inspection guide, while operating references elsewhere cover fuser/ITU status reporting, imaging-unit replacement information, and fuser-count reset. Before internal repair work, disconnect the power cord and observe ESD precautions; energized testing should be limited to procedures that specifically require power.

The two C54x service bulletins apply across the listed 5025-2xx and 5025-4xx hardware. C54x_101 addresses half-speed operation caused by a disconnected narrow-media sensor after service, while C5xx_106 covers false 925.01 fan-stalled messages caused by a poorly seated fan connection on the controller board. Both bulletins apply to all serial numbers.
