Pfaff Tiptronic 6270 Sewing Machine Instruction Manual (2000)
126 Pages • 1 Printable PDF (English) • Download
Pfaff Models Covered & Key Technical Specifications
Model: Tiptronic 6270
Model Year: 2000
-
Voltage: 120V / 220V (nominal voltage +/– 10%)
-
Frequency: Rated frequency +/– 4%
-
Sewing Lamp: 15 Watts maximum
-
Ambient Operating Temperature: 10 °C to 40 °C
-
Foot Controller Models: ATK 0033 or ATK 0060
Pfaff Manual Features & Selected Content Preview
This Pfaff Tiptronic 6270 instruction book explains household machine setup, electronic stitch selection, sewing applications, and owner maintenance.
PDF Search, Navigation, and Readability
Search and page detail: Text search is partial because the existing OCR contains recognition errors. Three bookmarks open parts A, B, and C, without chapter-level navigation. Small chart entries need zooming; portions of the needle-chart notes and lamp instructions have clipped left-edge text that enlargement cannot restore. The printed index uses different numbering from the PDF, and the final maintenance pages are out of printed order.

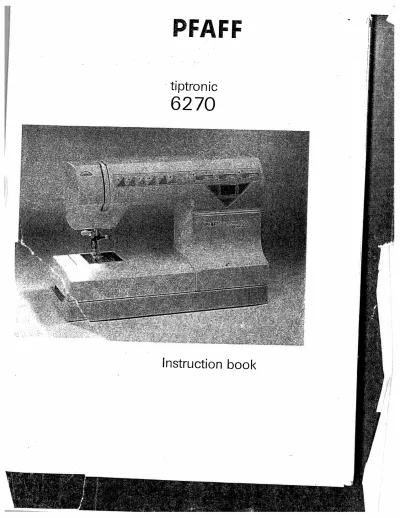

One printable English PDF contains 126 pages: 123 manual pages, one front cover, and two handwritten divider sheets. The cover and divider sheets are included in that total.
Threading, Stitch Controls, and Sewing Applications
The following selected topics outline the instruction book’s coverage. Further examples include lace insertion and shell edging.
-
Threading and feed: Illustrated instructions for winding and inserting bobbins, threading the needle, adjusting thread tension, changing sewing feet, and using Dual Feed (IDT).
-
Electronic controls: Liquid crystal display, stitch selection, width and length controls, balance adjustment, needle positions, tacking, and M memory pattern sequences.
-
Buttonholes and fabric repair: Automatic and programmable buttonholes, correction of unequal buttonhole sides, automatic darning, patching, and mending tears.
-
Practical sewing: Straight, zigzag, blind, and overlock stitches, plus zipper insertion, twin-needle hems, gathering, and decorative stitching.
-
Owner maintenance: Step-by-step instructions for needle-plate removal and replacement, feed-dog and hook cleaning, hook oiling, and sewing-lamp replacement.
-
Needles and attachments: Needle-selection charts, standard sewing feet, optional accessory part numbers, and applications for pintucks, cording, eyelets, quilting, and patchwork.
Home sewers can use the illustrated setup guidance to learn the controls and carry out the user maintenance described in the book.
Bobbin Setup, Tension, and IDT

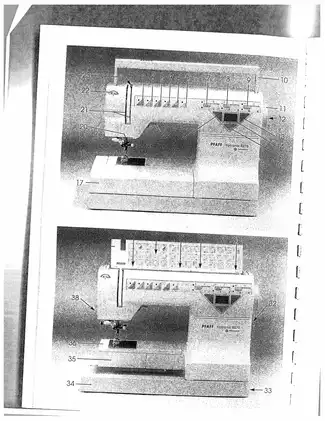

The bobbin section distinguishes winding from either spool holder from winding through an already-threaded needle. It also explains bobbin-case seating and tension checks. Component illustrations locate the needle threader, presser bar lifter, and thread trimmer, alongside the foot control, accessory compartment, and base plate.
Application tables bring together the recommended sewing foot, thread-tension setting, and IDT status. These references support choosing a compatible setup for the intended seam; IDT instructions identify the rear cutout required on suitable feet.
Pattern Memory and Buttonhole Control
The Utility stitch table and Embroidery stitch programs chart illustrate the stitch choices. Control descriptions explain needle-stop selection, reduced sewing speed, restarting a pattern, and stitch-density adjustment.
Pattern sequences: Lettering and decorative stitches can be combined, reviewed, secured with tacking, and deleted. The M memory does not retain a sequence after the machine is switched off.
Buttonhole options: Preset linen buttonholes are treated separately from programmable linen and stretch buttonholes. The instructions explain semiautomatic control of the second bartack and balance correction when the two sides differ in length. Darning coverage includes storing a length for repeated use.
Embroidery and Accessory Selection
Decorative work includes combined borders, monograms, cross-stitch, appliqué, hemstitching, twin-needle cording, and free-motion quilting. The Needle chart connects fabric and application with needle systems such as 130/705 H, 130/705 H-ZWI, and 130/705 H-WING.
Standard feet are distinguished from optional attachments in the Special accessory table. Listed examples include eyelet plate 93-036 976-45 and quilt and patchwork foot 93-036 927-91, with related application instructions.
Twin-needle guidance warns that obstructed needle travel can break a needle. The troubleshooting chart also links needle breakage to an improperly seated bobbin case.
Fault Finding and Owner-Maintenance Limits
The Sewing faults and their remedy chart separates skipped stitches, thread breakage, uneven seams, feeding problems, and a binding machine. Its checks connect symptoms with threading, needle selection, accumulated lint, or loose thread in the hook race, helping distinguish setup and cleaning issues before arranging a repair.
The care instructions identify the hook oiling point and describe display cleaning. Pfaff specifies that the remainder of the machine is maintenance-free and must not be oiled.
Repair scope: This is an operating and owner-maintenance book. It does not provide internal overhaul procedures, electronic repair tests, or wiring diagrams. Internal repairs are assigned to qualified service staff, and drive-belt tension adjustment to a Pfaff mechanic.

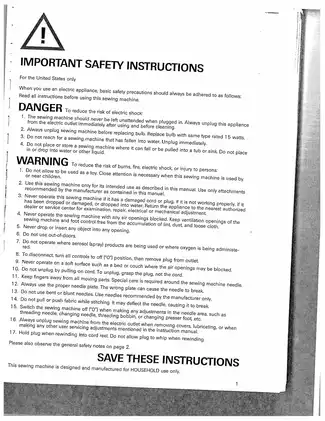

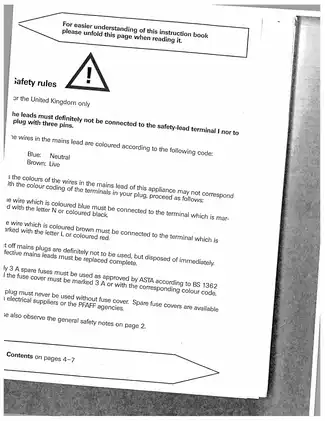

Disconnect the machine from the power supply before cleaning, lubrication, or sewing-lamp replacement.
Preview of Stitch and Buttonhole Settings
The stitch-length control is described with an adjustment range of 0.5–6 mm. A separate stitch-density section documents settings from 0.2–1 mm and explains their display indication.
For preset buttonholes, program 70 provides lengths of 8, 12, or 16 mm. These preset choices are distinct from the separately described programmable linen and stretch buttonholes.
