Pfaff Creative 1467 Sewing Machine Instruction Manual

• Covers 1990s Pfaff Creative 1467 sewing machines, including embroidery and utility configurations
• Contains 47 stitch program diagrams, 16 electronic function key descriptions, and 5 detailed threading visual guides
• Serves as the primary reference for programming, maintenance, and setup of the 1467-series computer system

Operating Manual Walkthrough

Understanding the electronic nuances of the Pfaff Creative 1467 saves valuable time for workshops and DIY mechanics. This instruction manual details the setup and configuration of the system. It focuses on standard household operation while providing deep insights into mechanical preparations. You will find clear walkthroughs for bobbin winding, needle installation, and upper threading sequences. The guide also explains the function of the master switch and foot control. Need to engage the dual feed or replace a sewing foot? The text segments these procedures logically. Correct insertion of bobbin cases is heavily emphasized to maintain precise tension accuracy.

Furthermore, the document outlines the programming interface. It thoroughly covers the 50 available stitch configurations, alphabet text entry, and MEM-memory usage. Technicians can review explanations for pattern mirroring, balancing, and utilizing the Creative computer for storing custom combinations. Specific techniques for decorative borders, applique, and hemstitching are also included. Practical sewing advice rounds out the section, addressing varied materials from delicate silk to heavy leather.

Technical Preview and Specifications

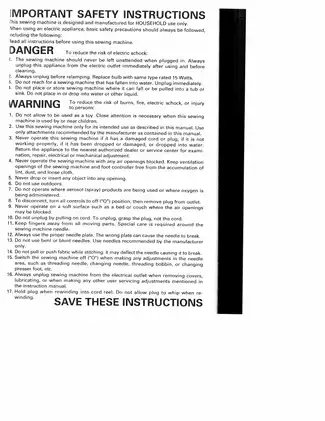

Maintaining this machine requires specific technical data. This publication includes the critical maintenance parameters needed to keep the unit in top functional order. You will find documented lubrication requirements and cleaning intervals to prevent mechanical buildup. For instance, the guide specifies that needle plate removal and cleaning should occur after every 15 to 20 hours of operation. Electrical safety information is clearly mapped out. Prior to undertaking maintenance tasks like fuse replacements on 220V models or swapping the internal sewing lamp, always disconnect the power supply and consult the outlined safety protocols to avoid personal injury or equipment damage.

The manual specifies a 15-watt bulb for the illumination system. Component identification charts assist directly in part replacement and troubleshooting. Finally, for digital configurations, the 1467 electronic system supports a maximum of 36 stored characters for monograms.
