Honda XR400R Service & Repair Manual PDF, 1996–2004
275 Pages • 1 Printable PDF (English) • Download
Honda Models Covered & Key Technical Specifications
Model: XR400R
Model Years: 1996–2004 (1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004)
-
Engine displacement: 397 cc
-
Engine type: Air cooled 4-stroke SOHC
-
Compression ratio: 9.3:1
-
Transmission: 5-speed, manual wet multi-plate clutch
-
Engine dry weight: 38.5 kg (85 lbs)
-
Spark plug gap: 0.6–0.7 mm (0.023–0.028 in)
-
Valve clearance (IN): 0.10 ± 0.02 mm
-
Valve clearance (EX): 0.12 ± 0.02 mm
-
Cylinder compression: 686–980 kPa (100–142 psi)
Honda Manual Features & Selected Content Preview
Honda's service manual for the 1996–2004 XR400R covers maintenance, diagnosis, and repair, with separate information for the documented U.S. 49-state and California configurations.
Text Search, Chapter Bookmarks, and Diagram Detail

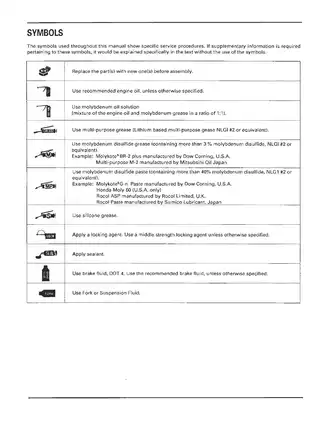

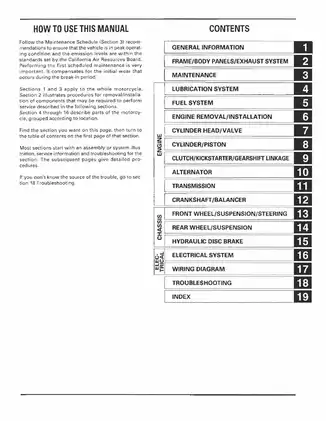

Search and diagram readability: Existing OCR supports searches through much of the manual, but recognition errors limit exact matches, especially in diagram labels. The cover has no searchable text. Chapter bookmarks link to the contents and all 19 numbered sections, including the index. Small wire-color and connector labels on the main wiring diagram require enlargement; some lettering remains soft.

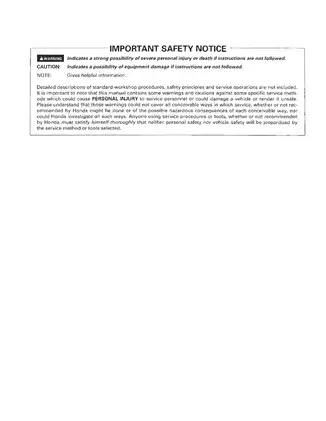

Supplied as one English-language, printable 275-page PDF, including one cover and three introductory pages: contents/how to use the manual, safety notice, and symbols.
Engine Overhaul, Chassis Service, and Electrical Diagnosis
The selected topics below outline part of the manual's coverage. Additional topics include regular and competition maintenance schedules and spark-arrester cleaning.
-
Engine repair: Cylinder compression testing, cylinder-head and piston inspection, valve-guide replacement, valve-seat refacing, and camshaft removal and installation.
-
Transmission and clutch: Crankcase separation, gearbox disassembly and assembly, clutch inspection, primary drive gear service, kickstarter overhaul, and gearshift linkage repair.
-
Lubrication system: Oil-pump disassembly, rotor-clearance inspection, relief-valve checks, strainer cleaning, and oil cooler and oil pipe service.
-
Fuel system: Carburetor overhaul, float-level inspection, pilot-screw adjustment, and temperature- and altitude-related tuning charts.
-
Suspension and steering: Fork and nitrogen-charged shock overhaul, wheel-bearing replacement, steering-stem service, and swingarm and shock-linkage inspection.
-
Hydraulic disc brakes: Front and rear master-cylinder and caliper overhaul, brake-fluid replacement, air bleeding, and pad and disc inspection.
-
Electrical troubleshooting: Ignition peak-voltage tests, alternator and AC-regulator checks, wiring diagrams, and lighting-system fault isolation.
This manual suits mechanics with workshop experience and the specified tools; mechanically qualified owners can use the maintenance sections, which identify jobs Honda recommends leaving to a dealer.
Engine Repair and Workshop Reference

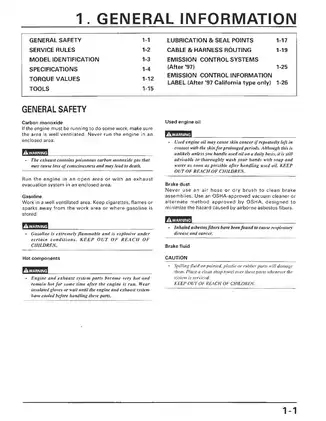

Model identification and tool requirements precede the repair chapters. The manual distinguishes in-frame cylinder-head, piston, and clutch service from transmission and crankshaft/balancer work requiring engine removal.
Body-panel, fuel-tank, subframe, and exhaust removal procedures cover access to the assemblies.
Top-end and lower-end work: Step-by-step procedures cover camshaft installation and transmission assembly. Rocker-arm inspection, decompressor disassembly, cam chain tensioner checks, and balancer timing extend the coverage beyond routine maintenance. Valve-seat cutter drawings and exploded transmission views support the assembly instructions.
The valve-seat section covers inspection and refacing, but specifies that the valves themselves must not be ground.
Tool references include clutch center holder 07724-0050002 and flywheel puller 07733-0020001, with U.S. alternatives identified where applicable. The service data includes component-specific torque tables, fluid capacities, adjustment specifications, and wear limits.
Dry-sump lubrication: Oil-level checks and oil-viscosity charts accompany the pump and cooler procedures. The oil-filter replacement section warns that installing the filter backward can cause severe engine damage. Oil-pump inspection distinguishes measurable clearances from wear that requires replacement of the pump assembly.
Carburetor Variants and Emission Controls
The fuel chapter identifies PDK1A carburetors for 1996–1997 and PDK1C (49-state) and PDK1E (California) versions after 1997. It separates best-idle and idle-drop pilot-screw procedures, including regional adjustment differences.
Early-model tuning distinguishes as-delivered settings from trail-riding settings with the exhaust diffuser and noise suppressor installed. Main jet correction factor charts address temperature and altitude changes. These distinctions help match the tuning procedure to the installed carburetor and exhaust configuration.
For post-1997 California models, coverage includes the closed crankcase breather system, breather separator, and emission-control information label.
Fork, Shock, and Brake Service
Front-fork procedures distinguish 1996–1997 from later models in damper service methods, spring specifications, and oil levels. The fork-cap instructions also identify the risk of damaging the rebound-adjuster needle through incorrect handling.
Rear-shock coverage includes bladder replacement, damper-rod inspection, air bleeding, and nitrogen charging. Upper-mount service distinguishes spherical bearings on 1996–1997 models from needle bearings on later models. The illustrated shock valve stack is described as typical and may differ from the installed arrangement.
Brake troubleshooting separates soft or hard lever feel from brake drag. Steering-head bearing adjustment and suspension-linkage bearing replacement have their own instructions.
Follow the manual's precautions for shop ventilation during engine testing and for handling pressurized suspension nitrogen.
Ignition Diagnosis and Wiring
Peak-voltage comparisons at the ignition control module and the exciter-coil or ignition-pulse-generator connectors help distinguish harness faults from component faults. Test illustrations also show the ignition-coil connections. The specified equipment includes peak-voltage adapter 07HGJ-0020100.
Ignition timing is checked; the ignition control module is not adjustable.
The wiring diagram and connector illustrations support electrical testing. Troubleshooting flow charts address hard starting, power loss, and poor running. Cable and harness routing drawings help check control-cable paths and wiring placement during reassembly.
A Preview of Carburetor and Lighting Test Specifications
For carburetor inspection, the specified float level is 14.5 mm (0.57 in), with the float valve just contacting the float arm lip.
The lighting-system test specifies regulated AC voltage of 12.5–13.5 V at 3,000 rpm with the engine warmed up. The accompanying illustration identifies the headlight terminals used for the measurement.
