2005 Yamaha WR250F(T) Owner's Service Manual (P/N 5UM-28199-52)
864 Pages • Printable PDF • 18.03 MB • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: WR250F(T) — WR250FT (5UM8: USA; 5UMA: CDN, AUS, NZ); WR250F (5UM9: EUROPE; 5UMA: ZA)
Trade Names: WR250F, WR250FT
Model Year: 2005
-
Engine: Liquid cooled 4-stroke, DOHC, single cylinder, forward inclined
-
Displacement: 249 cm3
-
Starting System: Kick and electric starter
-
Fuel System: FCR-MX37 Keihin carburetor
-
Transmission: Constant mesh, 5-speed
-
Coolant System Capacity: 1.26 L
-
Engine Oil Capacity: 1.2 L (periodic change), 1.3 L (with filter), 1.4 L (total)
-
Tire Pressure: 100 kPa (1.0 kgf/cm2, 15 psi)
Yamaha Manual Features & Selected Content Preview

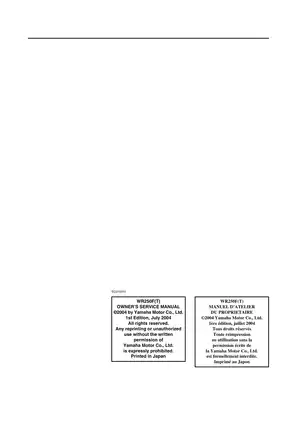

The 2005 Yamaha WR250F(T) Owner's Service Manual (P/N 5UM-28199-52) covers operation, maintenance, repair, and tuning. This July 2004 first edition includes market-specific specifications for the WR250FT and WR250F versions.
PDF Search, Contents Bookmarks, and Page Count
Text search and diagram detail: PDF text search is available. Embedded bookmarks lead to the cover and language-specific contents pages rather than directly to individual repair procedures. Small wire-color codes and connector labels in the wiring diagram are readable when enlarged.

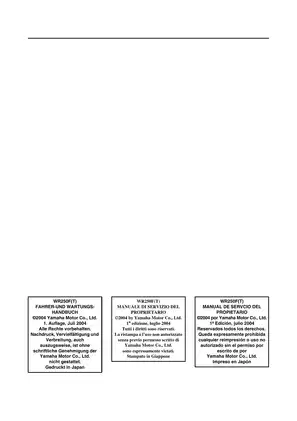

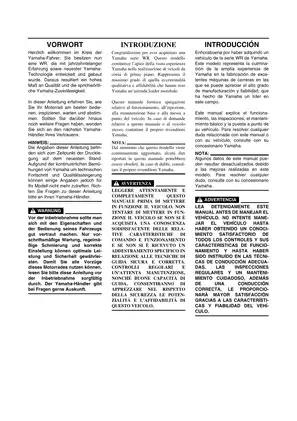

One printable 864-page PDF contains English, French, German, Italian, and Spanish text. The total includes 24 introductory and contents pages, the front and back covers, nine notes pages, and two blank pages.
Engine Overhaul, Electrical Diagnosis, and Chassis Setup
The following selected topics show the manual's coverage. Additional sections address cleaning and storage, plus spark arrester maintenance for the USA version.
-
Engine and drivetrain: Engine removal, cylinder-head repair, crankcase separation, crankshaft inspection, clutch service, and transmission, shift-cam, and shift-fork work.
-
Fuel and cooling: FCR-MX37 carburetor disassembly, accelerator-pump adjustment, radiator pressure testing, and water-pump inspection and repair.
-
Brakes and running gear: Caliper and master-cylinder disassembly, brake bleeding, wheel-bearing replacement, steering service, and drive-chain inspection.
-
Suspension: Telescopic front-fork overhaul, swingarm and relay-arm bearing service, and rear-shock removal, spring replacement, and adjustment.
-
Electrical troubleshooting: Ignition, electric-starting, charging, throttle-position-sensor, and lighting tests, supported by wiring diagrams and diagnostic flowcharts.
-
Tuning: Carburetor settings for atmospheric conditions and throttle response, sprocket selection, and suspension adjustments based on riding symptoms.
The operating and basic maintenance sections address owners; internal repairs are suited to mechanics familiar with component measurement and the specified special tools.
Engine Repair and Internal Inspection
Step-by-step procedures cover top-end rebuilding, engine removal, and crankcase and transmission work. Exploded assembly views and job instruction charts identify parts and the required extent of removal, helping you plan access to an assembly before taking unrelated components apart.
Cylinder head and timing: The five-valve head receives valve, guide, seat, and spring inspection procedures, alongside camshaft measurements, decompression-system checks, and valve-pad selection tables. Uneven camshaft-cap tightening can damage the cylinder head, caps, and camshafts; the manual identifies this assembly risk.
Lower engine and drivetrain: Coverage extends to the balancer, oil pump, kickstarter assembly, AC magneto, and starter clutch. Clutch inspection distinguishes friction-plate wear from steel-plate warpage, while transmission procedures address gear dogs, shift-fork condition, and assembly orientation. Component-specific torque tables accompany the repair sections.
Carburetor Service and Throttle Response
The FCR-MX37 section covers the float and needle valve, starter plungers, air-cut valve, and accelerator pump. Accelerator-pump timing and leak-jet selection are treated separately, with symptom-based carburetor-setting examples explaining how mixture changes affect throttle response.
The tuning chapter relates jet and needle adjustments to throttle opening and atmospheric conditions. Setting-parts tables identify alternative jets and needles, while cable-routing diagrams show how the throttle, hot-starter, and breather connections fit around the engine.
Cooling-System Checks and Water-Pump Repair
Radiator-cap and cooling-system pressure checks provide a basis for investigating coolant loss. Water-pump coverage includes the impeller shaft, drive gear, bearing, and oil seal, with inspection criteria and installation notes. Radiator removal and coolant replacement are also documented.
Fork, Linkage, and Brake Work
Front-fork instructions cover the damper rod, base valve, bushings, seals, oil filling, and level adjustment. The assembly notes warn that a dropped damper rod can damage the internal valve. The special-tool list identifies the damper rod holder and fork seal driver.
The Monocross rear-suspension sections cover swingarm linkages, the relay arm, shock bearings, spring replacement, and damping adjustments. Rear-shock work does not include dismantling the pressurized cylinder or nitrogen reservoir, which Yamaha explicitly warns against.
Brake procedures extend beyond pad replacement to caliper and master-cylinder inspection and reassembly. Chassis work requires secure support, and the manual emphasizes correct bleeding to maintain braking performance.
Electrical Fault Isolation
System-specific inspection charts connect symptoms with component tests. For a starter that will not operate, the electric-starting chart distinguishes wiring, relay, switch, diode, and motor checks, helping narrow the fault before selecting a replacement component.
The map-controlled CDI section explains the relationship between engine speed, throttle position, and ignition timing through a conceptual 3-D ignition map. Further procedures cover starter-motor brushes and commutator inspection, charging output, and throttle-position-sensor replacement and adjustment.
Sample Piston-Clearance and Ignition Test Data
Engine inspection data lists a piston-to-cylinder clearance of 0.040–0.065 mm, with a 0.1 mm service limit. The cylinder-and-piston section pairs these figures with bore and piston-skirt measurements used to assess wear.
For ignition diagnosis, the pickup coil specification is 248–372 ohms at 20 °C (68 °F), measured between the white and red leads. The electrical chapter pairs this resistance check with its ignition fault-isolation chart.
