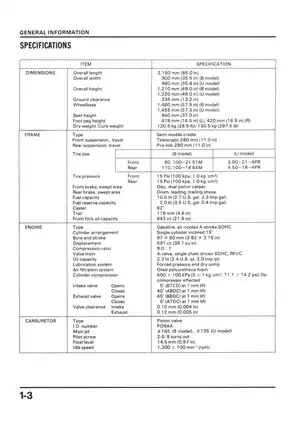

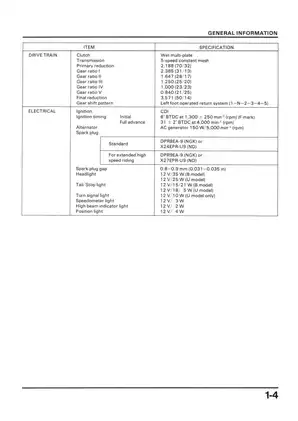

Honda Models Covered & Key Technical Specifications

Model: XR600R

Sub-models / Variants: XR600R (B, U), XR600R(K) (addendum)

Model Years: 1988–2000 (1988, 1989, 1990 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000)


  • Engine displacement: 591 cc

  • Engine type: Gasoline, air-cooled 4-stroke SOHC

  • Bore and stroke: 97 x 80 mm

  • Compression ratio: 9.0:1

  • Transmission: 5-speed constant mesh

  • Idle speed: 1,300 ± 100 rpm

  • Dry weight: 120.5 kg

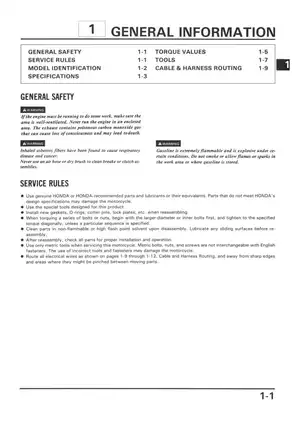

Honda Manual Features & Selected Content Preview

Honda’s service manual for the 1988–2000 XR600R includes B- and U-model service information and an XR600R(K) addendum with oil-pump changes and carburetor specifications.

Search, Chapter Bookmarks, and Wiring Detail

Finding text and diagram labels: OCR text search works across the service chapters and the addendum, and bookmarks jump to chapter openings. Search can miss labels in the B-model wiring diagram. Zoom in to read its small wire-color codes and connector labels.

The download is one printable PDF with 258 pages, including the front cover and both pages of the XR600R(K) addendum.


Engine, Chassis, and Ignition Service

The highlights below are a selection of the service procedures. The manual also covers crankcase breather routing and exhaust pipe removal and installation.

  • Maintenance and service data: Regular and competition maintenance schedules, lubrication points, fastener torques, fluid capacities, adjustment clearances, and wear limits.

  • RFVC engine: Engine removal and installation, dry-sump oil-pump overhaul, cylinder head and valve work, cylinder and piston inspection, and crankshaft and balancer service.

  • Clutch and transmission: Wet-clutch inspection, kickstarter overhaul, primary drive and shift cam service, and transmission disassembly and reassembly.

  • PD8 carburetor: Teardown and assembly, float and jet inspection, pilot screw adjustment, and correction for temperature and altitude.

  • Wheels, steering, and suspension: Hub bearings, telescopic fork seals and bushings, steering-stem bearings, and Pro-Link shock, swingarm, and linkage repair.

  • Brakes: Front hydraulic disc service and bleeding, master cylinder and caliper overhaul, and rear drum, shoe, and cam service.

  • Ignition and electrical: CDI fault isolation, alternator and pulse generator checks, lighting and switch tests, and the B-model wiring diagram.

The manual suits technicians and experienced home mechanics who are comfortable measuring clearances and using the specified service tools.

Model Identification and Carburetor Setup

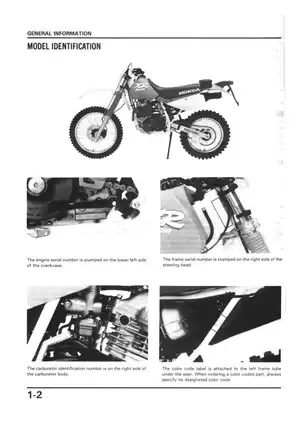

The specifications and illustrations distinguish the B and U models by tire fitment, lighting, cable and harness routing, and details such as the U-model air cleaner duct. Identification photos show where to find the frame and engine numbers, carburetor ID, and color-code label.

Match the stamped carburetor ID to the jetting table before ordering parts. The main fuel chapter lists PD8AA and specifies PD8AB for U. The K addendum lists PD8AD for B, PD8AC for U, and PD8EA for DK.

RFVC Top End, Lubrication, and Crankcase

The four-valve RFVC single uses forced-pressure dry-sump lubrication in a semi-double-cradle frame. The lubrication chapter covers the oil pass pipe, oil cooling circuit, strainer cleaning, and pump rotor clearance checks. The A and B rotor sets differ in thickness, and the assembly views identify which set goes in each pump body.

Work with the engine in the frame: The top-end chapters cover camshaft and rocker and sub-rocker service, valve guide replacement, valve seat refacing, cam chain tensioner checks, and timing alignment. They also cover the cylinder and piston and the manual and automatic decompression systems. The half-decompressor can lift the right exhaust valve enough to give a false clearance reading.

Work that requires engine removal: The crankshaft, connecting rod, balancer, and transmission require crankcase separation. Procedures cover bearing replacement, crankshaft inspection, balancer timing, gear dogs and bushings, shift forks and drum, and a final smooth-shifting check. Resistance when joining the crankcase halves can indicate a misaligned shaft or dowel. The clutch, kickstarter, primary drive, shift cam, and alternator can be serviced with the engine installed.

Forks, Pro-Link Shock, and Brakes

Front end: The chapter covers handlebar controls, wheel and axle inspection, rim checks, steering bearing races, and fork oil level setup after internal service.

Rear suspension: The shock procedures go into the piston and valve stack, rod guide seals, reservoir damping valve, hose connection, bleeding, and nitrogen charging. The chapter also covers baseline spring preload, spherical bearings, and swingarm pivot and linkage bearings. It refers to the owner’s manual for rider-specific preload and damping settings.

The fork and shock procedures include pressure-release and eye-protection precautions for the air- and spring-loaded fork caps and the high-pressure nitrogen reservoir.

Brakes: The front disc procedures include pad inspection and disc thickness and warpage checks. Rear drum service also covers the brake pedal and its linkage.

CDI Testing, Wiring, and Workshop References

The electrical chapter uses connector and resistance checks to isolate faults in the ignition coil, alternator exciter coil, pulse generator, and stop switch. It also shows a separate CDI performance test with a dedicated tester and adapter, plus a timing-light check of the factory-set ignition. Other procedures cover the lighting coil, AC regulator, brake light switches, handlebar switches, instruments, and horn.

The full circuit diagram is for the B model. U-model headlight and turn signal service is covered in the electrical chapter, with separate harness routing views. Other illustrations show the dry-sump oil circuit, cam timing and decompressor operation, transmission shaft and gear layout, and the shock and reservoir in exploded views. Troubleshooting flowcharts cover hard starting, power loss, high-speed running faults, and poor handling.

Honda tool references include the cam chain tensioner holder 07973-MG30003, compression gauge attachment 07908-KK60000, valve guide reamer 07984-5510000, fork seal driver components 07947-KA50100 and 07947-KA40200, and shock damping valve wrench 07920-KA30001.

Sample Clutch, Ignition, and Oil Pump Specs

Clutch inspection lists service limits of 43.1 mm for spring free length and 2.6 mm for friction disc thickness.

Pulse generator resistance is specified at 360–440 Ω at 68°F (20°C), measured between the green/white and blue/yellow leads.

The XR600R(K) addendum specifies an oil seal installation depth of 0.5–1.1 mm in pump body A and the pump spacer.
