Honda CRF80F & CRF100F Factory Service Manual, 2004–2012
254 Pages • 1 Printable PDF (English) • Download
Honda Models Covered & Key Technical Specifications
Models: CRF80F, CRF100F
Model Years: 2004–2012 (2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012)
-
Engine type: Single cylinder, inclined 15° from vertical
-
Cooling system: Air cooled
-
Engine displacement (CRF80F): 79.7 cc
-
Engine displacement (CRF100F): 99.2 cc
-
Compression ratio (CRF80F): 9.7:1
-
Compression ratio (CRF100F): 9.4:1
-
Transmission: 5-speed, left-foot operated return system
-
Starting system: Kickstarter
-
Ignition system (CRF80F): Capacitive Discharged Ignition
-
Ignition system (CRF100F): Condenser Discharged Ignition

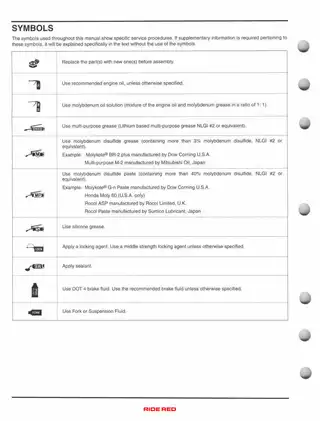

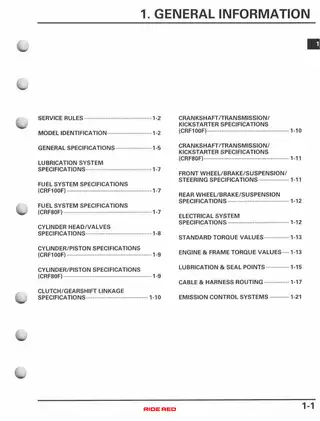

Honda Manual Features & Selected Content Preview
Honda factory service manual for the 2004–2012 CRF80F and CRF100F, with model-specific maintenance, repair, and troubleshooting information.
PDF Search, Bookmarks, and Page Count

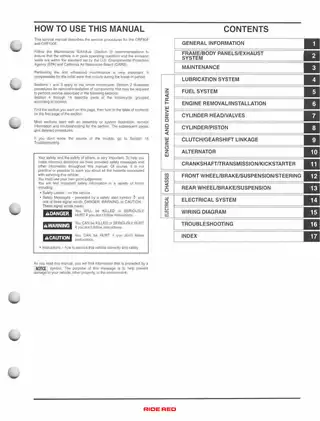

Search and diagram detail: Technical sections have searchable OCR text, with recognition errors that can affect exact matches. The cover and opening safety page are not searchable. Embedded bookmarks link to the contents, chapters, and index. Small wire-color labels in the electrical schematics are best read with zoom.
One printable English PDF contains 254 pages, including one cover page and three introductory pages.
Engine, Carburetor, and Chassis Service
The following selected topics outline the main service areas. Body-panel removal and exhaust-system service are among the other procedures included.
-
Engine and top end: Engine removal and installation, compression testing, camshaft service, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, and cylinder/piston repair.
-
Bottom end and drivetrain: Crankcase separation, crankshaft and transmission inspection, bearing replacement, clutch and gearshift-linkage repair, alternator removal, and kickstarter service.
-
Carburetor service: Identification, removal, disassembly and assembly, float-level inspection, throttle-valve setup, mixture adjustment, and standard and high-altitude jetting.
-
Chassis repairs: Wheel and drum-brake service, fork overhaul, steering-head bearing replacement, shock-linkage inspection, and swingarm-bushing replacement.
-
Ignition diagnosis: ICM, ignition-coil, exciter-coil, and pulse-generator checks, ignition-timing inspection, switch-continuity references, and wiring diagrams.
-
Maintenance and specifications: Separate maintenance schedules, oil-pump inspection, component-specific torque tables, fluid capacities, wear limits, clearance data, and Honda special-tool references.
The manual is written for qualified professional technicians; its internal repairs, electrical tests, and specified workshop tools assume shop training and appropriate equipment.
Model and Production-Break Coverage
Separate model data covers the carburetors, clutch components, transmission and final drive, fork settings, tires, drive chains, and chassis dimensions.
Carburetor identification is broken out for 2004–2005, 2006–2007, and after 2007. Fuel-tank data, emission-label placement, and selected hose-routing information distinguish 2004–2007 from after-2007 production. Each model has separate maintenance charts for 2004–2005 and later production.
Scheduled Maintenance
Routine service includes air-cleaner and spark-arrester cleaning, engine-oil and strainer-screen service, plus valve-clearance and cam-chain adjustments. The schedules also address drive-chain, brake, clutch, suspension, wheel, and steering-head bearing checks.

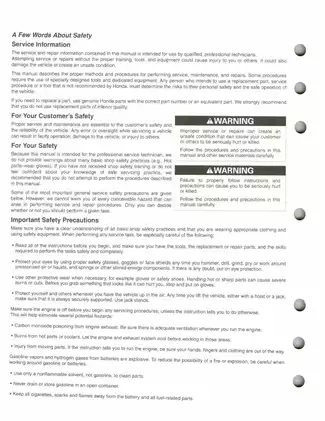

Pre-ride inspection is referenced to the separate Owner’s Manual. Checks with the engine running require adequate ventilation, and the motorcycle must be securely supported for engine, wheel, brake, fork, steering, and rear-suspension work.
Engine Inspection and Rebuild Details
Step-by-step procedures extend through camshaft and rocker-arm inspection, valve-guide reaming, and cam-chain timing. The service information distinguishes in-frame camshaft, oil-pump, clutch, gearshift-linkage, and alternator work from cylinder-head, cylinder/piston, crankshaft, and transmission service requiring engine removal.
Inspection data covers the bore, piston, pin, rings, connecting-rod small end, crankshaft runout, and connecting-rod play. Oil-pump rotor clearances, clutch-disc and spring checks, and transmission gear/shaft limits support wear assessment before replacement parts are selected.
Piston orientation differs by model: the CRF100F uses an intake-side mark, while the CRF80F uses an exhaust-side mark. Ring-installation notes distinguish the top and second rings and their marking orientation to prevent piston or ring damage.
Crankcase assembly notes address shaft and dowel alignment and the damage risk from forcing the halves together.
Special-tool references include valve-spring compressor 07757-0010000 and flywheel puller 07733-0010000; alternatives are identified where applicable.
Carburetor Adjustment Differences
The CRF100F pilot screw and CRF80F air screw have different final idle-drop adjustment procedures. Carburetor instructions include jet and passage cleaning alongside the float and throttle-valve checks.
Jet-needle clip adjustment applies to 2004–2005 models; later versions have a nonadjustable clip position. Standard and high-altitude settings are listed separately for each model.
Wheels, Brakes, and Suspension
Wheel sections cover hub service, bearing replacement, spoke inspection, and wheel truing. Drum-brake procedures show brake-cam and wear-indicator alignment.
Fork instructions cover oil-seal replacement and model-specific fluid settings, with fork-seal driver 07947-1180001 identified. Steering-stem procedures include bearing-race replacement and adjustment.
Rear-suspension coverage extends through shock-linkage and swingarm-bushing service. The shock absorber itself is covered for removal, inspection, installation, and replacement as an assembly rather than internal rebuilding.
Ignition Tests and Fault Tracing
No-spark troubleshooting separates low peak voltage, missing voltage, and normal peak voltage without a spark. Comparing readings at the ICM and component connectors helps distinguish harness faults from exciter-coil or pulse-generator faults.
Equipment references include peak-voltage adapter 07HGJ-0020100, with a U.S. tester alternative identified. Spark-plug tables distinguish normal operation, cold climates, and sustained high-speed use.
The general troubleshooting chapter addresses no-start, power-loss, low- and high-speed running faults, and handling problems. Supporting illustrations include the lubrication-system diagram, cable/harness routing, engine/chassis component-location views, the electrical-system diagram, and the dedicated wiring diagram.
Valve-Clearance and Float-Level Examples
Both models specify 0.05 mm (0.002 in) intake and exhaust valve clearance with the engine cold, below 35°C (95°F). The maintenance section pairs this setting with inspection and adjustment procedures.
For carburetor service, float-level specifications differ: 12.5 mm (0.49 in) for the CRF100F and 21.5 mm (0.85 in) for the CRF80F, measured with the float valve seated and the float arm just touching the valve.
