Yamaha YT 60L Tri-Zinger ATV Service Manual 1984–1985 (P/N LIT-11616-04-39)

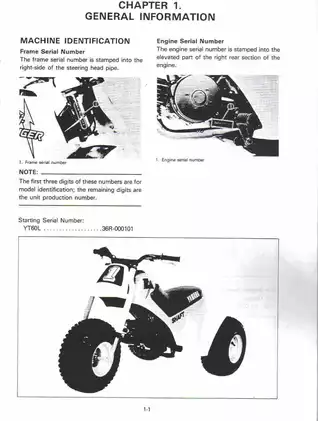

Yamaha’s service manual for the YT 60L Tri-Zinger (P/N LIT-11616-04-39) covers model code 36R, with frame and engine starting numbers of 36R-000101.

PDF Bookmarks, Wiring Detail and Page Count

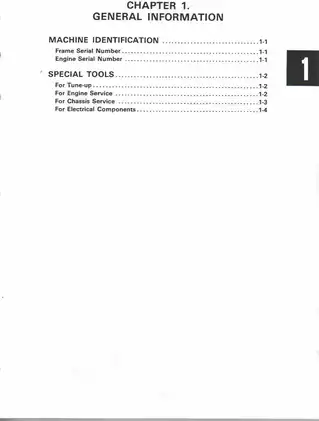

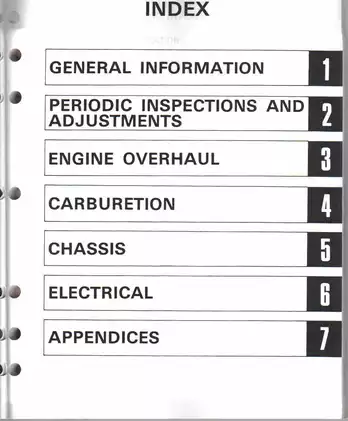

Search and chapter access: PDF text search is not available. Embedded bookmarks link to the index and all seven chapters. Small wire-color codes in the full-page wiring diagrams require zooming for comfortable reading.

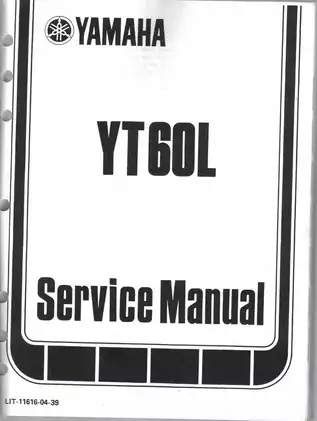

One printable English PDF contains 97 pages total: the 96-page manual and one additional cover page. The original cover, index, and appendices are included.

Engine Overhaul, Autolube and Shaft-Drive Service

The topics below are selected examples, rather than a complete contents list. Fuel-cock inspection and control-cable lubrication are also covered.

• Maintenance: Maintenance and lubrication interval charts, oil and air-filter service, throttle and choke cable adjustments, and ignition-timing checks.

• Engine overhaul: Engine removal and installation, crankcase separation, cylinder and crankshaft inspection, clutch service, and recoil starter disassembly and reassembly.

• Carburetion: Carburetor disassembly, jet and needle inspection, float-height and fuel-level measurements, and reed-valve checks.

• Autolube system: Pump cable adjustment, minimum-stroke measurement, output checks, and step-by-step air-bleeding instructions for the pump, distributor, and delivery lines.

• Shaft drive: Rear drive assembly removal, final gear disassembly, axle and bearing inspection, seal replacement, and reassembly procedures.

• Brakes and steering: Rear drum-brake service, wheel-bearing replacement, front fork disassembly, steering-head inspection, and bearing adjustment.

• Electrical diagnosis: Engine speed control unit troubleshooting, ignition fault charts, coil resistance tests, switch continuity checks, and the YT60L wiring diagram.

This manual is suited to mechanics familiar with precision engine measurements and electrical testing, with access to the specified tools for internal repair work.

Engine Inspection and Reassembly

The cylinder, clutch, and flywheel magneto can be removed without taking out the engine; engine removal requires removal of the rear wheel drive assembly. Inspection data covers cylinder bore, piston-to-cylinder clearance, crankshaft runout, and clutch wear.

Exploded views show the crankcase and primary gear/clutch assemblies, including their shims, washers, and retainers. Special-tool references include flywheel puller YM-01189 and crankshaft installation set YU-90050.

The middle-drive-shaft bearing retainer has left-hand threads; forcing it in the conventional loosening direction risks thread damage.

Carburetor Checks and Autolube Limits

Carburetor inspection covers the float needle, valve seat, starter plunger, and fuel passages. Reed-valve checks include petal sealing, stopper clearance, and carburetor-joint flatness.

Factory-set dimensions: Float height and fuel level are checked against specifications; the manual expressly cautions against adjusting these factory settings.

Autolube coverage includes troubleshooting and output measurement, with pump assembly replacement specified when output remains outside specification. Its bleeding guidance addresses line disconnection, an empty oil tank, and a tip-over, where trapped air can interrupt lubrication and damage the engine.

Drive Diagnosis, Brakes and Front Forks

Factory measurement limits and troubleshooting charts support diagnosis and reassembly checks across the machine. The shaft-drive troubleshooting chart, for example, separates wheel-bearing checks from drive-component inspection when investigating rumble or jerky operation.

Final-drive inspection includes gear-tooth condition, rear axle runout, and ring-gear deflection. Rear brake material covers drum condition, lining wear, camshaft service, and locking hardware.

Fork and steering-head procedures address spring condition, bearing races, guide-bush retainers, and steering movement after assembly. Safety notes cover secure support during wheel work and the burst and bead-separation hazards of low-pressure tires.

Ignition Tests and Cable Routing

The 6V electrical reference explains START/RUN behavior and how the engine speed control unit interacts with the CDI system. The ignition troubleshooting chart links connection checks to individual coil tests before CDI-unit replacement.

Cable routing diagrams show control cables, oil hoses, and wiring around the steering head and intake. The YT60L wiring diagram appears in both the electrical chapter and the appendix.

Sample Engine, Float-Height and Pickup-Coil Specifications

Cylinder-head inspection specifies warpage of less than 0.03 mm. The tightening table distinguishes cylinder/head nuts at 10 Nm from the primary drive gear nut at 30 Nm.

Float-height inspection specifies 16.5 ± 1 mm, measured without the float-chamber gasket and with the carburetor inclined 60–70°. These are inspection dimensions, not instructions to alter the factory setting.

For pickup-coil testing, the electrical section lists 20 Ω ± 10% at 20°C (68°F), measured across the White/Red and Black leads.
