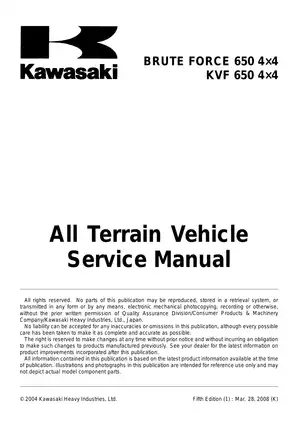

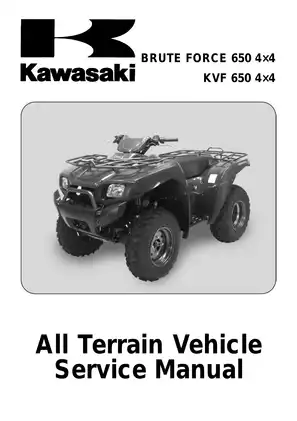

2005-2010 Kawasaki Brute Force 650, KVF 650 4x4 ATV Service Repair manual

Price: 18.99 USD
Lifetime Guarantee
File specifications File size: 10.19 MB File ending in: zip
To make it easier for you to choose the right manual, we have compiled various information for you below, such as model designations, types, and production years. The manual is valid for the following models: Brute Force KVF 650, 4x4 / Kawasaki Motorcycle & Engine Company 2005 Kawasaki Brute Force 650, KVF 650, 4x4 ATV 2006 Kawasaki Brute Force 650, KVF 650, 4x4 ATV 2007 Kawasaki Brute Force 650, KVF 650, 4x4 ATV 2008 Kawasaki Brute Force 650, KVF 650, 4x4 ATV 2009 Kawasaki Brute Force 650, KVF 650, 4x4 ATV 2010 Kawasaki Brute Force 650, KVF 650, 4x4 ATV Engine: 633.0 cc (38.63 cubic inches), V2, four-stroke, 47.0 HP (34.3 kW) @ 7500 RPM, 51.4 Nm (5.2 kgf-m or 37.9 ft.lbs) @ 5500 RPM, 9.9:1, 4 valves per cylinder, 80.0 x 63.0 mm (3.1 x 2.5 inches), Carburetor. 2 Keihin CVKR-D32, Single Overhead Cams (SOHC), liquid cooled, DC-CDI. Production/model years: 2005 2006 2007 2008 2009 2010 2011 Manual Language: English Printable: Yes Delivery: Download link will appear on the checkout page after your payment is complete. # ³ "Troubleshoot and Download 2005-2010 Kawasaki Brute Force 650, KVF 650, 4x4 ATV Manual: Your Comprehensive Resource!" Welcome to your comprehensive resource for the 2005-2010 Kawasaki Brute Force 650, KVF 650, 4x4 ATV. In this guide, we will provide you with engine specifications, maintenance tips, tuning options, available accessories, and more. Whether you need troubleshooting assistance, want to optimize performance, or simply gain a deeper understanding of these impressive ATVs, this resource has got you covered. Get ready to dive into the world of the 2005-2010 Kawasaki Brute Force 650, KVF 650, 4x4 ATV! Engine Specs/Technical Specifications: • The 2005-2010 Kawasaki Brute Force 650, KVF 650, 4x4 ATV is powered by a liquid-cooled, four-stroke, V-twin engine. • Engine displacement: 633cc (38.6 cubic inches). • Compression ratio: Approximately 9.9:1 for efficient combustion and power delivery. • Fuel system: Keihin CVKR-34 carburetors for precise fuel metering. • Ignition system: Digital DC-CDI (Capacitor Discharge Ignition) for reliable spark generation. • Power output: The Brute Force 650, KVF 650 produces approximately 47 horsepower, offering impressive off-road capability. • Transmission: Dual-range continuously variable transmission (CVT) with high and low ranges, enabling smooth power delivery. • Final drive: Shaft drive for reliable and low-maintenance operation. • Fuel tank capacity: Approximately 19 liters (5 gallons) for extended riding range. • Dry weight: The Brute Force 650, KVF 650 weighs around 295 kg (650 lbs), ensuring stability and handling. • Cooling system: Liquid-cooled with a radiator and fan for efficient heat dissipation. • Dimensions (L x W x H): Approximately 2,145 mm x 1,180 mm x 1,180 mm (84.4 in x 46.5 in x 46.5 in). • Seat capacity: Can accommodate up to two riders for shared off-road adventures. • Towing capacity: The Brute Force 650, KVF 650 has a towing capacity of approximately 500 kg (1,100 lbs). • Front suspension: Independent double wishbone with adjustable preload shocks for a comfortable ride. • Rear suspension: Adjustable independent rear suspension (IRS) with gas-charged shocks for improved handling. • Braking system: Dual front hydraulic disc brakes and a sealed, oil-bathed, multi-disc rear brake for reliable stopping power. • Tire size: Front tire - AT25x8-12; Rear tire - AT25x10-12. • Electrical system: 12V DC with a battery capacity of approximately 12Ah. • Emission compliance: Meets or exceeds applicable emissions standards. Facts and Details: - The Brute Force 650, KVF 650 is known for its impressive torque output, making it capable of tackling demanding off-road terrains. - These ATVs feature Kawasaki's variable front differential control (VFDC), allowing riders to easily switch between two-wheel drive and four-wheel drive modes for optimal traction. - The Brute Force 650, KVF 650 is equipped with a high-strength steel frame, providing durability and rigidity for rough off-road adventures. - These models come with a fully sealed rear wet brake, minimizing maintenance needs and ensuring reliable braking performance. - The Brute Force 650, KVF 650 features a large cargo rack on the rear, providing ample space for hauling gear and equipment. - Kawasaki's advanced engine braking system (K-EBSTM) offers excellent control and reduces the need for excessive braking while descending steep inclines. - These ATVs incorporate a variable-speed front differential, allowing the front wheels to rotate at different speeds for improved maneuverability. - The Brute Force 650, KVF 650 features a rugged and aggressive design, emphasizing its off-road capabilities. - These models have a wide and comfortable seat, providing a plush ride for long off-road excursions. - The Brute Force 650, KVF 650 offers selectable four-wheel drive modes, including two-wheel drive, four-wheel drive, and four-wheel drive with a front differential lock. - These ATVs are equipped with a skid plate to protect the undercarriage from rocks and debris. - The Brute Force 650, KVF 650 comes with a digital instrument panel, providing essential information such as speed, fuel level, and odometer readings. Maintenance Intervals, General Maintenance Tips, and Common Issues: Maintenance Intervals: Consult the owner's manual for specific maintenance intervals and recommendations. Regular oil and filter changes are typically required every 50 hours of operation or as specified by the manufacturer. Check and adjust valve clearances periodically to ensure optimal engine performance. Maintain proper chain tension and lubrication for smooth power transfer and extended chain life. Inspect and replace the air filter when necessary to maintain proper airflow to the engine. General Maintenance Tips: Keep the ATV clean and free from debris to prevent corrosion and ensure longevity. Check tire pressure regularly and maintain recommended levels for optimal handling and safety. Inspect the brake pads and replace them if worn down to ensure reliable braking performance. Maintain proper coolant levels and ensure the cooling system is free from leaks or blockages. Regularly inspect the battery terminals and connections, and ensure the battery is in good condition. Common Issues and Solutions: Electrical issues: Check all electrical connections, fuses, and switches for proper functionality. Replace any faulty components or repair any wiring issues. Carburetor problems: Clean and inspect the carburetors regularly to prevent clogging. Ensure proper synchronization for optimal fuel delivery. Charging system problems: Check the battery, alternator, and voltage regulator for proper charging. Replace any faulty components if necessary. Cooling system leaks: Inspect hoses, connections, and the radiator for leaks. Replace or repair any damaged components to prevent overheating. Popular Tuning Tips or Modifications: Installing an aftermarket exhaust system for improved sound and potentially increased power. Upgrading the air filter to a high-performance filter for enhanced airflow and potential power gains. Adding a jet kit or tuning the carburetors to optimize fuel delivery for aftermarket exhaust or intake modifications. Installing an ATV winch for increased utility and convenience during off-road adventures. Upgrading the suspension components, such as replacing shocks or adding lift kits, for improved ground clearance and handling. Available Accessories and Aftermarket Options: Skid plates and A-arm guards for added protection against rocks and debris. ATV cargo boxes and storage solutions for increased carrying capacity. LED lighting options for enhanced visibility during night riding. ATV winches and mounting kits for recovery and utility purposes. Handguards and brush guards for protection against branches and other obstacles. Owner Reviews and Opinions: Opinions and experiences can vary among owners, but some common strengths and weaknesses of the 2005-2010 Kawasaki Brute Force 650, KVF 650, 4x4 ATV may include: Strengths: Powerful engine and excellent off-road capabilities. Durable construction, suitable for rugged terrains and demanding tasks. Selectable four-wheel drive modes for enhanced traction in various conditions. Ample cargo capacity for hauling gear and equipment. Comfortable seating and ergonomic design for enjoyable rides. Weaknesses: Some owners have reported occasional electrical issues, particularly related to wiring connections. Suspension may feel stiff for riders seeking a smoother ride on rough terrains. Repairs Carried Out Most Frequently: The repairs that may need to be carried out most frequently: ► Electrical system repairs, such as addressing wiring issues or replacing faulty switches. ► Carburetor maintenance and tuning to ensure proper fuel delivery and optimize performance. ► Cooling system repairs, including fixing leaks or addressing overheating issues. ► Regular maintenance tasks such as oil changes, chain adjustments, and brake pad replacements. Get your Kawasaki service manual in PDF format by securely completing your payment through PayPal. Simply click the button below to access the detailed shop handbook. Securely complete your PayPal payment to get your Kawasaki service manual in PDF format. Just click the button below to access the comprehensive shop handbook. After completing your payment, you'll find the official Kawasaki OEM shop manual/parts catalog download link on the checkout page. Additionally, we'll immediately email you the payment and download information for your convenience. §
Price: 18.99 USD
Lifetime Guarantee
