Kawasaki Brute Force 650 4x4 (KVF650) ATV Service Manual, 2005–2009
530 Pages • 1 Printable PDF (English) • Download
Kawasaki Models Covered & Key Technical Specifications
Models & Model Codes: KVF 650 4x4 (KVF650-D1, KVF650-E1, KVF650D6F, KVF650D7F, KVF650D8F, KVF650D9F, KVF650E6F, KVF650E7F, KVF650E8F, KVF650E9F)
Sub-models / Variants: 4x4, US Model (US), Canada Model (CA), Australian Model (AU), European Model (EUR), United Kingdom Model (GB), Camouflage-surface-treated model (KVF650-E1)
Trade Names: Brute Force 650 4x4
Model Years: 2005–2009 (2005, 2006, 2007, 2008, 2009)
Beginning Frame Numbers:
-
KVF650-D1: JKAVFED1□5B500001 or JKAVF650DDB600001
-
KVF650-E1: JKAVFEE1□5B500001
-
KVF650D6F: JKAVFED1□6B503001 or JKAVF650DDB601110
-
KVF650D7F: JKAVFED1□7B515501 or JKAVF650DDB602401
-
KVF650D8F: JKAVFED1□8B520300 or JKAVF650DDB603400
-
KVF650D9F: JKAVFED1□9B525501 or JKAVF650DDB604901
-
KVF650E6F: JKAVFEE1□6B503001
-
KVF650E7F: JKAVFEE1□7B505601
-
KVF650E8F: JKAVFEE1□8B507500
-
KVF650E9F: JKAVFEE1□9B508901
□ = variable digit in the frame number.
-
Engine: 4-stroke, SOHC, V-twin
-
Displacement: 633 cm³
-
Compression Ratio: 9.9 : 1
-
Maximum Power: 30.9 kW (42.0 PS) @ 6 500 r/min (non-US specification)
-
Maximum Torque: 52.1 N·m (38.0 ft·lb) @ 4 000 r/min
-
Cooling System: Liquid-cooled
-
Carburetion: Keihin CVKR-D32
-
Ignition: Digital DC-CDI
-
Transmission: 2-speed and reverse, with a belt converter for primary reduction
-
Final Drive: Shaft 2WD/4WD, 4.375 reduction ratio
-
Front Suspension: MacPherson strut, 170 mm travel
-
Rear Suspension: Swingarm, 184 mm travel
Kawasaki Manual Features & Selected Content Preview

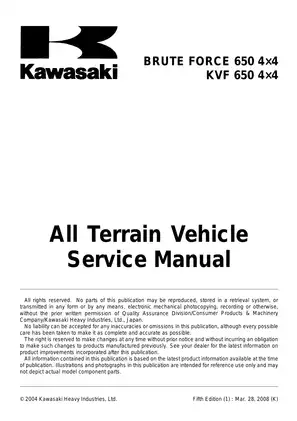

This Kawasaki factory service manual covers the 2005–2009 Brute Force 650 4x4 KVF650 D- and E-series, including the KVF650-E1 camouflage model. It is the Fifth Edition (1), dated March 28, 2008.
Searchable Service Text and Wiring Diagrams
Text search and diagram detail: Search the service text or use the embedded bookmarks to jump to chapters and individual procedures. Wiring diagram titles are searchable. Wire-color codes and connector labels are embedded in the diagrams as images and are best read at higher zoom.

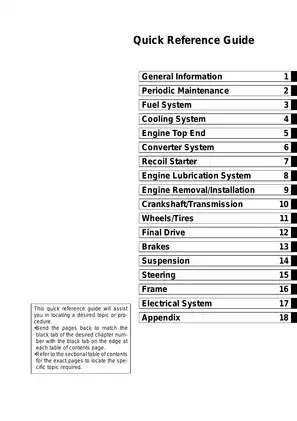

The download contains one printable English PDF with 530 pages. The total includes 10 preliminary pages, 490 pages for Chapters 1–17, the 29-page Appendix, and one Model Application page with beginning frame numbers. The 13 blank pages are included in that count.
Engine Teardown, Drive Belt Service, and Electrical Tests
This selection of service procedures shows the scope of the manual. Other topics include front axle joint boot replacement and vehicle-down sensor testing.
-
Engine and transmission repair: Engine removal and installation, top-end teardown, camshaft chain timing, valve seat lapping, crankshaft inspection, and transmission disassembly and assembly.
-
Fuel system: Keihin CVKR-D32 carburetor overhaul, step-by-step synchronization and service fuel-level checks, and separate procedures for the early electric pump and later vacuum-operated pump.
-
Cooling and lubrication: Cooling-system pressure testing, thermostat checks, water pump mechanical seal replacement, oil pressure measurement, and oil pump service.
-
Belt converter and final drive: Drive and driven pulley repair, belt deflection adjustment, limited-slip differential (LSD) clutch torque inspection, and front and rear final bevel gear setup.
-
Brakes and chassis: Front disc brake service and bleeding, enclosed wet multi-plate rear brake repair, suspension arm and swingarm service, and front wheel toe-in adjustment.
-
Electrical diagnosis: Ignition and charging tests, starter motor repair, Kawasaki Engine Brake Control and selectable 2WD/4WD troubleshooting, and separate wiring diagrams for early and later models.
Written primarily for trained mechanics in equipped shops, this manual also supports basic maintenance and repair by owners who already understand mechanics, tool use, and workshop procedures.
Fuel-System Changes and Carburetor Service
KVF650-D1/E1 models use an in-tank electric fuel pump. D6F/E6F and later covered models use a vacuum-operated pump. Separate tank, tap, pump, and fuel level sensor sections distinguish the two layouts.
The High Altitude Setting Information table pairs carburetor main jet sizes with drive pulley ramp weights and spring spacers so the carburetor and converter can be set up for the same elevation.
V-Twin Engine Repair and Service Data
Engine coverage includes Kawasaki Automatic Compression Release (KACR) diagnosis, connecting rod bearing insert selection, and cylinder and piston wear inspection. The recoil starter has its own removal, installation, and rope inspection procedures.
The rocker case instructions flag a specific repair risk. Incorrect crankshaft positioning during removal or installation can bend the valves.
The Periodic Maintenance Chart organizes scheduled service. Reference tables give fluid capacities, wear limits, and torque settings for cylinder head bolts, starter clutch bolts, and final gear case fasteners.
Cooling and Lubrication Circuits
The Coolant Flow Charts identify the carburetor coolant connections. The Engine Oil Flow Chart traces lubrication through the crankshaft, camshafts, and transmission. Service procedures also cover the coolant filter and valve and the oil pressure relief valve.
Pulley, Final Gear Case, and Chassis Work
The pulley instructions identify the left-hand threads on the drive pulley bolt and spider. Specified tools include Drive Pulley Holder 57001-1620 and Drive Pulley Puller Bolt 57001-1429.
The final drive sections use exploded views and shim-selection tables for gear setup. Tooth-contact checks show how to verify the gear mesh and avoid damage from incorrect backlash or tooth contact.
Chassis coverage extends to hubs, tie rods, steering knuckles, and frame fittings. The sealed front shock absorbers are covered for removal, installation, external inspection, and spring replacement.
Observe the manual's precautions for supporting the ATV, servicing rotating converter components, and working on brake systems.
Actuator Faults and Belt Warning Resets
Actuator failure-indication tables and connector tests help distinguish a selectable 2WD/4WD actuator fault from an engine brake actuator, sensor, or controller problem before parts are replaced.
The Drive Belt Failure Mode Memory Clearing Procedure has separate entries for D1/E1 through D6F/E6F and for D7F/E7F onward. The later procedure also applies to the earlier models. Starter motor repair instructions and actuator fault tables distinguish D9F/E9F from earlier versions.
The Ignition System, Actuator Control System, and Lighting System circuit diagrams accompany component tests. Cable, Wire, and Hose Routing views show harness and hose placement. The Troubleshooting Guide covers starting, overheating, drivetrain, handling, and braking complaints.
Valve Clearance, Belt Deflection, and Gear Backlash Examples
For both cylinders, the cold valve clearance at room temperature is 0.10–0.15 mm at the intake valves and 0.20–0.25 mm at the exhaust valves.
The converter drive belt has a standard deflection of 22–27 mm with the transmission in neutral, the belt seated at the top of the driven pulley, and no more than 59 N of measuring force.
In the front final gear case, standard bevel gear backlash is 0.10–0.20 mm at the pinion gear spline. The manual relates this reading to pinion shim selection during gear setup.
