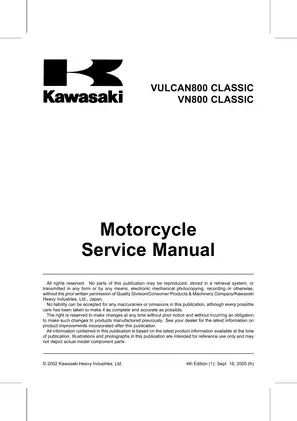

Kawasaki Vulcan 800 Classic / VN800 Classic 1996–2006 Service Manual (P/N 99924-1316-04)

Kawasaki Heavy Industries service manual for the 1996–2006 Vulcan 800 Classic / VN800 Classic, covering VN800-B1 through VN800-B10 and VN800B6F. P/N 99924-1316-04, 4th Edition (1), September 16, 2005.

PDF Search, Bookmarks, and Diagram Detail

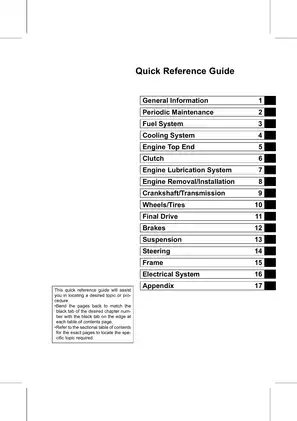

Search and navigation: Text search works across the service chapters, but lettering inside the main wiring diagrams is not searchable. Embedded bookmarks link to chapters and many procedures; small wiring labels require zooming. Electrical System page 16-3 (PDF p. 303) is a placeholder.

The ZIP download contains one printable, 395-page PDF in English. This total includes the original cover, 10 blank pages, and the electrical-section placeholder page.

Engine, Chassis, and Electrical Service

The following selected service topics outline the manual’s coverage rather than reproduce its full contents. Further topics include clean-air-system vacuum-switch testing and speedometer gear-housing service.

• Fuel system: Keihin CVK36 carburetor removal, disassembly, cleaning, service fuel-level checks, and pilot-screw setting, plus throttle and choke cable service.

• Cooling system: Pressure testing, water-pump mechanical-seal replacement, radiator and cap inspection, thermostat testing, coolant replacement, and bleeding procedures.

• Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head and valve work, camshaft-chain service, and piston and cylinder repair.

• Clutch and transmission: Clutch inspection, crankcase separation and assembly, transmission-shaft service, shift-mechanism inspection, and balancer and starter-clutch work.

• Chassis and brakes: Front-fork oil and seal service, Uni-Trak and swingarm bearings, steering-stem bearings, wheels, chain drive, front hydraulic brakes, and rear drum brakes.

• Electrical diagnosis: Ten model- and market-specific wiring diagrams, with charging, ignition, starting, lighting, radiator-fan, meter, switch, sensor, junction-box, and fuse tests.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners performing basic maintenance and repair who understand mechanics, correct tool use, and workshop procedures. Kawasaki directs work beyond an owner’s experience to qualified mechanics.

Model and Market Differences

The Model Application table pairs each factory model code with its beginning frame numbers. Model-specific notes distinguish changes in oil requirements, clutch springs, drive-chain type, fork-cover installation, tire designations, battery capacity, carburetor calibration, and electrical layouts.

Separate maintenance schedules address the United States and Canada versus other markets. California sections cover evaporative-emission hose routing, separator operation testing, and canister inspection.

This is a service publication. Operating information and replacement-part listings are addressed in the separate Owner’s Manual and Parts Catalog.

Internal Engine and Drivetrain Repair

Top-end inspection: Compression testing, camshaft and rocker-arm measurements, valve-guide replacement, valve-seat repair, cylinder boring and honing, and piston-ring inspection extend the coverage beyond routine adjustment.

Lubrication and bottom end: Oil-pressure testing accompanies oil-pump, relief-valve, screen, and oil-passage service. Connecting-rod bend and twist checks, crankshaft runout measurements, and bearing-insert selection with clearance checks support internal inspection.

Transmission sections include gear-dog damage checks and wear measurements for shift forks, gear grooves, guide pins, and drum grooves, along with bearing and oil-seal installation details.

Brake and Chassis Inspection

Front brake coverage reaches caliper and master-cylinder disassembly, seal inspection, disc wear and runout checks, and hydraulic bleeding. Rear brake procedures address the brake panel, drum, shoes, camshaft, and cam-lever adjustment.

Wheel sections cover spoke adjustment, rim runout, balancing, and hub bearings. Suspension and steering sections add fork disassembly, swingarm and Uni-Trak bearing inspection, and steering-stem bearing replacement.

Circuit References and Workshop Tools

Named references include the Coolant Flow Chart, Engine Oil Flow Chart, Charging System Circuit, Electric Starter Circuit, regional Headlight Circuits, and Junction Box Internal Circuits. Routing illustrations show cable, harness, cooling-hose, and California evaporative-emission layouts.

The alternator-output, stator-resistance, and regulator/rectifier tests help distinguish charging-system faults before replacement parts are selected. The symptom-based troubleshooting guide also addresses starting, poor running, overheating, clutch and shifting faults, abnormal noise, oil-pressure warnings, handling, weak brakes, and battery problems.

Tool callouts include fuel-level gauge 57001-1017, pilot-screw adjuster 57001-1239, oil-pressure gauge 57001-164 with adapter 57001-1033, fork oil-seal driver 57001-1219, and igniter checker 57001-1378. Exploded views, torque and locking-agent tables, wear limits, fluid data, and electrical test specifications accompany the procedures.

Cam-Chain and Crankcase Cautions

Top-end warnings explain how crankshaft rotation with the tensioner cap removed can damage the tensioner, cylinder, or valves, and how a kinked cam chain can damage the chain and crankshaft sprocket. Crankcase assembly notes address liquid-gasket contamination of oil passages and the resulting risk of engine damage.

Fuel-system work, cooling-system pressure tests, brake service, electrical isolation, and engine removal require the specified tools, supports, WARNING notes, and CAUTION notes.

A Preview of Valve-Clearance and Oil-Pressure Data

For valve-clearance inspection with the engine cold at room temperature, the manual specifies 0.10–0.15 mm intake clearance and 0.20–0.25 mm exhaust clearance. Separate intake and exhaust shim-selection charts accompany the adjustment instructions.

The lubrication section specifies an oil-pressure range of 355–410 kPa at 4,000 rpm with oil at 100°C, alongside the gauge and adapter requirements for the documented pressure test.
