Honda Z50R 1988–1999 Service & Repair Manual (P/N 61GW810)

Honda factory service and repair manual for the 1988–1999 Z50R, corresponding to paper-manual P/N 61GW810. Year-specific specifications and assembly illustrations distinguish the documented production changes.

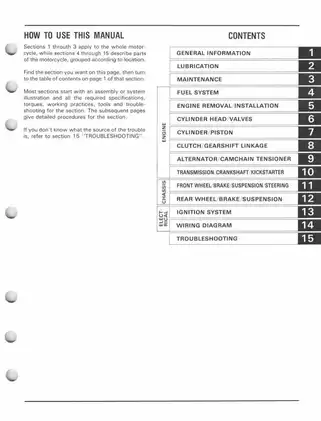

PDF Search, Chapter Bookmarks and Wiring Detail

Search and diagram detail: The PDF includes an OCR text layer and chapter bookmarks. Recognition errors can affect exact-term searches. Small wiring-diagram labels are best read with zoom.

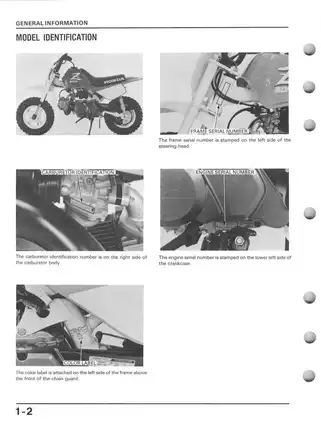

One printable, English-language PDF contains 145 pages, including the cover and two introductory pages. These three front-matter pages are already included in the total.

Engine Overhaul, Drivetrain Repair and Ignition Diagnosis

The following selected repair topics show the manual’s scope rather than reproduce its full contents. Other subjects include fuel-strainer service and spark-arrester cleaning.

• Engine and lubrication: Engine removal and installation, oil-filter rotor and screen service, oil-pump inspection, cylinder-head and valve repair, and cylinder/piston work.

• Clutch and gearshift: Automatic centrifugal-clutch disassembly, disc and plate inspection, year-specific assembly arrangements, clutch adjustment, and gearshift-linkage service.

• Internal drivetrain: Crankcase separation, mainshaft/countershaft inspection, shift-fork and drum checks, crankshaft measurement, transmission-bearing replacement, and kickstarter repair.

• Fuel and ignition: PA03 carburetor overhaul, float-level inspection, air-screw adjustment, compression testing, and ICM, ignition-coil, stator, pulse-generator, and engine-stop-switch checks.

• Brakes and chassis: Wheel-bearing replacement, drum-brake inspection and assembly, fork repair, steering-head race replacement, rear-shock service, swingarm inspection, and drive-chain adjustment.

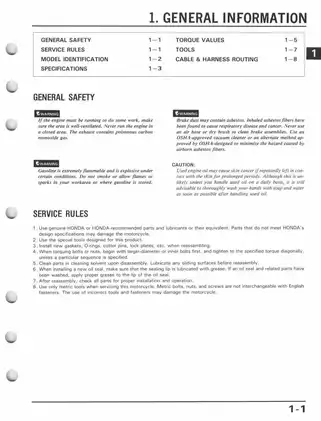

• Factory reference material: Component torque tables, capacities, wear limits, electrical test specifications, cable/harness routing, exploded assembly views, an ignition wiring diagram, and troubleshooting charts.

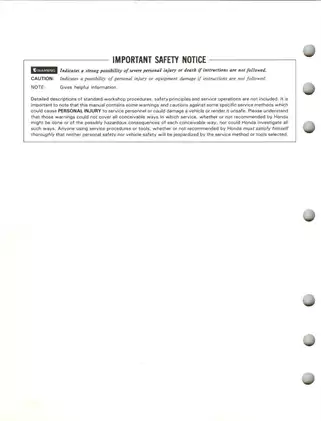

This manual is suited to mechanically qualified owners and working technicians with metric tools, measuring equipment, and the specified service fixtures. Honda omits standard workshop procedures and general safety instruction, and its maintenance schedules reserve certain safety-sensitive work for dealer service.

Production-Year Differences

The fuel section identifies PA03F for 1988, PA03H after 1988, and PA03M after 1991, with a separate 1988 air-screw baseline. Cylinder-head construction, camshaft inspection, valve springs, and clutch components also change after 1991.

Transmission and kickstarter illustrations distinguish 1988–1989, 1991–1992, and after-1992 arrangements. Maintenance schedules separate 1988–1997 machines from later models. These distinctions help match the relevant parts, specifications, and procedures to the machine being serviced.

Engine Inspection and Assembly Details

Step-by-step procedures cover valve-guide replacement and seat refacing, camshaft installation and valve timing, piston-ring installation, and internal engine reassembly. Cylinder measurements include taper and out-of-round checks, with oversize-piston selection addressed when wear exceeds the limits.

The oil-pump and clutch sections describe work that can be performed with the engine in the frame. Transmission, crankshaft, and internal kickstarter service require crankcase separation.

Honda identifies flywheel puller 07733-0010000 and valve-guide driver 07942-MA60000. Clutch work calls for outer holder 07923-0340000 and disassembly/assembly tool 07960-0110000.

Two assembly cautions concern vulnerable parts: separating the carburetor top from its integral throttle-cable assembly damages the cable, while careless right crankcase-cover installation can dislodge the clutch ball retainer or damage the kickstarter-shaft oil seal.

Chassis and Electrical Fault Finding

Chassis inspection extends to brake shoes, drums and cams, wheel and axle runout, steering races, fork springs, shock components, and swingarm bushings. The specified fixtures include steering-stem driver 07946-GC40000 and rear-shock compressor attachment 07967-1180100.

The ignition chapter provides resistance and continuity checks at the ICM harness connector and individual components. Ignition timing is factory-set and nonadjustable; the inspection procedures address component faults rather than timing adjustment.

Cable/harness-routing drawings and the lubrication layout support installation work. Year-specific cylinder-head and clutch exploded views, transmission/kickstarter layouts, front-fork and steering assemblies, and the ignition schematic provide further assembly and circuit references.

Symptom-based charts address hard starting, power loss, poor low- or high-speed operation, poor handling, and weak or absent spark. They connect observed symptoms with checks and probable causes, supporting fault isolation before component replacement.

Fuel-system work requires ventilation and control of ignition sources. Brake service must avoid airborne lining dust, and the machine must be securely supported for engine, wheel, steering, or suspension work.

A Preview of Carburetor, Crankshaft and Ignition Test Data

The PA03 carburetor section specifies a float level of 12.7 mm (0.5 in), measured with the float tang just touching the float valve. Crankshaft inspection gives a runout service limit of 0.10 mm (0.004 in), with a drawing identifying the measuring locations.

Electrical specifications include a stator-coil resistance range of 500–900 Ω at 20°C (68°F), linked to the alternator inspection procedure.
