2003–2012 Honda CRF150F Service & Repair Manual PDF

This service manual covers maintenance, diagnosis, and repair for the 2003–2012 Honda CRF150F, with separate sections for the '03–'05 and after-'05 engine configurations and U.S./Canadian fuel-system differences.

• Engine repair: Engine removal and installation, cylinder-head and valve service, camshaft and rocker-arm inspection, cylinder/piston work, and crankcase separation.

• Clutch and transmission: Clutch and gearshift-linkage repair, shift-drum and gear-bushing inspection, crankshaft service, early kickstarter repair, and later starter-clutch overhaul.

• Lubrication and fuel: Oil-pump inspection, strainer and centrifugal-filter cleaning, carburetor overhaul, air cut-off valve checks, and pilot-screw adjustment.

• Chassis and brakes: Telescopic-fork rebuilding, steering-head and wheel-bearing replacement, swingarm and linkage service, rear drum brakes, and hydraulic front-brake repair.

• Electrical diagnosis: Alternator-stator service, ignition peak-voltage tests, battery/charging checks, electric starter-motor overhaul, switch testing, and separate early/late wiring diagrams.

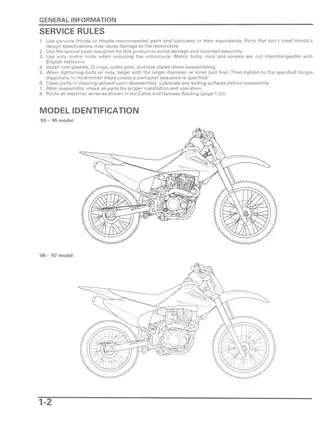

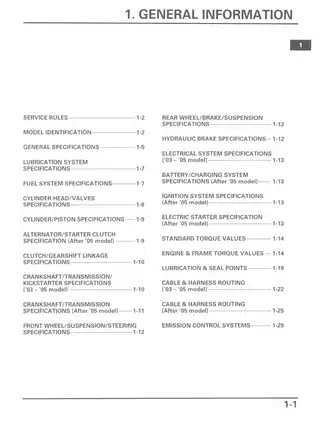

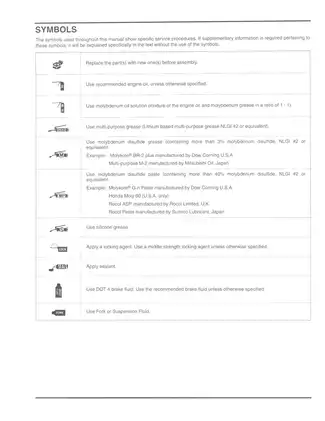

• Service references: Model identification, shop rules, maintenance schedules, cable and harness routing, emission-control labels, torque tables, lubrication diagrams, and component-specific wear limits.

The manual suits mechanics and mechanically qualified owners equipped for precision measurements and special-tool work. Its maintenance schedules recommend dealer service for certain safety-related items.

Engine, Clutch, and Internal Transmission Work

The cylinder-head chapters cover compression testing, valve-guide replacement, valve-seat inspection and refacing, cam timing, and rocker-arm checks. Engine removal is specified for '03–'05 head and camshaft work; the corresponding after-'05 procedures can be performed in the frame. This distinction helps plan access and disassembly before starting a top-end repair.

Exploded assembly views support crankshaft inspection, transmission disassembly, shaft and gear-bushing measurements, and shift-drum and fork checks. Clutch-disc and plate limits accompany the separate clutch procedures, while the early drivetrain chapter also covers the kickstarter mechanism.

Lubrication-system diagrams trace oil delivery through the pump, centrifugal filter, and engine passages. The reference tables distinguish standard dimensions from service limits and identify fastener-specific torque values, including cylinder-head cover bolts and the rear axle nut.

Carburetor Service and Routine Maintenance

Carburetor coverage includes the float valve, jets, throttle valve, air cut-off diaphragm, idle-drop adjustment, and high-altitude settings. U.S. and Canadian versions have distinct needle and pilot-screw details. The float inspection identifies gauge 07401-0010000; the cleaning instructions explain how compressed air can damage an installed air cut-off diaphragm.

Maintenance extends to the air cleaner and housing, crankcase breather, drive chain and chain slider, exhaust muffler, and spark arrester. Crankcase-emission diagrams and cable/harness routing drawings support component reassembly.

Forks, Steering, Suspension, and Brakes

Fork work covers disassembly, bushings and seals, spring inspection, and oil-level specifications. Steering-stem procedures address bearing and race replacement; rear suspension work includes swingarm pivots and linkage needle bearings.

The shock-absorber section covers removal, inspection, and replacement as an assembly, rather than internal damper rebuilding. Brake coverage includes rear shoes and brake-cam service, front caliper and master-cylinder disassembly, disc inspection, and hydraulic bleeding.

Brake and suspension work requires secure motorcycle support, appropriate shop equipment, and the mechanical knowledge to assess component condition.

Ignition, Charging, and Starting Faults

Separate electrical sections distinguish early ignition testing from the later battery, charging, and electric-start systems. They cover the ignition control module, coil and CKP sensor, regulator/rectifier, starter relay, clutch switch, and neutral switch.

Ignition timing is checked against specifications but is factory-set and nonadjustable. Standard spark-plug references distinguish NGK DPR8EA-9 for '03–'05 models from CPR8EA-9 for later units.

The charging-system and electric-starter diagrams supplement the two complete wiring diagrams. Troubleshooting charts address hard starting, loss of power, poor idle or high-speed performance, and handling faults. Starter assembly notes identify the risk of coil damage if the magnets pull the armature against the motor case.

Selected Valve, Oil, and Carburetor Specifications

These figures are a small sample of the manual's adjustment and service data. With the engine cold, below 35°C/95°F, '03–'05 valve clearance is 0.10 ± 0.02 mm for intake and exhaust; after '05, it is 0.08 ± 0.02 mm intake and 0.12 ± 0.02 mm exhaust.

Standard valve-seat width is 1.1–1.3 mm for '03–'05 models and 0.9–1.1 mm afterward. Both engine configurations specify 1.0 liter of oil at draining and 1.2 liters at disassembly.

The carburetor float-level specification is 12.5 mm, with the float valve seated and the float arm just touching the valve.

PDF Search, Chapter Access, and Page Breakdown

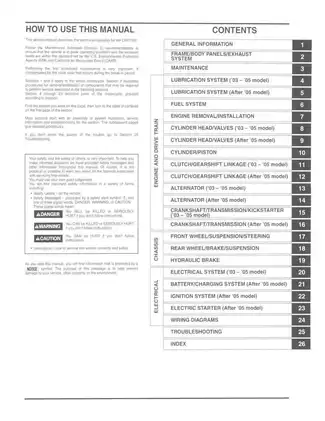

Search and diagram detail: OCR text supports searches across most service pages, although recognition errors can affect results. The clutch page at PDF p. 201 has no searchable text. Embedded bookmarks provide chapter access, including separate wiring-diagram entries; small wiring labels require zooming.

The download is one printable English PDF with 413 pages: 400 pages of manual content, introductory material, and index, plus one cover and 12 memo pages. All are included in the stated total.
