2008–2010 Pontiac G5 Repair Manual

• 3,199 PDF pages across 99 section files of GM factory service information bearing 2010 copyright notices and identified for the 2009 Pontiac G5 on the shared Cobalt/G5 (VIN A) platform, with coupe- and sedan-specific procedures where body hardware differs.
• Covers the 2.0L LNF and GM's shared 2.2L/2.4L engine sections, including on-vehicle repair, off-vehicle disassembly and assembly, timing and balance-shaft work, turbocharger service, engine controls and fuel, cooling, exhaust, and starting/charging systems.
• Details the Hydra-Matic 4T45-E (MN5) automatic transmission plus M86 and MU3 manual transmissions, clutch hydraulics, drive shafts, internal inspection, clutch-pack and differential work, shaft overhaul, shimming, reassembly, adjustment, and unit replacement.

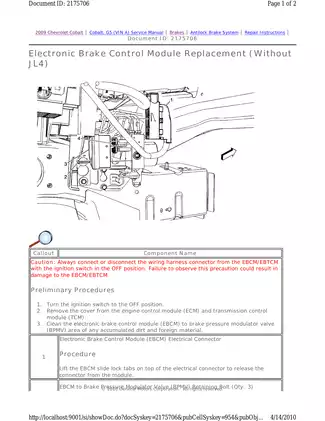

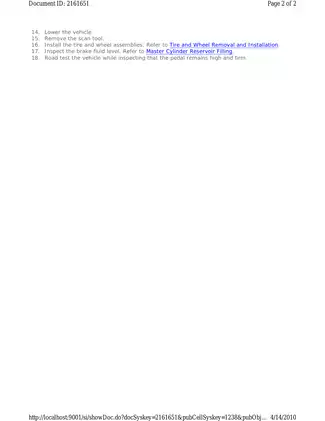

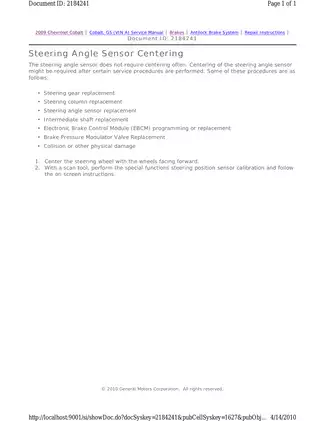

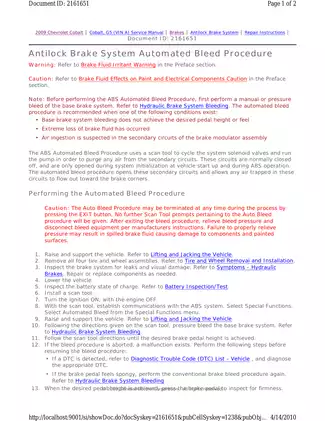

• Includes ABS and hydraulic brake procedures for JL4/non-JL4 and LNF-related configurations: automated bleeding, steering-angle sensor centering, EBCM and brake pressure modulator valve replacement, yaw/lateral sensor service, disc and drum brake repair, rotor runout correction, and manual or pressure bleeding.
• Body and chassis material covers FE1/FE3/FE5 suspension, electric power steering, wheel alignment, bolted panels and closures, coupe/sedan bumpers, glass, sunroof synchronization, locks, trim, seats, HVAC, SIR components, and post-collision restraint inspections.
• Provides 39 standalone electrical schematic PDFs plus wiring-system pages for GMLAN, fuse blocks, grounds, harness routing, connectors, ABS, engine controls, transmission controls, SIR, lighting, HVAC, and entertainment systems, along with system-specific specifications and named GM service tools.

Powertrain Repair Depth

The engine material is divided into 2.0L and shared 2.2L/2.4L sections, each with specification, component-locator, on-vehicle, and off-vehicle files. Major work includes engine replacement, cylinder-head repair, camshafts and valve train, timing-chain and balance-shaft timing, pistons and connecting rods, crankshaft and bearings, cylinder sleeves, oil-pump service, thread repair, and engine prelubing. The 2.0L files add turbocharger removal and inspection, oil feed and return pipes, charge-air cooler plumbing, wastegate and bypass controls, high-pressure fuel-pump service, and direct fuel-injector replacement. The shared 2.2L/2.4L folder contains a mechanical specification section labeled for the 2.2L, making engine RPO and VIN identification important when choosing specifications.

Transmission coverage goes well beyond removal and installation. The 4T45-E files address the TCM, range switch, valve body, solenoids, servos, cooler lines, seals, mounts, torque converter, pump, clutch and band assemblies, sprockets and drive link, final drive, differential, case inspection, end-play checks, and reassembly. M86 and MU3 procedures cover input and output shafts, gears, synchronizers, shift forks, differentials, shimming, seals, cable adjustment, mounts, and transmission replacement. Clutch chapters add master-cylinder service, hydraulic bleeding, pressure-plate and driven-plate replacement, pilot bearing service, and actuator-cylinder replacement.

Brakes, Chassis, Body, and Safety Systems

Brake repair is separated by configuration instead of treating every G5 alike. The ABS file distinguishes JL4 and non-JL4 EBCM and brake pressure modulator valve procedures, including an LNF-specific JL4 application, automated bleed operation, steering-angle sensor centering, and yaw-rate/lateral-accelerometer replacement. Disc-brake chapters separate LNF and non-LNF front hardware and include caliper overhaul, rotor refinishing, assembled lateral-runout correction, and pad/rotor burnishing. Hydraulic and drum-brake files add master-cylinder bench bleeding, manual and pressure bleeding, line and hose replacement, booster service, shoe and wheel-cylinder work, adjustment, and drum refinishing.

Chassis files cover hubs, struts, springs, control arms and bushings, rear axle replacement, steering gear and assist-motor service, steering-column accident inspection, and wheel-alignment work. Body sections document hood, door, hinge, deck-lid, bumper, weatherstrip, glass, window-regulator, lock, latch, trim, seat, and sunroof repairs, with separate coupe and sedan procedures when required. HVAC material includes refrigerant recovery and recharge, flushing, compressor oil balancing, leak detection, compressor and condenser work, expansion-valve and evaporator service, HVAC-module removal, and heater-core replacement. SIR chapters address sensors, modules, passenger-presence components, steering-wheel module-coil centering, pretensioners, and inspections required after a collision.

Schematics, Specifications, and Shop-Level Detail

Representative drawings include ABS Power, Ground, Serial Data and Traction Controls, ABS Vehicle Stability Sensors, 2.0L and 2.2L Engine Controls, Automatic Transmission Controls, and SIR. The wiring-system file adds high- and low-speed GMLAN diagrams, fuse-block bussing, ground locations, splice and connector identification, component locations, and coupe/sedan harness routing. Specification sections cover fastener tightening, engine clearances and wear data, transmission capacities and gear information, synchronizer and end-play limits, brake inspection limits, alignment data, refrigerant capacities, and sensor resistance references.

Named equipment includes the J 41230 transmission support fixture, J 3289-20 holding-fixture base, CH-48027 digital pressure gage, J 45405 brake-pipe flaring kit, and J 39400-A halogen leak detector. These callouts show which repairs need GM-specific fixtures or test equipment rather than ordinary hand tools.

Several manual-specific cautions matter before disassembly. Twisting the 2.0L turbocharger's plastic oil-feed pipe can collapse it, restrict oil flow, and damage the turbocharger. During 4T45-E stub-shaft removal, sleeve damage can create a fluid leak, while an incorrectly seated internal snap ring can damage the transmission. The SIR steering-wheel module coil must stay correctly centered; improper alignment can damage the coil and cause a restraint-system malfunction.

This set is organized around specifications, component locators, repair instructions, and schematics. Full DTC trees, symptom-diagnostic chapters, routine maintenance schedules, and welded structural collision-repair sections are not included in these 99 files, so some cross-references lead outside the collection. Brake hydraulics, high-pressure fuel, refrigerant, SIR, and powertrain removal procedures assume appropriate scan tools, recovery equipment, lifting support, and electrical isolation.
