Pontiac Firebird 1988 Service & Repair Manual (P/N S-8810F)

Pontiac/General Motors issued this factory service manual for the 1988 Firebird, including Base, Formula, Trans Am, and GTA models. P/N S-8810F, dated September 1987, covers workshop diagnosis and repair; vehicle operating instructions were supplied separately in the owner's manual.

PDF Search, Bookmarks and Diagram Detail

Search and circuit labels: An existing OCR text layer supports searches across much of the manual, but some text, tables, and wiring pages are not searchable. There are 55 embedded section bookmarks. Small wire codes and connector labels on the sampled schematics are readable when enlarged.

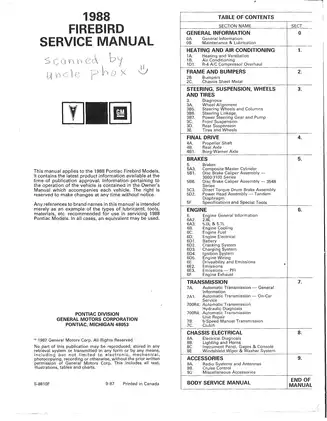

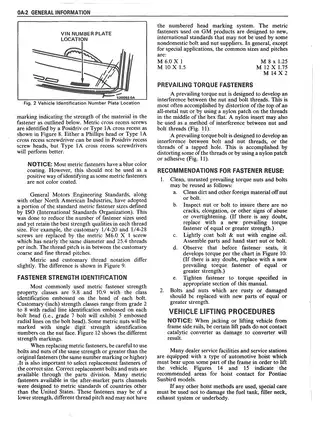

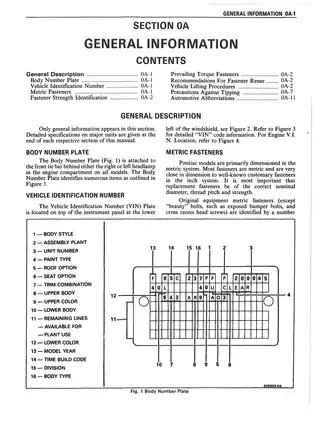

The ZIP contains one printable, 1,825-page PDF, including the original cover and 108 blank or intentionally blank pages. F-carline body service is included in the same file.

Engine, Driveline and F-Body Workshop Coverage

This is a selection of covered work, rather than a complete contents list. Further topics include maintenance schedules and cruise-control diagnosis.

• Engine and fuel systems: Internal engine repair, cooling-system tests, fuel-delivery checks, ECM diagnosis, ignition, charging, and exhaust service.

• Transmission and clutch: Automatic hydraulic diagnosis and overhaul, manual-transmission disassembly and assembly, synchronizer service, end-play adjustment, and hydraulic clutch repair.

• Brakes: Diagnosis and overhaul of the composite master cylinder, disc calipers, Direct Torque drum brakes, and tandem-diaphragm power head.

• Steering and driveline: Wheel alignment, steering gear and pump repair, front and rear suspension, propeller-shaft service, and rear-axle setup.

• Electrical diagnosis: Circuit schematics, connector faces, component locations, splice and ground references, and system-specific fault-isolation tests.

• Air conditioning: C.C.O.T. performance diagnosis, leak testing, evacuation and charging, component replacement, and R-4 compressor overhaul.

• F-body service: Glass and door adjustments, water-leak diagnosis, hatch hardware, roof components, seats, and body wiring-harness illustrations.

The internal overhaul procedures and reliance on factory fixtures, gauges, pullers, and electrical test equipment make this manual suited to professional technicians and experienced owners with an appropriately equipped workspace.

Engine Repair and Driveability Diagnosis

The V6 and V8 chapters contain step-by-step procedures for cylinder-head, valve-guide and seat work, lifter and camshaft service, and timing-drive repair. Internal inspection extends to oil pumps, connecting rods, pistons, main and camshaft bearings, crankshafts, and cylinder blocks.

Separate driveability sections distinguish the L03 TBI system from the LB8, LB9, and L98 port-injection applications. Symptom charts, trouble-code tests, ECM terminal views, and fuel-pressure checks help match the diagnostic path to the installed engine before components are removed.

Coverage includes sensors, injector service, electronic spark control, EGR and AIR systems, cooling-fan control, torque-converter-clutch operation, and manual-transmission shift-light diagnosis.

For vehicles sold in Canada, the manual also refers readers to the appropriate Canadian Service Manual Supplement for driveability diagnosis. That supplement is not included.

Transmission Overhaul and Rear-Axle Setup

700-R4 automatic: Road and preliminary checks lead into line-pressure diagnosis, shift-speed information, torque-converter evaluation, and unit overhaul. The Clutch Application Chart and hydraulic oil-passage diagrams connect operating symptoms with the transmission's internal circuits.

Manual transmission: Diagnosis addresses gear clash, noise, jump-out, and locked-gear complaints. Internal service covers the mainshaft, countershaft, blocker rings, synchronizer assemblies, bearings, seals, shimming, and final assembly. Hydraulic clutch material includes bleeding and pressure-plate, disc, and pilot-bearing service.

Standard and Borg-Warner rear-axle sections distinguish conventional and limited-slip designs. They cover noise diagnosis, tooth-contact patterns, backlash, pinion position, and bearing preload.

The manual warns that unsuitable lubricant or additives can damage the manual transmission's blocker-ring friction material or adhesive. Its rear-axle notices also explain why excessive pinion preload can overcompress the collapsible spacer and make replacement necessary.

Brake and Chassis Repair

Brake coverage identifies the 3000/3100- and 3548-series disc-caliper assemblies separately, alongside the composite master cylinder, Direct Torque drum brakes, and tandem-diaphragm booster.

Steering and suspension material combines complaint diagnosis with alignment specifications, steering-linkage service, column repairs, and power-steering gear and pump work. Propeller-shaft diagnosis and front and rear suspension procedures support investigation of vibration and chassis complaints.

Electrical Circuits and Accessories

The cell-based Electrical Diagnosis section pairs schematics with connector faces, component locations, troubleshooting hints, and test results. Coverage distinguishes engine circuits and manual versus electronic A/C controls.

Other systems include starting and charging, coolant fans, headlight doors, lamp monitoring, analog and digital instrument clusters, and the Driver Information Center. Power windows and locks, PASSKEY theft deterrent, hatch release and pull-down, radio, and power antenna circuits are also covered.

Engine-specific ECM wiring and connector-terminal views, wiper/washer circuit diagrams, and F-body harness-routing illustrations provide different ways to trace a fault from the circuit to its physical connection.

C.C.O.T. Air Conditioning and R-4 Overhaul

The four-part C.C.O.T. A/C System Insufficient Cooling Diagnostic Procedure supports performance diagnosis. Refrigerant-service coverage includes R-12 handling, leak checks, evacuation, charging, and refrigerant-line replacement.

The R-4 Compressor Disassembled View accompanies bench procedures for the clutch, shaft seal, bearings, front head, shell, valve plate, and cylinder-and-shaft assembly.

Glass, Doors, Roof and Interior

The F-style body section covers lock-cylinder coding, water-leak diagnosis, stationary-glass replacement, rear-defogger-grid repair, and underbody dimensions. Door procedures address glass, hinges, locks, and weatherstrip adjustment.

Further material covers lift glass, hatch hardware and pull-down mechanisms, lift-off glass roof panels, convertible-top components, seats, power adjusters, lumbar supports, and body harness routing.

Factory Tools and Service References

Section-specific references include torque specifications, fits, wear limits, fluid capacities, alignment data, gear settings, pressure tests, and electrical checks.

Tool callouts identify J-24773-A for 700-R4 oil-pump removal and J-29837 for output-shaft support. R-4 service references include J-33013-B for clutch-hub removal and J-34614 for shaft-seal protection; clutch work identifies J-33169 for alignment and support.

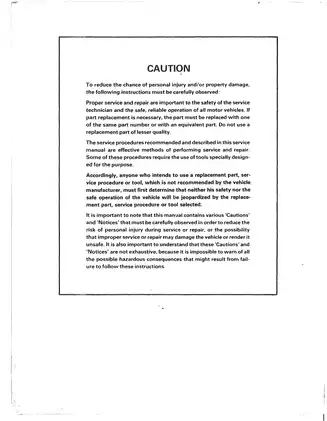

Brake, steering, under-vehicle, pressurized-fuel, and R-12 refrigerant work requires suitable lifting, testing, refrigerant-service, and protective equipment, together with attention to the manual's Cautions and Notices.

Preview of Transmission End-Play Specifications

The 700-R4 assembly check specifies transmission end play of 0.13–0.92 mm (.005–.036 in.), with selective-washer information for adjustment.

For the 77mm manual transmission, ideal mainshaft end play is zero, with an allowable variation of plus or minus .001 in. (.03 mm). The assembly section illustrates dial-indicator measurement and explains the associated shim selection.
