Pontiac Trans Sport 1997–1999 Repair Manual Collection

The older engine, chassis and electrical articles can be used alongside the Pontiac-specific body sections for repair planning. Later GM system documents provide additional references, with their own model and year applications.

Application limits: Coverage varies by file. The 1997 wiring document is for Chevrolet Venture; the 2003 and 2005 sections are later-model references. The SIR document covers 2005 Terraza, Uplander, Relay and Montana SV6. Earlier Trans Sport airbag work requires matching SIR service information.

PDF Search, Bookmarks and Diagram Detail

Text search and navigation: The two 1998 Pontiac body PDFs have searchable text and numbered bookmarks. The other 44 PDFs have no text search or embedded bookmarks. Small wiring and connector labels require zooming.

The ZIP contains 46 printable PDFs totaling 4,296 pages, including the 47 pages in the two separate trouble-code references.

Engine, Chassis and Electrical Service Coverage

Selected coverage is outlined below; passenger-compartment filter replacement and horn-circuit diagnosis are further examples of the included material.

• Engine repair: Step-by-step engine removal, intake-manifold, cylinder-head, timing-chain and camshaft procedures, with oil-pump inspection and reassembly.

• Suspension and drive axles: Ball-joint checks, strut and hub replacement, CV-joint disassembly, rear-axle removal, and shock-absorber service.

• Brake service: Caliper and master-cylinder replacement, parking-brake adjustment, component exploded views, and drum and rotor inspection specifications.

• Transmission service: Fluid and filter replacement, U-series shift-linkage and park/lock cable adjustments, and park/neutral switch settings.

• Electrical diagnosis: Starter-circuit checks, solenoid and no-load bench tests, fuse-block references, Venture wiring diagrams, and later GM connector views.

• Cooling and HVAC: Thermostat and water-pump service, plus later Montana/Venture A/C performance tests, pressure-zone diagnosis and blower troubleshooting.

• Body and accessories: Pontiac bumper and exterior-trim replacement; later GM power-door and keyless-entry diagnosis, seat-adjuster and heater repair, and window service.

The diagnostic charts, starter bench tests and engine-support tooling make this material suited to experienced repairers with workshop equipment.

LA1 Engine Inspection and Assembly

The 1996–97 engine article covers valve-guide and seat inspection, piston and ring fitting, and crankshaft and bearing measurements. Component-specific torque tables, dimensional limits and lubrication data support parts evaluation before reassembly.

Illustrations include Aligning Timing Marks and Engine Oiling System. Tool references identify the J-35468 front-cover aligner and oil-seal installer and J-34686 rear-seal installer.

The engine-removal section warns that lowering the powertrain with the steering intermediate shaft still connected can damage the steering gear or shaft. Its valve-spring guidance also identifies the risk of broken springs or worn camshaft lobes from excessive spacers.

Transmission Reference and Driveability Relearning

The transmission article combines 3T40, 4L60-E, 4T60-E and 4L80-E reference data for several GM vehicle series. Its coverage concerns servicing and adjustment; it does not include internal transmission overhaul.

The separate GM relearn reference explains driveability changes after battery disconnection or PCM replacement. Its model-specific routines need to be matched to their stated applications.

Suspension, Brakes and Circuit Diagnosis

Front-suspension information includes steering-knuckle and control-arm fastener specifications. The rear-suspension articles distinguish standard shocks from automatic-level-control equipment and address height-sensor linkage orientation and hub assemblies.

The Exploded View of CV Joint Assembly shows component relationships during axle work. In the Venture wiring PDF, examples include the 3.4L (VIN E) Engine Performance Circuits, Electronic Suspension Circuit and Starting Circuit.

The starter tests trace no-crank faults through the ignition switch, transaxle range switch and solenoid. This helps distinguish wiring or switch faults from a failed starter before replacement is considered.

Pontiac Bodywork and Later GM Systems

The Pontiac-specific body sections address bumper fascias and impact bars, body cladding, rocker moldings and grille replacement. They include fastener data and references to the J 38778 trim-clip remover.

For their stated later-model applications, the door material includes power-sliding-door fault diagnosis and reinitialization, while the keyless-entry file covers transmitter programming and synchronization.

The two HVAC documents separate refrigerant-system repair from manual-HVAC control diagnosis, including front and auxiliary systems. Power-steering coverage adds pressure testing, bleeding, and pump and rack service.

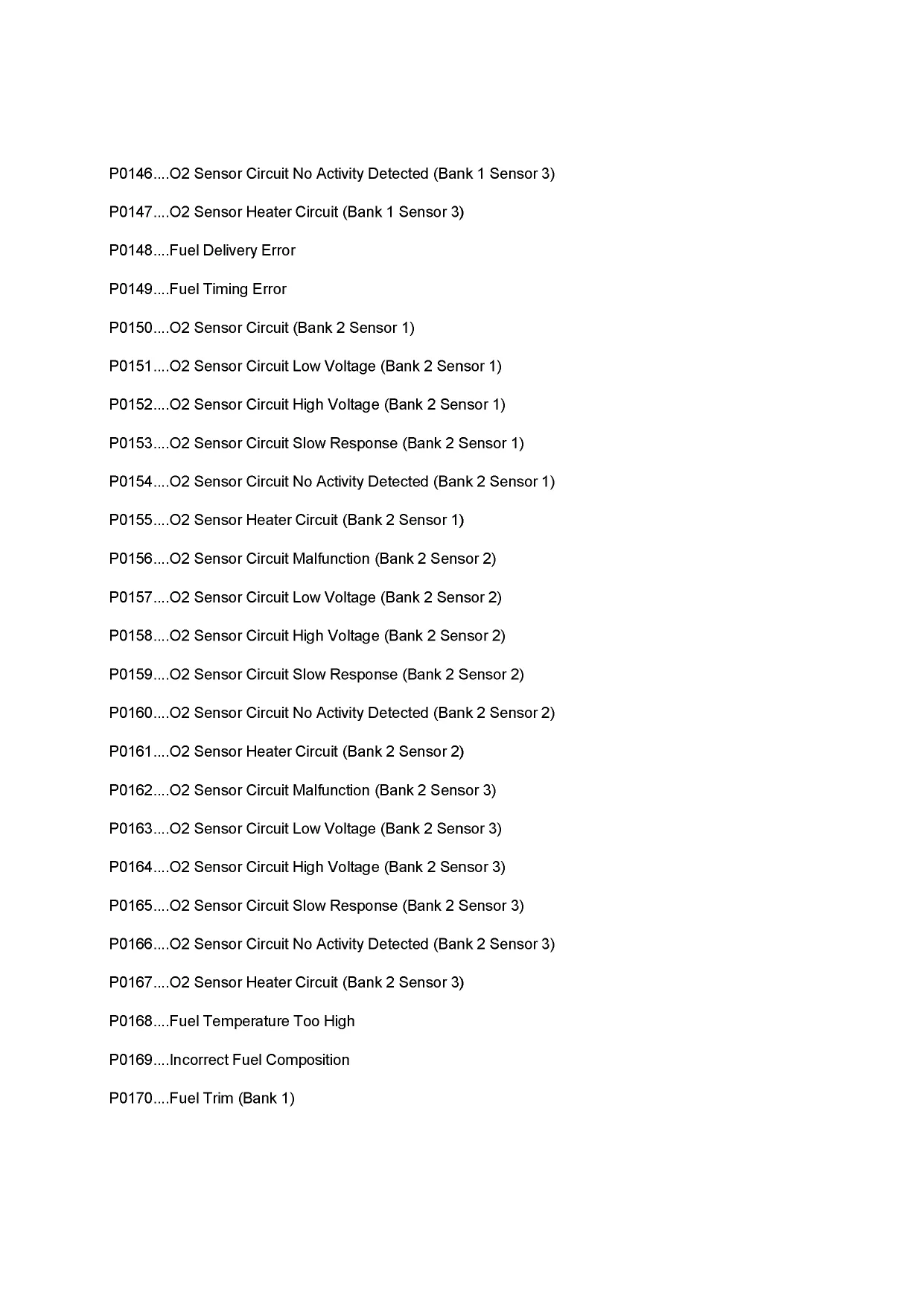

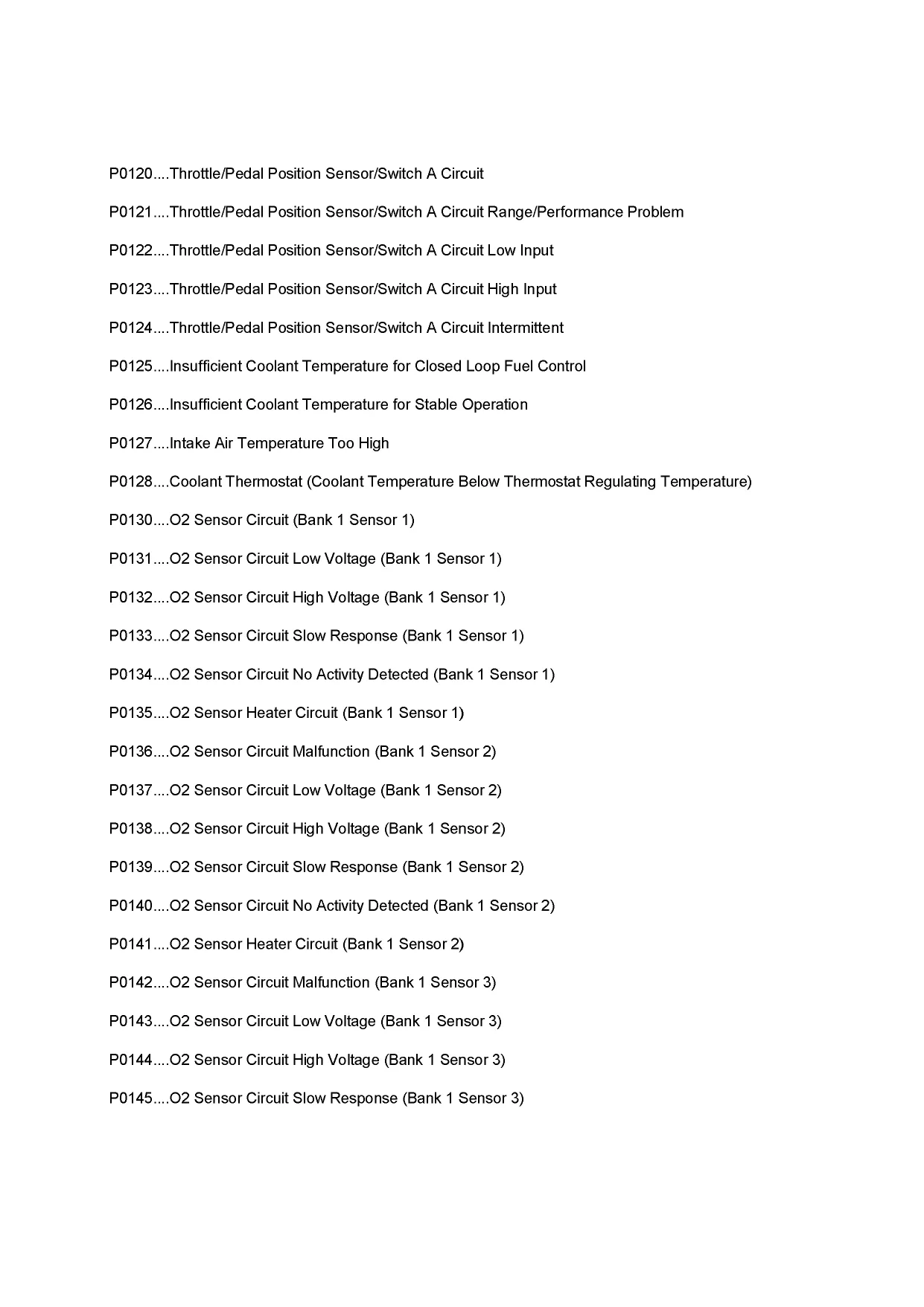

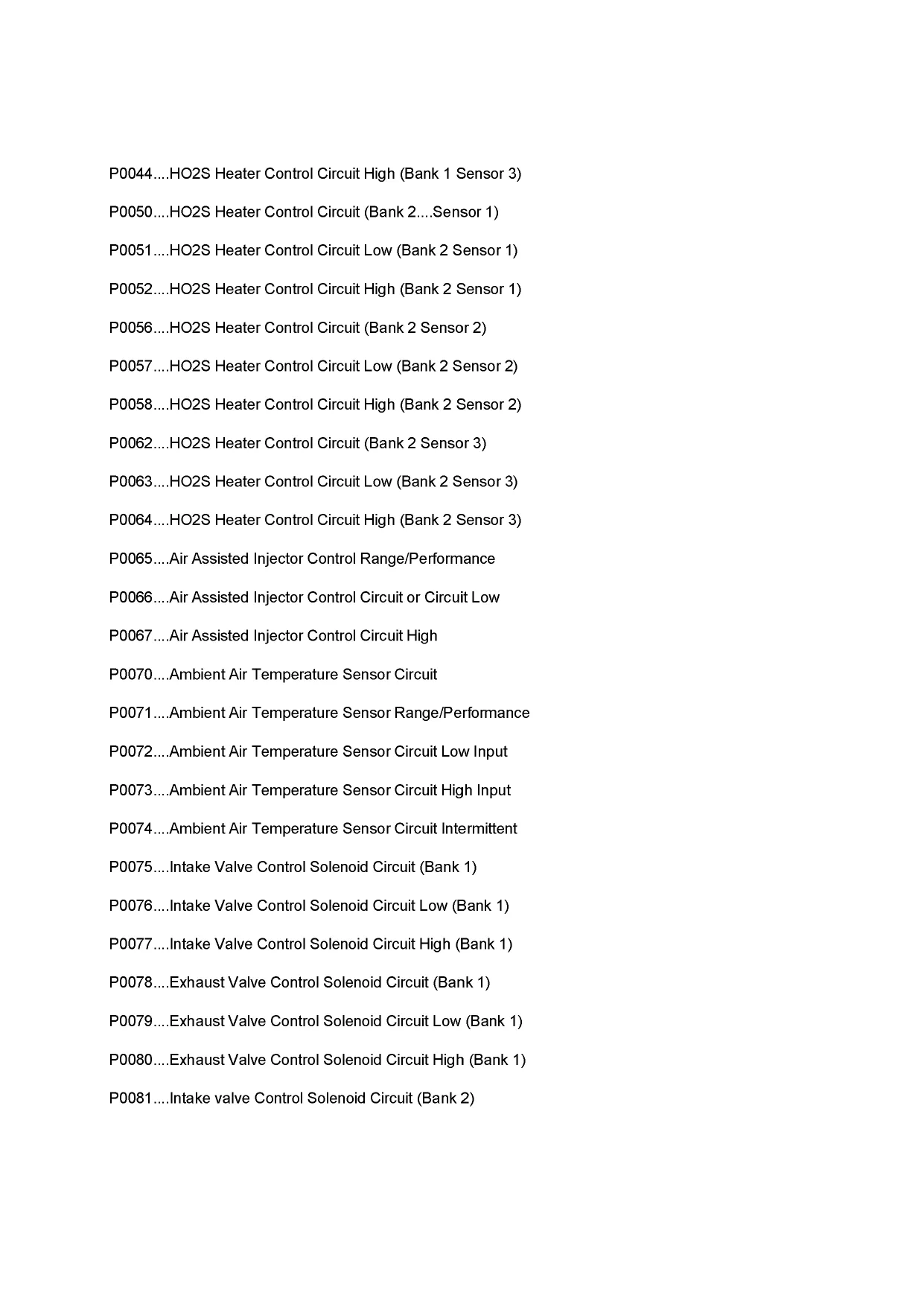

The GM and generic OBD-II files provide code definitions, rather than a repair procedure for every listed fault.

Engine, transmission, suspension, brake, and electrical work should be performed with the vehicle properly supported and the applicable electrical-isolation procedures followed. Critical measurements and assembly specifications should be checked by a qualified technician before heavy-line repair work is completed.

Examples of Crankshaft and Rotor Inspection Data

For the LA1 engine in the 1996–97 article, crankshaft end play is specified at 0.0024–0.0083 in.

The 1997 brake article lists a disc-rotor lateral-runout specification of 0.004 in. (0.10 mm).
