Chevrolet Models Covered & Key Technical Specifications

Model: Venture Minivan (V6, VIN code E in position 8, automatic transaxle)

Sub-models / Variants: Regular and Extended Wheelbase, Front-Wheel Drive, All-Wheel Drive

Seating Options: 60/40 Split Bench, 50/50 Split Bench, Captain's Chairs, Bucket Seats, Stowable Seat

Model Year: 2003


  • Optional Built-In Child Restraint Weight Capacity: 22 to 40 pounds (10 to 18 kg)

  • Optional Built-In Child Restraint Height Capacity: 33.5 to 40 inches (850 to 1016 mm)

  • System Compatibility: LATCH anchorage points for rear-facing and forward-facing child restraints at designated second-row seating positions

Chevrolet Manual Features & Selected Content Preview

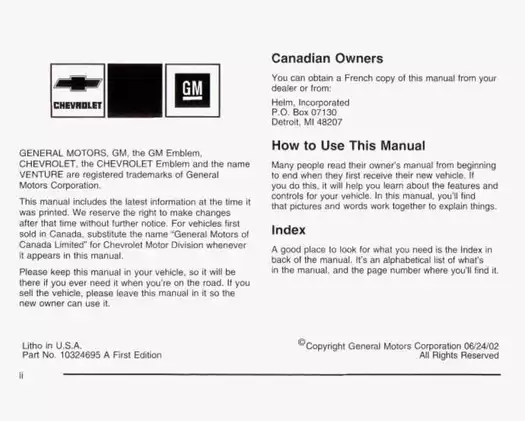

This first edition of the 2003 Chevrolet Venture Owner's Manual covers front-wheel-drive and all-wheel-drive minivans, including optional seating and cabin equipment. The GM publication number is P/N 10324695 A, and the copyright is dated June 24, 2002.

Finding Topics in the PDF

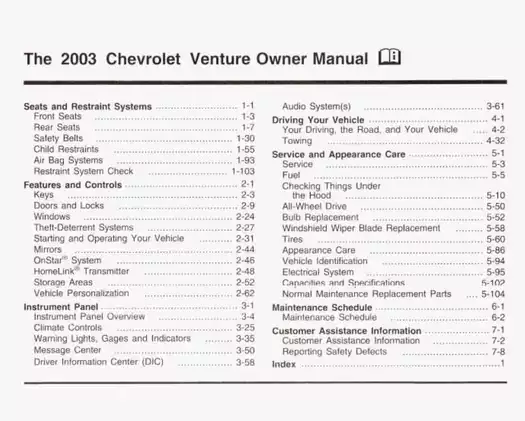

Search and bookmarks: Text search works across the manual, though OCR errors and some image-only instructions can hide a match. The 315 bookmarks link to chapters, individual topics, and the index. Small labels on the fuse maps are easier to read when enlarged, and some remain soft.

The download is one printable English-language PDF with 490 pages, including both covers, five introductory pages, eight notes pages, four maintenance-record pages, and an 18-page index.


Rear Seating, Power Doors, and Owner Maintenance

These selected topics show the range of the manual. Other sections explain winter driving and the indicator lights for the optional rear parking assist system.

  • Seating and restraints: Front-seat adjustments, rear-seat removal and installation, safety belt routing, LATCH anchor locations, and the optional built-in child restraint.

  • Door and security controls: Power sliding door resets, remote transmitter battery replacement and resynchronization, PASS-Key III key programming, and personalized locking settings.

  • Cabin equipment: Driver Information Center compass calibration, HomeLink programming for rolling-code openers, OnStar controls, front and rear climate controls, and audio and rear entertainment systems.

  • Scheduled maintenance: GM Oil Life System resets, fluid checks, engine air cleaner and cabin air filter replacement, recommended lubricants, and service intervals.

  • Roadside procedures: Step-by-step instructions for changing a flat tire and jump starting, plus illustrated procedures for replacing halogen headlamp bulbs and wiper blades.

  • Instruments and fuses: Instrument panel views identify warning lights and messages, including the AWD disable message. Fuse maps and usage tables identify protected circuits in both fuse blocks.

This manual is for Venture owners who want to operate the van, perform routine checks, and understand which maintenance their driving conditions call for.

Rear Seat Layouts and Child Restraints

The seat illustrations distinguish manual and six-way power front-seat adjustments. In the rear, the instructions show which seats fold or flip forward and how the removable seats line up with the floor mounts. The stowable bench folds level with the rear convenience center. Pulling it out by its release handles can break them.

The restraint sections show safety belt comfort guide placement and the lower-anchor and top-tether locations for different seats. For the built-in child restraint, GM also explains the age, sitting ability, and shoulder-height criteria. Follow the manual's occupant-positioning precautions for frontal and optional side-impact air bags.

Power Sliding Doors, Remotes, and Keys

A power sliding door can lose its settings after a weak or disconnected battery or an interruption at a door fuse. The reset procedure covers vans with one or two power doors. On a dual-door van, both doors need resetting. This gives owners a specific condition to check before arranging a door repair.

Owners can replace the remote battery and resynchronize an existing transmitter. A dealer matches a replacement transmitter and any remotes the owner intends to keep. The separate PASS-Key III procedure covers adding an ignition key when the required programmed keys are available. Personalization settings include delayed lighting and remote lock confirmation.

Maintenance Schedules and Service Limits

The schedule distinguishes owner checks from periodic inspections. Frequent trailer towing is one condition that changes when the automatic transaxle fluid and filter need service. AWD models also have lubricant checks for the power transfer unit and rear drive module.

The engine compartment overview identifies service points. The cooling section explains radiator filling and air bleeding, including how an incorrect fill can cause severe overheating. Capacity tables distinguish front-only from front-and-rear air conditioning and regular from extended models.

For parts identification, the manual explains the VIN engine code and the Service Parts Identification label. GM directs readers to separate service literature for internal engine and transaxle repair. Electrical coverage here consists of operating information, warning messages, and fuse assignments. Detailed circuit schematics and diagnostic trouble-code charts require service information.

Towing and Stowing a Flat Tire

The recreational towing section shows front-wheel-drive owners how the front wheels ride on a dolly. AWD models require carrier transport with all wheels off the ground.

The tire section explains the spare hoist's secondary latch and where the full-size flat goes after a tire change. A front-wheel-drive van can carry it on the underbody hoist. On an AWD van, the hoist holds the compact spare, and the full-size flat goes in the rear cargo area with its storage bag and retaining cable. The manual also explains the treadwear, traction, and temperature grades on replacement tires.

Sample Transaxle Fluid Capacities

For automatic transaxle pan removal and replacement, the capacity table lists approximately 7.4 US qt (7.0 L) for front-wheel drive and 8.7 US qt (8.3 L) for all-wheel drive. The same table lists complete-overhaul capacities separately.
