Honda CB1000P Shop Manual 1993–1998 (P/N 62MZ100)

217 Pages • ZIP Download: Printable PDF • 48.92 MB

4.6starstarstarstarstar_half(5)
$18.30 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Model: CB1000P

Sub-models / Variants: 49-state (A), California (AC)

Model Years: 1993–1998 (1993, 1994, 1995, 1996, 1997, 1998)

Trade Names: Super Four


  • Engine displacement: 998 cc (60.9 cu-in)

  • Engine configuration: 4-cylinder in-line, DOHC, liquid-cooled

  • Bore and stroke: 77.0 x 53.6 mm

  • Compression ratio: 10.0:1

  • Transmission: 5-speed, wet multi-plate clutch

  • Final drive ratio: 2.470 (42/17)

  • Cylinder compression: 1,350 kPa (192 psi) at 250 rpm

  • Valve clearance (IN): 0.10 ± 0.020 mm

  • Valve clearance (EX): 0.16 ± 0.020 mm

  • Spark plug (NGK): DPR9EA–9

  • Fuel tank capacity: 22 liters (5.8 US gal)

  • Curb weight (49-state): 260 kg (573 lbs)

Honda Manual Features & Selected Content Preview

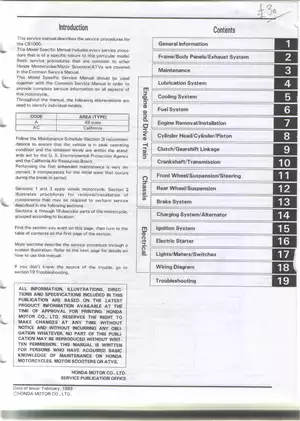

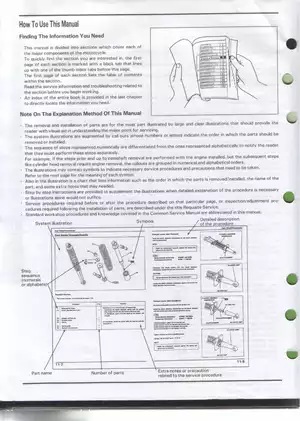

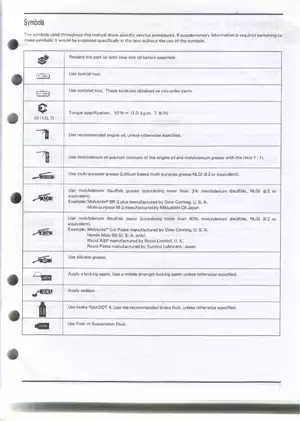

Honda’s February 1993 factory shop manual (P/N 62MZ100) covers the CB1000P, including A (49-state) and AC (California) configurations, in 19 model-specific sections.

PDF Bookmarks, Diagram Detail, and Page Count

Navigation and wiring detail: Embedded PDF bookmarks provide access to the contents, service chapters, and alphabetical index. PDF text search is not available. Small wiring-diagram labels and connector markings require zooming for comfortable reading.

The ZIP download contains one printable, 217-page PDF, including the front and back covers and five memo pages.


Engine, Carburetor, Chassis, and Electrical Service

The following selected service topics outline the repair coverage. Other included subjects include fuel-tank and exhaust-system removal, plus headlight and turn-signal bulb replacement.

  • Engine repair: Engine removal, camshaft and cylinder-head service, cylinder/piston work, crankcase separation, and select-fit crankshaft and connecting-rod bearing replacement.

  • Clutch and transmission: Hydraulic master/slave-cylinder repair, clutch replacement, gearshift linkage service, and transmission mainshaft and countershaft disassembly/assembly.

  • Carburetor service: Bank separation and combination, float and jet service, synchronization, pilot-screw idle-drop adjustment, high-altitude adjustment, and California emission-control components.

  • Lubrication and cooling: Oil-pan and oil-pump service, lubrication-system diagrams, coolant draining, thermostat replacement, radiator disassembly, and water-pump removal/installation.

  • Chassis and brakes: Fork overhaul, steering-stem service, wheel and swingarm work, rear-shock procedures, brake-pad replacement, and master-cylinder and caliper repair.

  • Electrical diagnosis: Charging and ignition troubleshooting flowcharts, starter-motor disassembly/assembly, meter and switch checks, system-location views, wiring diagrams, and switch-continuity charts.

This manual is written for readers who have acquired basic maintenance knowledge of Honda motorcycles, motor scooters, or ATVs.

Model Coverage and the Common Service Manual

California coverage follows the carburetor tubes, pulse secondary air injection system, evaporative canister, purge-control hardware, and emission-control labels through the relevant chapters.

Companion reference required: This model-specific volume is designed to be used with the separate Honda Common Service Manual, which is not included. Generic ball-bearing replacement, tubeless-tire work, oil-pressure testing, and brake-fluid draining, filling, and bleeding are among the procedures referred to that companion volume.

Engine Repair and Drivetrain Access

Top-end coverage reaches the cylinder-head cover, camshafts and timing, rocker arms, cam-chain tensioner, valves, cylinders, pistons, and related inspection limits. Illustrated component sequences are supplemented by step-by-step instructions where detailed explanations are needed.

In-frame versus engine-out work: Top-end parts, clutch, carburetors, balancer, stator, ignition pulse generator, and starter motor can be serviced with the engine in the frame. Crankshaft, transmission, shift drum and forks, and alternator shaft/starter clutch work require engine removal and crankcase separation. This distinction helps you plan access and engine removal before a major repair.

Bearing-selection tables cross-reference crankcase, crankshaft, and connecting-rod identification codes. Incorrectly positioned connecting-rod bearings can block oil holes, causing insufficient lubrication and eventual engine seizure.

Carburetor Adjustment and Emission Systems

Vacuum chambers, float chambers, and jets can be serviced without separating the carburetor bank. The manual also documents bank separation and recombination when those operations are required.

Troubleshooting distinguishes hard starting, flooding, poor idle, high-speed performance loss, lean or rich operation, and California emission-system faults. The California material includes Carburetor Tube Routing illustrations and model-specific connections and vacuum data for PAIR inspection, with the general inspection procedure referred to the Common Service Manual.

Compressed-air cleaning with the carburetor diaphragms still installed can damage them.

Suspension and Hydraulic Brakes

Chassis information includes handlebar controls, wheel bearings, swingarm pivot bearings, drive-chain-related service, and separate fork disassembly and assembly procedures.

Rear-shock instructions cover the spring, preload adjuster, spring guide, and complete damper unit. Nitrogen release is specified for disposal.

The dual-front/single-rear disc brake chapter supports master-cylinder and caliper repair with troubleshooting for drag, spongy operation, leakage, and restricted fluid passages.

Electrical Fault Tracing and Workshop References

Charging diagnosis separates current leakage, regulated output, regulator/rectifier checks, and alternator inspection. Ignition charts distinguish no spark at all plugs, at an ignition group, or at a single plug, helping relate the fault pattern to the relevant circuit checks.

Starter coverage explains interlock faults involving the clutch, neutral, and side-stand circuits. Other sections cover starter-motor repair, meters, lights, ignition-switch replacement, and side-stand switch service. Section 19 adds fault trees for hard starting, lack of power, poor low- or high-speed performance, and poor handling.

Visual references include the Lubrication System Diagram, cooling-system System Flow Pattern, charging-system System Location drawing, ignition troubleshooting charts, and the section 18 wiring diagram with switch-continuity tables.

Specification pages provide component-specific torque tables, lubrication and seal points, capacities, clearances, wear limits, bearing-selection data, suspension settings, and electrical test values.

Factory tools: Listed equipment includes vacuum gauge 07404-0030000, valve-spring compressor 07757-0010000, piston compressor 07PME-MZ20100, fork-seal driver 07947-KA50100, and shock-absorber compressor 07GME-0010000.

Work involving fuel, hot coolant, hydraulic brake or clutch systems, battery circuits, engine handling, and the nitrogen-charged rear shocks requires the workshop protection and precautions specified in the manual.

Examples of Carburetor and Electrical Test Specifications

For carburetor synchronization at normal engine operating temperature with the transmission in neutral, the specified vacuum difference is within 40 mmHg (1.6 inHg), using No. 3 carburetor as the reference.

Electrical inspection data specifies alternator charging-coil resistance of 0.3–0.5 Ω and ignition pulse-generator resistance of 460–580 Ω, both at 20°C (68°F). The corresponding sections describe connector-based checks without removing these components.
