1983 Honda CB1100F Service & Repair Manual (P/N 61MG500)

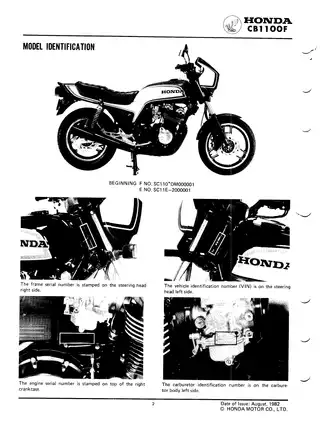

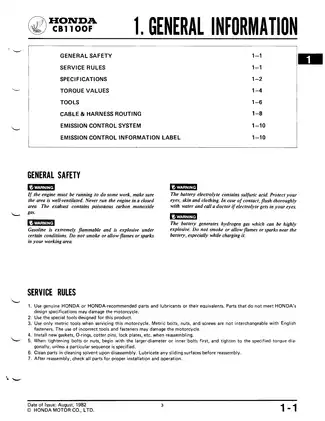

• Exact model coverage: Covers the 1983 Honda CB1100F Super Sport, beginning with frame No. SC110*DM000001 and engine No. SC11E-2000001; the specified carburetor identification is VB56A. This 273-page PDF reproduces the Honda Motor Co., Ltd. Service Publications Office issue dated August 1982.
• Engine and driveline repair: Covers engine removal and installation, camshaft and cylinder-head service, valve-guide replacement and valve-seat refacing, cylinder and piston work, crankcase separation, crankshaft/connecting-rod and primary-shaft inspection, select-fit bearing work, clutch and starter-clutch service, and five-speed transmission, shift-fork, and shift-drum repair.
• Fuel-system diagnosis and setup: Details carburetor removal, separation, and assembly; vacuum-cylinder, float-and-jet, air-cutoff-valve, and accelerator-pump work; fuel-line diaphragm service; carburetor tube routing; synchronization; fast-idle and pilot-screw adjustment; and the U.S.-market high-altitude adjustment procedure.
• Chassis and brake work: Includes front-wheel and steering-stem repair, telescopic air-fork and TRAC anti-dive service, rear-wheel and swingarm repair, VHD shock spring and adjuster work, brake-fluid replacement and air bleeding, pad and disc inspection, master-cylinder overhaul, and front and rear caliper repair.
• Electrical diagnosis: Provides on-motorcycle charging-system tests, alternator removal and installation, transistorized ignition fault isolation, starter motor/relay/diode checks, switch continuity tests, cable and harness routing, and the machine wiring diagram.

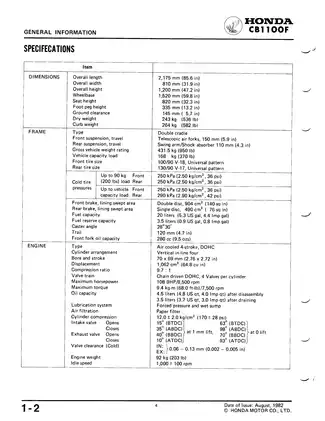

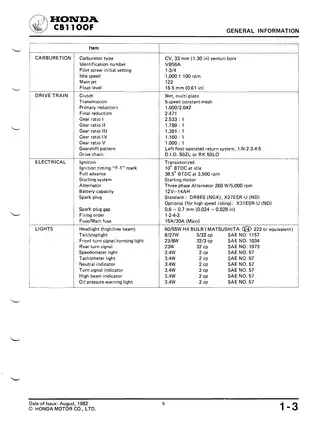

• Factory reference material: Supplies section-specific troubleshooting, maintenance schedules, torque tables, pressure-test data, fluid capacities, clearances, wear limits, electrical test values, and Honda special-tool numbers. Named illustrations include the Engine Lubrication Diagram, Cable & Harness Routing, Carburetor Tube Routing, Ignition System schematic, Electric Starter circuit, and Wiring Diagram.

Model-Specific Shop Scope

This is not an owner's handbook or a specifications-only booklet. Honda organized it around repair work, with section illustrations followed by service data, troubleshooting, inspection, assembly, adjustment, and operational checks.

The manual separates in-frame work from repairs that require major teardown. The camshafts, carburetors, clutch and starter clutch, gearshift linkage, alternator, and starter motor can be serviced with the engine installed. Cylinder-head and cylinder/piston repair require engine removal, while crankshaft, connecting-rod, primary-shaft, and internal transmission work require separation of the crankcase halves. This distinction helps with labor, lifting support, workspace, and parts planning before a repair begins.

Engine, Fuel, and Drivetrain Detail

For the 1,062 cc air-cooled DOHC inline-four, the top-end chapters cover camshaft removal and installation, cam-chain guides and tensioners, cylinder-head disassembly, valve-guide replacement, valve-seat inspection and refacing, and final valve adjustment. Camshaft holders are position-marked from A through L, and the lubrication passages and oil line are treated as critical assembly checks.

Bottom-end coverage goes beyond an exploded view. It includes crankshaft and connecting-rod bearing inspection, Honda color-code bearing selection, Plastigauge clearance verification, primary-chain tensioner work, primary-shaft assembly, transmission gear inspection, and shift-fork and shift-drum service. Factory reference data include valve-clearance and compression specifications, oil capacities, ignition-timing data, and component-specific torque values for the primary drive gear and other major fasteners.

The fuel section follows the complete VB56A carburetor bank rather than stopping at external adjustment. It addresses vacuum pistons, floats and jets, pilot screws, air-cutoff valves, the accelerator pump, fuel-line diaphragm, linkage, bank separation, synchronization, routing, and diagnosis of hard starting, rough idle, lean or rich running, misfire, backfire, and poor fuel economy.

Chassis, Electrical, and Scope Limits

Front-suspension coverage includes fork removal, seal and bushing inspection, damping components, the anti-dive case, orifice and check valve, steering-stem bearings, and wheel service. The rear section covers wheel bearings, driven flange and sprocket, swingarm bearings, and VHD shock spring and adjuster service. The sealed rear-shock damper is not taken apart internally, and tubeless-tire repair is referred to a separate Honda Tubeless Tire Manual.

Brake repair includes fluid replacement, bleeding, pad and disc checks, front and rear master cylinders, calipers, and brake-pedal components. Electrical chapters cover the battery and charging circuit, voltage regulator/rectifier, the two ignition subsystems serving cylinders 1/4 and 2/3, the electric starter circuit, switches, wire-color codes, and the full wiring schematic.

The manual also flags repair traps that matter on this engine. The valve-adjusting depressor must not be used as a pry bar because it can damage the lifter and camshaft, and the crankcase halves must not be separated by prying between their mating surfaces. Fork air pressure must be released before disassembly; brake fluid can damage paint and instrument lenses; and brake operation must be checked before the motorcycle returns to service.

Special Tools and Workshop Data

Honda's tool tables identify the oil-pressure gauge 07506-3000000 with attachment 07510-4220100, rotor puller 07933-4250000, primary-gear holder 07924-4250000, fork-seal driver 07947-4630100, and rear-shock-absorber compressor 07959-3290001. Standard-versus-service-limit tables support measurement-based repair decisions across the engine, transmission, wheels, suspension, brakes, starter, and charging system.
